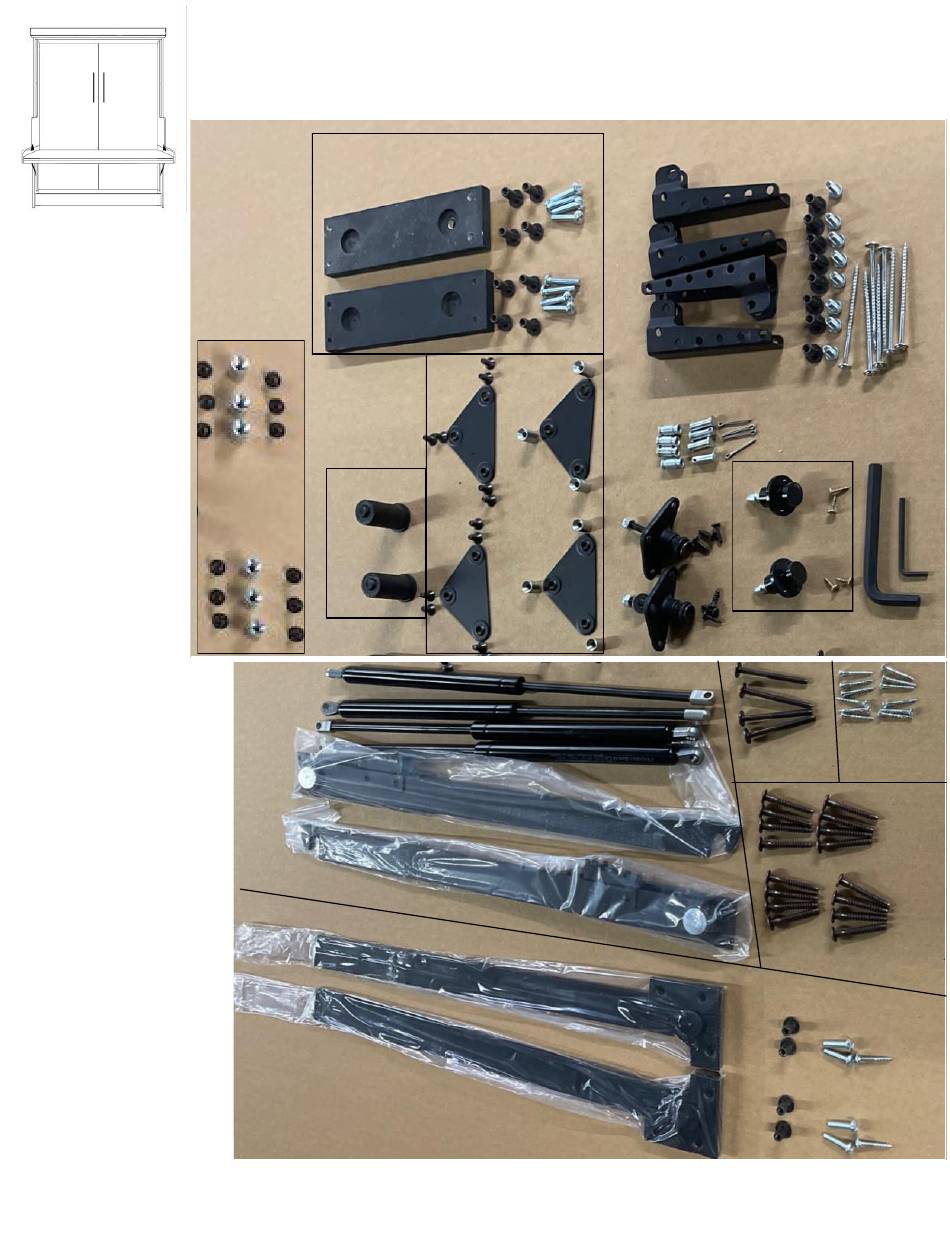

A (2) ARMS WITH 4
PISTONS
B HINGE BOLTS AND
SLEEVES
C 2 SETS LINK PIVOT
PLATES
D 4 CLEVIS PINS
E CLEVIS PINS
F 4 PISTON
CONNECTORS
G (2) BLACK LOCKS &
SCREWS
H MACHINE BOLTS
I CONFIRMAT
J T NUTS
K WOOD SCREWS
L TRUNION SLEEVES
AND BOLTS
M (2) TRI-BEARER
N LOWER
BRACKET SCREWS
P (4) LOWER PISTON
BRACKETS
Q 4MM + 10MM
ALLEN WRENCH
R LOCK SCREWS
T 2 SWING LEGS
BOLTS & T NUTS
U (2)WOOD BLOCKS
(8) T NUTS & (8) 1.25" BOLTS
WARNING!
ALL PISTONS CONTAIN STORED ENERGY. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE
PRODUCT, PERSONAL INJURY OR DEATH.. PLEASE CALL 916-607-7728 WITH ANY QUESTIONS.

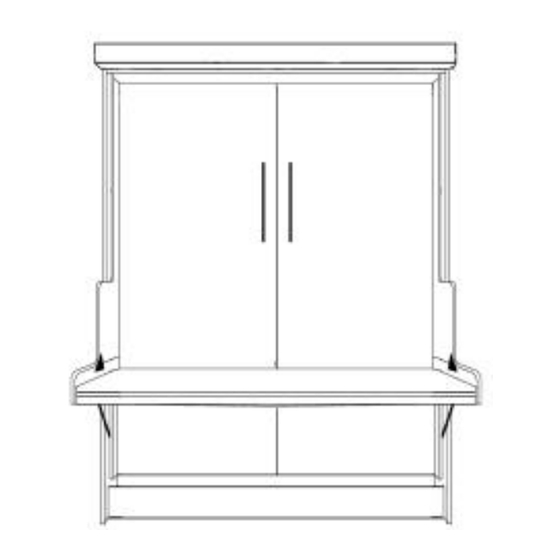

DVB50, EVB50, IVB50, PVB50, RVB50, VVB50
Vertical Desk Bed-INSTALLATION GUIDE
B
L
A
U
C
M
T
P
N
E
D
F
G
R
H
J
K
Q
K
I
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wallbeds DVB50
Summary of Contents for Wallbeds DVB50
- Page 1 DVB50, EVB50, IVB50, PVB50, RVB50, VVB50 Vertical Desk Bed-INSTALLATION GUIDE A (2) ARMS WITH 4 PISTONS B HINGE BOLTS AND SLEEVES C 2 SETS LINK PIVOT PLATES D 4 CLEVIS PINS E CLEVIS PINS F 4 PISTON CONNECTORS G (2) BLACK LOCKS &...
-
Page 2: Cabinet Assembly
1. CABINET ASSEMBLY Attach the arm (A) to the cabinet sides using T nuts (J) and machine bolts (H). Then attach the lower piston brack- ets (P) using T nuts and bolts (O). Connect the pistons to the lower pis- ton brackets (B) using clevis pins and cotter pins (E). - Page 3 CABINET ASSEMBLY Continued STAND UP ASSEMBLED CABINET Be sure that the cabinet is perfectly square on the wall (shown below). Visually check the alignment of the mat- Attach the headboard using tress tray and cabinet by looking at the narrow space between the mattress 4 confirmat bolts (I).
- Page 4 3. ASSEMBLE THE TRAY Attach the tray wings to the tray. Attach each tray wing to the back of the tray using bolts. The back of the tray is identified because it is a taller piece FRONT TRAY WINGS be sure that the thick part of the nylon sleeve is facing inward BACK...
- Page 5 4 INSTALL THE DESK ATTACH DESK TO TRAY– With the tray resting on the ground, mattress side facing down stand the desk up into the tray as shown. Connect the desk to the tray using (C ) INSTALLING THE LINK PIVOT PLATES ( C) 5.
- Page 6 6. INSTALL TRAY INTO CABINET Flip the desk and tray over as shown. Slide it into the cabinet. TRUNION 7. CONNECT TRAY TO CABINET– TRUNION Using trunion sleeve and 10mm bolt (N) using 10 mm allen wrench (Q) Tighten bolt to arms. Caution–...
- Page 7 8 CAREFULLY STAND UP THE BED TRAY AND INSERT IT INTO THE CABINET. 9 ATTACHING THE ARM One person needs to hold the bed shut while the second person pulls back the arm hook into the desk bearer assembly on the desk. www.wallbedscompany.com 916-607-7728 sales@wallbedscompany.com...
- Page 8 10. FINISHING STEPS INSTALL LOCKS Install the locks(G) using the lock Screws (R.) Install oval head wood screws (K) into the ATTACH THE SUPPORT LEGS ( T ) using 2 silver flat head machine screws and black T nuts. Use wood screw in the bottom hole as shown at right. . WOOD SCREW ATTACH DECORATIVE HANDLES...
- Page 9 WARNING!! Your Wallbed! MUST be anchored to wood studs or other structural members to prevent damage or injury. If you are working with sheet metal studs, cin- der block, brick, or concrete, you must provide three anchor points of 100 pounds strength each, before installing a Wallbed!.
