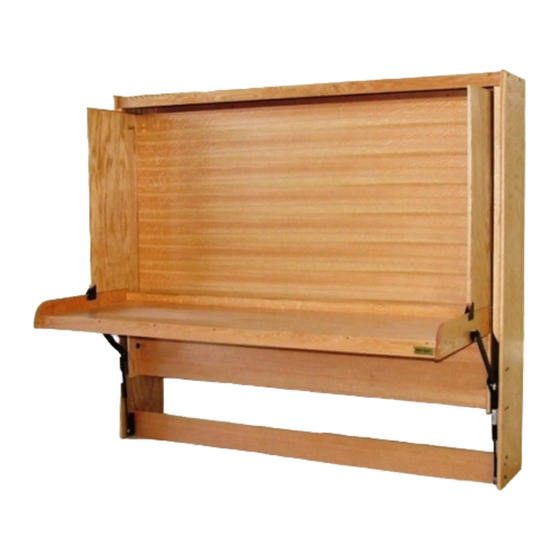

Congratulations on choosing a quality "real wood"
Hiddenbed from Wallbeds! Since 2000 we have
manufactured the Hiddenbed in the U.S.A. Our beds
feature unique assembly bolts enabling the bed to be
taken apart and re-assembled hundreds of times with-
out compromising its integrity.
Here's what you'll need to assemble a Hiddenbed
Ladder
Cordless Drill
* Requires two people to assemble this bed
WARNING
Installer MUST insure that bed
is fastened securely to studs as
indicated in these instructions.
Failure to do so may result in
serious injury.
wallbedsinfo@yahoo.com 800-934-6711
A Product of
WALLBEDS!

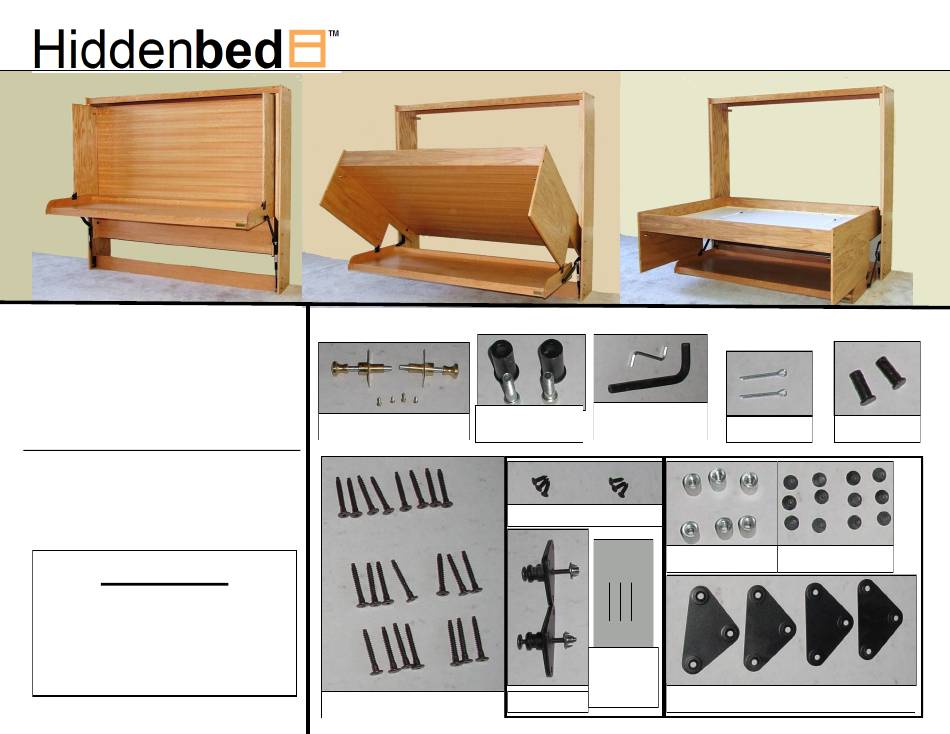

HARDWARE BOX COMPONENTS
Trunion Sleeves
2 BLACK LOCKS
and bolts
22 LAG BOLTS
Models CB and AB Installation
10 mm & 4 mm
ALLEN WRENCH
BEARERS SCREWS
Hinge Sleeves
3 1/2"
mounting
screws
BEARERS
Cotter pins
Clevis pins
Hinge Bolts
HINGE PLATES
