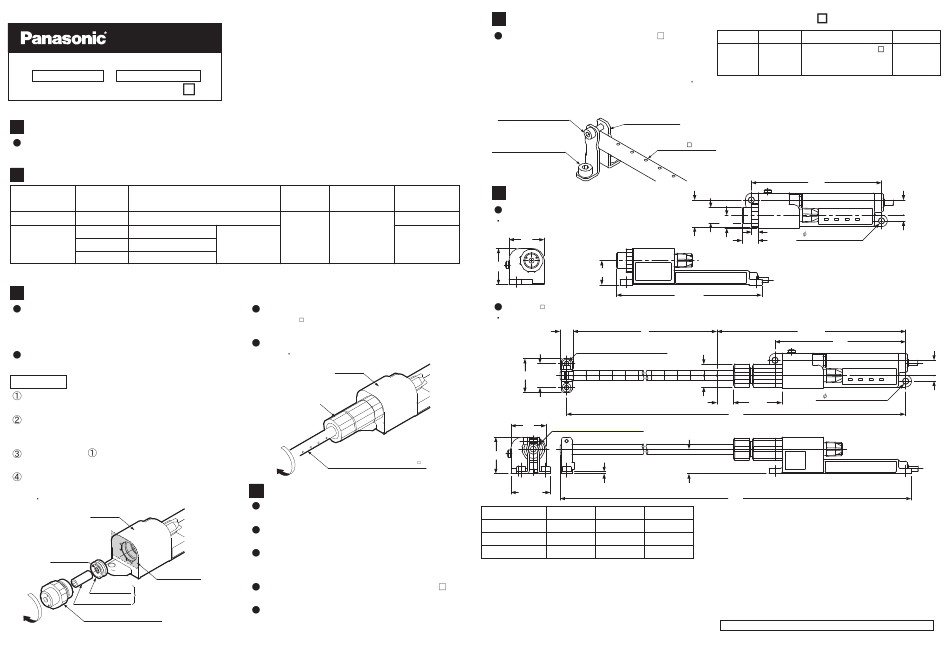

Panasonic ER-VS02 Instruction Manual

INSTRUCTION
MANUAL
Exclusive Nozzle for ER-VS02
Shower Nozzle Straight Bar Nozzle
ER-VAS ER-VAB
MJE-ERVAS No.0103-02V
1
OUTLINE

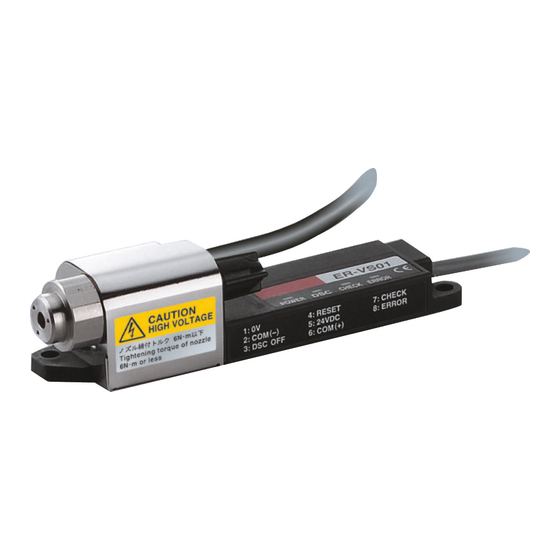

This product is to fit in the nozzle mounting part of the ultra-compact ionizer spot type (ER-VS02)
to convey the ionized air.
2 SPECIFICATIONS
Designation Model No. Description
Shower nozzle ER-VAS Nozzle without pipe.
ER-VAB020 Charge removal area 200mm
Straight bar
ER-VAB032 Charge removal area 320mm
nozzle
ER-VAB065 Charge removal area 650mm
Note: The supplied air pressure range is a specified value for the pressure applied to the nozzle.
3 MOUNTING
On the ultra-compact ionizer spot type (ER-VS02),
a protective film is affixed on the nozzle
mounting part. Be sure to remove it before
mounting the nozzle.
The insulating pipe and the attachment are enclosed
with the nozzle. Mount them as described below.
Procedure
Insert the insulating pipe into the center of the
shower nozzle (ER-VAS).
Direct the the convex part of the center of the
attachment towards you (See the figure below)
and insert it into ER-VS02.
In the state of , insert them into the nozzle
mounting part of ER-VS02.
Mount the nozzle into the nozzle mounting part
of ER-VS02. The tightening torque should be
6N m or less.
ER-VS02
Convex part
Protective film
Attachment
(Accessory)
Insulating pipe
Shower nozzle (ER-VAS)
Note: Be sure to fit the insulating pipe and the attachment.
When they are not fitted, the static removal capabil-
ity remarkably deteriorates.
Thank you very much for using Panasonic products.
Please read this Instruction Manual carefully and
thoroughly for the correct and optimum use of this
product. Kindly keep this manual in a convenient
place for quick reference.
Supplied air pres- Applicable
Material
sure range (Note) attachment color
Stainless
0.05 to 0.4MPa
Bar type nozzle
steel
having holes.
The air-flow direction of the straight bar nozzle
(ER-VAB ) can be adjusted, after mounting to
ER-VS02, by loosening the tightening nut.
The tightening torque after adjustment should
be 6N m or less.
ER-VS02
Tightening nut
Straight bar nozzle (ER-VAB )
4 CAUTIONS
This product has been developed / produced for
industrial use only.
Appropriate air pressure for each nozzle should
be used.
The static removal capability changes depending
on the air pressure value. Apply appropriate air
pressure for use.
Do not cut the straight bar nozzle (ER-VAB ).
The static removal capability gets unstable.
Be sure to use the suitable attachment for each
nozzle.
5 BAR NOZZLE HOLDER (Enclosed with ER-VAB )
When the straight bar nozzle (ER-VAB ) is used,
fit the enclosed bar nozzle holder (ER-VABH) as
shown in the figure below.
The tightening torque of the M3 hexagon-socket-
head bolt for bar nozzle fixing should be 0.6N m
or less.
M3 hexagon-socket-head
bolt for bar nozzle fixing
M4 hexagon-socket-head
bolt for holder mounting
6 DIMENSIONS (Unit: mm)
ER-VAS / Shower nozzle
White
Mounting drawing with ER-VS02
27
Black
28
18.8
ER-VAB / Straight bar nozzle
Mounting drawing with ER-VS02
10
M4 hexagon-socket-head bolt
26 18.5
27 M3 hexagon-socket-head bolt
28
(30.2)
Model No. A
ER-VAB020 200
ER-VAB032 320
ER-VAB065 650
Designation Mode No.
Bar nozzle
ER-VABH
holder
Bar nozzle holder
(ER-VABH)
Straight bar nozzle
(ER-VAB )
17.8
12
9.4
5
(12.3)
(111.6)
A
17.8
(12.7) (37)
(B)
18.8
t 1.5
(C)
B C
349.5 359
469.5 479
799.5 809
Panasonic Industry Co., Ltd.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
https://industry.panasonic.com/
Please visit our website for inquiries and about our sales network.
Panasonic Industry Co., Ltd. 2024
April, 2024
Description Material
Exclusive for ER-VAB .
This can be used at the tip Stainless steel
or middle of the nozzle.
100
11.7
2- 4.5 mounting holes 4.3
(144.5)
100
11.7
4.3
2- 4.5 mounting holes
PRINTED IN JAPAN
