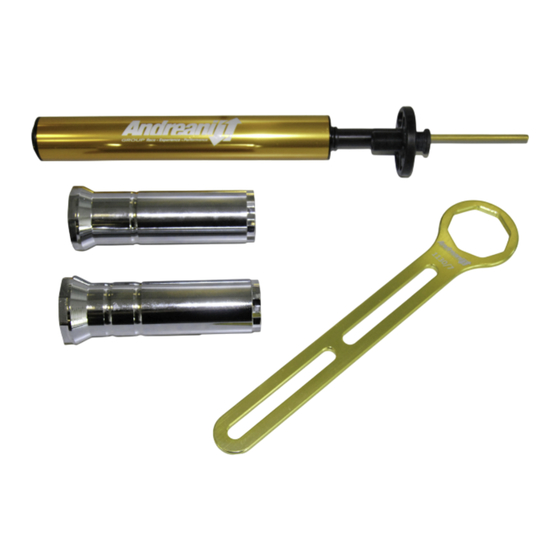

Mounting Instructions Andreani Misano BPF Cartridge
Unscrew the top cap from outer tube with tool cod.1130/7 and, af-
terwards, unscre top cap from damping rod (pic 1). Take off the dam-
ping rod spacer from damping rod (pic 2), with tool 1130/08 for Show-
a's 41mm forks and with tool 1130/09 for Showa's 43mm.

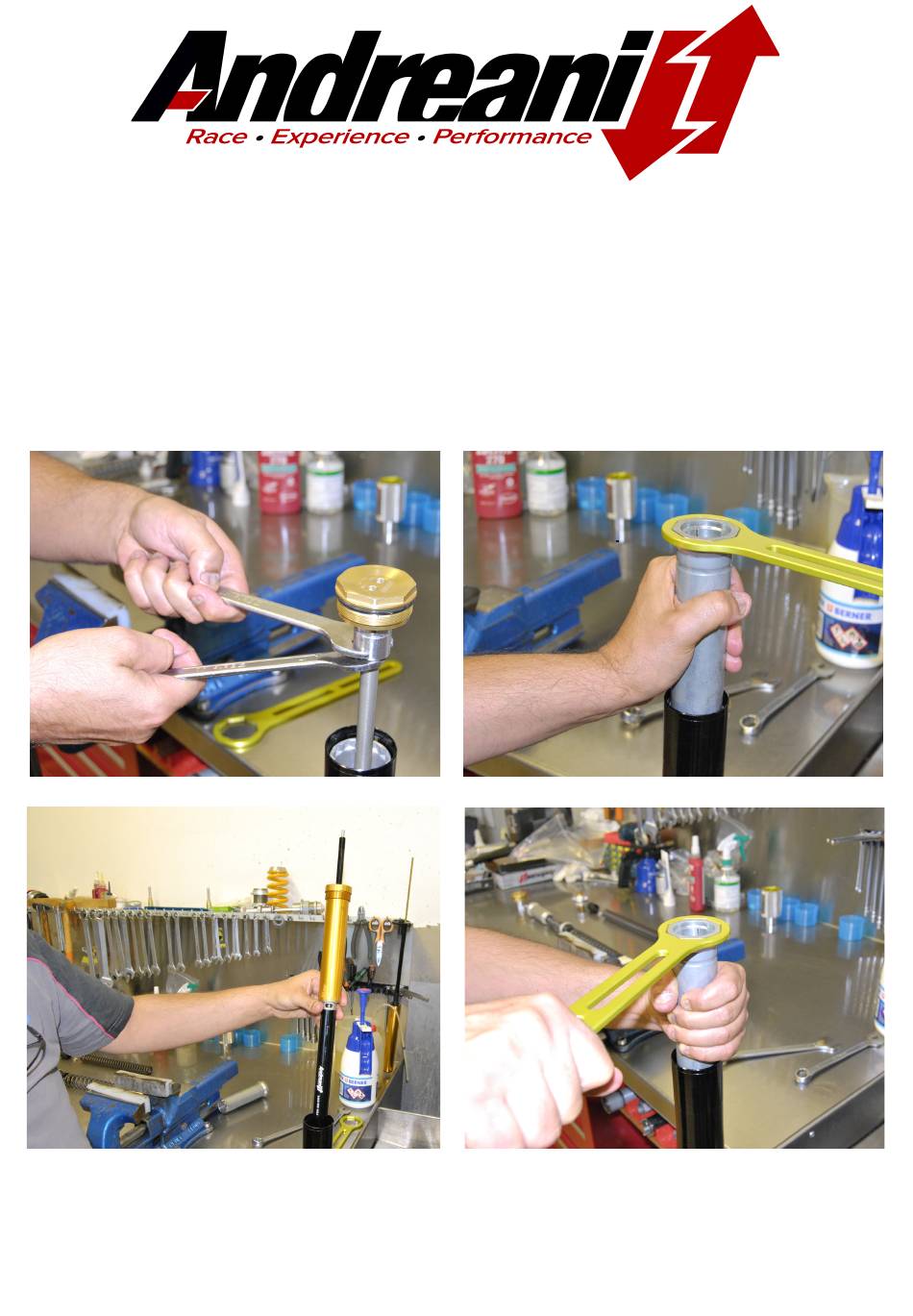

pic 1
pic 3
Take off the OEM cartridge. Insert the Andreani Misano kit without
spring, spring spacer and top cap (pic 3).
Screw in the Misano kit with same tool used with the dismounting pro-
cedure (pic 4).
MISANO
RACE USE ONLY
pic 2
pic 4
