Andreani Group Cartridge Kit Mounting Instruction

Mounting instruction of the Andreani Cartridge Kit.

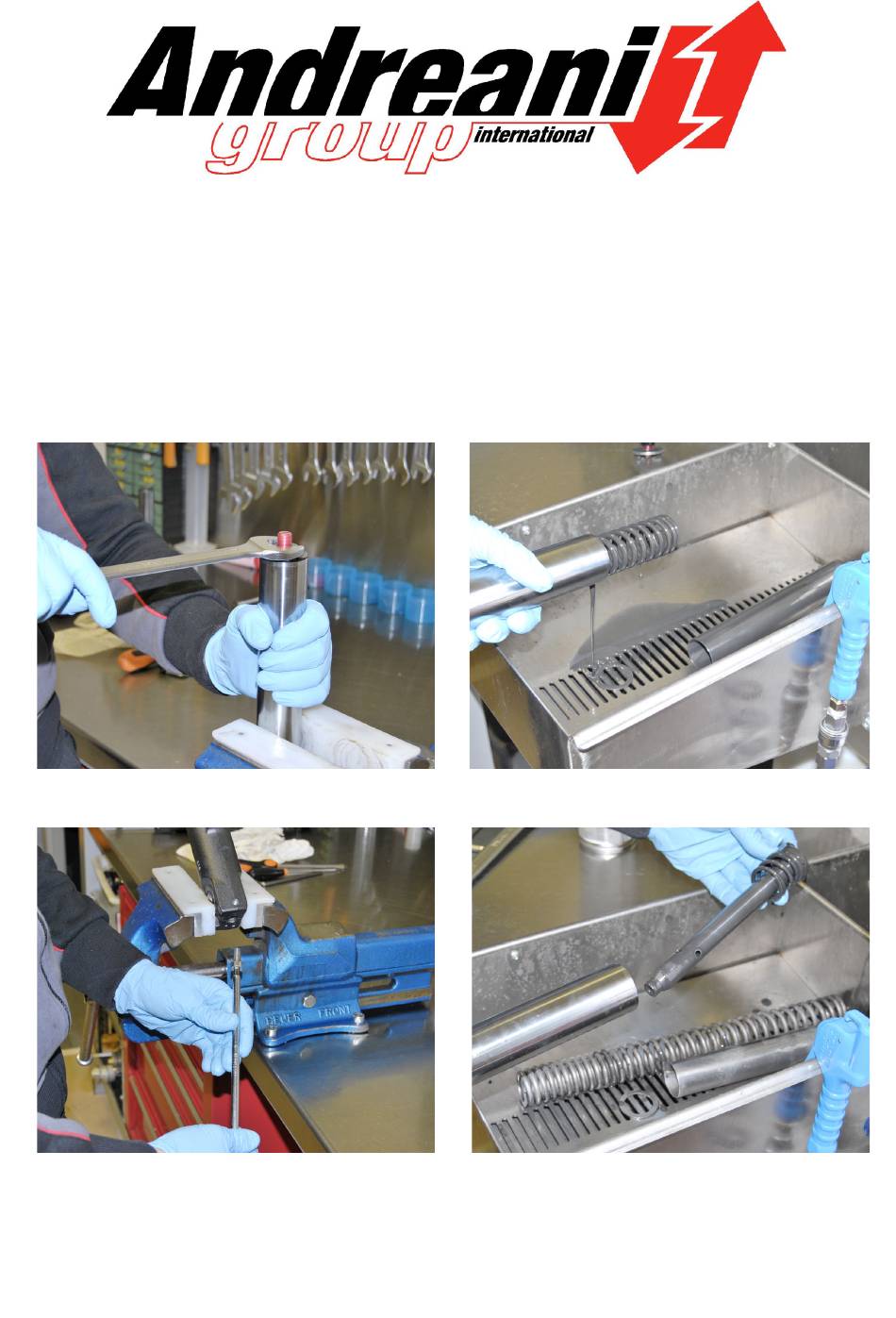

Screw off the upper cap of the fork (Pic 1)

Take off completely the oil you have inside, take off the

springs and the spacer (Pic 2)

pic 1

pic 3

Screw off the lower screw that tights the outertube to the

cartridge cone (Pic 3)

Remove the cone and stroke limiter. (Pic 4)

RACE USE ONLY

pic 2

pic 4

Table of Contents

Need help?

Do you have a question about the Cartridge Kit and is the answer not in the manual?

Page 1 Mounting instruction of the Andreani Cartridge Kit. RACE USE ONLY Screw off the upper cap of the fork (Pic 1) Take off completely the oil you have inside, take off the springs and the spacer (Pic 2) pic 1 pic 2...
Page 2 Take off the Dust cap from the outertube (Pic 5) Remove the stop ring from the outertube (Pic 6) pic 5 pic 6 pic 7 pic 8 Disassemblare lo stelo dal fodero (foto 7). Throw out, with a lathe machine, the reduction bush of the innertube (Pic 8)
Page 3 Remove the bush (Pic 9) Reinsert the innertube into the outertube (Pic 10) cod. 1213 pic 9 pic 10 pic 11 pic 12 Insert the Andreani Cartridge into the fork (Pic 11) Fill the innertube with Öhlins oil 01309-01 (Pic 12)
Page 4 Make the oil level with tool cod. 1115 respecting the air-chamber values given in the last page of this manual (Pic 13). Insert spring and spacer into the fork (Pic 14). cod. 1115 pic 13 pic 14 cod. 1219 pic 15 pic 16 Mount the Cap, with the shaft completely down into the cartridge and making a Phase* of 4 turns (Pic 15).
