Summary of Contents for A.M.I. AED Saver One T

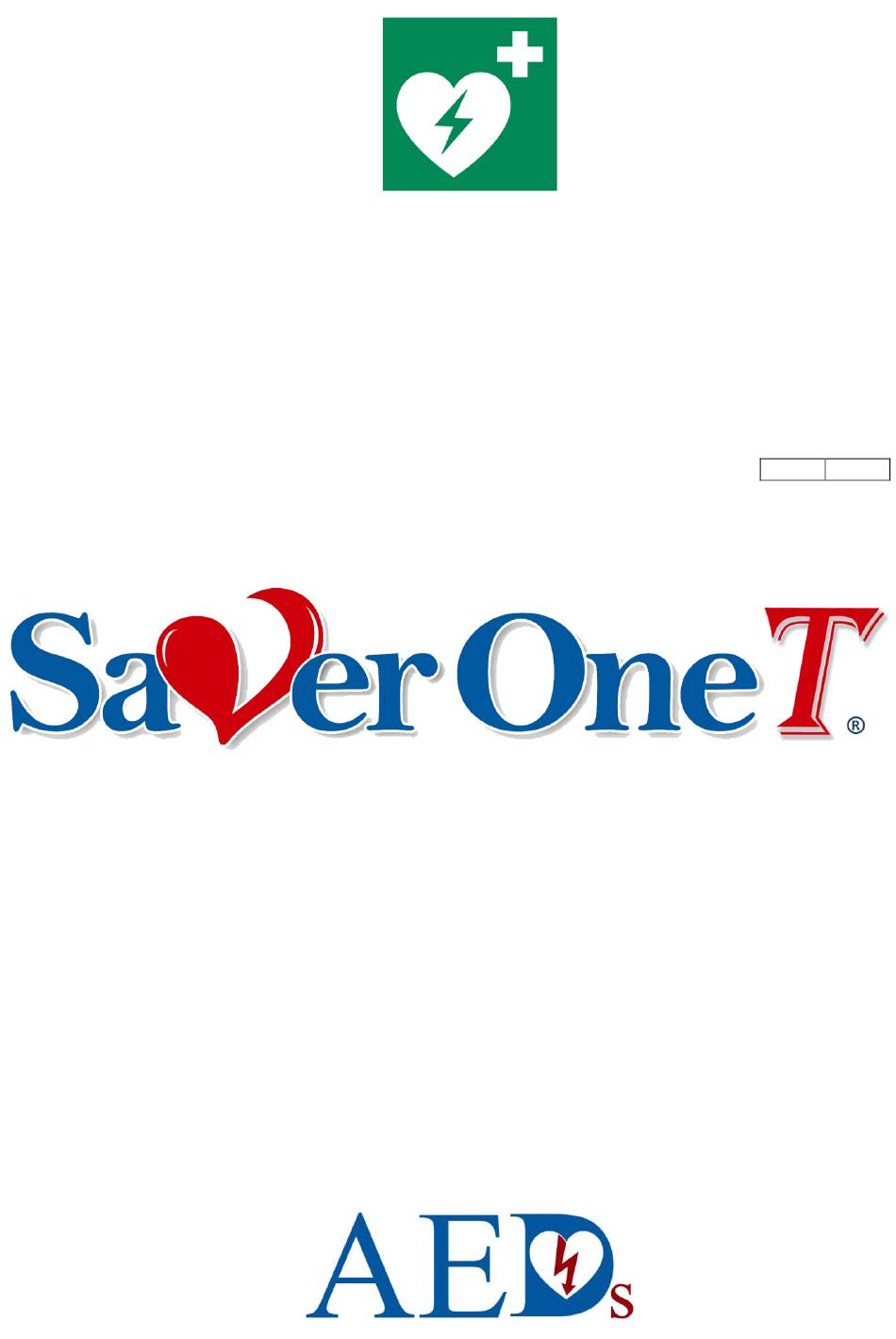

- Page 1 AED TRAINER USER MANUAL Rev.
-
Page 2: Quick Use Guide
QUICK USE GUIDE... - Page 3 ©by A.M.I Italia S.r.l. These instructions for use may not be reproduced - either as a whole or partially - without our consent, nor may they be transmitted, electronically stored or be translated in another language. Breaches of this prohibition do not only violate our copyright, but also compromise the truthfulness and accuracy of the information contained in this manual.
-
Page 4: Table Of Contents
SUMMARY INTRODUCTION ............................5 Use in accordance with provisions ....................5 Version information ........................... 5 Symbols in the manual ........................5 Manufacturer contacts ........................6 DESCRIPTION OF THE DEVICE ........................7 Device Information ..........................7 General structure of the device: keys, icons and indicators ............. 7 Keys, icons and indicators ......................... -
Page 5: Introduction
1. INTRODUCTION The Saver One T is an instructional AED designed to train emergency responders in the use of the SAVER ONE AED range; it can be used to instruct lay users as well as to train experienced rescuers. Designed to meet the needs of any instructor, it guides rescuers through the use of the Saver One defibrillator in the event of sudden cardiac arrest, an event that is simulated through 10 different scenarios for an extremely realistic experience. -
Page 6: Manufacturer Contacts
1.4 M ANUFACTURER CONTACTS A.M.I. Italia S.r.l. REGISTERED OFFICE Via G. Porzio Centro Direzionale Isola G/2 - 80143 Napoli (NA) Italy MANUFACTURE, LABORATORIES, OFFICES Via Cupa Reginella, 15/A - 80010 Quarto (NA) Italy Tel: +39 081 806 34 75 - Fax: +39 081 876 47 69 A.M.I. -
Page 7: Description Of The Device
2. DESCRIPTION OF THE DEVICE 2.1 D EVICE NFORMATION The Saver One T is a device designed exclusively for training purposes (BLSD medical and lay courses); in fact, the Saver One T trainer does not deliver any defibrillation discharge and therefore cannot be classified as a medical device. medical device. -
Page 8: Keys, Icons And Indicators
2.3 K ICONS AND INDICATORS Image 2 Function Function “Patient Type” Indicator Indicates the type of mode in use: Product logo Adult if you insert Adult PADs Indicates the model of the device Child if you insert paediatric PADs "Place PADs" Indicator "CPR"... -
Page 9: Accessories Supplied With The Device
2.4 ACCESSORIES SUPPLIED WITH THE DEVICE The Saver One T comes with the following accessories: Code Quantity Description SVT-B0959 1 Unit Trainer Saver ONE T SVT-C0939 1 Unit Cable for training Pads SVT-C0612 1 SET Training Pads SVT-C0957 1 Unit Rechargeable battery 12V 2Ah PRD-FNL-00316 1 Unit... -
Page 10: Control Led
2.5 C ONTROL The control LEDs are located on the keypad of the Saver ONE T Trainer. Based on the different colours of the control LED, the operator can independently deduce the functional status of the device and the battery. The following table shows the flashing coding of the control LED: Image 4... -
Page 11: Power Supply
3. POWER SUPPLY 3.1 R ECHARGEABLE BATTERY The Saver One T is powered by a Ni-MH 12V - 2Ah battery that can be recharged through the charger (PRD-FNL- 00316) by connecting the output connector of the latter to the one on the back of the battery, as in figure 5. The device can also be used while the battery is being recharged. - Page 12 loader other than the one supplied. Image 8 The LED on the charger can be used to monitor the progress of battery charging: Status alternately flashing Inserting the connector into the battery Red/Green (approx. 2 seconds) and connecting to AC mains Red LED steady Charge in progress Green LED steady...
-
Page 13: Interconnection Cable And Electrodes
4. INTERCONNECTION CABLE AND ELECTRODES The Saver ONE T is supplied with a reusable cable to which the simulation electrodes (PADs Trainer) can be connected via the button clip (Image 10). Image 9 Image 10 With proper care, the trainer electrodes can be reused several times: - Always keep the adhesive side clean. -
Page 14: Irda Remote Control
5. IrDA REMOTE CONTROL The IrDA remote control is supplied with the Saver One T Trainer. It is powered by two AAA batteries (also supplied) which must be inserted into the battery compartment at the back as shown in figure 11. Image 11 5.1 R EMOTE CONTROL FUNCTION... -
Page 15: Operating Instructions
6. OPERATING INSTRUCTIONS The device is turned on exclusively by the "on/off" button on the keypad, while it can also be turned off by remote control. If used without the remote control, the default simulation will be that of the preset scenario, i.e. "Shockable rhythm"; using the remote control, however, it will be possible to select and access the simulation of both rapid events and the 10 rescue scenarios available. -
Page 16: Available Scenarios
6.1 A VAILABLE SCENARIOS The following are the 10 types of rescue scenarios available in the Saver One T trainer: SIMULATED AUDIBLE MESSAGGES Scenario PATIENT DEFIBRILLATING RHYTHM Pressing the shock button is required to simulate shocking a patient, following which 5 CPR cycles (30 compressions and 2 insufflations) will commence. -
Page 17: Maintenance
7. MAINTENANCE Saver ONE T must be placed in a place where the environmental and safety conditions indicated in the table below are met, at the temperature and humidity specified in chapter 8. Do not use, install or store the SAVER ONE T in conditions Do not install or store the of temperature or humidity... -
Page 18: Technical Specifications
8. TECHNICAL SPECIFICATIONS 8.1 P HYSICAL CHARACTERISTICS Category Nominal specifications Dimensions 26,5 x 21,5 x 7,5 cm 1,10 Kg (with battery Ni-MH Ref SVT-C0957) Weight 8.2 E NVIRONMENTAL REQUIREMENTS Category Nominal specifications Temperature Operational e standby: 0°C to 55°C (32°F to 131°F) Storage and transport: -35°C to 65°C (-31°F to 149°F) Operating conditions... -
Page 19: Declaration Of Conformity
9. DECLARATION OF CONFORMITY... -
Page 21: Product Registration
PRODUCT REGISTRATION In order to guarantee a correct and rapid traceability of the product sold, we ask you to complete the form below and send it by fax or registered letter to A.M.I. Italia S.r.l. -
Page 22: Saver One T Warranty
SAVER ONE T WARRANTY 1 Warranty Restriction 5 Damage A.M.I. Italia S.r.l guarantees the original purchasers that its Saver One T Except as explicitly provided in this warranty, A.M.I. Italia S.r.l, WILL and related accessories and batteries are free from any material or NOT BE LIABLE FOR ANY INCIDENTAL OR INDIRECT manufacturing defect according to the terms and conditions of this DAMAGES ARISING FROM THE USE OF THE SAVER ONE T OR...
