Perrin PSP-SUS-234 Quick Start Manual

16mm Rear Sway Bar for BRZ/FR-S
Thank you for purchasing this PERRIN product for your car! Installation of this product should only be performed by persons experienced with installation of aftermarket performance
parts and proper operation of high performance vehicles. If vehicle needs to be raised off the ground for installation, the installer must use proper jacks, jack-stands and/or a
professional vehicle hoist for safety of the installer and to protect property. If the vehicle is lifted improperly, serious injury or death may occur! Please read through all instructions
before performing any portion of installation. If you have any questions, please contact our tech department prior to starting installation. We can be reached in any of the following
Installation of this product is a modification to the vehicle suspension. As a result, the vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle extreme
care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and
specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique
handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modificatio ns (and combinations of modifications) are not recommended
and may not be permitted in your state or country. Consult your owner's manual, service manual, instructions accompanying this product, and local laws before undertaking these
modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
SPECIAL NOTES:

The use of a factory service manual is highly recommended. These can be downloaded online at http://techinfo.subaru.com
Parts Included with the PERRIN BRZ/FR-S Rear Swaybar:


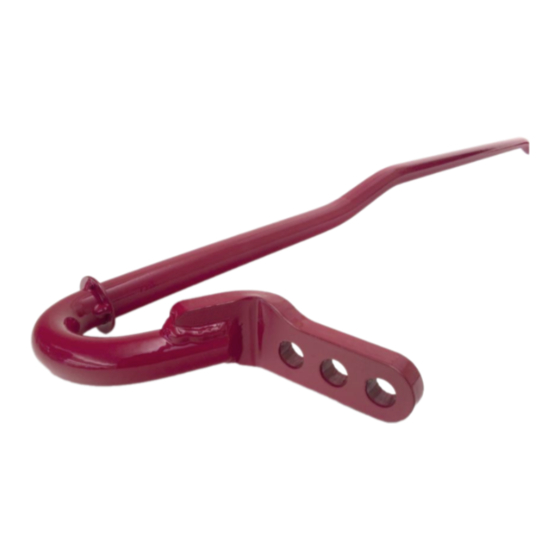

(1) 16mm BRZ/FR-S Rear Sway bar

(2) 16mm Sway bar bushing

(1) Energy Suspension Grease Packet
Installation PERRIN Sway Bar
1. Park car on a smooth level surface. Using suitable commercial vehicle hoist or floor jack, raise vehicle onto jack stands.
SOLELY SUPPORTED BY A JACK! DEATH OR INJURY MAY OCCUR.
2. Using factory service manual as a guide, remove (2) 14mm nuts securing endlink to sway bar, and 12mm bolts securing OEM bushing bracket to chassis
on each side of car.
3. Remove OEM sway bar along with bushings from car.
4. Using supplied lube, generously lubricate internal sleeves on bushings, and install bushings over sway bar. Rotate bushings around sway bar to ensure
the grease covers all surfaces of bar.
5. Install OEM bushing bracket removed previously, over bushing. Secure bushing bracket with OEM bolts and tighten to 12ft-lbs.
2015-08-20
methods:
Email Tech@PERRINperformance.com
Instant Chat off the main page of www.PERRINperformance.com
Or simply call our tech team at 503-693-1702
SUSPENSION INSTALLATION NOTE
UNDER A VEHICLE
NEVER WORK
