JC-110/108
©
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE
REFER TO THE OPERATION MANUAL.

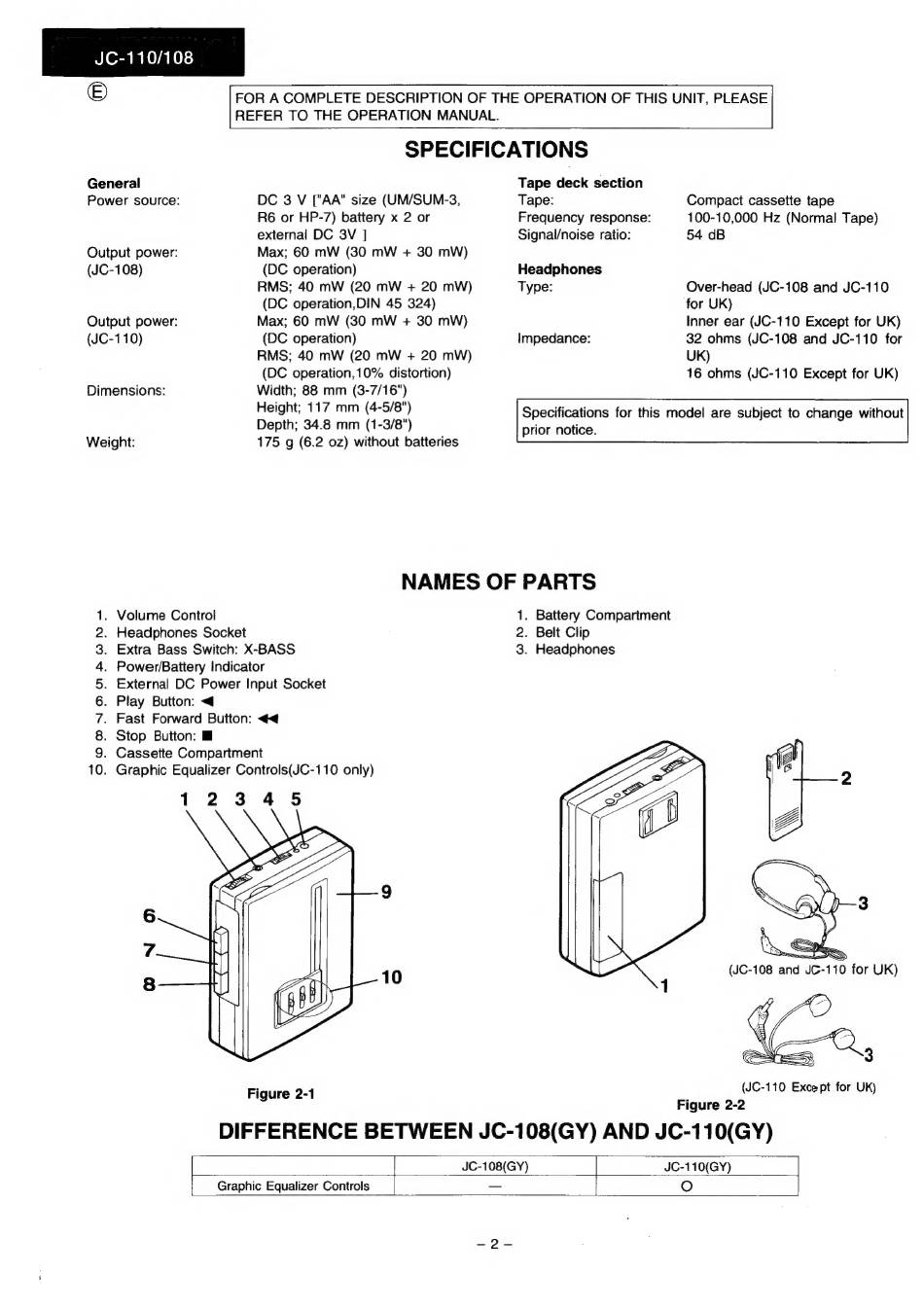

SPECIFICATIONS
General
Power source:
Output power:
(JC-108)
Output power:
DC 3 V ["AA" size (UM/SUN-3,
R6 or HP-7) battery x 2 or
external DC 3V ]
Max; 60 mW (30 mW + 30 mW)
(DC operation)
RMS; 40 mW (20 mW + 20 mW)
(DC operation,DIN 45 324)
Max; 60 mW (30 mW + 30 mW)
Tape deck section
Tape:
Frequency response:
Compact cassette tape
100-10,000 Hz (Normal Tape)
Signai/noise ratio: 54 dB
Headphones
Type: Over-head (JC-108 and JC-110
for UK)
Inner ear (JC-110 Except for UK)
Impedance: 32 ohms (JC-108 and JC-110 for
Uk)
16 ohms (JC-110 Except for UK)
Specifications for this model are subject to change without
prior notice.
NAMES OF PARTS
(JC-110) (DC operation)
RMS; 40 mW (20 mW + 20 mW)
(DC operation,10% distortion)
Dimensions: Width; 88 mm (3-7/16")
Height; 117 mm (4-5/8")
Depth; 34.8 mm (1-3/8")
Weight: 175 g (6.2 0z) without batteries
1. Volume Control
2. Headphones Socket
3. Extra Bass Switch: X-BASS
4. Power/Battery Indicator
5. External DC Power Input Socket
6. Play Button: <4
7. Fast Forward Button: <<
8. Stop Button: H
9. Cassette Compartment
10. Graphic Equalizer Controls(JC-110 only)
123 45
Figure 2-1
1. Battery Compartment
2. Belt Clip
3. Headphones
(JC-110 Except for UK)
Figure 2-2
DIFFERENCE BETWEEN JC-108(GY) AND JC-110(GY)
JC-108(GY)
JC-110(GY)
Graphic Equalizer Controls
oO
