Summary of Contents for CONCORD KWIKLIFT

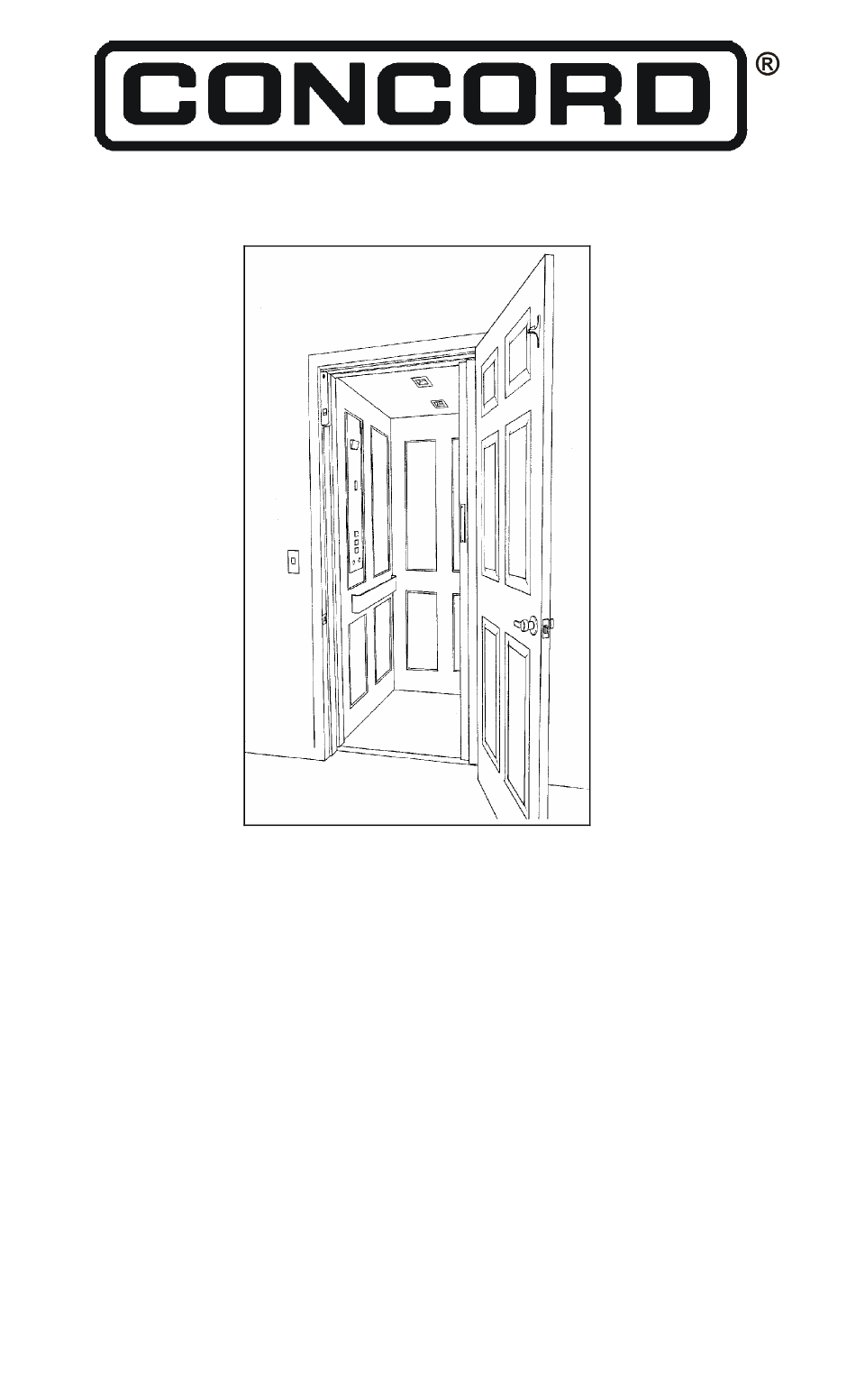

- Page 1 KWIKLIFT Residential Elevator OWNER’S MANUAL (To Be Retained by Owner After Installation by Authorized Concord Dealer) © 2000, Concord Elevator Inc. Part # 000570...
- Page 2 The owner should refer to this manual for operating instructions and precautions for usage of this product. Maintenance/Service instructions are covered in the Installation and Service Manual for the Kwiklift Elevator which is retained by the installing dealer. The owner is responsible for ensuring the ongoing safe operating condition of the Kwiklift Elevator through proper maintenance and servicing.
-
Page 3: Table Of Contents
CONCORD ELEVATOR INC. CONCORD KWIKLIFT ELEVATOR OWNER’S MANUAL TABLE OF CONTENTS PAGE 1 YEAR LIMITED WARRANTY..............1 GENERAL SPECIFICATIONS ............... 2 OPERATING INSTRUCTIONS............... 3 OPERATING THE ELEVATOR FROM THE LANDING CONTROLS ..3 OPERATING THE ELEVATOR FROM THE CAB CONTROLS....3 EMERGENCY LOWERING DEVICE............ -
Page 4: Year Limited Warranty
IMPORTANT: The warranty registration card must be completed and returned to Concord within twenty (20) days after installation of the elevator for the warranty to be valid. The warranty is not transferable. THIS PRODUCT IS DESIGNED AND MANUFACTURED TO EXACT SPECIFICATIONS. -
Page 5: General Specifications
GENERAL SPECIFICATIONS SPECIFICATION KWIKLIFT MODEL I KWIKLIFT MODEL II Load Capacity 750 lbs. (341 kg) 750 lbs. (341 kg) Rated Speed 36 ft. per minute 36 ft. per minute (0.18 m/s) Nominal (0.18 m/s) Nominal Power Supply 220 volt, single phase, 30... -
Page 6: Operating Instructions
OWNER'S MANUAL OPERATING INSTRUCTIONS CONCORD KWIKLIFT OPERATING THE ELEVATOR FROM THE LANDING CONTROLS NOTE When using the landing controls, the cab can only be moved (called) to the level from which you are calling. When using the control buttons in the cab, the cab can be moved to any level. -
Page 7: Emergency Lowering Device
3) Release the button. Turn the key OFF and remove the key (if equipped). 4) Unlock the wheelchair wheels and exit the cab (if applicable). NOTE a) If the cab is equipped with a gate, the gate must be closed after exiting the cab. -
Page 8: Maintenance And Inspection Checks
MAINTENANCE AND INSPECTION CHECKS Regular maintenance will keep your KWIKLIFT in proper operating condition. Please remember, as the owner of this elevator, you are responsible for making sure that maintenance and upkeep are done on a regularly scheduled basis. - Page 9 9) To perform the required maintenance to the KWIKLOCK (if equipped), call your Authorized Concord Dealer. 10) To check the proper operation of all items in the “Testing Operation” section of the Kwiklift Installation Manual, call your Authorized Concord Dealer.
