VIESMANN
Installation instructions
for contractors

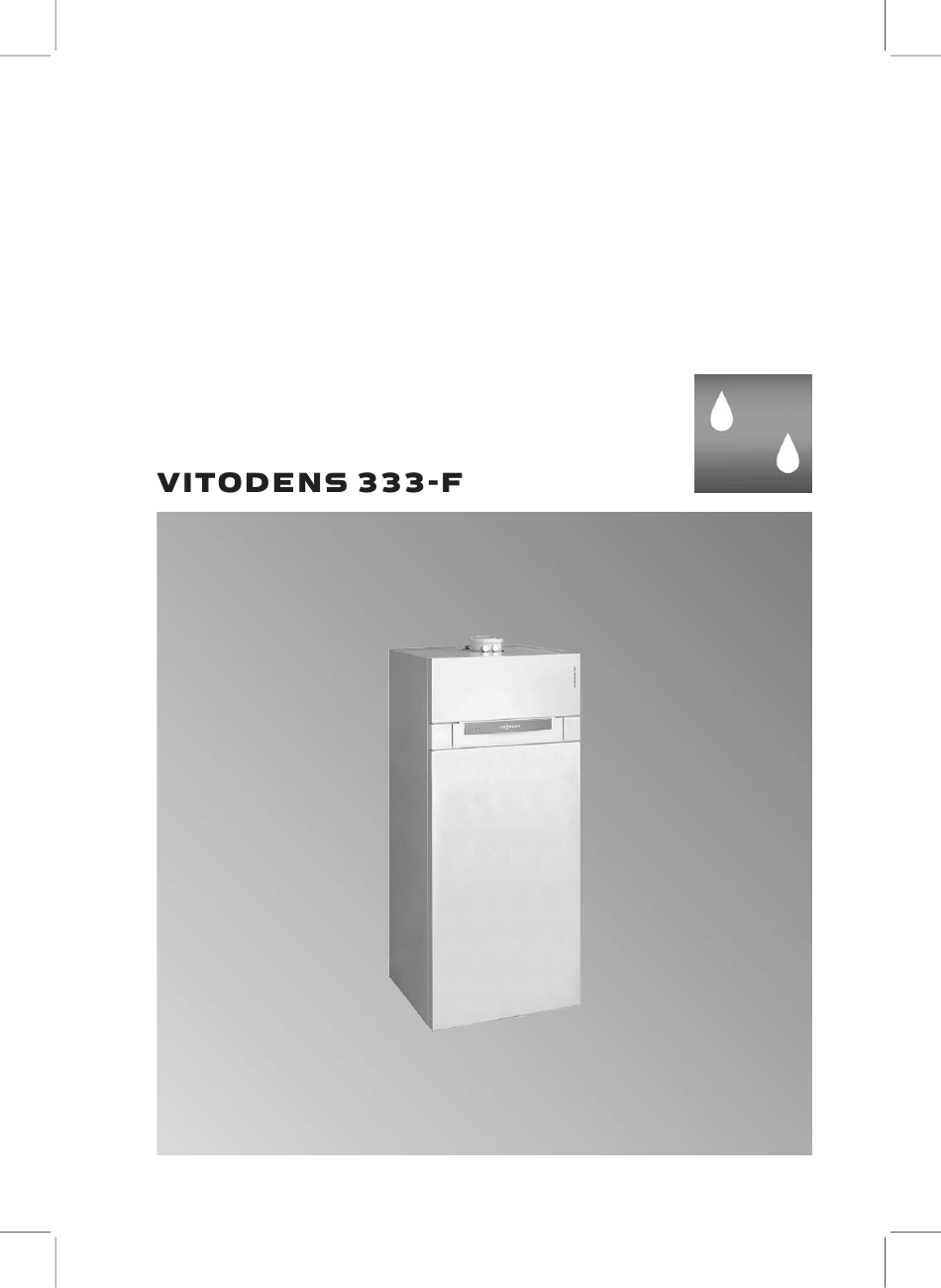

Vitodens 333-F
Type WS3C
Compact gas fired condensing boiler
5.2 to 26 kW natural gas and LPG version
GC Nummer 47-810-07
Dispose after installation.
5354 131 GB
1/2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITODENS 333-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Viessmann VITODENS 333-F

  • Page 1 VIESMANN Installation instructions for contractors Vitodens 333-F Type WS3C Compact gas fired condensing boiler 5.2 to 26 kW natural gas and LPG version GC Nummer 47-810-07 Dispose after installation. 5354 131 GB 1/2008...
  • Page 2: Safety Instructions

    Safety instructions Please follow these safety instructions closely to prevent accidents and material losses. Safety instructions explained Regulations Danger Observe the following when working This symbol warns against the on this system risk of injury. all legal instructions regarding the prevention of accidents, Please note all legal instructions regarding...
  • Page 3: Table Of Contents

    Index Preparing for installation Product information ..................Preparing for installation ................Preparing the boiler installation ..............Installation sequence Installing the boiler and making all connections ........... Removing the front panels and fitting the drain line to the T&P valve ..Connections on the heating water and the DHW side ........
  • Page 4: Product Information

    Set up for operation with natural gas H. For conversion to LPG P (without conversion kit), see the service instructions. The Vitodens 333-F should generally only be delivered to those countries speci- fied on the type plate. For deliveries to alternative countries, an approved con- tractor, on his own initiative, must arrange individual approval in accordance with the law of the land.
  • Page 5 Preparing for installation (cont.) A Cold water G ¾" H DHW circulation G ¾" B Heating flow G ¾" K Wall connection for condensate C Gas connection G ¾" line D Heating return G ¾" L Wall clearance with the connec- E DHW G ¾"...
  • Page 6 Preparing for installation (cont.) 2. Prepare the DHW connections. Install the safety assembly (acces- sories or on-site) in accordance with EN 806 into the cold water supply line. Recommendation: Install the safety valve above the DHW cylinder to protect it against contamination, scaling and high temperatures.
  • Page 7 C Visible blow-off line outlet M Pressure reducer to DIN 1988-2 D Shut-off valve issue Dec. 1988 E Flow regulating valve (installation N Non-return valve/pipe separator recommended) O Cold water connection F Pressure gauge connection Vitodens 333-F or connection set G Non-return valve (accessories)
  • Page 8: Installing The Boiler And Making All Connections

    Installing the boiler and making all connections Removing the front panels and fitting the drain line to the T&P valve...
  • Page 9: Connections On The Heating Water And The Dhw Side

    Installing the boiler and making all connections (cont.) Connections on the heating water and the DHW side DHW expansion vessel (accessories) The DHW expansion vessel is installed in the cold water supply below the connection set (acces- sories, see page 10). The safety valve is part of the stan- dard delivery of the DHW expansion vessel.
  • Page 10: Installing The Boiler And Making All Connections

    Installing the boiler and making all connections (cont.) Positioning and connecting the boiler A Connection set supplied as stan- dard with the boiler...
  • Page 11: Fitting The Drain Outlet And Drain Line To The T&P Valve

    Installing the boiler and making all connections (cont.) Note Connect the condensate pipe and the drain lines from the safety valves with a gradient and pipe vent to the drai- nage system. Fitting the drain outlet and drain line to the T&P valve See separate installation instructions.
  • Page 12: Testing The Anode Connection

    Gas connection (cont.) Conversion to other gas types: Service instructions Vitodens 333-F Testing the anode connection Check that the earth lead is connected to the magnesium anode. A Magnesium anode B Earth lead...
  • Page 13: Opening The Control Unit Casing

    Opening the control unit casing...
  • Page 14: Electrical Connections

    Electrical connections Information regarding the connection of accessories For details of accessories, also observe their separate installation instructions provided. Please note Electronic modules can be damaged by electrostatic discharges. Touch earthed objects, such as heating or water pipes, to discharge sta- tic loads.
  • Page 15 Electrical connections (cont.) fÖ Power supply gD External safety solenoid valve Remove any existing individual (LPG) B cores. Do not remove jumper between "1" and "L" when making this con- Danger nection. Incorrect core termina- Power supply accessories (230 tions can cause severe V/50 Hz).
  • Page 16: Vitotrol 100 Connection

    Electrical connections (cont.) ? Flow temperature sensor for low aVG KM BUS subscriber (acces- loss header (accessories) sories) % Cylinder temperature sensor Vitotrol 200 or 300 remote con- (fitted and connected in the deliv- trol (only for weather-compen- ered condition) sated control units) Vitocom 100 Extension kit for one heating...
  • Page 17 Electrical connections (cont.) Vitotrol 100, type UTD-RF...
  • Page 18: Routing The Connecting Cables

    Electrical connections (cont.) Routing the connecting cables Please note Connecting cables will be damaged if they touch hot parts. When routing and securing power cables on site, ensure that the maxi- mum permissible temperatures for these cables are not exceeded. A Low voltage connections E Communication module (acces- B 230 V connections...
  • Page 19: Closing The Control Unit Casing And Inserting The Programming Unit

    Closing the control unit casing and inserting the programming unit...
  • Page 20: Fitting The Front Panels

    Fitting the front panels Commissioning and adjustment Service instructions Vitodens 333-F...
  • Page 24 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
