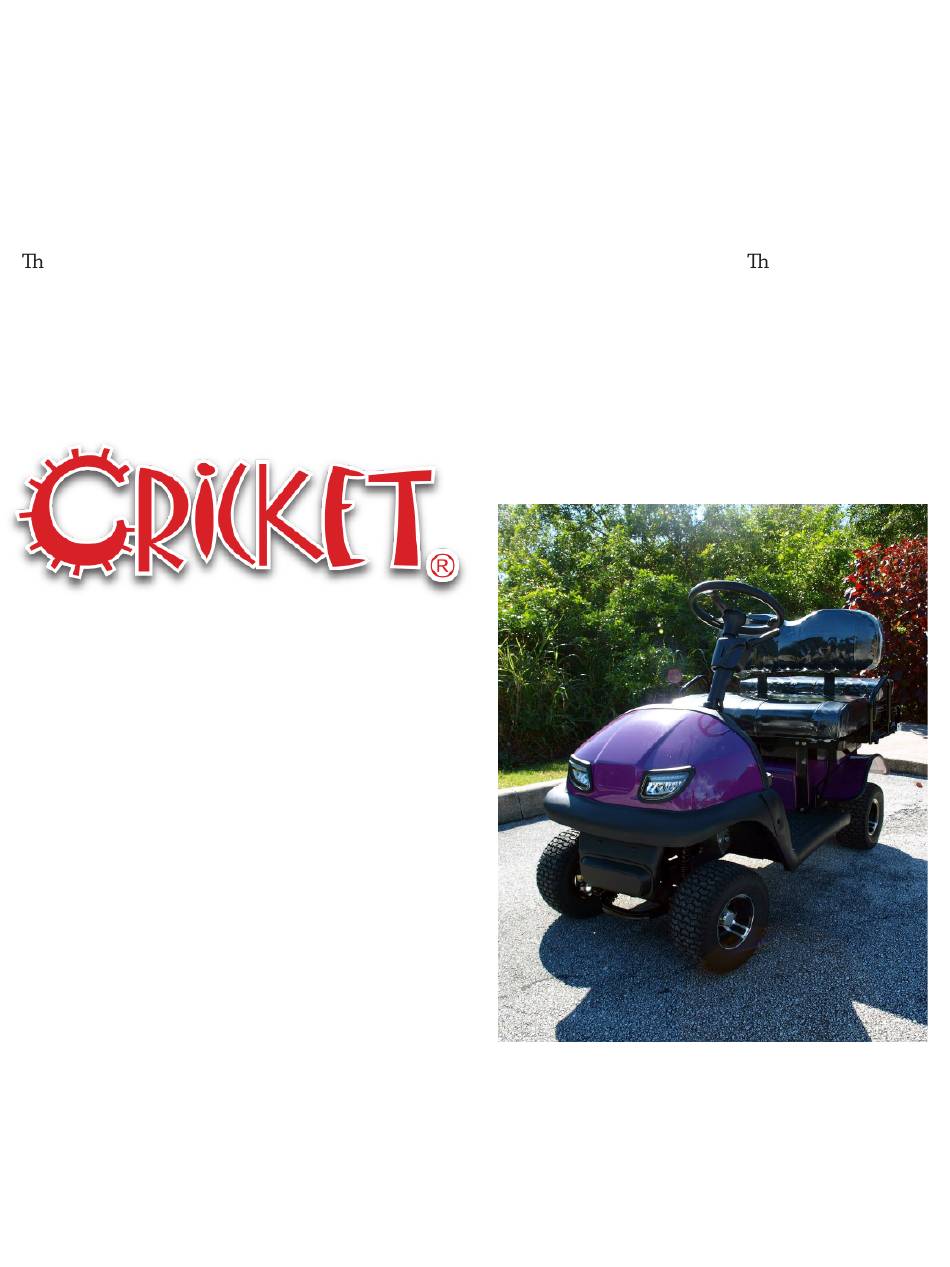

CRICKET© RX5 Electric Sport Vehicle
CRICKET RX5 Electric Sport Vehicle Owner's Manual, Safety Guide,
and Warranty Information.
ank you for the purchase of your new CRICKET RX5 Electric Sport Vehicle.
is owner's
manual is designed to furnish you with a basic understanding of the features and operation of
this vehicle. Important safety information and information about special techniques and skills
needed to operate and ride your CRICKET RX5 are included, as well as basic maintenance,
inspection procedures, and warranty information.
RX5
Electric
Sports
Vehicle
Cricket Carts
748 N. Harbor City Blvd.
Melbourne, FL 32935
321-752-4041
www.cricketcarts.com
Cricket Carts reserves the express right to make design adjustments, improvements, or changes without obliga-
tion to make these changes on units previously sold, and the information contained in this publication is subject
to change without notice. Cricket Carts is not responsible for inadvertent errors in this publication, and/or
incidental and consequential damages that result from the use of the material in this publication.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RX5 and is the answer not in the manual?

Questions and answers

Related Manuals for Cricket RX5

Summary of Contents for Cricket RX5

  • Page 1 Important safety information and information about special techniques and skills needed to operate and ride your CRICKET RX5 are included, as well as basic maintenance, inspection procedures, and warranty information.
  • Page 2 • Take special notice of all warning and caution notices herein • Operate you CRICKET vehicle only after proper training or instruction. • No one under 16 years of age should ever operate a CRICKET electric sport vehicle. NOTE: Whenever there is any doubt whatsoever about anything involved with the oper- ation, maintenance, and safe operation of your CRICKET Electric Sport Vehicle, always call free technical support at 321-752-4041, or email us at sales@melbournecricket.com.

  • Page 3: Table Of Contents

    Table of contents ▪ CRICKET RX5 Product Speci cations ▪ General Information ▪ CRICKET Installation and Setup Instructions ▪ CRICKET RX5 Control Functions ▪ CRICKET RX5 Usage ▪ CRICKET Operational Instructions, Maintenance, and Adjustments 12 ▪ Warranty Information...

  • Page 4: Cricket Rx5 Product Speci Cations

    ▪ Overall Height (with seatback, upper steering column, and rear oor plate removed): 28” ▪ Load Capacity: 600 lbs. ▪ Vehicle Curb Weight: 502 lbs. NOTICE: CRICKET RX5 speci cations, safety, and performance features are subject to change as we continue to improve the vehicle.

  • Page 5: General Information

    General Information This guide is provided to assist the owner or operator of this CRICKET RX5 in the safe operation and maintenancy of the vehicle. General Safety Information This guide is provided to assist the owner or operator of this Cricket Carts product in the mainenance and safe operation of the vehicle.
  • Page 6 Wet Areas: Wet grassy areas may cause a vehicle to lose traction and may a ect stability. Wet areas should be chained or roped o to prevent access and potential accidents with injury. In areas unmarked or unobstructed, attempt to avoid known wet areas. Do not submerge your CRICKET, as this can cause permanent damage to the vehicle.
  • Page 7 • Never operate a CRICKET in fast- owing water or excessively deep waters. Contact with water may a ect the batteries and may reduce stopping ability. Test your stopping ability after leaving water by removing pressure from accelerator pedal rapidly several times in a row.

  • Page 8: Cricket Installation And Setup Instructions

    CRICKET Installation and Setup Instructions 1. Unpack the CRICKET Vehicle A. Remove all packing material including the rear step plate and the front seat from the CRIKCET. Set these items aside until needed. 2. Install the Steering Shaft A. Make sure the steering wheel in the correct orientation for driving straight and the front wheels are pointing straight.
  • Page 9 D. Slide the oorboard extension into position by angling it in toward the front of the CRICKET. Check that the Key is in the “OFF” position and you may need to depress the throttle pedal slightly to get the oorboard to clear.
  • Page 10 5. Install Front Seat Back Rest a. Gently guide both seat back support arms into the metal slots located behind the front seat. Install the small knobs into the threaded inserts on the rear of the metal slots to secure the seat back. (Fig 5.1.1) 6.

  • Page 11: Cricket Rx5 Control Functions

    CRICKET RX5 Control Functions RX5 Controls 1. Key Switch Functions: A. ON: One click of key clockwise activates power and makes engine ready for operation. B. OFF: With the key in the OFF position, all electrical circuits are switched o . The key may now be removed.

  • Page 12: Cricket Rx5 Usage

    This could lead to severe injury. Storing the Vehicle Store your CRICKET vehicle with the key switch in the O position. Do not store vehicle for more than one day with the battery charger hooked up. Ensure that the CRICKET is charged between once a week to once every two weeks.

  • Page 13: Cricket Operational Instructions, Maintenance, And Adjustments

    NOTE: If your CRICKET is out of use, be sure to charge your cart as periods exceeding 2 weeks without a charge greatly increase the risk of damaging or destroying a battery’s ability to hold a charge. Use a timer to maintain a proper charging cycle if it cannot be done in person.
  • Page 14 If you should need to haul a heavier payload (up to 600 pounds maximum) or drive your RX5 over moderately rough terrain, you may elect to tighten the two under-chassis frame bolts (shown here, to your right) to provide a more rigid, rmer ride.

  • Page 15: Limited Warranty

    Cricket Carts hereby warrants that new CRICKET vehicles purchased from an authorized CRICKET dealer, or direct from Cricket Carts, in the continental United States will be free from defects in material and workmanship for the period of time stated herein, subject to certain stated limitations. Cricket Carts is not responsible for any abuse, negligence, vandalism, or acts of nature.
  • Page 16 If you use your Cricket daily, charge its batteries as soon as you nish using it for the day. We recommend that you charge the batteries for at least 8 to 14 hours after daily use.
