Cricket RX-5 Resort Top Instructions

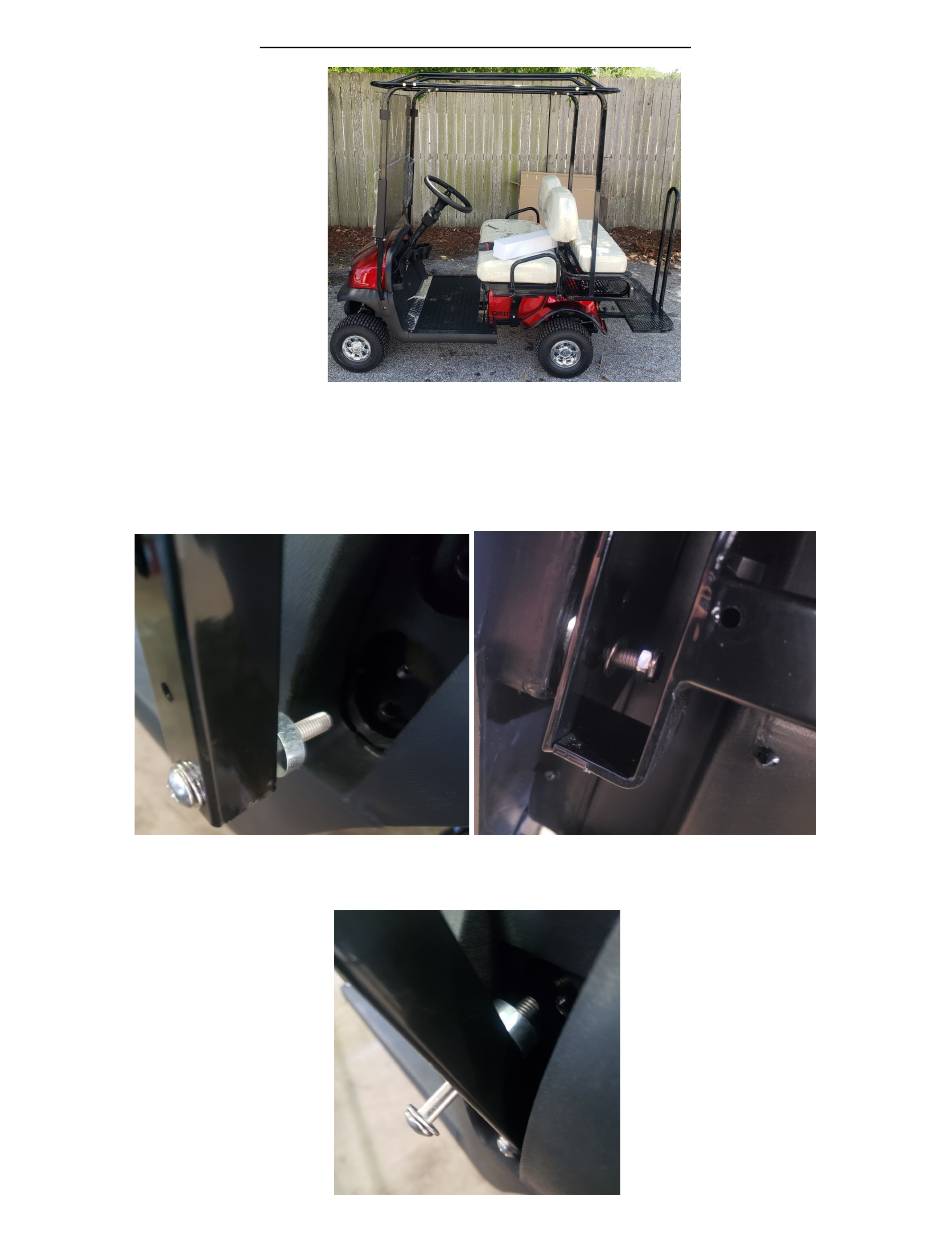

1. Install front vertical rail with slight bend at the bottom and roughly 90 degree bend facing

toward the back of the cart. Starting with bottom hole Loosely attach hardware shown below.

Start with bottom hole first.

2. Do the same with the top hole. Leaning back rail may make it easier to install spacer. Repeat step

1. & 2. to the other side.

Cricket RX-5 Resort Top Instructions Rev 1.0

Page 1

Table of Contents

Need help?

Do you have a question about the RX-5 and is the answer not in the manual?

Page 1 Start with bottom hole first. 2. Do the same with the top hole. Leaning back rail may make it easier to install spacer. Repeat step 1. & 2. to the other side. Cricket RX-5 Resort Top Instructions Rev 1.0 Page 1...
Page 2 90 degree bend facing forward on both sides, leaving the knobs loose. 4. Install front rail cover by sliding down from the top of rail as show in picture below to both sides. Do not install hardware at this time. Cricket RX-5 Resort Top Instructions Rev 1.0 Page 2...
Page 3 6. Slide windshield up or down until the hole in the rubber grommet matches hole in front vertical rail. Install & tighten this hardware as shown below. Do this to both sides. Cricket RX-5 Resort Top Instructions Rev 1.0 Page 3...
Page 4 8. Install top frame to the rear vertical rail by aligning rear holes in top frame with holes in rear vertical rails and loosely attaching hardware show below. Do the same to the other side. Cricket RX-5 Resort Top Instructions Rev 1.0 Page 4...
Page 5 1 x RX-5 Top Frame 1 x RX-5 Windshield Kit 1 x RX-5 Hardware Pack 1 x Vinyl Material If you need further assistance please contact the Authorized Cricket Dealer your purchased from. Cricket RX-5 Resort Top Instructions Rev 1.0 Page 5...
