Summary of Contents for Masterweld MW1801
- Page 2 9.1. REQUESTING AFTER-SALES ASSISTANCE ..........................23 9.2. RECOMMENDATIONS FOR REPLACEMENT INTERVENTIONS .....................24 9.3. LIST OF REPLACEABLE COMPONENTS ............................24 9.3.1. Standard ....................................24 9.3.2. Optional ....................................27 9.4. SCRAPPING AND DECOMMISSIONING ........................... 27 IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
-
Page 3: General Information
Danger - Attention The symbol indicates situations of serious danger that, if neglected, may cause fires and place the health and safety of people seriously at risk. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk... - Page 4 Is a safety device able to interrupt the flow of electrical current in an electrical Circuit breaker switch circuit of an electrical system in the event of over-current. Filter Is the main filtration element, that can be of sleeve or cartridge type. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
-
Page 5: Attached Documentation
MasterWeld IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. - Page 6 Perform routine maintenance as provided for in this manual. Disconnect the machine from the electricity sources before any maintenance intervention. Use the main switch to interrupt power and padlock it before any maintenance intervention. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
- Page 7 2.7. SAFETY SIGNS PLACED ON THE MACHINE SYMBOL DESCRIPTION Rotation direction of the motor. Turn the fan off and disconnect the power before opening the filter. Voltage hazard. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
- Page 8 HANDLING, ASSEMBLY AND INSTALLATION INFORMATION 3.1. DIRECTIONS FOR HANDLING THE PACKAGE The standard MasterWeld packaging does not guarantee protection against rain, storage areas must be covered and not humid. When handling materials, use suitable lifting devices and adopt all of the safety precautions required for the work site activities, also consult the technical data for the packaging described in the Packing List.
- Page 9 See “Technical data - Weight” and “Description of perimeter areas”. Before starting the machine up, engage the brakes on the wheels. Do not start the machine without having first installed the articulated extractor arm. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...

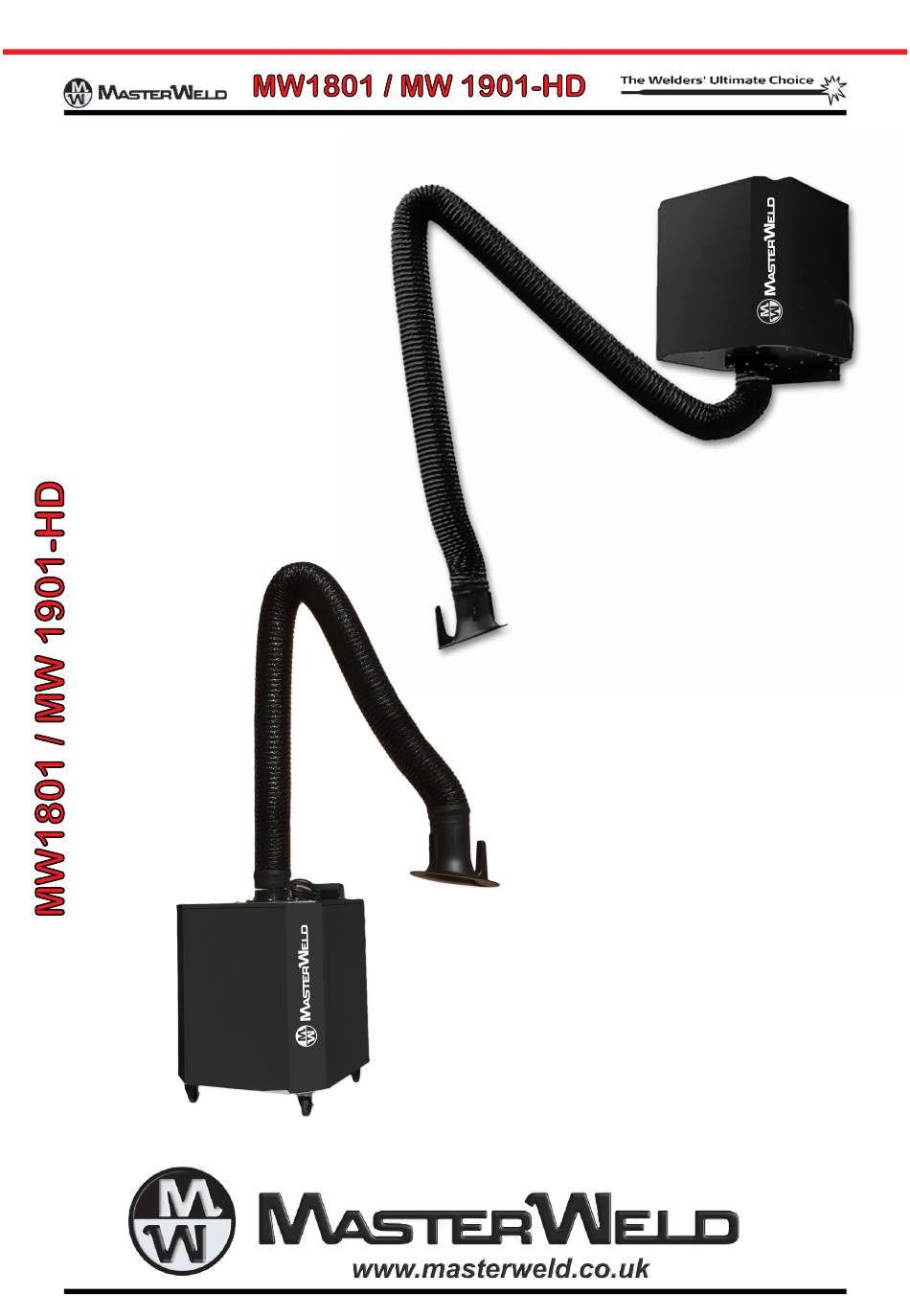

- Page 10 The machine must be installed in the immediate vicinity of utilities and connected by articulated suction arm. MW1801 c/w MasterFlex MW1901-HD c/w MasterFlex Wall Arm IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
-
Page 11: Technical Information
The manufacturer's identification is stated on the identification plate and on the declaration of conformity. The table states the machine function and the models. MACHINE MODEL MW1801 1,1 kW MW1801 WALL 1,1 kW IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk... -
Page 13: Machine Description
The polluting elements are captured and carried towards the filter through rigid or flexible pipes connected to the hood. 4.3. OPERATING CYCLE DESCRIPTION MW1801 MW1901-HD STAGE DESCRIPTION The air extracted through the pipe is conveyed by the fan in the body. -
Page 14: Machine Model
Sound level [db(A)] Weight [kg] 4.4.2. DIAGRAM AND ELECTRICAL VALUES SIZE OF MOTOR CIRCUIT BREAKER SIZE AND TYPE OF MACHINE MODEL FUSE LINE (A) MW1801 1,8/2,5 MW1901-HD 1,8/2,5 IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk... - Page 15 WIRING DIAGRAM 400V 50Hz 3Ph WIRING DIAGRAM 220V 60Hz 1Ph IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
- Page 16 CE Regulation use and maintenance manual 4.4.3. SIZE OF AIR INLET MW1801/1901-HD Input Ø [mm] 4.4.4. SIZE OF AIR OUTLET MW1801/1901-HD Output Ø [mm] IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
- Page 17 4.4.5. FILTER MW1801/1901-HD Filter dimension [mm] Ø 325 x 400 Type of filter Cartridge Type of filtering fabric 100% Cellulose 7033 BIA rating “L” Filtering surface [m Filtering rate [%] 4.5. SAFETY DEVICE DESCRIPTION The machine is equipped with a general ON-OFF switch with safety block.
- Page 18 CE Regulation use and maintenance manual 4.6. DESCRIPTION OF PERIMETER AREAS During installation, take into account the dimensions of any optional parts. MW1801 IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
- Page 19 MW1901-HD IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
-
Page 20: Information On Use
The machine is designed to operate with pressure filtering. Any other machine use must be authorised by MasterWeld in advance. In the absence of such written authorisation, the Manufacturer shall deny any liability for damage causedto people or property and the warranty on the line and the machines supplied shall cease. -
Page 21: Information On Adjustments
The flow rate regulating gate is not an integral part of the machine. 6.2. FLOW RATE REGULATION To regulate the air flow rate, close the gate to decrease it. See paragraph “OPTIONAL FEATURES INSTALLATION METHODS”. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk... -
Page 22: Maintenance Information
The machine does not have a dust collection container. If there is any dust build-up on the inside walls, use an extraction-filtering unit, which must be purchased separately. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk... - Page 23 Set the tripping value to the machine. The breaker has anincorrect absorption value provided on the setting value. electrical motor plate. Short circuit on electrical motor. Replace the motor. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
- Page 24 Photocopy the form laid out below. Complete the provided spaces. Contact the area distributor or the assistance and spare parts department of MasterWeld, sending a copy of the form completely filled out to the indicated e-mail address or fax number.
- Page 25 Change the filters using the protective equipment described in the manual. Prior to changing the filter, the motor or the fan, remove the optional part assembled on the extraction intake. 9.3. LIST OF REPLACEABLE COMPONENTS 9.3.1. STANDARD MW1801 IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
- Page 26 CE Regulation use and maintenance manual MW1901-HD POS. ELEMENT Cartridge filters code S.1601-CF Rotary wheel Motor Circuit breaker switch Switch box Hour-meter Plug Electrical cable Instrument box IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
- Page 27 Engage the brakes on the wheels. Place the machine on its side, the one with the electric controls. Take out the screws that secure the cartridge to the surface. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
- Page 28 Comply with the laws in force in the country of use, for any legal and tax aspects (any reports, complaints, etc...). IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
- Page 29 MasterWeld Equipment (UK) Limited Olympic House, Southmead Park, Collett, Didcot, Oxfordshire, United Kingdom, OX11 7WB Website: www.masterweld.co.uk...
