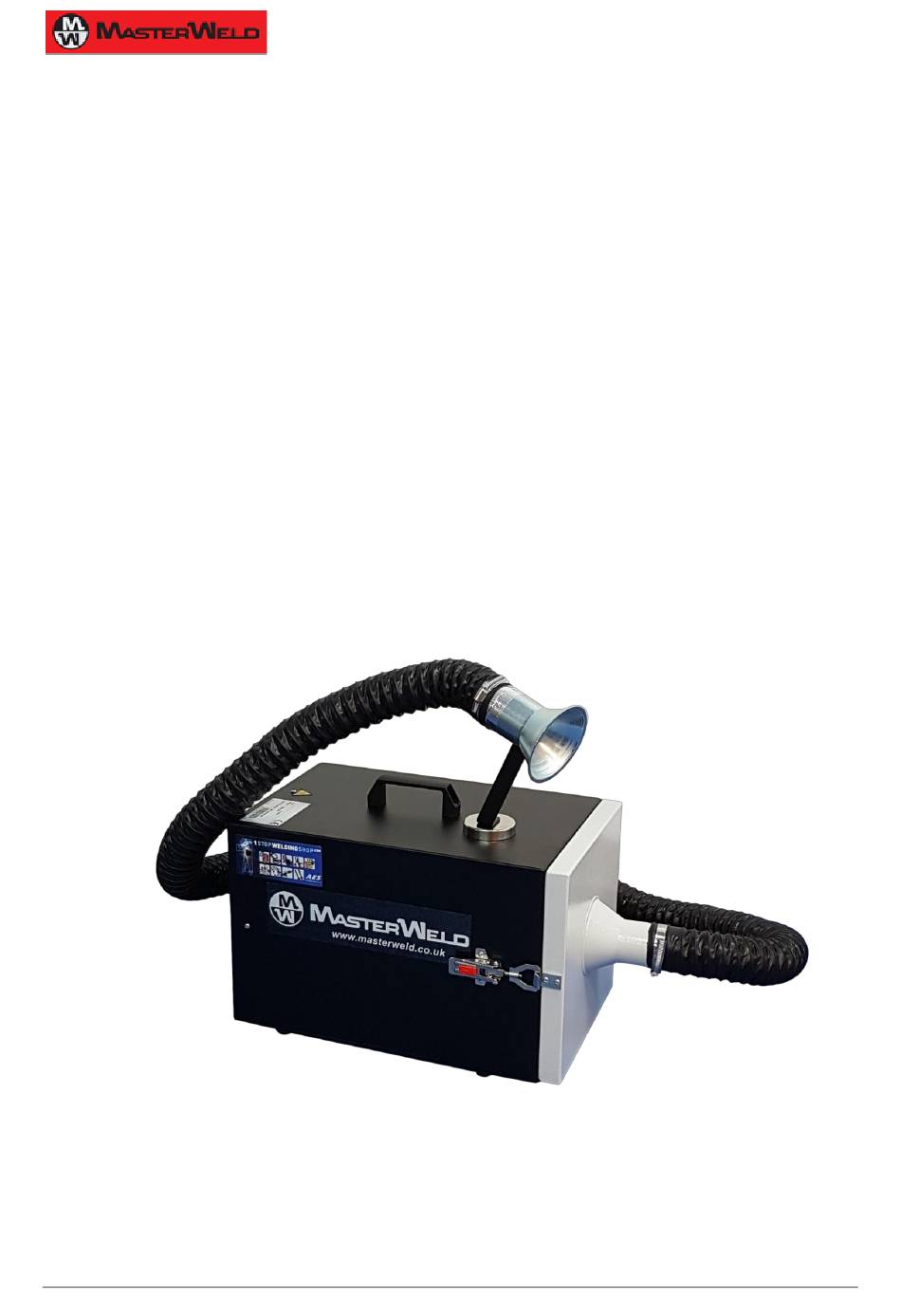

- Page 1 MW 8100 USER MAINTENANCE MANUAL MW 8100 Portable Welding Fume Extractor 240V PORTABLE WELDING FUMES FILTRATION UNIT SERIES MW 8100...
-
Page 2: Warnings
MW 8100 MasterWeld thanks you for purchasing a product from its range and invites you to read this booklet. Inside you will find all the information necessary for the correct use of the purchased machine; therefore, please carefully follow the instructions contained therein and read all the parts. Please also keep the booklet in a suitable place to keep it unaltered. - Page 3 MW 8100 PORTABLE WELDING FUMES FILTRATION UNIT SERIES MW 8100...
- Page 4 Do not carry out repairs or modifications to the machine, unless authorized by MasterWeld Do not carry out maintenance when the machine is running. To clean the machine, do not use corrosive or harmful detergents to people's health.
-
Page 5: Responsibility Of The Producer
MW 8100 Responsibility of the Producer: The manufacturer MasterWeld declines all responsibility deriving from improper or incorrect use of the machine, from damage caused by the use of non-original spare parts, from the consequences deriving from maintenance operations not carried out correctly or from tampering with the product, its control circuits or system software. - Page 6 2011/65 / EU and subsequent amendments and additions. We also specify that: - The year of manufacture is shown on the label (with CE mark) placed on the machine. - The serial number is reported directly on the machine. PORTABLE WELDING FUMES FILTRATION UNIT SERIES MW 8100...
-
Page 7: Table Of Contents
Preliminary Operations ......................18 Machine Demolition ......................18 spare parts ....................... 19 SPARE PARTS LIST ......................19 WIRING DIAGRAM ....................20 MW 8100 ................Error! Bookmark not defined. PROBLEMS, causes, SOLUTIONS ................. 21 PORTABLE WELDING FUMES FILTRATION UNIT SERIES MW 8100... -
Page 8: Introduction
MW 8100 INTRODUCTION Product Description The MW 8100 machine described in this booklet is a portable unit for the extraction, filtration and deodorization of welding fumes in the electronic industry in general, in bodywork departments and for small welding. Polluted air is sucked in by a brush motor with integrated aspirator positioned inside the machine casing. -
Page 9: Final Use
MW 8100 Final Use The MW 8100 machine, produced by MasterWeld, is equipment designed for the extraction, filtration and deodorization of tin welding fumes in the electronic industry and in general the fumes from small welds in bodyshop and in mechanical workshops. -
Page 10: Residual Risks
MW 8100 Residual Risks The Risk Analysis carried out by MasterWeld on the product and contained in the Technical File, made it possible to eliminate all the main sources of danger related to the use of the machine; however, there are some unavoidable risks that will be listed below: ELECTRICAL RISK: It is forbidden to perform repairs or maintenance on the machine when it is connected to the electrical power system;... -
Page 11: Documentation
It is absolutely forbidden to remove the Safety Stickers and the Identification Plate on the machine and / or its components. MasterWeld declines any responsibility related to the safety of the machine in case of non- compliance with this prohibition. -
Page 12: Technical Data
MW 8100 TECHNICAL DATA Technical data The MW 8100 machine described in this booklet is a portable unit for the extraction, filtration and deodorization of welding fumes in the electronic industry in general, in body shop departments and for small welds. -
Page 13: Delivery Transport And Installation
In the event that the product is damaged, do not proceed with its implementation and report the incident to MasterWeld to agree with the same the actions to be carried out. Arrange a place protected from bad weather to store the product waiting for the installation, in case installation is not immediate. -
Page 14: General Rules Of Use
This machine must only be used for the use for which it was expressly designed. Any other use is to be considered improper and therefore dangerous. MasterWeld cannot be held responsible for any damage deriving from improper, erroneous and unreasonable use. -
Page 15: Maintenance
(PPE): Gloves, Goggles and Facial filter mask. Do not disperse the filters used in the environment. Deliver them to specialized disposal companies in accordance with current legislation. PORTABLE WELDING FUMES FILTRATION UNIT SERIES MW 8100... -
Page 16: Replacing The Cartridge Filter
3 Ø3.5 holes on the 3 sides of the filter in correspondence with the slots on the machine casing. ➢ Apply 3 of the previously removed screws and lock the filter. ➢ Reassemble the lower flange of the machine fixing it with the screws previously removed. PORTABLE WELDING FUMES FILTRATION UNIT SERIES MW 8100... -
Page 17: Replacement Of Protection Fuses
MW 8100 5.2.3 Replacement of protection fuses The MW 8100 machine is powered by an electric socket which integrates a protection fuse which intervenes in the event of overloaded currents, safeguarding the suction brush motor and the machine itself. If, following an overcurrent, the fuse blows, it must be replaced. Before this operation, however, it is necessary to verify what were the causes that led to the intervention. -
Page 18: End Of Use
END OF USE Preliminary Operations During the manufacturing process, the MW 8100 machine accumulates dust and substances that can be potentially harmful to health. These substances, as well as the filters it mounts, must be removed before end of use of the machine and must be thrown away in accordance with the laws in force in the country where its demolition takes place. -
Page 19: Spare Parts
Technical Assistance Service. Use only original spare parts. The use of non-original spare parts immediately invalidates the guarantee. MasterWeld declines all responsibility for damage to persons or property caused by the use of non-original spare parts. -
Page 20: Wiring Diagram
WIRING DIAGRAM MW 8100 The MW 8100 machine is equipped with an electric power socket with ignition switch, power light and protection fuses. By acting on the switch, it directly powers the electric motor, starting the suction operations. At the same time the red LED lights up to indicate that the machine is powered and switched on. -
Page 21: Problems, Causes, Solutions
Check the electrical insulation of the machine Differential protection machine frame with a tester intervention (circuit breaker) of the power Short circuit (in the Check and replace the component if supply system electric motor) necessary PORTABLE WELDING FUMES FILTRATION UNIT SERIES MW 8100... - Page 22 MW 8100 NOTES: PORTABLE WELDING FUMES FILTRATION UNIT SERIES MW 8100...
- Page 23 Contacts and Numbers: @ Importer & Distributor of MasterWeld Products; Tel. +44 (0) 1235 510717 AES Industrial Supplies Ltd orders@aes-sales.com Fax. +44 (0) 1235 818610 Olympic House, Collet, Southmead Industrial Park, Didcot, Oxon www.masterweld.com OX11 7WB...
