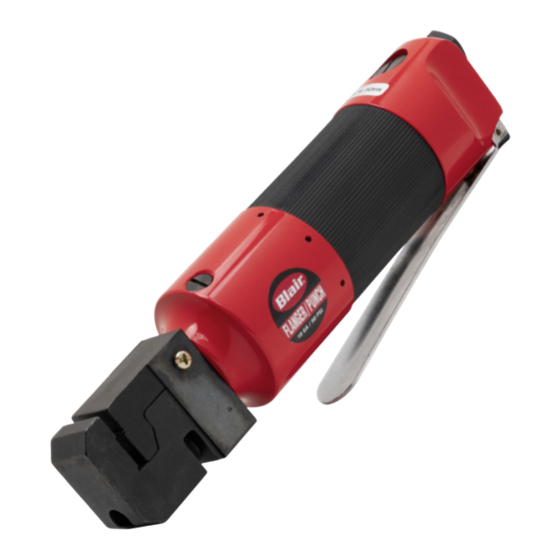

- Page 1 PNEUMATIC FLANGER/ PUNCH OPERATOR’S MANUAL Part No. 147050 OM147050...
-
Page 2: Specifications
SPECIFICATIONS Punch Hole Size .31” (8mm) Capacity 18 ga Air Inlet 1/4” Hose Size 3/8” I.D. Air Pressure 90 P.S.I. Average Air Consumption 4 CF Length 10” Net Weight 3-1/2 lbs. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. • Stay alert, watch what you are doing and use common sense when using a power tool. - Page 4 Tool Use and Care • Place the tool on the work bench before starting the tool and use a support handle or other method to secure and support the work piece to the platform. • Do not force the tool. •...
- Page 5 BREAKDOWN Part # Description Part # Description 83701A Piston 83724 Air Valve Body 83702 Packing 83725 O-Ring 83703 Back-Up Ring 83726 Spring 83704 O-Ring 83727 Air Valve 83705 Cylinder 83728 Plug 83706 O-Ring 83729 Spring 83707 Oil Plug 83730 Valve Cover 83708 Back-Up Ring 83731...
-
Page 6: Parts List
PARTS LIST Part # Description Qty. Part # Description Qty. 83701A Piston 83724 Air Valve Body 83702 83725 Packing O-Ring 83703 Back-Up Ring 83726 Spring 83704 O-Ring 83727 Air Valve 83705 Cylinder 83728 Plug 83706 O-Ring 83729 Spring 83707 Oil Plug 83730 Valve Cover 83708... - Page 7 COMMERCIAL / INDUSTRIAL LIMITED WARRANTY Blair Equipment Company warrants its Portable Magnetic Drills and Tornado II Paint Shakers for two (2) years and other products for ninety (90) days from date of purchase against defects due to faulty material or workmanship and will repair or replace (at its option) without charge any items returned.
