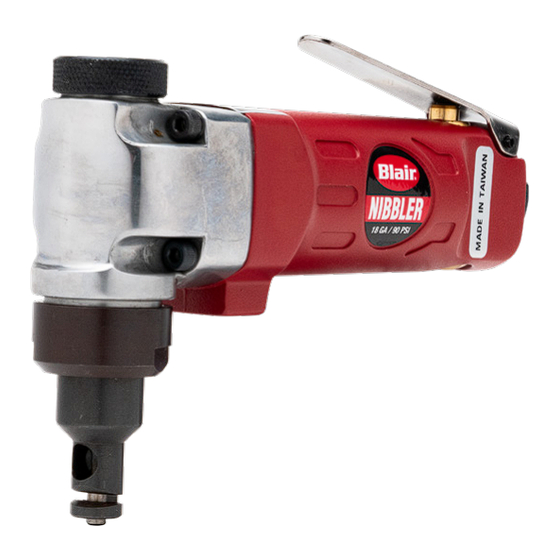

- Page 1 PNEUMATIC NIBBLER OPERATOR’S MANUAL Part No. 147000 OM147000...
-
Page 2: Specifications
SPECIFICATIONS Capacity Steel 18ga Cutting Speed 8.5’ per min. Air Inlet 1/4” NPT Hose Size 3/8” I.D. (10mm) Air Pressure 90 P.S.I. (6.2 bar) Average Air Consumption 4 CFM (113 L/min) -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Personal Safety • Stay alert, watch what you are doing and use common sense when using a power tool. - Page 4 Tool Use and Care • Use support handle or other method to secure and support the work piece to a stable platform. • Do not force the tool. Use the correct tool for your application. Using the correct tool which is specifically designed for a select job will provide better tool performance and make the job easier.
-
Page 5: Lubrication And Maintenance
OPERATING INSTRUCTIONS • Only use accessories recommended by Blair Equipment Company. • Check the position of the reversing mechanism before operating the tool so as to be aware of the direction of rotation when operating. Lubrication & Maintenance • Lubricate the tool daily with a good grade of air tool oil. - Page 6 BREAKDOWN Part # Description Part # Description 20301 Motor Housing 51221 Air Regulator Lever Pin (3x24L) Internal Gear 30102 80222 30103 Inlet Bushing 80223 Idler Gear (3) Throttle Lever Pin (3) (4x13.8L) 30104 30124 Valve Stem Crank Shaft 51705 20325 Anvil Bushing Spacer 51706...
-
Page 7: Parts List
PARTS LIST Part # Description Part # Description 20301 Motor Housing 20334 Head 30102 Lever Pin (3x24L) 40144 Screw (4) 30103 Inlet Bushing 21338 Slide Spindle 30104 Throttle Lever 21339 Screw 51705 Valve Stem 21340 Punch 51706 Anvil Bushing 70107 O-Ring (4.8x1.9) 21341 51208... - Page 8 COMMERCIAL / INDUSTRIAL LIMITED WARRANTY Blair Equipment Company warrants its Portable Magnetic Drills and Tornado II Paint Shakers for two (2) years and other products for ninety (90) days from date of purchase against defects due to faulty material or workmanship and will repair or replace (at its option) without charge any items returned.
