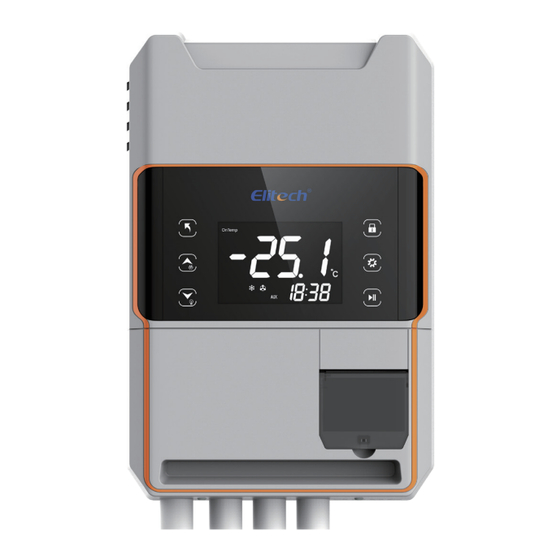

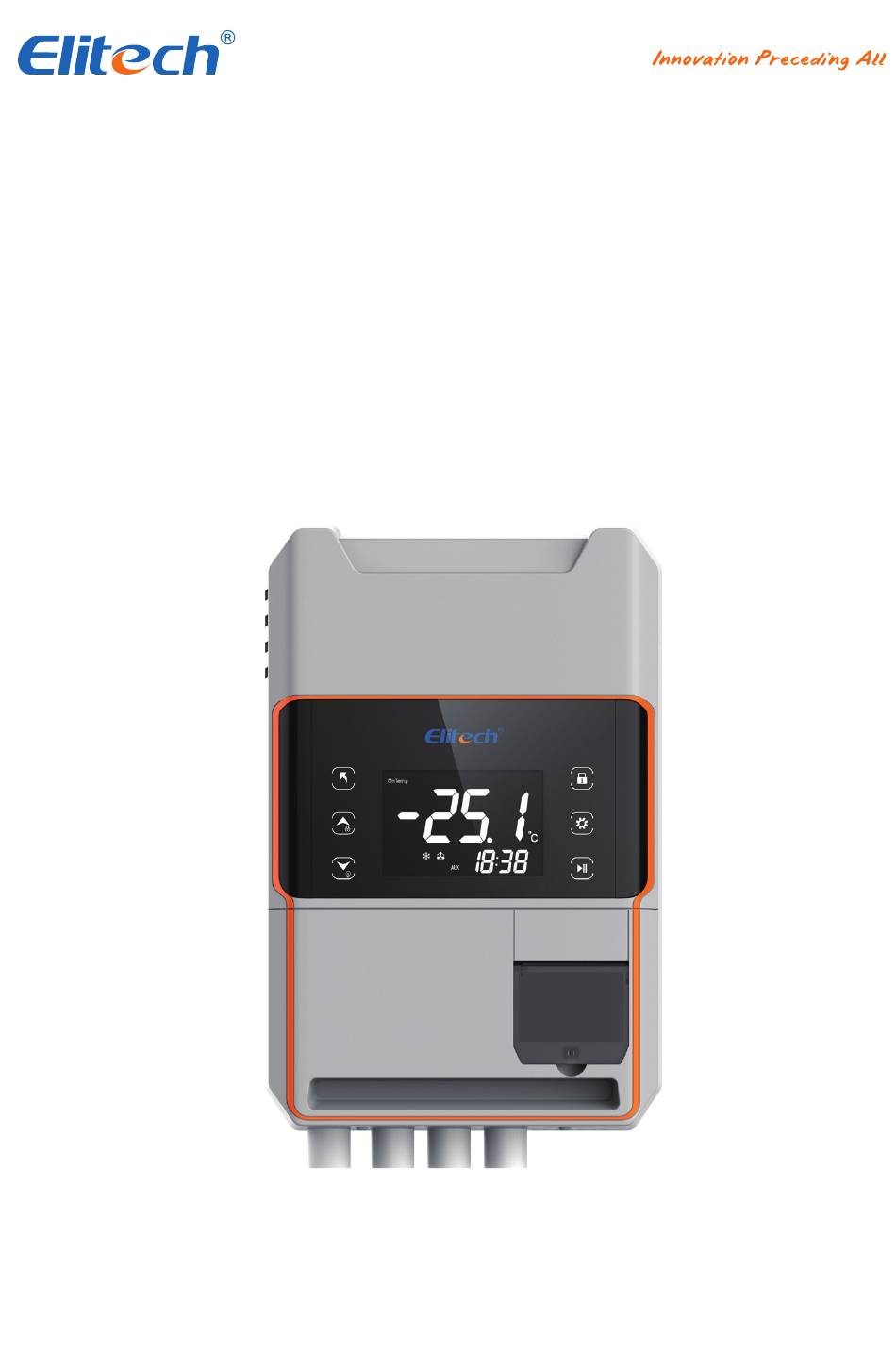

- Page 1 Plastic case electric control box ECB-4000 Series Manual...
- Page 2 Plastic case electric control box ECB-4000 Series Manual Notice for users ◆ Dangerous ○ Make sure that the cabinet housing is properly grounded! ○ The power of the electric control box shall not exceed the maximum allowable load! ◆ Warning ○...
- Page 3 Maximum allowable continuous output current of 10A 22A 30A defrosting circuit Maximum allowable continuou s output current of fan circuit Working environment - 10℃~50℃/14~122 ℉ NTC (10K Ω/25 ℃, B value 3435K) Sensor type Sensor Cable Length 2m/ 5m (including probe length) 3 sensors Width 275mm* Height 420mm* Depth 125mm Box size Operation and Display panel...
- Page 4 Plastic case electric control box ECB-4000 Series Manual Auxiliary Function Off Auxiliary Accessibility On Refrigeration Stop Refrigeration Scintillation Cooling Delay Refrigeration Working Lights Off. Light Lights On. Defrost Stop Defrost Scintillation Defrosting Work Defrost Drip No Alarm Alarm Fault Alarm...
- Page 5 User menu Shutdown temperature Parameter Indicator Setting range Factory setting Annotation display window Shutdown Turn- on temperature Press on when set 10.0 ℃/50℉ Turn- on temperature temperature symbol point is reached +0.1~+100.0℃/180℉ -- 49.0℃~ startup Shutdown temperature - 0.1 Press stops when set Shutdown temperature - 10.0℃/14℉...
- Page 6 Plastic case electric control box ECB-4000 Series Manual Defrost type(0:shutdown Defrost type defrost; 1: Electrochemical Frost, 2: Hot Air Defrost) 0:controller operating If you select 2, press the Defrost cycle timing time;1:compressor SET key to enter the mode cumulative time;2:...
- Page 7 0: compressor and evaporator1 : Evaporation wind mechanism is closed; 2: When the door switch is The library light is on;3: open, the equipment is in 0- 4 The compressor operation state. evaporator fan is off, and the library light is on;4:The evaporator fan is off.And the library lights are on;...
- Page 8 Plastic case electric control box ECB-4000 Series Manual Parameters Refer to setup instructions Range Default value Remarks 1st defrost start hour (0 ... 23)hour 1st defrost start min (0 ... 59)min 2nd defrost start hour (0 ... 23)hour 2nd defrost start min (0 ...
- Page 9 Standby sensor related parameters (F17=1) Default Parameter s Description of parameter settings Range Remarks value Function setting of channel 3 sensor; 1: Automatic use of this sensor to control temperature after failure of temperature sensor;2: Use as internal temperature sensor of food, only for 1- 3 measurement, not for control;3:Storage temperature sensor common use,...
- Page 10 Plastic case electric control box ECB-4000 Series Manual Plastic case electric control box ECB-4000 Series Manual Foreign Trade Menu (Foreign Trade Products) Parameters and menu modes are the same as those of domestic trade, except that after entering user settings, the displayed characters are English characters; others are the same as domestic trade.
- Page 11 Night Energy-saving mode a, first start 1) If the startup is started for the first time, it must delay the "power-on startup delay time"; 2) Non-manual shutdown, non-defrosting, non-defrosting drips under the state of temperature ≥ set startup + C05; or hot air defrosting start; b, not the first start 1) Non-manual shutdown, non-defrosting, non-defrosting dripping state temperature ≥...
- Page 12 Plastic case electric control box ECB-4000 Series Manual the preset pre-charging time. After the compressor stops, the water pump will stop after running the set water pump stop delay time. Light(F22=3) When the door switch is not enabled, press the light button for more than 1 second when the key is unlocked, the light is turned on, press the light button again for a long time, and the light is turned off;...
- Page 13 overload protection) times, the protector will not reset automatically, and the protector must be powered off and restarted before resetting. 3. Unbalanced protection When U04 is not equal to 0, among the three-phase currents, the maximum current phase minus the minimum current phase is greater than or equal to U04 (three-phase unbalanced protection current setting) current value, and the duration exceeds U05 (unbalanced protection delay) time.
-
Page 14: Alarm Codes
Plastic case electric control box ECB-4000 Series Manual Trial Time Settings In the system setting state, press the defrost key for more than 10 seconds, F38 appears, press the setting key to enter the parameter value modification, you can use the up and down keys to adjust the parameter... - Page 15 Open- phase protection Motherboard and display board communication failure Parameter Storage Error Alarm Standby Sensor High Temperature Alarm Standby Sensor Low Temperature Alarm Trial time alarm Radiating fan sensor fault Appendix: Character sets National high-tech enterprise Cold Chain IoT Product R & D and Production Base Jiangsu Province Refrigeration HVAC Energy-saving Control Engineering Technology Research Center National Calibration Regulation for Temperature Indicator Controller Standard drafting unit of Temperature Measurement of Perishable Food Cold Chain...
- Page 16 Jiangsu Jingchuang Electronics Co.,Ltd Adress: The third lndustrial Park, 21Zhujiang East Road，High-tech lndustrial Development Zone, Xuzhou, Jiangsu CHINA Tel: 400-067-5966 Fax NO.: 4008875666-982200 Website: www.e-elitech.com V1.0...
