The ENFORCER Stand-alone / Wiegand proximity reader is an advanced security solution that
offers both efficiency and convenience. This versatile device can function as a stand-alone
controller or a Wiegand reader. The reader's unique feature of adding multiple cards in bulk at
once significantly streamlines access control management in large organizations.
12~18 VDC Operation
Low current draw – 120mA max.
Form C relay output – 2A@12VDC
Built-in tamper alarm and external alarm output
Outdoor rated – IP66 weatherproof
Can serve as Wiegand output reader or controller, output and input – 26~44 bits
EM 125kHz Proximity card reader
2-Door interlock
Easy duplication of users to additional devices
Bulk adding of multiple cards at a time
Voltage
Size
Mullion
12~18 VDC
Single-gang
PR-3123-PQ shown
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SECO-LARM ENFORCER PR-3123-PQ
Summary of Contents for SECO-LARM ENFORCER PR-3123-PQ

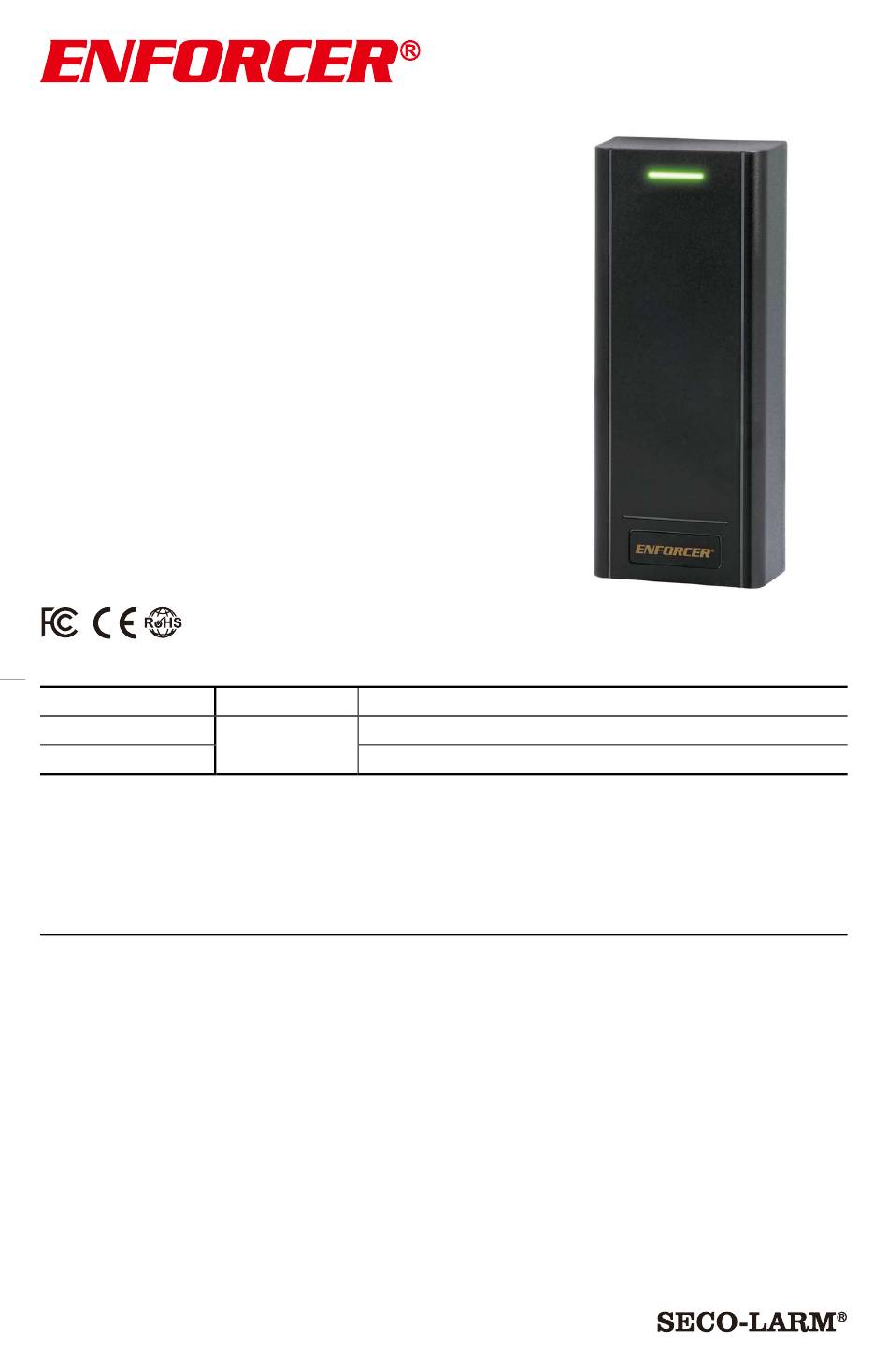

- Page 1 Stand-Alone / Wiegand Proximity Readers Installation Manual PR-3123-PQ shown Model Voltage Size PR-3123-PQ Mullion 12~18 VDC PR-3125-PQ Single-gang The ENFORCER Stand-alone / Wiegand proximity reader is an advanced security solution that offers both efficiency and convenience. This versatile device can function as a stand-alone controller or a Wiegand reader.
-
Page 2: Parts List
0~98% non-condensing Dimensions "x4 "x " (48x117x20 mm) "x4 "x " (75x117x20 mm) Weight 5-oz (140g) 7-oz (200g) Overview PR-3123-PQ PR-3125-PQ " " " (117mm) (117mm) " (850mm) (850mm) " " (75mm) (48mm) " " (20mm) (20mm) SECO-LARM U.S.A., Inc. -
Page 3: Mounting Diagram
(MOV, not supplied) for AC powered locks and for electromagnetic locks unless your lock has a diode/MOV built in (all SECO-LARM electromagnetic locks have built-in protection). Do not install both diode and MOV. Failure to use these as directed will void the warranty. -
Page 4: Programming Tips
4. Set the output time (skip this step if the default value of 5 seconds is acceptable): (1~99) NOTE: The delay time is 1~99 seconds 5. Exit programming mode: NOTE: One short beep indicates that the reader has exited programming mode. SECO-LARM U.S.A., Inc. -
Page 5: Table Of Contents
3. All wiring and programming should be done by a professional installer to reduce the risk of improper installation. 4. The user's operating guide for this reader is located on pg. 19 of this manual. Be sure to store this manual in a safe place for future reference. SECO-LARM U.S.A., Inc. -
Page 6: Led Indicators And Device Sounds
AC-powered locks and for electromagnetic locks unless your lock has a diode/MOV built in (all SECO-LARM electromagnetic locks have built-in protection). Do not install both diode and MOV. Failure to use these as directed will void the warranty. -
Page 7: Programming Functions And Defaults
Do not disconnect the reader from power while in programming mode. Doing so may cause a memory error. Note that, in programming instructions, programming entry actions or options other than specific keystrokes are enclosed within the parentheses, while factory defaults are enclosed within square brackets. SECO-LARM U.S.A., Inc. -
Page 8: Enter And Exit Base Programming Mode
Where 2~9 is the number of users required in order to gain access. In multi-user mode, the elapsed time between each user input must not exceed 5 seconds, otherwise the device will return to standby, and the process must start again. 3. Exit programming mode: SECO-LARM U.S.A., Inc. -
Page 9: Adding Users
ID. Additional PINs can be added in succession. NOTE: 3. Add PIN using specific ID: (user ID) (PIN) user ID: any number 0~986 4. Exit programming mode: NOTE: PIN users must use infrared programmer. SECO-LARM U.S.A., Inc. -
Page 10: Adding A Card + Pin User
2. Add card: (988 or 989) (8 or 10-digit card number or read card) NOTE: When entering ENFORCER proximity card numbers, use the 8-digit number. Add PIN: (988 or 989) (PIN) NOTE: PIN: 4~6 digits 3. Exit programming mode: SECO-LARM U.S.A., Inc. -
Page 11: Adding A Super User
1. Enter programming mode: (master code) 2. Delete by User ID: (user ID) Delete by Card: (read card) Delete by Card Number: (8 or 10-digit card number) Delete by PIN: (PIN) Delete all users: (master code) 3. Exit programming mode: SECO-LARM U.S.A., Inc. -
Page 12: Adding/Deleting Users With The Master Card
(master code) 2. Sound OFF: Sound ON: [default] NOTE: Notification sounds refer only to the reader's sounds (including card entry, door-left- open, wrong-code) and not the external alarm. 3. LED OFF: LED ON: [default] 4. Exit programming mode: SECO-LARM U.S.A., Inc. -
Page 13: Programming The External Alarm Output
The alarm duration will follow the global alarm settings, duration [default: 1 min]. However, if the global settings are set to OFF (i.e. duration: 0), those settings will override this and the alarm will not sound (see Programming the External Alarm Output, pg. 13) 3. Exit programming mode: SECO-LARM U.S.A., Inc. -
Page 14: Door-Left-Open Warning
While Card Collection Mode is enabled, any card will trigger the relay and will be entered into the system as a user. Therefore, it is crucial to remember to disable this mode after initial programming is completed. SECO-LARM U.S.A., Inc. -
Page 15: Setting Up A Two-Door Interlock System With Two Readers
AC powered locks and for electromagnetic locks unless your (MOV, not supplied) lock has a diode/MOV built in (all SECO-LARM electromagnetic locks have built-in protection). Do not install both diode and MOV. Failure to use these as directed will void the warranty. -
Page 16: Duplicating Users To Another Reader
LED will turn red. 3. Exit programming mode: NOTES: Both readers must support the data transfer function and have the same master programming code. Any user data existing on the second device will be overwritten. SECO-LARM U.S.A., Inc. -
Page 17: Setting Up The Wiegand Controller Mode
AC powered locks and for electromagnetic locks unless your lock has a diode/MOV built in (all SECO-LARM electromagnetic locks have protection built- in). Do not install both diode and MOV. Failure to use as directed will void the warranty. -
Page 18: Setting Up The Wiegand Reader Mode
Set the Wiegand output bits/format according to the input format of the controller. 1. Enter programming mode: (master code) 2. Set output format: (26~44) [default: 26] 3. Disable parity bits: Enable parity bits: [default] 4. Exit programming mode: SECO-LARM U.S.A., Inc. -
Page 19: Resetting The Reader To Factory Default
You should hear 1 beep (if sounds are enabled) and the status LED should turn green to indicate that the user card is accepted, and the door is unlocked. Present the proximity card to silence an alarm (except for duress alarms). Accessories Proximity Key fobs Proximity Cards PR-K1K1-AQ PR-K1S1-A SECO-LARM U.S.A., Inc. -
Page 20: Troubleshooting And Warnings
SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
