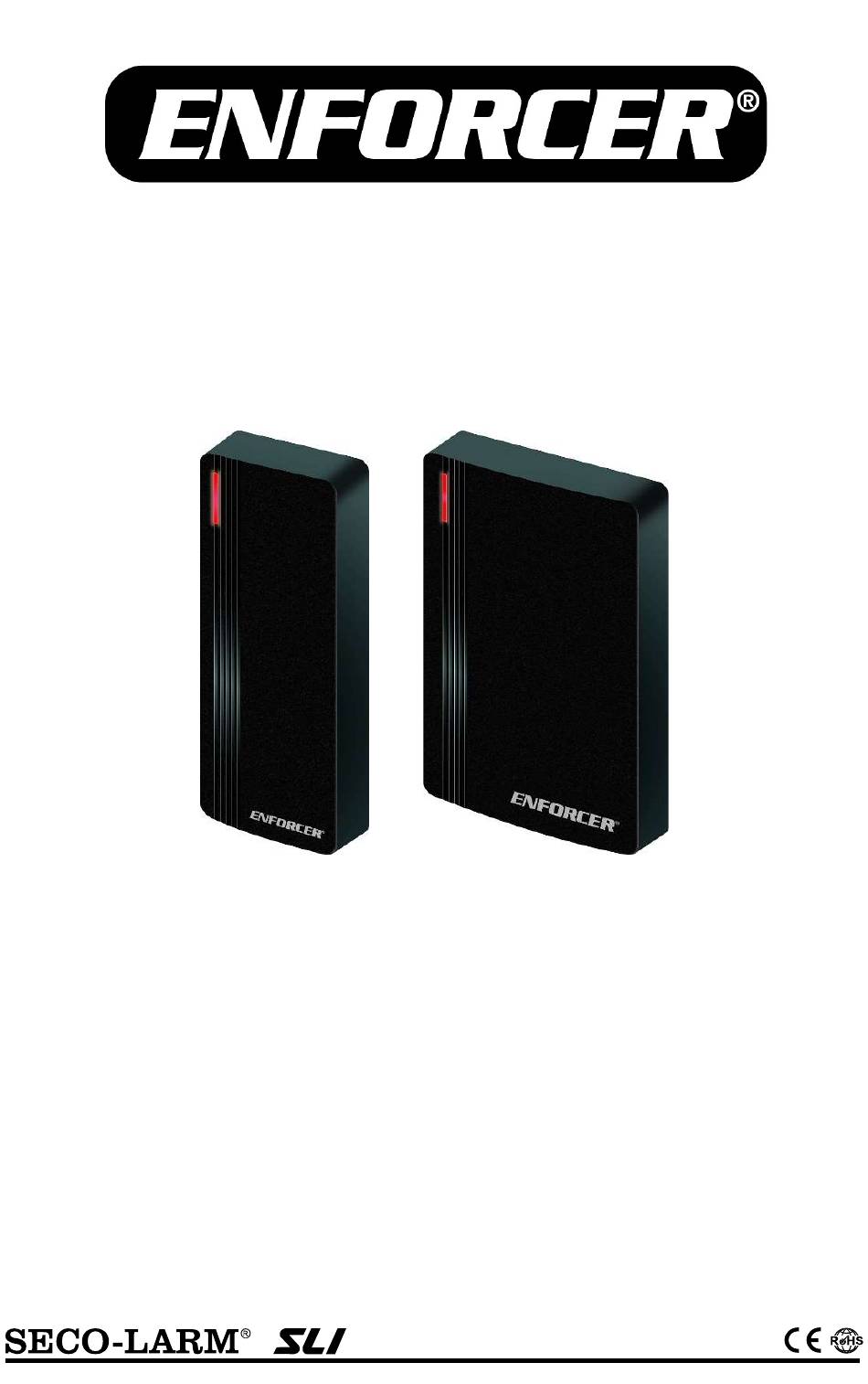

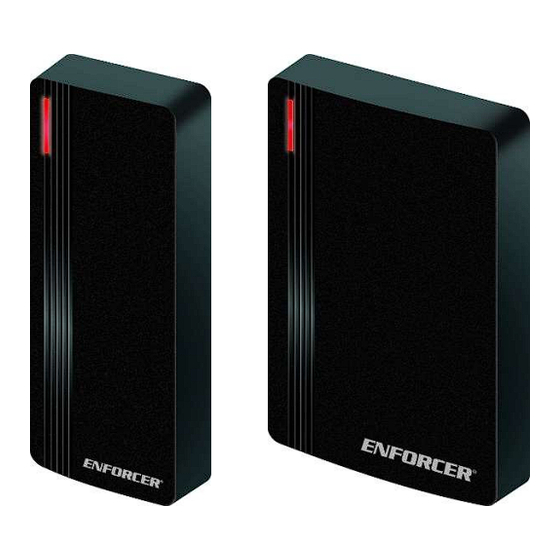

Stand-Alone / Wiegand Proximity Reader
Features:
1,000 Users (up to 998 users and 2 duress users)
9~24 VDC Operation
Low current draw – 90mA max.
Form C relay output – 2A@12VDC
Adjustable output time – 0.5~99s, or toggle
Built-in tamper alarm and external alarm output
Multicolor status LED
EEPROM Memory protects programmed
information in case of power loss
Includes infrared programmer
Outdoor rated – IP66
PR-3123-PQ, PR-3125-PQ
PR-3123-PQ
®
Manual
PR-3125-PQ
Egress input lets users exit the premises
without using a card
Can serve as Wiegand output reader or
controller, output and input – 26~37 bits
EM 125kHz
10 User proximity cards included
2-Door interlock
Extreme cold tolerance to -40° F (-40° C)
Sturdy black ABS plastic housing
Easy duplication of users to additional devices
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SECO-LARM SLI ENFORCER PR-3123-PQ
Summary of Contents for SECO-LARM SLI ENFORCER PR-3123-PQ
- Page 1 PR-3123-PQ, PR-3125-PQ Stand-Alone / Wiegand Proximity Reader Manual PR-3123-PQ PR-3125-PQ Features: 1,000 Users (up to 998 users and 2 duress users) Egress input lets users exit the premises 9~24 VDC Operation without using a card Can serve as Wiegand output reader or ...
-
Page 2: Quick Installation Guide
This absorbs possible electromagnetic interference to prevent operation of the strike from damaging the reader. Do not connect a diode when using electromagnetic locks or with AC powered strikes. Overview: PR-3123-PQ PR-3125-PQ " " (120mm) (120mm) " " (850mm) (850mm) " " " " (48mm) (20mm) (20mm) (75mm) SECO-LARM U.S.A., Inc. -
Page 3: Table Of Contents
Add/Delete Cards: ............16 Programming the Master Programming Code:....7 Troubleshooting: ............... 16 Setting the Reader Operation Mode: ......... 7 Additional Accessories from SECO-LARM: ..... 16 Programming the Access Mode / Security Level: ..7~8 Warranty: ................16 SECO-LARM U.S.A., Inc. -
Page 4: Specifications
Exit programming mode 1 Beep Red steady Successful operation 1 Beep Green flash once Unsuccessful operation 3 Beeps Red flashes 3 times Built-in alarm Rapid beeping* Red flashing rapidly *De-activate the built-in alarm by entering a valid card. SECO-LARM U.S.A., Inc. -
Page 5: Wiring Chart
The reader is activated by user proximity cards.* All cards must have a unique User ID (0~997 for users and 998 or 999 for duress). It is important to record all User IDs for future management tasks. *In this manual "card" refers to either proximity cards or fobs. SECO-LARM U.S.A., Inc. -
Page 6: Programming Format And Default Values
A varying number of digits ( ) to represent the parameters of that FUNCTION. key to confirm programming of the FUNCTION and exit to base programming mode. key to exit programming mode and return to standby mode. SECO-LARM U.S.A., Inc. -
Page 7: Programming The Master Programming Code
(see "Enter and Exit Base Programming Mode," pg. 6). Programming the Access Mode / Security Level: The reader can be programmed to one of two access modes / security levels: Single user card – a user must use a user card for access SECO-LARM U.S.A., Inc. -
Page 8: Programming User Proximity Cards
Adding Cards in a Large Batch (If Using Cards with Printed Numbers): This method allows the addition of up to 998 cards in a single batch. This is especially useful in the initial setup. This process adds the cards in consecutive order, assigned to available user IDs consecutively. SECO-LARM U.S.A., Inc. -
Page 9: Programming Duress Cards
When this happens, the duress card must be used again, after which the timing cycle will start again and the alarm will stop only after that time has expired. SECO-LARM U.S.A., Inc. -
Page 10: Deleting Users
(see "Enter and Exit Base Programming Mode," pg. 6): – Program Output Mode and Time function code (a short beep will sound and the LED will change to steady orange) – Output Mode and Output Time SECO-LARM U.S.A., Inc. -
Page 11: Programming Notification Sounds And Led
Duress and wrong-card alarm output will be passed to the Wiegand controller, but there is no tamper alarm in Wiegand reader mode. To program, use the following formula in base programming mode (see "Enter and Exit Base Programming Mode," pg. 6): SECO-LARM U.S.A., Inc. -
Page 12: Programming The Wrong-Card Lockout/Alarm
This setting requires either or both the built-in notifications and external alarm output to be enabled and the alarm timing is set by the external alarm settings. SECO-LARM U.S.A., Inc. -
Page 13: User Operation Of The Reader
When programming the interlock system, use the following general formula from within base programming mode (see "Enter and Exit Base Programming Mode," pg. 6): – Program the Interlock System function code (LED will change to steady orange) – Disable or Enable the Interlock System SECO-LARM U.S.A., Inc. -
Page 14: Wiegand Controller Mode
– Wiegand Input Bits/PIN Input Format Wiegand Input Bits/PIN Input Format: – Set Wiegand input bits (26~37, factory default, 26) , or – Set Wiegand PIN input format (4, 8, or 10, factory default, 4) SECO-LARM U.S.A., Inc. -
Page 15: Wiegand Reader Mode
Any user data existing on the second device will be overwritten. When transfer is complete, a short beep will sound, the LED will flash green once and change to red. Exit programming mode by pressing the key after transfer is complete. SECO-LARM U.S.A., Inc. -
Page 16: Resetting To Factory Default And Programming Add/Delete Cards
IMPORTANT: Users and installers of this product are responsible for ensuring that the installation and configuration of this product complies with all national, state, and local laws and codes related to locking and egress devices. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or codes.
