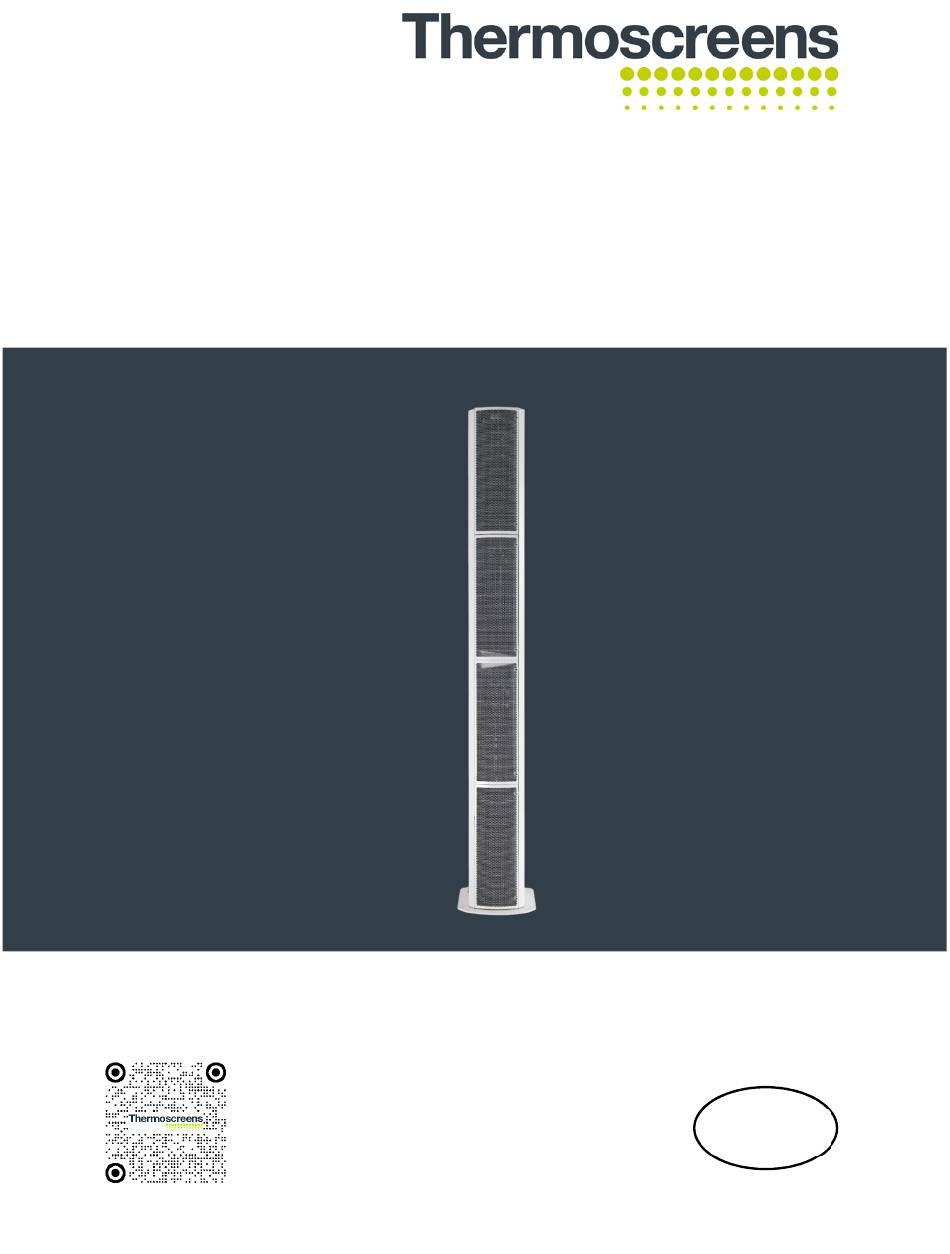

PHV Series
Surface Mounted
INSTALLATION, OPERATION AND
MAINTENANCE INSTRUCTIONS
Scan to download the
user guide and App
T9901020-8-2T UK (v10)
Vertical.
English
Page | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Thermoscreens PHV Series

  • Page 1 PHV Series Vertical. Surface Mounted INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS Scan to download the English user guide and App T9901020-8-2T UK (v10) Page | 1...
  • Page 2: Table Of Contents

    CONTENTS Page CONTENTS ..........................2 ELECTRICAL SAFETY ......................... 3 SPECIFICATIONS ........................3 INTRODUCTION .......................... 4 DELIVERY CONTENTS ....................... 5 TOOLS REQUIRED ........................5 INSTALLATION ..........................6 ACCESS FOR ELECTRICAL CONNECTION MODELS .............. 8 REMOTE CONTROL INSTALLATION ..................9 REMOTE CONTROL SETTINGS ....................9 EXTERNAL CONTROLS ......................
  • Page 3: Electrical Safety

    ELECTRICAL SAFETY Electrical Supply and Wiring to the Air Curtain All electrical wiring and connections MUST be carried out by a competent qualified electrician in accordance with the latest edition of national and local wiring regulations and/or local statutory regulations. “Danger: Disconnect electrical supply before servicing” A 1 phase or 3 phase local isolator having a contact separation of at least 3mm on all poles •...
  • Page 4: Introduction

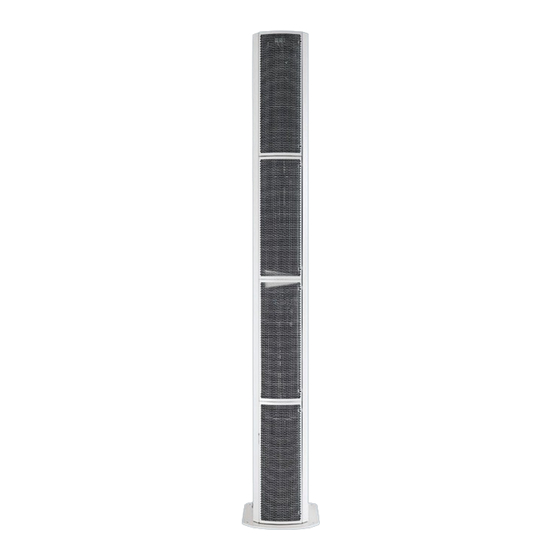

    INTRODUCTION Established in the 1960s, Thermoscreens is a leading air curtain manufacturer that exports to over 60 countries worldwide. As with all our products, the PHV V NT range of air curtains is designed with energy efficiency in mind. PHV V NT models suffixed E, W or A are designed to be surface mounted inside a building, located horizontally over a doorway or vertical close to door opening.
  • Page 5: Delivery Contents

    DELIVERY CONTENTS The following items are supplied in the box at delivery. NOTE: If any parts are missing or damaged contact your place of purchase. PHV V NT Vertical Option 2 Air Curtain Touch Remote Control (for Electric, Water and Ambient units) Supplied with 6m RJ Control Cable 3-port control valve Outdoor Air Thermostat...
  • Page 6: Installation

    INSTALLATION The PHV V NT air curtain should be surface mounted across a doorway and not exposed to the external environment or moist conditions. It should not be built-in or recessed in any way. Vertical Installation Prior to commencing any vertical installation it is essential to ensure the correct handing PHV V NT unit(s) have been selected.
  • Page 7 12.9 10.0 PHV2000W V 31.2 14.9 17.1 18.4 NOTE: Water flow rates and pressure drops at different water temperatures can be calculated using the Thermoscreens coil calculation programme. Visit the Thermoscreens website for details. T9901020-8-2T UK (v10) Page | 7...
  • Page 8: Access For Electrical Connection Models

    22mm pipe 22mm pipe 22mm pipe 22mm pipe wire valve to pcb inside air curtain For LPHW models ensure suitable water mains isolation valves are fitted in the flow and return pipework. Optional 1m Stack Unit When fitting the 3-port valve ensure that the pipe 22mm pipe connections are fitted as detailed and are in accordance with the manufacturers leaflet supplied...
  • Page 9: Remote Control Installation

    REMOTE CONTROL INSTALLATION Mount the Touch Controller in a convenient position directly to the wall or onto a switch box. Wall mounting Step 1 Press release button on side of Controller case and pull the back case away (see Fig 8). Step 2 Feed one end of the RJ control cable through the back case, secure it, then screw the back case to the wall using suitable fixings (not...
  • Page 10: External Controls

    NOTE: The Controller must stay plugged-in for the air curtain to keep working. An optional plug-in EEPROM is available from Thermoscreens so the Remote Control can be un- plugged and the air curtain stay working. Visit the Thermoscreens website for details.
  • Page 11 To promote increased energy saving a more advanced weather compensation control strategy is available from Thermoscreens. Using a heating curve, the discharge air temperature of the airstream coming from the air curtain is controlled against the outside air temperature. Visit the Thermoscreens website for details.
  • Page 12: Multiple Air Curtain Systems

    12. MULTIPLE AIR CURTAIN SYSTEMS When two air curtains are in a 2.5m or 3m stack the CCS control wiring needs to be wired “master/slave”, so the air curtain stack is controlled by a single CCS remote control. For “master/slave” configuration an independent mains supply, as per Table 1, must be supplied to each air curtain.
  • Page 13: System Configuration

    NOTE: Black rectangle is moveable head of DIP switch. NOTE: A range of advanced factory fitted and plug-in control options are available from Thermoscreens to enhance the performance of the CCS PCB controller inside the air curtain. These include advanced ®...
  • Page 14: Remote Control Operation

    14. REMOTE CONTROL OPERATION 14.1 Touch Controller Please scan QR code and follow links to access the user guide and download App. Home Speed Up Down Controller connected via RJ communications lead to CCS PCB with Home, Speed, Up and Down touchpads below the LCD screen as detailed above.
  • Page 15: Commissioning The System

    Fan speed Short press Switch touchpad to switch and cycle fan speed: • low • Medium • High Date and Time Settings Configure Date and Time settings either via App or on Controller as below. Turn Controller ON and hold Speed touchpad for 2 seconds Follow instructions on LCD screen with: Tap Up touchpad to increase value •...
  • Page 16: Sign Off

    Recommend that the doorway should be closed whenever possible but that during times of high pedestrian use it will become an ‘open doorway’. The air curtain then serves an essential purpose by saving energy and providing comfort to occupants. Explain that the inlet grilles and air filters (if fitted) must be cleaned regularly and the unit serviced at schedule intervals –...
  • Page 17: Fault Conditions

    17. FAULT CONDITIONS An overheat fault in electric heated units may cause the overheat safety cut-out(s) to operate. Before resetting ensure there is adequate air flow from the air curtain and the unit has been commissioned as per section 15. 17.1 Touch Controller Reset Overheat Safety cut-out This is indicated by flashing warning symbol on Touch Controller and a red status LED on the CCS PCB inside the air curtain.
  • Page 18: Service & Maintenance

    Before servicing, isolate and disconnect the air curtain from the electrical power. WARNING: The following servicing and maintenance must be carried out by a competent electrician or a Thermoscreens appointed technician. Clean and inspect the inside of the air curtain as follows: Step 1 Remove the inlet grille panels.
  • Page 19: Warranty

    Failing this please contact the Thermoscreens warranty department. Care has been taken in compiling these instructions to ensure they are correct. Thermoscreens disclaims all liability for damage resulting from any inaccuracies and/or deficiencies in this documentation. Thermoscreens retain the right to change the specifications stated in these instructions.
  • Page 20: Appendix 1 - Dimensions Of Phv V Nt Air Curtain (Wall Mounted)

    T9901020-8-2T UK (v10) Page | 20...
  • Page 21: Appendix 2A - Wiring Diagram Phv1500E V

    3kW (x3) 3kW (x3) Fan 2 Fan 1 T9901020-8-2T UK (v10) Page | 21...
  • Page 22: Appendix 2B - Wiring Diagram Phv2000E V

    Brown Black Grey 2 kW (x3) 2 kW (x3) Brown Black Grey 2 kW (x3) 2 kW (x3) Fan 2 Fan 1 T9901020-8-2T UK (v10) Page | 22...
  • Page 23: Appendix 2C - Wiring Diagram Phv1500W V And Phv2000W V

    Fan 2 Fan 2 Fan 2 Fan 1 Fan 1 Fan 1 T9901020-8-2T UK (v10) Page | 23...
  • Page 24: Appendix 2D - Wiring Diagram Phv1500A V And Phv2000A V

    Fan 2 Fan 2 Fan 2 Fan 1 Fan 1 Fan 1 T9901020-8-2T UK (v10) Page | 24...
  • Page 25: Appendix 2E - Wiring Diagram Phv2500E V (Stacked Air Curtain)

    TERMINAL 400V / 3ph / 50Hz BLOCK Brown Black Grey Blue 85 deg C Auto Thermal Trip REMOTE 7-way Plug CONTROL IN1 IN0 EEPROM F1 (F100mA) F2 (T6.3A) Black rectangle is F2 F1 moveable head of Brown DIP switch 1 2 3 4 Brown Blue High speed...
  • Page 26: Appendix 2F - Wiring Diagram Phv3000E V (Stacked Air Curtain)

    TERMINAL 400V / 3ph / 50Hz BLOCK Brown Black Grey Blue 85 deg C Auto Thermal Trip REMOTE 7-way Plug CONTROL IN1 IN0 EEPROM F1 (F100mA) F2 (T6.3A) Black rectangle is F2 F1 moveable head of Brown DIP switch 1 2 3 4 Brown Blue High speed...
  • Page 27: Appendix 2G - Wiring Diagram Phv2500W V (Stacked Air Curtain)

    TERMINAL BLOCK 230V / 1ph / 50Hz Brown Blue REMOTE 7-way Plug CONTROL 3 PORT VALVE IN1 IN0 Grey EEPROM Orange F1 (F100mA) White F2 (T6.3A) Blue F2 F1 Black Black rectangle is Green/Yellow moveable head of Brown DIP switch White High speed Med speed...
  • Page 28: Appendix 2H - Wiring Diagram Phv3000W V (Stacked Air Curtain)

    TERMINAL BLOCK 230V / 1ph / 50Hz Brown Blue REMOTE 7-way Plug CONTROL 3 PORT VALVE IN1 IN0 Grey EEPROM Orange F1 (F100mA) White F2 (T6.3A) Blue F2 F1 Black Black rectangle is Green/Yellow moveable head of Brown DIP switch White High speed Med speed...
  • Page 29: Appendix 2I - Wiring Diagram Phv2500A V (Stacked Air Curtain)

    TERMINAL BLOCK 230V / 1ph / 50Hz Brown Blue REMOTE 7-way Plug CONTROL IN1 IN0 EEPROM F1 (F100mA) F2 (T6.3A) F2 F1 Black rectangle is moveable head of Brown DIP switch High speed Med speed Low speed Black High speed Blue Med speed Low speed...
  • Page 30: Appendix 2J - Wiring Diagram Phv3000A V (Stacked Air Curtain)

    TERMINAL BLOCK 230V / 1ph / 50Hz Brown Blue REMOTE 7-way Plug CONTROL IN1 IN0 EEPROM F1 (F100mA) F2 (T6.3A) F2 F1 Black rectangle is moveable head of Brown DIP switch High speed Med speed Low speed Black High speed Blue Med speed Low speed...
  • Page 31: Declaration Of Conformity

    20. DECLARATION OF CONFORMITY Carver International Ltd T/A Thermoscreens St Mary’s Road Nuneaton Warwickshire CV11 5AU United Kingdom Telephone: +44 (0)24 7638 4646 www.thermoscreens.com EC DECLARATION OF CONFORMITY as defined by the EC Council Directive on Machinery 2006/42/EC, the Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive...
