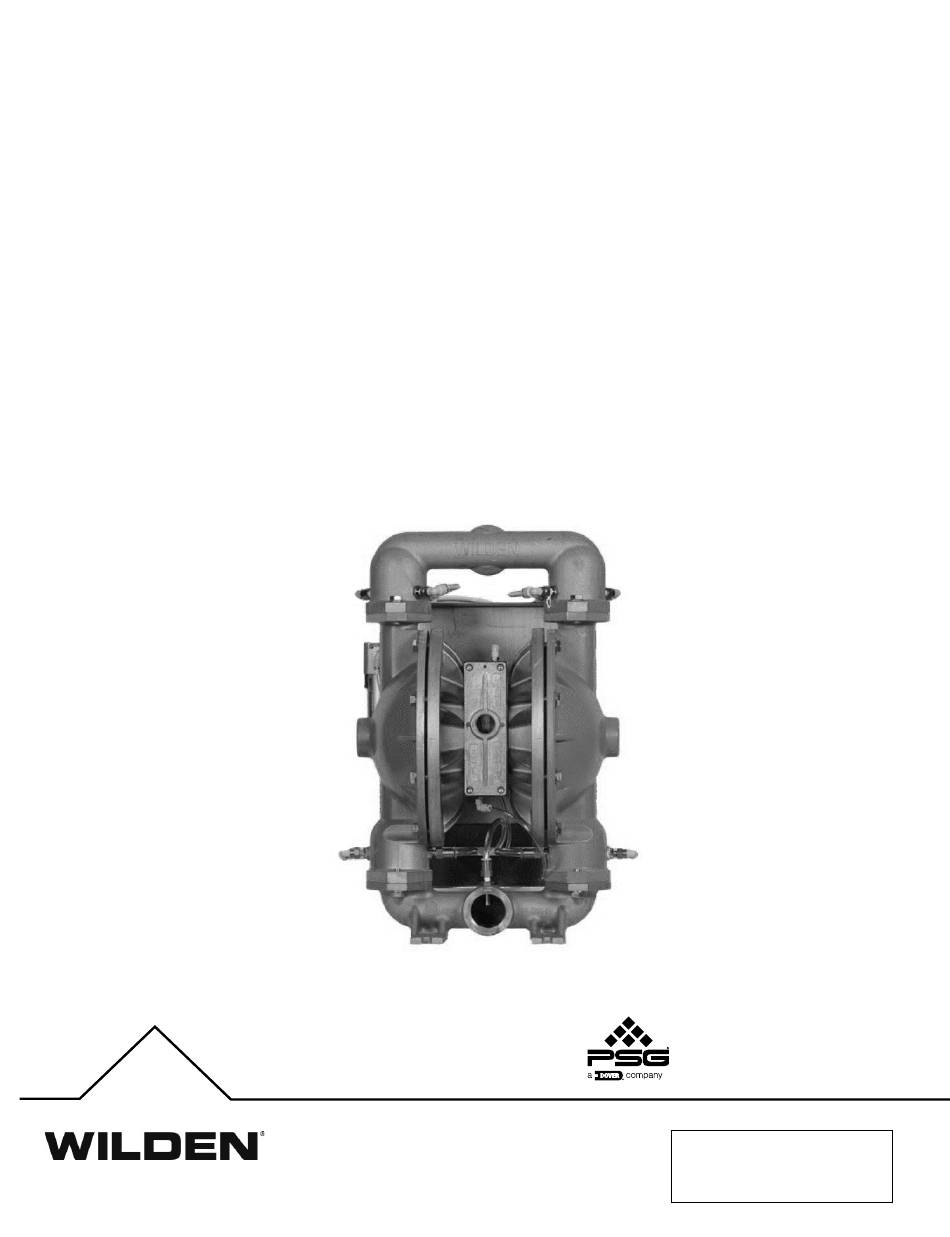

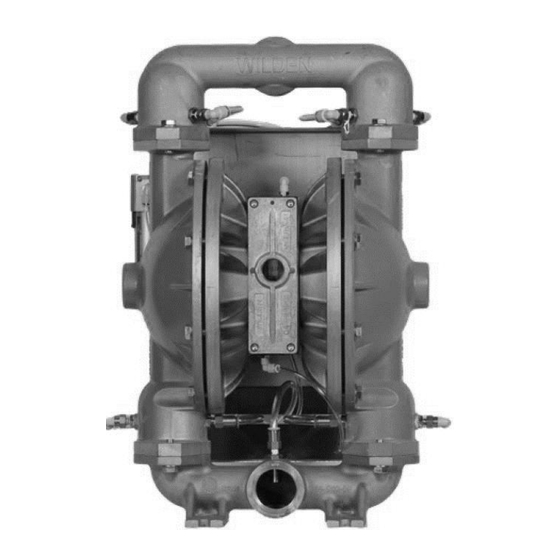

- Page 1 ENGINEERING OPERATION & MAINTENANCE MANUAL XPR860P/XPR1560P Powder Transfer Pump Where Innovation Flows PSGC-11810-E-02en...
- Page 2 No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording, without the written permission of PSG, a Dover Company, except as described by the terms of those agreements.
-
Page 3: Table Of Contents
XPR860P/XPR1560P POWDER PUMP CONTENTS SECTION 1: Safety and Precautions ..................4 SECTION 2: Wilden Pump Designation System ..............5 SECTION 3: How It Works ......................6 SECTION 4: Dimensional Drawings ..................8 XPR860P Aluminum Pump ....................8 XPR860P Stainless Steel Pump ................... 8 XPR1560P Aluminum Pump .................... -
Page 4: Section 1: Safety And Precautions
XPR860P/XPR1560P POWDER PUMP SECTION 1 WARNING: Always wear safety glasses when operating a pump to avoid eye injury. If diaphragm rupture occurs, CAUTION: Maximum temperature limits are based on material being pumped may be forced out of the air mechanical stress only. Certain chemicals will reduce exhaust. -
Page 5: Section 2: Wilden Pump Designation System
XPR860P/XPR1560P POWDER PUMP SECTION 2 WILDEN PUMP DESIGNATION SYSTEM XPR860/XPR1560P LEGEND XPR 860P / X X / X X X / X X / X X / X X X X METAL O-RINGS MODEL VALVE SEATS SPECIALTY VALVE BALLS CODE (if applicable) DIAPHRAGMS AIR VALVE... -
Page 6: Section 3: How It Works
XPR860P/XPR1560P POWDER PUMP SECTION 3 HOW IT WORKS – AIR-OPERATED DOUBLE-DIAPHRAGM PUMP The Wilden diaphragm pump is an air-operated, positive displacement, self-priming pump. These drawings show flow pattern through the pump upon its initial stroke. It is assumed the pump has no fluid in it prior to its initial stroke. FIGURE 1 The air valve directs pressurized air to FIGURE 2 When the pressurized diaphragm, FIGURE 3 At completion of the stroke, the air... - Page 7 XPR860P/XPR1560P POWDER PUMP SECTION 3 HOW IT WORKS – POWDER FLUIDIZATION SYSTEM In the main pump design, each of the four valve balls is equipped with two purging points, and an additional purging point has been added at the inlet. This configuration aims to enhance the cleaning efficiency of the pump, ensuring no residual materials affect the pump's performance. For this purpose, compressed air is used as the purging medium.
-
Page 8: Section 4: Dimensional Drawings
XPR860P/XPR1560P POWDER PUMP SECTION 4 DIMENSIONAL DRAWING XPR860P ALUMINUM DIMENSIONS METRIC STANDARD ITEM (mm) (inch) 19.3 13.6 24.8 26.4 13.8 14.1 22.1 30.1 18.3 TJPR860P-01 REV.A XPR860P STAINLESS STEEL DIMENSIONS METRIC STANDARD ITEM (mm) (inch) 19.3 14.0 24.4 25.8 14.1 13.8 21.9 29.9... -
Page 9: Xpr1560P Aluminum Pump
XPR860P/XPR1560P POWDER PUMP DIMENSIONAL DRAWING XPR1560P ALUMINUM DIMENSIONS METRIC STANDARD ITEM (mm) (inch) 21.0 15.5 30.0 32.3 15.7 15.7 23.9 32.2 14.3 12.1 10.2 11.0 18.5 TJPR1560P-01 REV.A XPR1560P ALUMINUM DIMENSIONS METRIC STANDARD ITEM (mm) (inch) 22.4 15.8 SECTION 4 30.0 32.1 15.9... -
Page 10: Section 5: Performance
XPR860P/XPR1560P POWDER PUMP SECTION 5 SECTION 5 PERFORMANCE PERFORMANCE XPR860P METAL RUBBER-FITTED Ship Weight….…….…. Aluminum37.5kg(82lb) 316 Stainless Steel Threaded 60.5kg (132 lb) Air Inlet……………………………………….3/4" Inlet...………………………………51 mm (2") Outlet………………………………51 mm (2") Suction Lift………..…………..5.9 m Dry (19.5′) 8.7 m Wet (29.4′) Disp. per Stroke ……………..2.8 L (0.74 gal) Max. -
Page 11: Xpr860P Metal Reduced-Stroke Ptfe-Fitted
XPR860P/XPR1560P POWDER PUMP SECTION 5 XPR860P METAL REDUCED-STROKE PTFE-FITTED Ship Weight………….….Aluminum37.5kg(82lb) 316 Stainless Steel Threaded 60.5kg (132 lb) Air Inlet……………………………………….3/4" Inlet...………………………………51 mm (2") Outlet………………………………51 mm (2") Suction Lift………..…………..4.4 m Dry (14.5′) 9.0 m Wet (29.5′) Disp. per Stroke ……………..1.7 L (0.45 gal) Max. -
Page 12: Xpr1560P Metal Rubber-Fitted
XPR860P/XPR1560P POWDER PUMP SECTION 5 XPR1560P METAL EZ INSTALL TPE-FITTED Ship Weight……….….Aluminum64.5kg(141lb) 316 Stainless Steel Threaded 107.5kg (235 lb) Air Inlet……………………………………….3/4" Inlet...………………………………76 mm (3") Outlet………………………………76mm (3") Suction Lift………..………….6.4 m Dry (20.9′) 9.0 m Wet (29.5′) Disp. per Stroke ……………..5.8 L (1.55 gal) Max. -
Page 13: Section 6: Suggested Installation, Operation, Maintenance, And Troubleshooting
XPR860P/XPR1560P POWDER PUMP SECTION 6 SUGGESTED INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING Wilden pumps are designed to meet the performance requirements of be eliminated. In addition, pump efficiency can be adversely even the most demanding pumping applications. They have been affected if proper attention is not given to site location. designed and manufactured to the highest standards and are •... - Page 14 XPR860P/XPR1560P POWDER PUMP SUGGESTED INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING SHUT-OFF VALVE POWDER DISCHARGE FLEXIBLE CONNECTION MAIN AIR INLET & FLUIDIZATION SYSTEM INLET MUFFLER FLEXIBLE CONNECTION POWDER INLET COMBINATION FILTER & REGULATOR AIR SHUT-OFF VALVE to control the pump from a remote location. When the pump discharge pressure equals or exceeds the air supply pressure, the pump will stop.
- Page 15 XPR860P/XPR1560P POWDER PUMP SUGGESTED INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING Troubleshooting Also, as the check valve balls wear out, they become smaller and can become stuck in the seats. In this case, replace balls and seats. Pump will not run or runs slowly. Checking if the valve balls are sticking: Remove plug from pilot spool exhaust.
-
Page 16: Section 7: Disassembly/Reassembly
XPR860P/XPR1560P POWDER PUMP SECTION 7 DISASSEMBLY / ASSEMBLY FLUIDIZATION SYSTEM DISASSEMBLY Tools Required: CAUTION: Before attempting any maintenance or repair, disconnect the compressed • air line to the pump and allow all air pressure to bleed from the pump. Disconnect all Socket Wrench intake, discharge, and air lines. -
Page 17: Pump Disassembly
XPR860P/XPR1560P POWDER PUMP DISASSEMBLY / ASSEMBLY PUMP DISASSEMBLY Tools Required: CAUTION: Before attempting any maintenance or repair, disconnect the • compressed air line to the pump and allow all air pressure to bleed from the pump. Socket Wrench Disconnect all intake, discharge, and air lines. Drain the pump by turning it upside •... - Page 18 XPR860P/XPR1560P POWDER PUMP DISASSEMBLY / ASSEMBLY Step 7 Step 8 Step 9 Remove the inlet valve balls and valve seats Using the appropriate-sized wrench, The liquid chamber should be removed to from the inlet manifold and liquid chambers and remove the liquid chamber from the expose the diaphragm and outer piston.
-
Page 19: Air Valve Disassembly
XPR860P/XPR1560P POWDER PUMP DISASSEMBLY / ASSEMBLY AIR VALVE / CENTER SECTION DISASSEMBLY Tools Required: CAUTION: Before attempting any maintenance or repair, disconnect the compressed • air line to the pump and allow all air pressure to bleed from the pump. Disconnect all 5 mm (3/16") Hex-Head Wrench intake, discharge, and air lines. - Page 20 XPR860P/XPR1560P POWDER PUMP DISASSEMBLY / ASSEMBLY Step 4 Step 5 Step 6 Remove air valve end cap to expose air Remove air valve spool from air valve Remove pilot spool sleeve retaining snap valve spool by simply lifting up on end body by threading one air valve bolt into ring on both sides of center section with cap once air valve bolts are removed.
-
Page 21: Reassembly Hints And Tips
XPR860P/XPR1560P POWDER PUMP DISASSEMBLY / ASSEMBLY Step 9 Check center section shaft seals for signs of wear. If necessary, remove the shaft seals with O-ring pick and replace. REASSEMBLY HINTS AND TIPS Upon performing applicable maintenance to the air distribution Maximum Torque Specifications system, the pump can now be reassembled. -
Page 22: Installation
XPR860P/XPR1560P POWDER PUMP DISASSEMBLY / ASSEMBLY SHAFT SEAL INSTALLATION Pre-Installation Tools After all the old seals have been removed, the inside of the bushing The following tools can be used to aid in the installation of should be cleaned to ensure no debris is left that may cause premature the new seals: damage to the new seals. -
Page 23: Section 8: Exploded View And Parts List
XPR860P/XPR1560P POWDER PUMP SECTION 8 EXPLODED VIEW AND PARTS LIST EXPLODED VIEW AND PARTS LIST Exploded View and Parts List -XPR860P Exploded View A - Metal ADS ® PSGC-11810-E-02en Wilden... - Page 24 XPR860P/XPR1560P POWDER PUMP Description Qty. XPR860P/AAAAA/…/ P/N XPR860P/SSAAA/…/ P/N AIR DISTRIBUTION COMPONENTS Pro-Flo V™ Assembly, Air Valve 1 04-2030-01 04-2030-01 O-Ring (-225), End Cap (Ø 1.859 x Ø .139) 04-2390-52-700 04-2390-52-700 End Cap 04-2340-01 04-2340-01 Screw, SHC, Air Valve (1/4"-20 x 4-1/2") 02-6000-08 02-6000-08 Muffler Plate, Pro-Flo V™...
- Page 25 XPR860P/XPR1560P POWDER PUMP Diaphragm, Primary Piston, Outer (Non-PTFE) 08-4550-01 08-4550-03 REDUCED-STROKE PTFE COMPONENTS Shaft, Pro-Flo ™ 08-3840-03 08-3840-03 Shaft Stud, 1/2"-20 X 2-1/8" 08-6152-08 08-6152-08 Piston, Inner, PTFE 08-3700-01 08-3700-01 Diaphragm, Back-up Diaphragm, Primary PTFE 08-1010-55-42 08-1010-55-42 Piston, Outer, PTFE 08-4550-01 08-4550-03 TJPR860P-04 REV.A...
- Page 26 XPR860P/XPR1560P POWDER PUMP EXPLODED VIEW AND PARTS LIST Exploded View and Parts List - XPR1560P ® PSGC-11810-E-02en Wilden...
- Page 27 XPR860P/XPR1560P POWDER PUMP Description Qty. XPR1560P/AAAAA/…/ P/N XPR1560/SSAAA/…/ P/N AIR DISTRIBUTION COMPONENTS Pro-Flo V™ Assembly, Air Valve 1 04-2030-01 04-2030-01 O-Ring (-225), End Cap (Ø 1.859 x Ø .139) 04-2390-52-700 04-2390-52-700 End Cap 04-2340-01 04-2340-01 Screw, SHC, Air Valve (1/4"-20 x 4-1/2") 02-6000-08 02-6000-08 Muffler cover plate，Pro-Flo V™...
- Page 28 XPR860P/XPR1560P POWDER PUMP Piston, Outer 15-4550-01 15-4550-03 Washer, Inner Piston 15-6850-08 15-6850-08 Screw (3/8"-16 x 1-1/8") 15-6130-08 15-6130-08 Washer, Flat (Ø .406" x Ø .812" x .065") 15-6740-08-50 15-6740-08-50 REDUCED-STROKE PTFE COMPONENTS Shaft, Pro-Flo™ 15-3805-03 15-3805-03 Piston, Inner 15-3750-01 15-3750-01 Diaphragm, Primary 15-1010-55-42 15-1010-55-42...
- Page 29 XPR860P/XPR1560P POWDER PUMP Exploded View and Parts List - XPR860P/XPR1560P Fluidization System Discharge Manifold – Fluidization Components Metal ADS Fluidization Kit Inlet Manifold – Fluidization Components Liquid Chamber – Fluidization Components ® PSGC-11810-E-02en Wilden...
- Page 30 XPR860P/XPR1560P POWDER PUMP Exploded View and Parts List - XPR860P/XPR1560P Fluidization System Description Qty. XPR860P/AAAAA/…/ P/N XPR860P/SSAAA/…/ P/N XPR1560P/AAAAA/…/ P/N XPR1560P/SSAAA/…/ P/N Inner guard plate 08P-0002-03-01 08P-0002-03-03 15P-0002-03-01 15P-0002-03-03 Outer guard plate 08P-0003-03-01 08P-0003-03-01 15P-0003-03-01 15P-0003-03-03 Bolt 08P-1001-03 08P-1002-03 Flat washer 08P-1003-03 Air source filter assembly, 5μm 08P-2001-99K...
-
Page 31: Section 9: Elastomer Options
XPR860P/XPR1560P POWDER PUMP SECTION 9 SETION 9 SECTION 9 ELASTOMER OPTIONS ELASTOMER OPTIONS XPR860P VALVE VALVE REDUCED-STROKE DIAPHRAGMS MATERIAL BACKUP DIAPHRAGMS BALLS SEATS Neoprene 08-1060-51 08-1010-53 PTFE 08-1010-55-42 08-1080-55 Wil-Flex ™ 08-1022-58 08-1080-58 08-1147-58 Stainless Steel 08-1147-03 Aluminum 08-1147-01 Backup diaphragms used with PTFE diaphragms only. TJPR860P-04 REV.A XPR1560P VALVE... - Page 32 No.2 Hai Tai Hua Ke Er Road Huayuan Industry Park Tianjin 300384, PR China P: +86-400 600 4026 PSG-China@psgdover.com www.psgdover.com.cn Where Innovation Flows Copyright 2023 PSG , a Dover Company ® ® ® ® Copyright 2023 PSG , a Dover Company ®...
