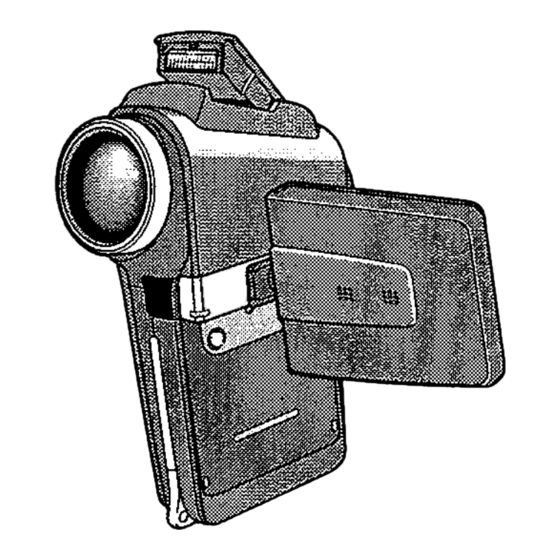

Sanyo VPC-HD1 Service Manual

FILE NO.
SERVICE MANUAL \
(Product Code : 168 027 01)
(U.S.A.)
(Canada)
(Korea)
(Taiwan)
VPC-HD1EX
(Product Code : 168 027 02)
(Europe)
(South America)
(China)
(Australia)
(Hong Kong)
Contents (Russia)
1. OUTLINE OF CIRCUIT DESCRIPTION ..........seecceee 3 (Middle East)
2. DISASSEMBLY ......ccccssessecssssceseesetteseneereseeeseneseesenees 12 (Africa)
4. USB STORAGE INFORMATION
TROUBLESHOOTING GUIDE... B4 VPC-HD1E
5
6, PARTS LIST cscssssscsssssssssscsesevsssisessesssssseesesssssseesesssn 26
PACKING MATERIALS ccccsscscsssssssssssssssssssesssssssessseee 26 OK) Code : 168 027 03)
ACCESSORIES essesesssssesssseesssessssesesssssesenssasessecvee 26
CABINET & CHASSIS PARTS 1 cesssssssscsssssssssseecee 28
CABINET & CHASSIS PARTS 2 cecssssssscsssesssssssseee 30
ELECTRICAL PARTS sessssesssssssssecsscssssssssesssecssssssees 32
CIRCUIT DIAGRAMS &
PRINTED WIRING BOARDS ..scsssssssssssscssscscssecssessnses C1
WARNING
This product has been manufactured using lead-free solder. Be sure to follow the waming given on page 2 when carrrying out
repair work.
PRODUCT SAFETY NOTICE
The components designated by a symbol ( A ) in this schematic diagram designates components whose value are of
special significance to product safety. Should any component designated by a symbol need to be replaced, use only the part
designated in the Parts List. Do not deviate from the resistance, wattage, and voltage ratings shown.
CAUTION : Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer's instructions.
NOTE : 1. Parts order must contain model number, part number, and description.
2. Substitute parts may be supplied as the service parts.
3.N. S. P.: Not available as service parts.
Design and specification are subject to change without notice.
SX812/U, EX, E
REFERENCE No. SM5310652
