Entryphone QVD1-4 Installation Notes

Lock release times (continued....)
To set the release times, use the touch buttons as
indicated on the screen and enter the corresponding
codes below. The time is set in half-second increments,
indicated by the last two digits of the settings code.
For example, to set Lock 1 on Door 1 to be open for 3
seconds, use the code 1106. Press the
confirm your choice; a tick symbol will briefly appear to
indicate that the setting has been accepted.
Release time codes
Lock 1 Lock 2
Door Unit 1 1101-1120 1201-1220
Door Unit 2 2101-2120 2201-2220
Door Unit 3 3101-3120 3201-3220
Door Unit 4 4101-4120 4201-4220

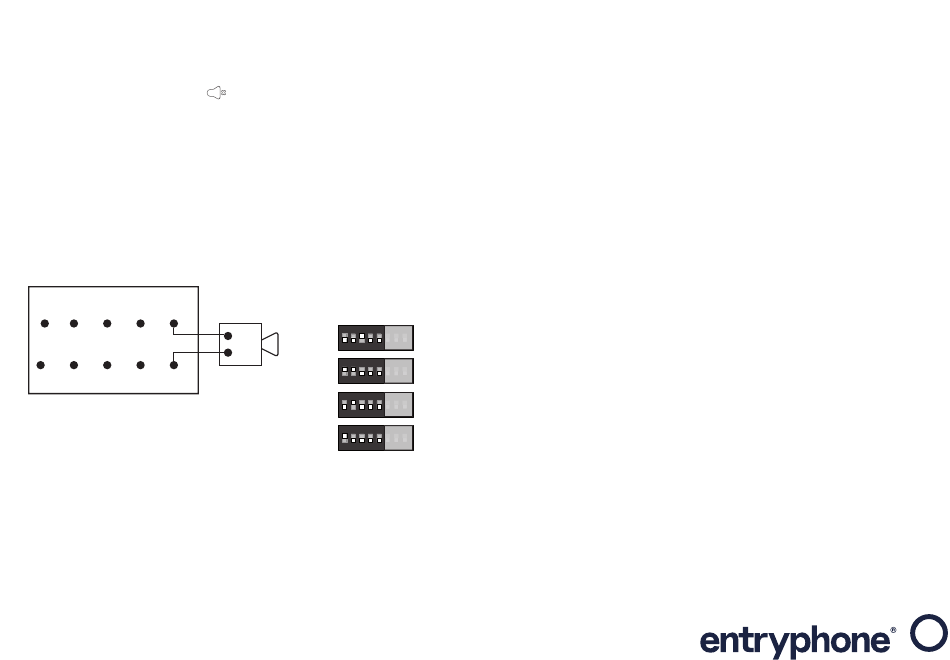

Setting an Additional Cameras
QVD#
BUS BUS CV- CV+ CCTV
NO COM AP- AP+ GND
By default, Q series systems only display the caller at
the door panel that initiated the call. However, you can
add an additional camera at the door for a second view
of the caller. Any video camera with a CVBS analogue
output can be connected to the QVD's "CCTV" input.
Note that additional cameras cannot be powered by the
QVD and will require a separate power supply.
If a second camera is connected, you'll need to
programme the system to recognise it. To do this,
access the options menu as described in "Setting Lock
Release Times" and enter the appropriate code provided
below.
Setting an Additional Cameras (cont...)
Door Unit 1
CCTV
Door Unit 2
button to
CCTV
Door Unit 3
CCTV
Door Unit 4
CCTV
RTE
Where a multi-door system is installed it is possible to
1301-1320
set the system to access all the cameras connected. In
2301-2320
this case the camera button on the monitor will change
to the next camera in the sequence.
3301-3320
4301-4320
Button Address Numbering
Each call button on the panel is linked to a specific
monitor address, from 1 at the bottom to 4 at the
top. Please configure the DIP switch settings for each
monitor as below:
ON
4
1 2 3 4 5 6 7 8
ON
3
CCTV
1 2 3 4 5 6 7 8
CAM
ON
2
1 2 3 4 5 6 7 8
ON
1
1 2 3 4 5 6 7 8
NOTE: If you have more than one monitor to ring from
one button please refer to the notes in the Q series guide
to set the other monitors as slave devices.
The Entryphone Co. Ltd
23 Granville Road London SW18 5SD
020 8870 8635
ON OFF
0111 0110
0121 0120
0131 0130
0141 0140
0151 0150
0161 0160
0171 0170
0181 0180
