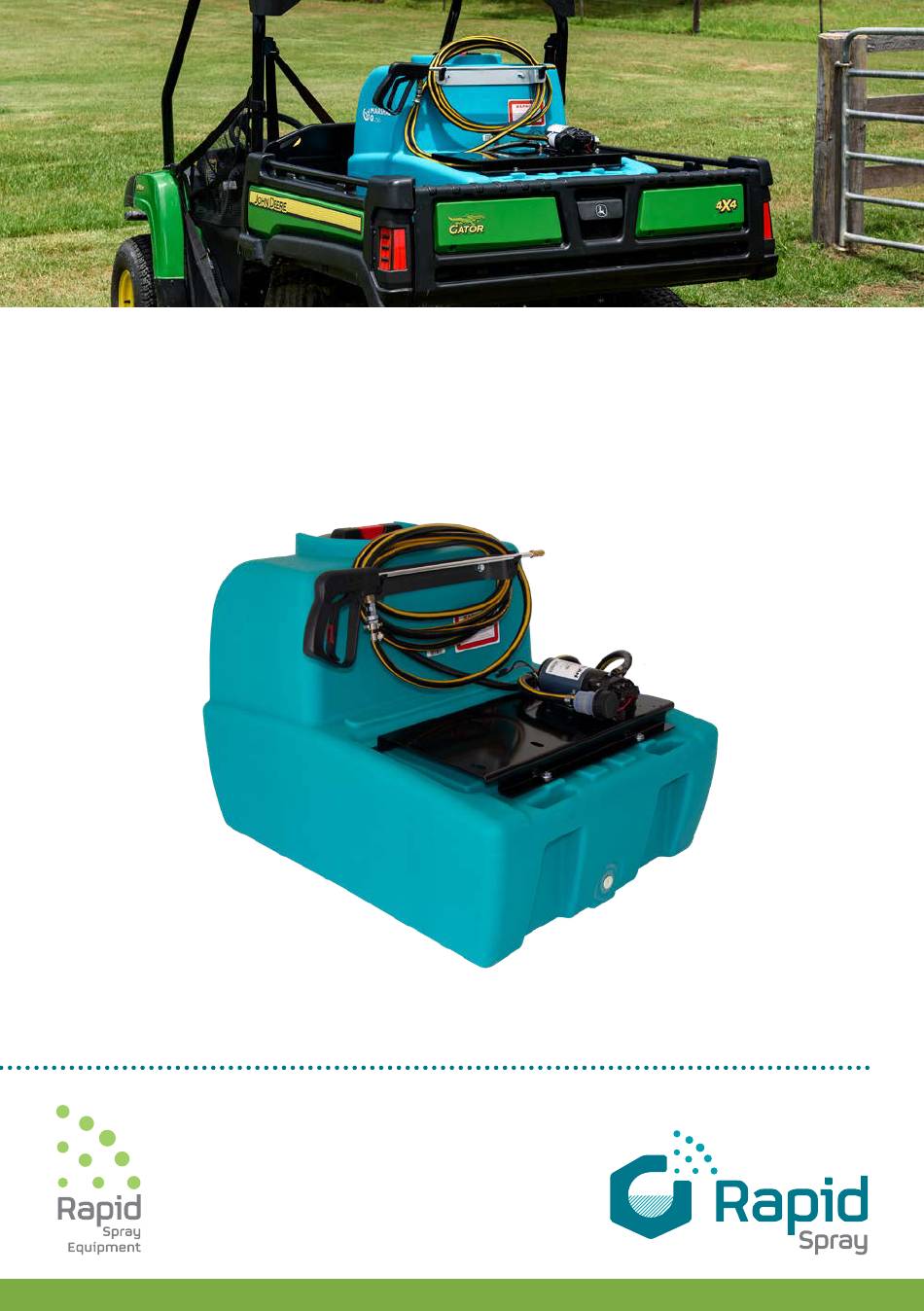

  • Page 1 MARSHAL-Q OPERATORS HANDBOOK MARSHAL-Q BUDDY MARSHAL-Q 250L / 400L...

  • Page 2: Table Of Contents

    Rapid Spray Marshal Q Operators Handbook CONTENTS Introduction & Models Warnings Product Risk Assessment Troubleshooting Operation Mixing & Filling Calibration Guides Spraying Buddy Smart Reel Operation (when fitted) Cleaning & Maintenance Marshal Tank Parts Breakdown Delavan Pump Breakdown Spray Gun Breakdown...
  • Page 3 *WARNING: Always obey vehicle and UTV/ATV manufacturer instructions regarding loading and operation. Please check weight restrictions. Serious death or injury can occur from improper usage. Rapid Spray accepts no liability for the unsafe operation of this unit. AYH008...

  • Page 4: Warnings

    Rapid Spray Marshal Q Operators Handbook WARNINGS Read all warnings below and obey any instruction stickers or warnings on the spray unit. Failure to do so may result in serious bodily harm or death. When mounting to any vehicle, ensure that you have read the Vehicle Owner’s Manual and that you comply with all the weight restrictions as specified by the vehicle manufacturer, as overloading can cause injury or death.

  • Page 5: Product Risk Assessment

    Rapid Spray Marshal Q Operators Handbook PRODUCT RISK ASSESSMENT TASK HAZARDS RISK CONTROL MEASURES Partially fill the tank Manual handling; Medium Concentrate on tasks, follow safe manual with water, start the slips, trips or falls; handling techniques: don’t lift on your motor and test the petrol fumes;...

  • Page 6: Troubleshooting

    Always obey vehicle and UTV/ATV manufacturer instructions regarding loading and operation. Please check weight restrictions. Serious death or injury can occur from improper usage. Rapid Spray accepts no liability for the unsafe operation of this unit. Compact Field Sprayers by Rapid Spray...

  • Page 7: Operation

    Rapid Spray Marshal Q Operators Handbook OPERATION PRE-START UP Familarise yourself with the unit (see page 14, 15 and 16). Inspect the unit for any broken or damaged components - replace damaged/broken components as necessary. Familiarise yourself with any additional Operator Instruction manuals supplied with unit, and ensure you follow all warnings and instructions contained within.

  • Page 8: Mixing & Filling

    Rapid Spray Marshal Q Operators Handbook MIXING & FILLING The following steps are given as a guide to mixing and filling your Marshal Q sprayer. Read the chemical product label and follow the instructions carefully, taking special note with regard to the order in which the products are added to the tank.

  • Page 9: Calibration Guides

    Rapid Spray Marshal Q Operators Handbook CALIBRATION GUIDE Accurate calibration is an essential element of any spraying function as it ensure that the pesticide is applied at the rate as recommended by the product manufacturer. Application in excess of the recommended rate is prohibited, can damage crops and is uneconomical.

  • Page 10: Spraying

    Rapid Spray Marshal Q Operators Handbook SPRAYING PLANNING TO SPRAY SAFELY For effective spraying, ensure you have taken the following factors into account. Before commencing spraying, plan the work effectively to reduce potential contamination. Do not spray if the operator, bystanders, watercourses or any non-target vegetation appears to be in danger from spray drift contamination.
  • Page 11 Rapid Spray Marshal Q Operators Handbook SETTING UP SPRAYER & ADJUSTING OPTIONAL REGULATOR (if applicable) Prior to commencing spraying, you will need to adjust the regulator knob (blue) to suit • the desired pressure and spraying style. Winding the regulator clockwise will increase spraying pressure. Winding it counter •...
  • Page 12 Rapid Spray Marshal Q Operators Handbook BUDDY SMART REEL® (if applicable) Please read the Buddy Smart Reel® Operators Handbook for full instructions, parts and maintenance instructions. Please note your Marshal Q sprayer may not require the following instructions. Only applicable to Buddy® Marshal Q sprayer units.
  • Page 13 Rapid Spray Marshal Q Operators Handbook PAIRING MYPACE REMOTE TO BUDDY SMART REEL® The MyPace handheld remote should be delivered already paired to the Buddy Hose Reel. If several reels have been purchased and it is not clear as to which remote is paired to which reel or if the remote has been replaced, the remote can be re-paired to the reel at any time.

  • Page 14: Cleaning And Maintenance

    Rapid Spray Marshal Q Operators Handbook CLEANING & MAINTENANCE After use, the sprayer must be thoroughly decontaminated, inside and outside. Decontaminating the tank, including pumps, hoses and hand lance, avoids damage to crops from harmful spray residues and prevents sprayer corrosion and abrasion. As a guide, follow the decontamination procedure below: After spraying, rinse all liquid out of the tank.
  • Page 15 Rapid Spray Marshal Q Operators Handbook NOTES AYH008 REV JAN 2020...

  • Page 16: Marshal Tank Parts Breakdown

    Rapid Spray Marshal Q Operators Handbook MARSHAL TANK PARTS BREAKDOWN 250L MARSHAL TANK 910 (L) x 730 (W) x 620 (H) 400L MARSHAL TANK 1480 (L) x 755 (W) x 660 (H) Part No. Qty Description AMPTC00200ATT / 400BTT 200L/400L Marshal Tank...

  • Page 17: Delavan Pump Breakdown

    12V DC Motor (7800 series w/ connector, no switch) Full Replacement Pump - 8.3L/min APD0083Q If your Marshal-Q has a different model pump, please contact Rapid Spray on 1800 011 000 for pump breakdown and spare parts. AYH008 REV JAN 2020...
  • Page 18 Rapid Spray Marshal Q Operators Handbook SPRAY GUN BREAKDOWN | AHG108/109/110ST Item Description Part No. Repair kit to suit AHG108, AHG109, AHG110 and AHG111 CPLK108R Powerjet spray guns Brass nozzle to suit AHG108, AHG109, AHG110, AHG111 and CPLP108N AHG112 Powerjet/Rapidjet spray guns * Are included in CPLK108R repair kit.

  • Page 19: Warranty

    RAPID SPRAY in addition or inconsistent with these provisions. Purchasers to whom these provisions apply agree to hold RAPID SPRAY not liable for claims by their customers in excess of the obligations of RAPID SPRAY expressly set forth herein.
  • Page 20 RAPID SPRAY, only after inspection of the failed component. In no event shall RAPID SPRAY be liable to any person for indirect or consequential damages or for injury or INABILITY | UNSUITABILITY commercial loss resulting from any use or inability to use any RAPID SPRAY product.

  • Page 21: Warranty Registration

    25 - 40 Hobby farm Hire company 41 - 55 Industrial Home Over 55 Other............What influenced you to purchase a Rapid Spray product? Received Catalogue Better features than competitor product Newspaper advertisement Quality & reliability Magazine advertisement Price Dealer recommendation...
  • Page 22 Rapid Spray Marshal Q Operators Handbook This page has been left blank intentionally. Compact Field Sprayers by Rapid Spray...
  • Page 23 Rapid Spray Marshal Q Operators Handbook NOTES AYH008 REV JAN 2020...
  • Page 24 Call us on 1800 011 000 or visit www.rapidspray.net 35 Enterprise Cres, Singleton NSW 2330 PO BOX 3119 Singleton NSW 2330 Telephone: 1800 011 000 Facsimile: 02 6571 2951 Rapid Spray Liquid Management Systems AYH008...
