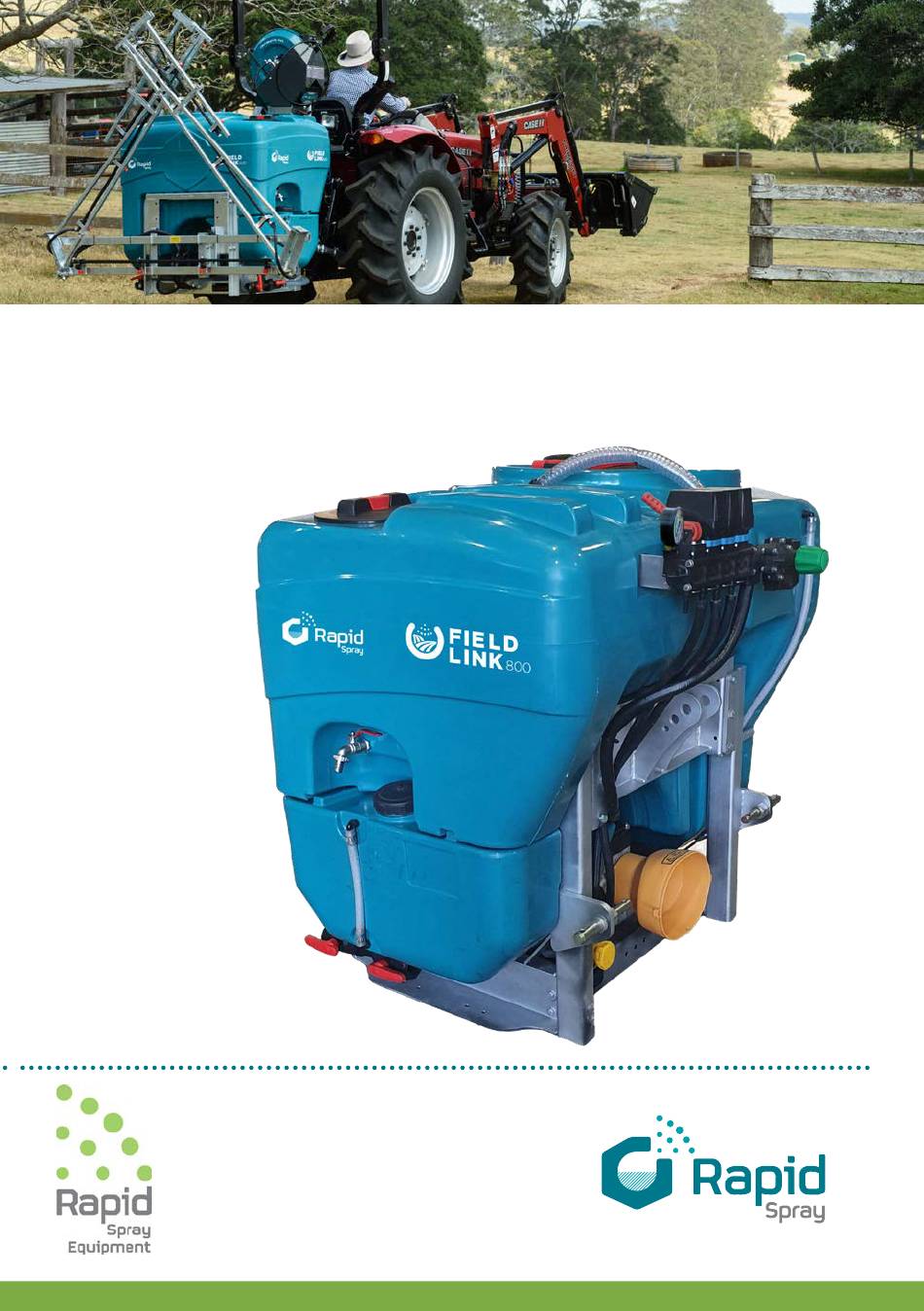

- Page 1 FIELDLINK OPERATORS HANDBOOK FIELDLINK ECO FIELDLINK PRO 400L / 600L / 800L...
-
Page 2: Table Of Contents
Mounting Hose Reel - Manual & Buddy Smart Reel PTO Shaft Instructions Warnings Correctly Size PTO Shaft Fitting PTO Shaft Hitching FieldLink to Tractor Filling & Mixing Calibration Spraying Cleaning & Maintenance FieldLink Breakdown Bertolini Poly 2073 Pump Warranty Warranty Registration Rapid Spray Equipment by Rapid Spray... -
Page 3: Introduction
DISCLAIMER: In line with our policy of continuous improvement, the weights, dimensions and design may change slightly from what is shown in the book. Rapid Spray accepts no liability for the unsafe operation of this unit. Rapid Spray Equipment by Rapid Spray... -
Page 4: Warnings
11. No modifications and/or alterations may be made to this sprayer. Any such modifications not only void the sprayer warranty but can make the unit dangerous to anyone operating the pump. 12. Always inspect hoses and piping to avoid burst injuries. Rapid Spray Equipment by Rapid Spray... -
Page 5: Product Risk Assessment
As above; continue to wear PPE for clean maintenance and fresh water tank use. up, store tank in a dry, well ventilated storage. area. Buddy Smart Reel See ‘ Buddy Smart Reel Operators Handbook’ Rapid Spray Equipment by Rapid Spray REV OCT 2019... -
Page 6: Troubleshooting
See ‘Remedy’ for ‘Pump will not prime’ Pump pressure dropping / See ‘Remedy’ for ‘Pressure drops / fluctuating fluctuates during standard operation’ Buddy Smart See ‘Buddy Smart Reel’ Operators Handbook Reel Pump See pump ‘Operator’s Handbook’ . Rapid Spray Equipment by Rapid Spray... -
Page 7: Unit Assembly
If you have any queries or questions further to the instructions on the following pages, please feel free to give one of our friendly customer service members a call on 1800 011 000, and they will be happy to guide you through the steps. NOTES Rapid Spray Equipment by Rapid Spray REV OCT 2019... -
Page 8: Mounting Hose & Gun Holder
CHCLP12MMX2 Pack 2 Lance Clips ASFL00600FLHH Hose Hangers Attach Brackets Attach hose hangers using bolts supplied. Attach Hose Clips Attach hose clips to front using screws supplied. Wrap hose around hangers and mount gun. Rapid Spray Equipment by Rapid Spray... - Page 9 Mount regulator facing forward with bolts as supplied. Attach Hoses Mount three black hoses in order using pin clips. Mount clear return hose using large pin clip. Ensure pressure control is at half way position. Rapid Spray Equipment by Rapid Spray REV OCT 2019...
-
Page 10: Mounting Electric Controls
Attach control box wires labeled 1 - 3 to each section valve. Insert screws to hold in place. NOTE: Do not attach wire labeled P. In-Cab Control Box Using clips supplied, install/mount control box in the cab of the tractor for easy reach. Rapid Spray Equipment by Rapid Spray... -
Page 11: Mounting Boom
NOTE: Component 1 will be already attached to frame. Attach universal z-brackets. Loosely fit slide bolts. Mount Boom & Attach Hoses Slide boom into slotted attachment, set height of boom and tighten slide bolts. Attach boom hoses. Rapid Spray Equipment by Rapid Spray REV OCT 2019... - Page 12 Buddy Smart Reel using the bolts supplied. Attach Hoses Run supplied hose from reel to spare outlet on controls. Secure hose tail using pin clip and hose using hose clamp supplied with hose. Rapid Spray Equipment by Rapid Spray...
-
Page 13: Warnings
Follow all manufacturer instructions and Safe Work procedures when using PTO driven machinery. NOTE: Always wear safety gloves when cutting PTO shaft. Image for marketing purposes only. Rapid Spray Equipment by Rapid Spray REV OCT 2019... -
Page 14: Correctly Size Pto Shaft
Grease both ends of the shaft and slide them together to the shortest length. Cut the same amount off both safety tubes from Step 7. Deburr ends and remove any plastic shavings. Reinstall shaft safety guards to shaft ensuring they have locked in place. Rapid Spray Equipment by Rapid Spray... -
Page 15: Fitting Pto Shaft
4. Lastly, check the overlap of the shaft end exceeds 50% of the total length of the shaft operation to prevent premature failure of the shaft. See https://resources.rapidspray.net/blog/how-to- correctly-size-your-3pl-shaft for full guide with images. Rapid Spray Equipment by Rapid Spray REV OCT 2019... -
Page 16: Hitching Fieldlink To Tractor
5. Test / Level Fieldlink Using the tractors hydraulics, lift your sprayer off the ground to ensure it has been secured properly and is correctly aligned with the rear of the tractor. Adjust tractor arms accordingly. Rapid Spray Equipment by Rapid Spray... -
Page 17: Filling & Mixing
Open the spray gun or boom and start spraying. Rapid Spray Equipment by Rapid Spray REV OCT 2019... -
Page 18: Calibration
Sprayer (L/min) (km/H) (metre) If, as in the example, the nozzle output and therefore, spray volume, is less than the recommended figures, increase the pressure and repeat calibration until target spray volume is reached. Rapid Spray Equipment by Rapid Spray... -
Page 19: Spraying
NOTE: Avoid spraying on still warm days or during the night as convection currents may cause drift in unpredictable directions. Optimum wind speeds are between 3km/h to 7km/h. See https://resources.rapidspray.net/blog/effective-weed- kill-reducing-spray-drift for tips on reducing spray drift. Rapid Spray Equipment by Rapid Spray REV OCT 2019... - Page 20 • Never spray while turning. 6. Maintain constant speed when spraying. Should you need to increase your spraying speed, larger delivery nozzles must be fitted. Re-calibrate as required. Diagram 1.0 Field Work Spraying Pattern Rapid Spray Equipment by Rapid Spray...
-
Page 21: Cleaning & Maintenance
Mounted sprayers tend to be unstable when removed from the tractor. Make sure they are safely chocked before leaving them. When storing the sprayer, ensure that it is clean and dry. Keep in a well ventilated place. Rapid Spray Equipment by Rapid Spray REV OCT 2019... -
Page 22: Fieldlink Breakdown
Rapid Spray FieldLink Operators Handbook FIELDLINK BREAKDOWN FIELDLINK BREAKDOWN Rapid Spray Equipment by Rapid Spray... - Page 23 Rapid Spray FieldLink Operators Handbook FIELDLINK BREAKDOWN CONT. Rapid Spray Equipment by Rapid Spray REV OCT 2019...
- Page 24 1 1/ 4 " Fly Nut CAP106533 1 1/ 4 " - 32mm Hosetail CAP116533 1 1/ 4 " - 32mm Elbow CHPL1C252C Category 1 & 2 Implement Pin CFNE32M32B 1 1/ 4 " x 32mm Barb Elbow Rapid Spray Equipment by Rapid Spray...
-
Page 25: Bertolini Poly 2073 Pump
Crankshaft ‘VA’ Version 80.6475.00.2 Tab 6.36 x 6.36 x 38 26.0047.76.2 Ring 23.0005.09.2 Light Allow Conrod 23.0045.11.2 Bronze Alloy Conrod (optional) 95.0097.61.2 Crankshaft Spacer 81.2646.00.2 Ball Bearing Dia. 20 x 52 x 15 Rapid Spray Equipment by Rapid Spray REV OCT 2019... - Page 26 84.0561.00.2 90° Elbow Connector Dia. 30 (optional) 84.0566.00.2 90° Elbow Connector Dia. 32 (optional) 84.0571.00.2 90° Elbow Connector Dia. 38 (optional) 84.0591.00.2 90° Elbow Connector Dia. 40 (optional) 82.0070.00.2 Wing Nut G. 1"1/ 2 Rapid Spray Equipment by Rapid Spray...
-
Page 27: Warranty
RAPID SPRAY in addition or inconsistent with these provisions. Purchasers to whom these provisions apply agree to hold RAPID SPRAY not liable for claims by their customers in excess of the obligations of RAPID SPRAY expressly set forth herein. - Page 28 RAPID SPRAY, only after inspection of the failed component. In no event shall RAPID SPRAY be liable to any person for indirect or consequential damages or for injury or Inability | Unsuitability commercial loss resulting from any use or inability to use any RAPID SPRAY product.
-
Page 29: Warranty Registration
25 - 40 Hobby farm Hire company 41 - 55 Industrial Home Over 55 Other............... What influenced you to purchase a Rapid Spray product? Received Catalogue Better features than competitor product Newspaper advertisement Quality & reliability Magazine advertisement Price Dealer recommendation... - Page 30 Rapid Spray FieldLink Operators Handbook This page has been left blank intentionally. Rapid Spray Equipment by Rapid Spray...
- Page 31 Rapid Spray FieldLink Operators Handbook NOTES Rapid Spray Equipment by Rapid Spray REV OCT 2019...
- Page 32 Call us on 1800 011 000 or visit www.rapidspray.net 35 Enterprise Cres, Singleton NSW 2330 PO BOX 3119 Singleton NSW 2330 Telephone: 1800 011 000 Facsimile: 02 6571 2951 Rapid Spray Liquid Management Systems...
