Page 1

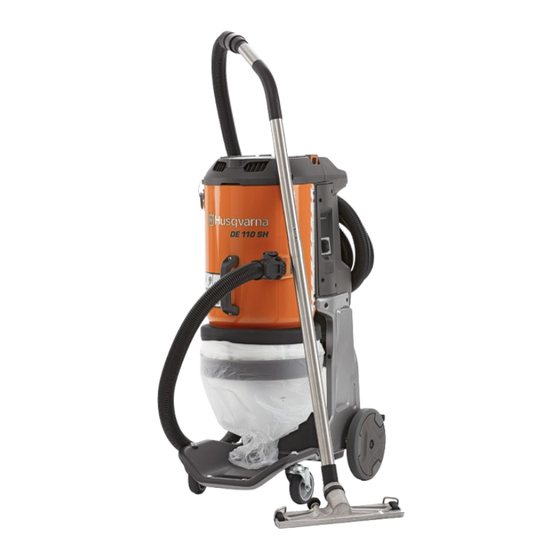

Workshop manual DE 110, DE 110S, DE 110i, DE 120, DE 120 Pace English 1649 - 002 - 10.05.2023...
Page 2
11.2 Technical data DE 110i US........ 46 5.2 Type plate............13 11.3 Technical data DE 110S, DE 110, DE 120 EU.. 47 11.4 Technical data DE 110S, DE 110, DE 120 US.. 48 6 Product overview for repair and servicing 11.5 Technical data DE 110S, DE 110, DE 120 JA...
Page 3
1 Introduction 1.1 Document description This manual gives a full description of how to do maintenance and repair on the product. It also gives safety instructions that the personnel must obey. 1.2 Target group This manual is for personnel with a general knowledge of how to do repair and do servicing.
Page 4
Use AGM (Gel) batteries that are rechargable as • Let an approved electrician do all checks on the a power supply for the related Husqvarna products electric components. only. To prevent injury, do not use the battery as a •...
Page 5
• Do not use other battery chargers than the one supplied for your product. Only use or chargers Battery slot. when you charge Husqvarna replacement batteries AGM (Gel) or . • Do not try to disassemble the battery charger. •...
Page 6
This product contains harmful dust. Use correct personal protective equipment. Do not operate the dust extractor without the complete filtration system. The product is not domestic waste. Recycle it at an approved disposal location for electrical and electronic equipment. ® If the product has Bluetooth wireless ®...
Page 7
Do the filter purge procedure. Look for signs of wear or damage of the dust release rubber cone. DE 110S, DE 110, DE 120: Do a check of the power plug and the power cord. Look for signs of wear, damage or loose connections of the controls before the unit is connected.
Page 13
5.2 Type plate Type Art no Husqvarna Identity No. (HID) / Serial No. Rated voltage, V Frequancy, HZ Rated power, kW Operating mass, kg Year of Mfg 1.
Page 14
6 Product overview for repair and servicing 6.1 Product overview 1. Prefilter cover 2. Filter cleaning button 3. Lifting eyes 4. Inlet cap 5. Longopac holder 6. Control panel 7. Hour meter 8. Wheel brake 9. Fastener for dust extraction hose 10.
Page 15
7 Firmware 7.1 To do an update of the main circuit board 1. Stop the power. To connect the Husqvarna Service Hub on 2. Refer to page 27 . 1649 - 002 - 10.05.2023 Firmware - 15...
Page 16
8 Repair and servicing 8.1 To clean and examine the product parts 8.2.2 To disassemble and assemble the prefilter cover • Clean and examine all parts fully. You find more instructions in the chapter for each part if special 1. Remove the prefilter cover from the product. Refer To remove and install the prefilter cover on page tools or procedures are necessary.
Page 17
8.3 HEPA filter 5. Remove the nut and the pressure release valve. 8.3.1 To remove and install the HEPA filter gasket WARNING: Use approved eye protection and respiratory protection when you do servicing on the HEPA filter. To remove and 1.
Page 18
8.4 Power cord 5. Examine the gasket for wear or damage. If it is necessary, replace the gasket. 8.4.1 To remove and install the power cord WARNING: Disconnect the power plug before you remove the power cord. 1. Remove the screws and the control panel lid. 6.
Page 19
4. Remove the screws and the cables. 8.4.2 To remove and install the power cord DE 110i and DE 120 Pace WARNING: Disconnect the battery before you remove the power cord. 1. Remove the screws and the control panel lid. ...
Page 20
3. Remove the screws and pull out the battery CAUTION: The circuit board and the air copartment. connectors are easily damaged. The air hoses must be removed carefully. 1. Remove the screws and the control panel lid. 2. Disconnect the electrical connectors from the circuit board.
Page 21
3. Remove the screws. CAUTION: The circuit board and the air connections are easily damaged. The air hoses must be installed carefully. 1. Connect the electrical connectors to the circuit Diagrams on page 30 . board. Refer to 2. Install the circuit board. 3.
Page 22
8.7 Container 8.6.2 To remove and install the plate 1. Remove the wheels. 8.7.1 To remove and install the prefilter container To remove and 1. Remove the prefilter cover. Refer to install the prefilter cover on page 16 . 2. Remove the screws and the control panel lid. 2.
Page 23
5. Remove the screws on each side of the frame. 8.7.2 To remove and install the Longopac gasket 1. Remove the rivets with a drill. 6. Remove the prefilter container. 2. Remove the Longopac gasket. 3. Install the Longopac gasket in the opposite sequence.
Page 24
8.8 Battery 3. Cut the straps and disconnect the wires to the motor. 8.8.1 To remove and install the battery (battery version) 1. Push the button (A) to release the battery (B) from the battery compartment. 2. Push the battery into the battery compartment to install the battery.
Page 25
4. Remove the screws and the motor cover. 6. Remove the screws and the motor holder. 5. Remove the motor. 1649 - 002 - 10.05.2023 Repair and servicing - 25...
Page 26
7. Remove the gaskets from the motor holder. Make sure that the gaskets are not damaged. 8. Assemble the motor housing in the opposite sequence. 8.9.2 To replace the brushes on the motor To disassemble and 1. Remove the motor. Refer to assemble the motor housing on page 24 .
Page 27
9.2 To do troubleshooting of Husqvarna Service Hub (HSH) If there is no signal to Husqvarna Service Hub (HSH) when it is connected to the product, do the procedure that follows. 1. Make sure that the connectors on HSH Interface Box and on the product are clean and not damaged.
Page 28
The filters are incorrectly installed or dam- Install the filters correctly. Replace damaged air from the motor. aged. filters. Unusual noise comes Send the product to a Husqvarna service from the product. center. 9.4 Warnings on the control panel Symbol Signal...
Page 29
Use correct battery. Vacuum hose is disconnected Send the product to Main Pressure or blocked. Prefilter light flashes red. a Husqvarna service Sensor Error. center. Control unit is damaged. Product shuts down/ does not Do not use the prod- PCBA tempera- start.
Page 33
10.4 Wiring diagram DE 110s, US/UK/JPN WHITE or BLUE “N” BLACK or BROWN “L” PCBA PCBA POWER CABLE BUZZER BUZZER GREEN or YELLOW & GREEN MP 1 MP 1 MP 2 MP 2 MOTOR 529 58 26 Wire 599 83 95 Buzzer 529 62 08 Wire...
Page 44
10.15 Wiring diagram DE 120 PACE 44 - Diagrams 1649 - 002 - 10.05.2023...
Page 45
10.16 Wiring diagram DE 120 PACE BUZZER BATT_NEGATIVE BATT_POSITIVE PCBA 546 12 67 01 FERRITIE 531 28 68 01 CABLE PCBA to MOTOR 599 58 92 01 HOUR METER RUN-LEADER 531 07 47 01 WIRING ASSY BATTERY DE 120 MOTOR MOTOR 599 83 95 01 BUZZER...
Page 46
11 Technical data 11.1 Technical data DE 110i EU Data DE 110i Power source Battery Rated voltage, V Maximum power, W Maximum current, A Maximum airflow, cfm / m³/h 118 / 200 Maximum vacuum, psi / kPa / in. H2O 2.5 / 17 / 68 Auxiliary outlet Prefilter area, ft...
Page 47
83.6 Sound pressure level L at the operators ear, dB(A) 68.3 Vibration level a , m/s ≤2.5 Protection class IP44 11.3 Technical data DE 110S, DE 110, DE 120 EU Data DE 120 110S 110S 110S 110S [EU/AU/ [EU/ [EU/...
Page 48
10A / 7/7 / AS/NZS 100V 100V 3112 10A 14136 14136 14136 14136 110V 11.4 Technical data DE 110S, DE 110, DE 120 US Data DE 110S DE 110 DE 120 DE 120 Rated Voltage, V Phase Frequency, Hz 50–60...
Page 49
≤2.5 Protection class IP54 IP55 Mains connection (type) NEMA L6-20 Nema 5-15P Nema 5-20P 250V 20A 11.5 Technical data DE 110S, DE 110, DE 120 JA Data DE 110S DE 110 DE 120 Rated Voltage, V Phase Frequency, Hz 50–60...
Page 50
Data DE 110S DE 110 DE 120 Sound pressure level L at the operators ear, dB(A) 81.6 Vibration level a , m/s ≤2.5 Protection class IP54 Mains connection (type) Nema 5-15P JIS JIS 8303 11.6 Technical data DE 120 PACE...
