OWNER'S MANUAL
JAXON CAFE CALIFORNIA KING PANEL BED
LIVING SPACES SKU : 81483 / 81472 / 81473 / 81474
VENDOR ITEM NO. : 7YC9L6
ASSEMBLY PARTS LIST
BOX 1 (SKU 81472)
Headboard
SKU #
81472
BOX 2 (SKU 81473)
Footboard
SKU #
81473

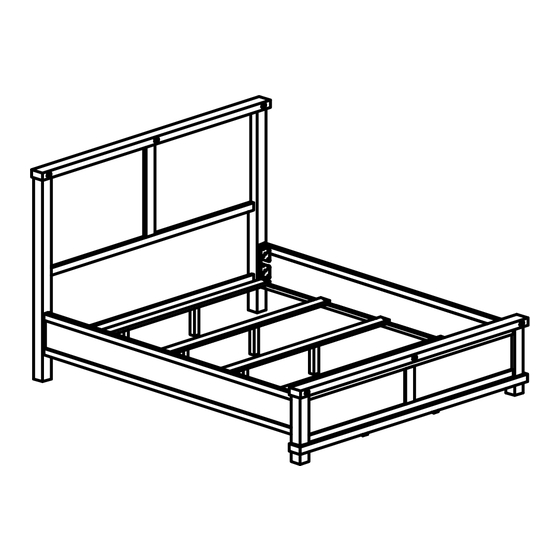

FULLY ASSEMBLED
PRE-ASSEMBLED PARTS LIST
SKU #
7YZZCPFC18
RPZZBPLBHK
DESCRIPTION
QUANTITY SKU #
HEADBOARD
DESCRIPTION
QUANTITY
FOOTBOARD
DESCRIPTION
FOOT CAP
SIDE RAIL
BRACKET (SET OF 2)
BOX 3 (SKU 81474)
Siderails - Slats
81474
1
7YZZL6S
7YZZBPLS
1
HARDWARE KIT PACKED IN BOX 3
SKU : 7YZZBPHW
7YZZBPHW-1
7YZZBPHW-2
7YZZBPHW-3
7YZZBPHW-4
SKU #
7YZZBPBT
Scan QR code to view assembly video
DESCRIPTION
SIDE RAIL
INDIVIDUAL
SLAT
CENTER
SUPPORT LEG
ALLEN BOLT
(M8 X 30MM)
FLAT WASHER
(M8)
ALLEN KEY
WOOD SCREW
(4x30mm)
DESCRIPTION
DECORATIVE NUT & BOLT
QUANTITY
2
5
10
16
16
2
10
