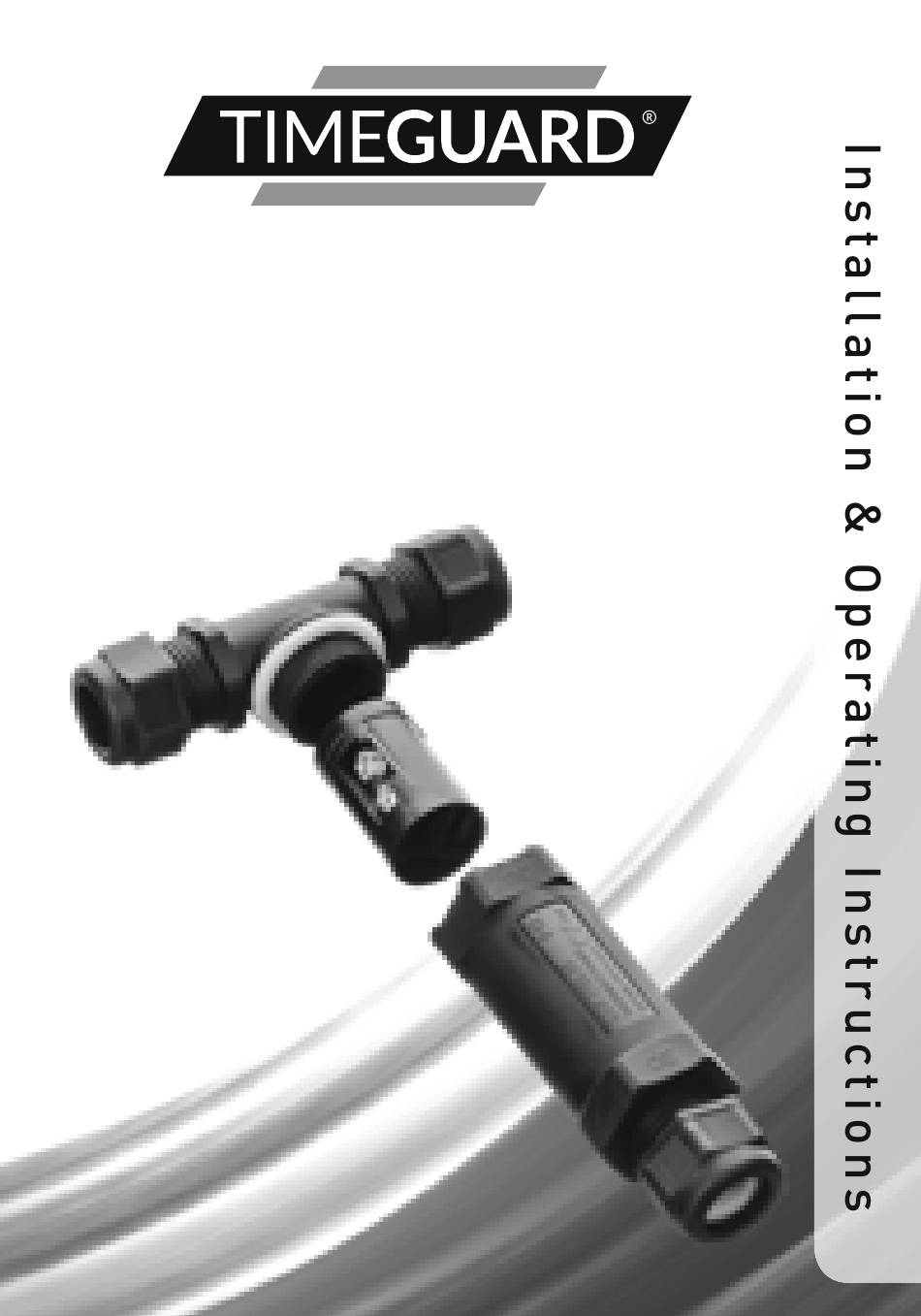

- Page 1 ø8 – ø14 Two way IP68 ‘T’ ø5 – Connector 20A Model: WXT68T20 ø8 – ø5 – ø8 ø5 – ø8 ø5 – ø8 ø5 – ø8 ø8 – ø14 ø8 – ø14 ø8 – ø14 ø5 ø8 – ø14 ø5 –...
- Page 2 Installation instructions Isolate mains power supply before commencing. ø5 – ø8 If in doubt consult a qualified electrician. Step 1 Step 3 ø8 – ø14 ø5 – ø8 4 Poles ø8 – ø14 L – L (brown) ø5 – ø8 N –...
- Page 3 Step 4 2.5Nm torque Step 5 Step 6 2.5Nm torque Ratings: Current: 20A. Note: Please observe Voltage: 230V AC 50Hz. Temperature: -20° to 85°C. the correct polarity Dimensions: 95 x 115 x 32mm. when wiring.
- Page 4 020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/ postage charges outside of the UK. All shipping costs are to be paid in advance before a replacement is sent out.
