Timeguard WPE01 Installation

Weathersafe outdoor power ip55 connector box

WPE01 IP55 Connector Box Installation

1. IMPORTANT. Switch off the electricity at the fuse box by removing the relevant

fuse or switching off the circuit breaker before proceeding with the installation.

2. Using a Philips screwdriver, separate the faceplate from the back box by

removing the four tapped screws located in each corner.

3. Using the back box as a template mark the position for the holes. Note the

back box must be mounted in the horizontal position, following the 'TOP'

marking inside the back box. If the mounting position desired is uneven use

a sheet of marine ply as a base and fit the back box.

4. Drill the wall using a appropriate drill bit making sure not to infringe or

compromise any gas, water pipes or cables. Insert the rawl plugs into the

holes.

Deta Electrical Co Ltd, Panattoni Park, Luton Rd,

Chalton, Bedfordshire, LU4 9TT

Batch Code:

EU - Unit 16, Ashbourne Ind. Est. Ashbourne,

23/50

Co. Meath, A84 W972 Ireland

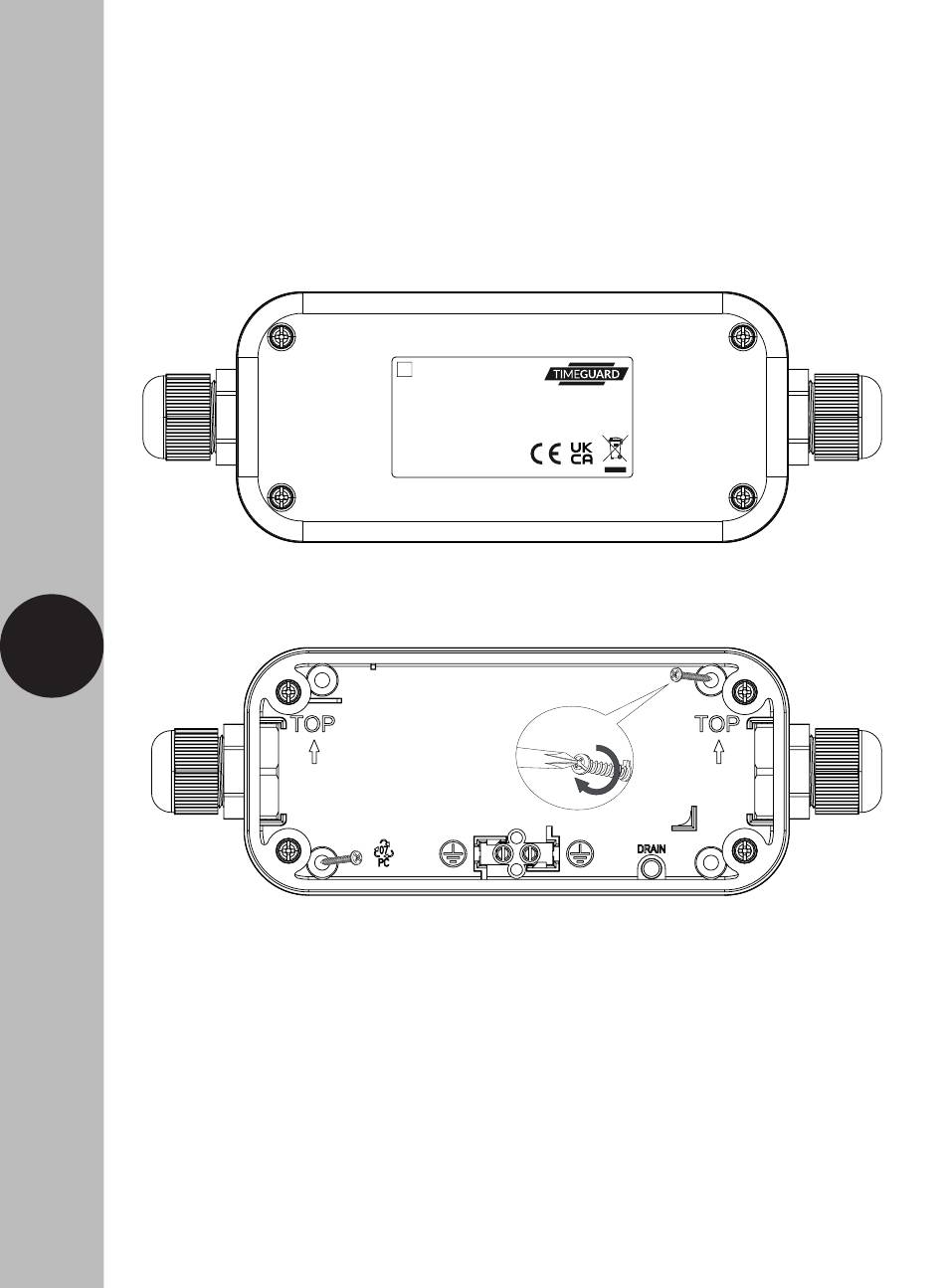

WPE01

IP55 Connector Box Enclosure

X2 PG11 IP68 Cable Glands

MOUNTING

SCREW x 2
