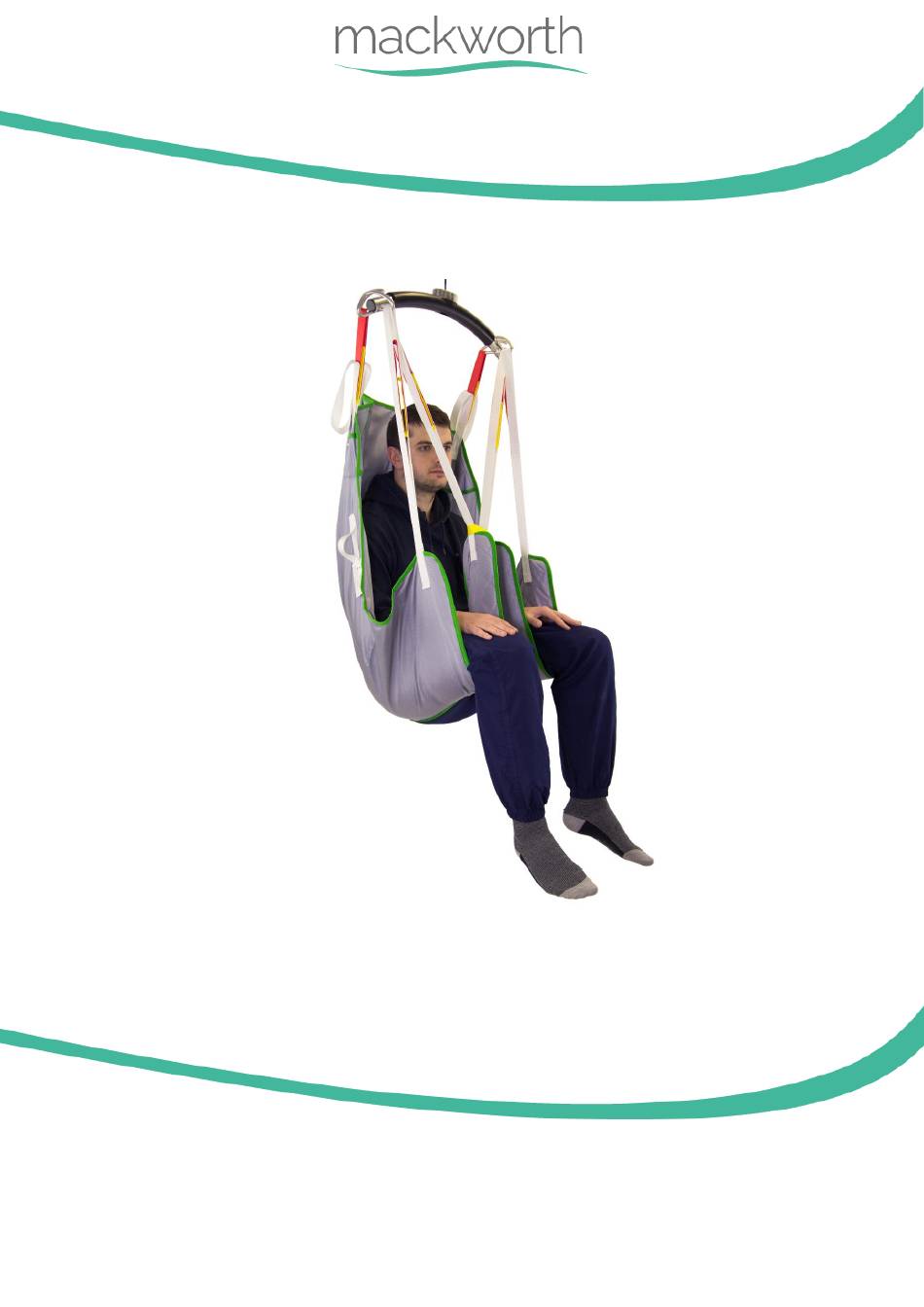

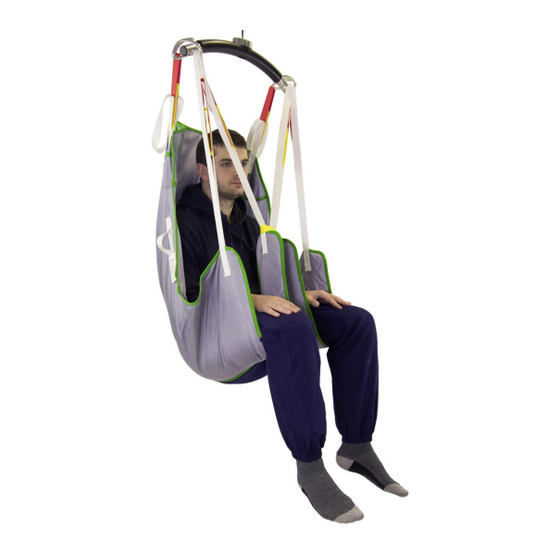

- Page 1 Hazel Classic Universal Sling User Manual Doc Ref: 9991–en-us Rev A 05/02/24...
-
Page 2: Table Of Contents
Introduction ....................................3 1 . 1 Intended Use ........................................3 1 . 2 Manufacture ........................................3 1 . 3 European Authorised Representative ..............................3 1 . 4 Symbols Used ........................................4 1 . 5 Contraindications / Limitations ................................5 1 . 6 Sling Compatibility ...................................... -
Page 3: Introduction
This manual provides comprehensive information about the Oak Universal Sling, including details about all available options. Please read and understand this manual in its entirety before using your Mackworth Sling. The information in this manual is important for the safety of anyone using the sling and must be read and understood to help prevent injuries. -
Page 4: Symbols Used
1 . 4 Symbols Used The Table below includes all symbols from BS EN ISO 15223-1:2021 that can be found in this manual and on the Product and what they represent. Refer to this Table when you are unsure of what a symbol represents. Catalogue number Place of Manufacture Serial number... -
Page 5: Contraindications / Limitations
A training program should be established by the facility to acquaint new operators with this equipment. • Your guarantee is void if persons unauthorised by Mackworth perform work or modification to the sling. 999179 – Rev A Page 5 of 24... - Page 6 • To maintain optimum function and safety, the sling should be inspected and maintained on a regular basis. See section ‘Daily Checks, and Cleaning’ within this user manual. • In areas where children are likely to be present, be vigilant when using the sling. •...
-
Page 7: Components/Key Parts
Components/Key Parts Please see below to familiarise yourself with the components of the sling. If you have not received all the components listed below, contact your local dealer immediately – contact details are provided on the last page of this manual. Item Description Sling Body –... -
Page 8: Sling Options
2 . 1 Sling Options Below is list of available slings, complete with information regarding the material offered. Sling Options Carry Bar Attachment Sling Size Material Part Code Loop Small Polyester Solid 1201HZ7500 Loop Small Polyester Mesh 1201HZ8500 Loop Small Parasilk 1201HZ3500 Loop... - Page 9 Sling Options Carry Bar Attachment Sling Size Material Part Code Loop Small Polyester Solid 1201HZ7520 Loop Small Polyester Mesh 1201HZ8520 Loop Small Parasilk 1201HZ3520 Loop Small Quilted 1201HZ5520 Loop Small Supersoft Spacer 1201HZ4520 Loop Medium Polyester Solid 1201HZ7420 Loop Medium Polyester Mesh 1201HZ8420 Loop...
-
Page 10: Material Options
2 . 2 Material Options Supersoft Spacer Parasilk Quilted Polyester Mesh Polyester Solid Material Benefits The material is quick to dry and can be submerged in Polyester Solid water along with being extremely tough, lightweight, and flexible, reducing shock while loading. The mesh version of the polyester material adds an additional benefit of assisting in body temperature regulation and provides some breathability. -
Page 11: User Instructions
User Instructions Prior to use: - Ensure you are aware of the Lift manufacturer’s fitting instructions. Inspect the sling for wear and damage, with particular attention being paid to the body of the sling, webbings, and stitch lines. b. If the sling is fitted with a head support, ensure the 2 head stays are fitted in the head pockets. If following inspection, there is any doubt, (points 1-2) the sling should be placed aside and not used, then reported. -
Page 12: How To Fit From A Lying Position
3 . 2 How to Fit from a lying position. Using good manual handling techniques roll the person towards you so that they are positioned on their side. To introduce the sling, roll half of the sling up under itself so that when the person is rolled onto their opposite side, the sling can be unrolled until it is flat. -
Page 13: Technical Specification
Technical Specification 4 . 1 Sling Dimensions Without Head Support With Head Support Sling Specification Inches & Millimetres Dimension (Ref to Small Medium Large X Large XX Large XXX Large drawing) 27.2”/690mm 29.1”/740mm 32.3”/820mm 34.6”/880mm 39.4”/1000mm 1100mm 32.1”/815mm 33.5”/850mm 34.3/870mm 34.3”/900mm 36.6”/930mm 1050mm... -
Page 14: Environmental Conditions
Environmental Conditions The sections below will give detailed information regarding the environmental conditions the product should maintain throughout its life cycle. Failure to adhere to these conditions may negatively impact the function of the product. If you are unsure of any environmental conditions, always seek advice. 5 . -
Page 15: Daily Checks
Daily Checks Inspection is to be completed prior to each use by the user of the sling. Should any of the components in the table below fail the inspection, DO NOT use the sling. Contact your local authorised dealer – contact details are on the last page of this manual. Check list before use: Component Inspection required... -
Page 16: Cleaning
Cleaning To reduce the risk of cross-contamination it is recommended to clean the sling before use by a different person. To ensure proper care of the sling and maintain its longevity, follow these washing guidelines. 7 . 1 Washing guidelines The sling should be laundered with soap or detergent at a temperature of 50°C. -
Page 17: Servicing
Servicing To ensure the safety and continued good function of your sling, it is recommended to have a competent person perform routine maintenance every 6 months, this will ensure that the product meets the required standards. It is important to document the maintenance history of the product in the log located at the back of this user manual after each service. -
Page 18: Warranty
In no event shall the manufacturer incur liability for any consequential or unforeseeable losses. This equipment guarantee shall be void if the equipment is not serviced by Mackworth or its authorised service engineers, in accordance with the manufacturer’s recommendations, or if any unauthorised persons carry out work on the equipment. -
Page 19: Inspection Record History
Inspection Record History Complete this section after each service, repair inspection and/or maintenance. Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐... - Page 20 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
- Page 21 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
- Page 22 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
-
Page 23: User Notes
User notes: 999179 – Rev A Page 23 of 24... - Page 24 Disclaimer While every effort has been made to ensure the accuracy of information contained in this manual, no liability can be accepted by Mackworth for any errors or omissions. Mackworth operates a policy of continuous improvement. Specifications and other data are subject to change without notice.
