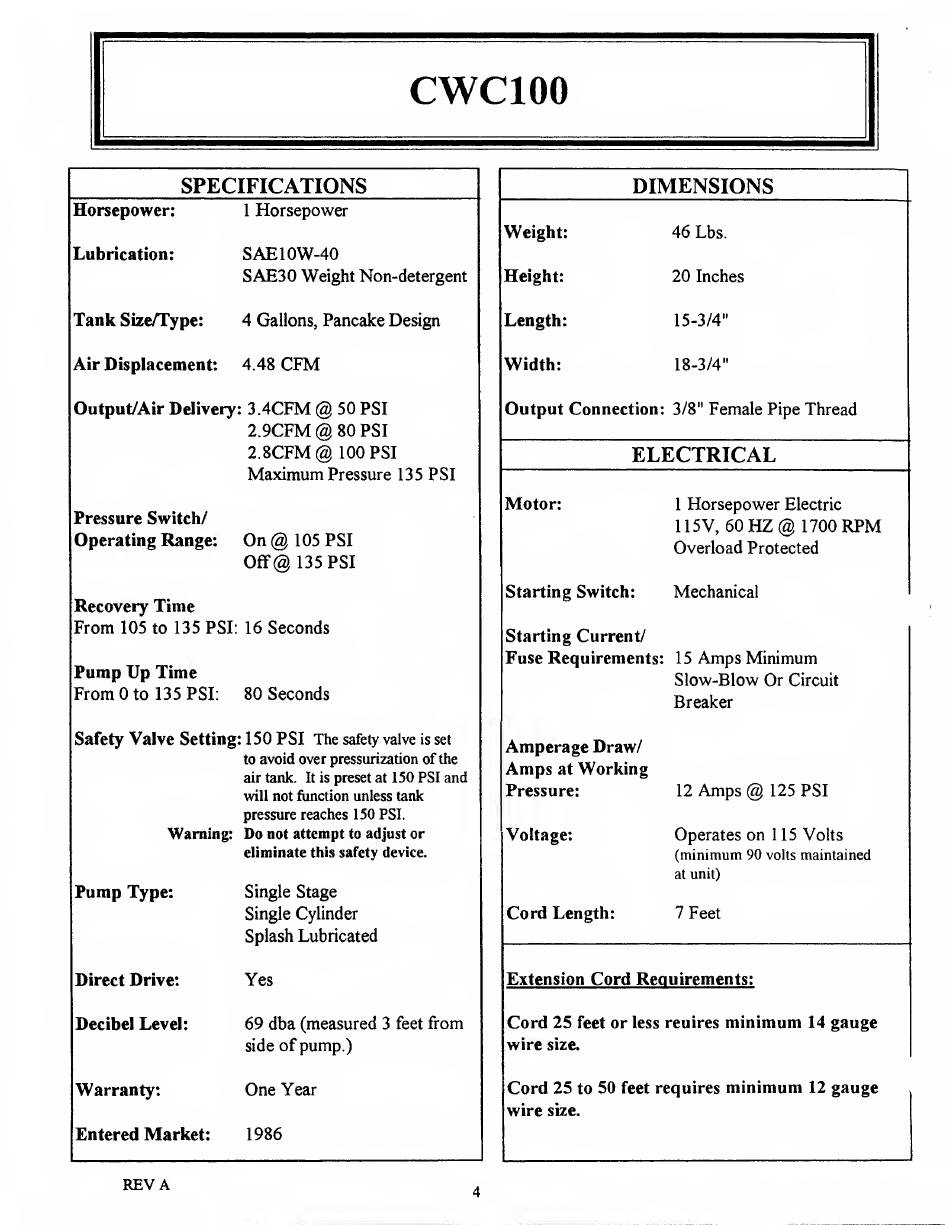

Specifications - Bostitch CWC100 Quick Start Manual

CWC100
SPECIFICATIONS
Horsepower:
1 Horsepower
Lubrication:
SAE10W-40
SAE30 Weight Non-detergent
Tank Size/Type:
4 Gallons, Pancake Design
Air Displacement:
4.48 CFM
Output/Air Delivery:
3.4CFM @ 50 PSI
2.9CFM @ 80 PSI
2.8CFM @ 100 PSI
Maximum Pressure 135 PSI
Pressure Switch/
Operating Range:
On @ 105 PSI
Off @ 135 PSI
Recovery Time
From 105 to 135 PSI 16 Seconds
Pump Up Time
From 0 to 135 PSI: 80 Seconds
Safety Valve Setting:
150
PSI
The safety valve is set
to avoid over pressurization of the
air tank. It is preset at
150
PSI
and
will not function unless tank
pressure reaches
150
PSI.
Warning: Do not attempt to adjust or
eliminate this safety device.
Pump Type:
Single Stage
Single Cylinder
Splash Lubricated
Direct Drive:
Yes
Decibel Level:
69 dba (measured 3 feet from
side of pump.)
Warranty:
One Year
Entered Market: 1986
DIMENSIONS
Weight:
46 Lbs.
Height:
20 Inches
Length:
15-3/4"
Width:
18-3/4"
Output Connection:
3/8" Female Pipe Thread
ELECTRICAL
Motor:
1 Horsepower Electric
115V, 60 HZ @ 1700 RPM
Overload Protected
Starting Switch:
Mechanical
Starting Current/
Fuse Requirements:
15 Amps Minimum
Slow-Blow Or Circuit
Breaker
Amperage Draw/
Amps at Working
Pressure:
12 Amps @ 125 PSI
Voltage:
Operates on
1
15 Volts
(minimum 90 volts maintained
at unit)
Cord Length:
7 Feet
Extension Cord Requirements:
Cord 25 feet or less reuires minimum 14 gauge
wire size.
Cord 25 to 50 feet requires minimum 12 gauge
wire size.
REV A
