Bosch Classic Line TriTech DS9370 Installation Manual
Cm ceiling passive infrared detector
Hide thumbs
Also See for Classic Line TriTech DS9370:
- Installation instructions manual (10 pages) ,
- Installation instructions manual (10 pages)
Related Manuals for Bosch Classic Line TriTech DS9370
Summary of Contents for Bosch Classic Line TriTech DS9370

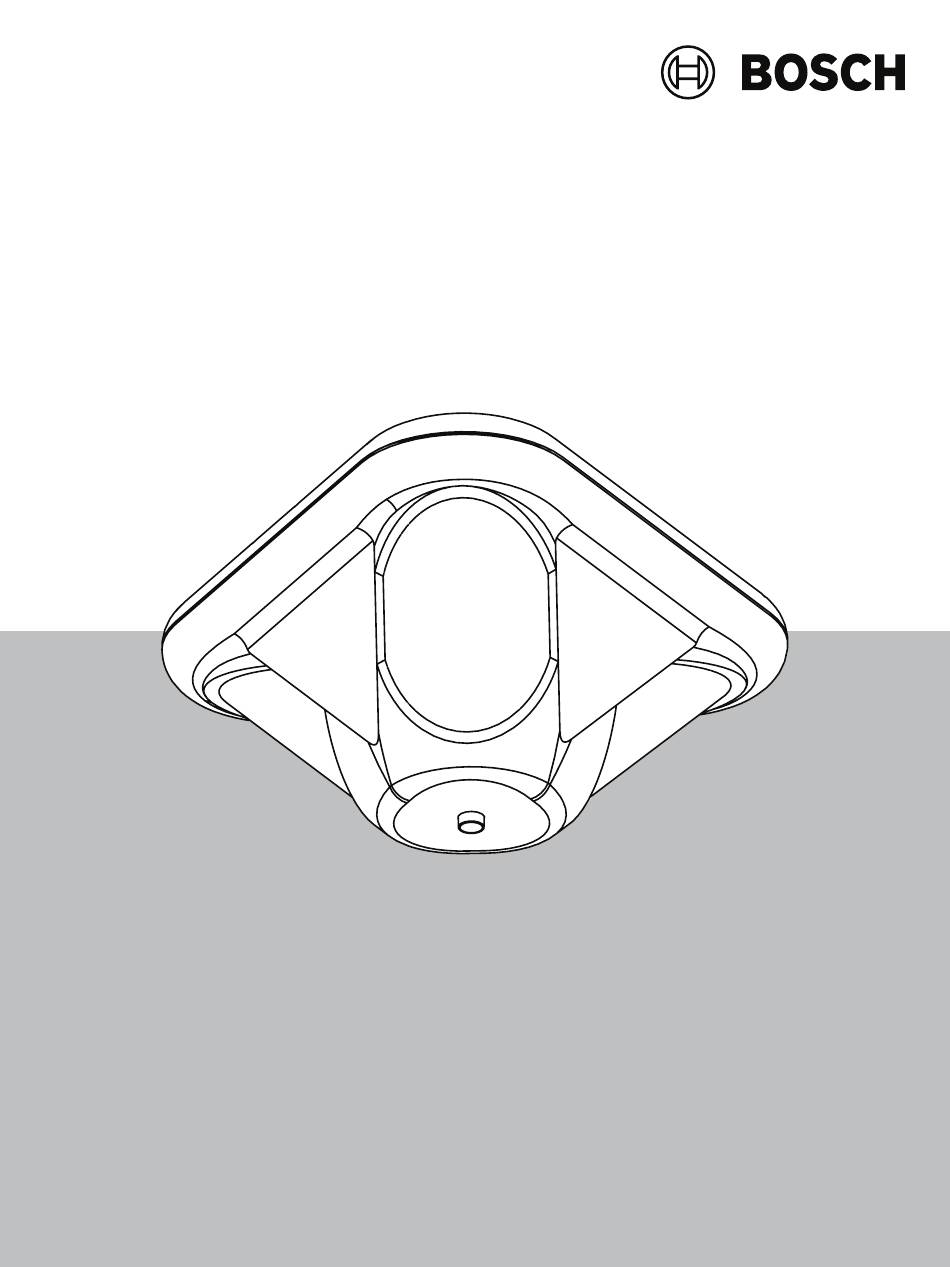

- Page 1 Classic Line TriTech CM Ceiling Passive Infrared Detector DS9370 | DS9371 | DS9370E | DS9371E | DS9370E‑C Installation manual...
-
Page 3: Table Of Contents
Feature selection LED operations Other information Memory, Day Mode, Night Mode and Remote Walk Test Anti-vandal screw Maintenance Technical data Coverage pattern Coverage pattern masking Optical module adjustment Walk test Bosch Security Systems B.V. 2024.09 | 01 | F.01U.427.436 Installation manual... -
Page 4: Safety
Do not mount on removable ceiling tiles unless a sandwich is made of the base, ceiling tile, and a back plate behind the tile. Notice! Make sure all wiring is de-energized before routing. 2024.09 | 01 | F.01U.427.436 Bosch Security Systems B.V. Installation manual... -
Page 5: Installation Considerations
Notice! The PIR detector reacts to objects rapidly changing temperature within its field-of-view. For optimum detection, select a location likely to intercept an intruder moving across the coverage pattern. Bosch Security Systems B.V. 2024.09 | 01 | F.01U.427.436 Installation manual... - Page 6 Classic Line TriTech CM Ceiling Passive Infrared en | Installation considerations Detector 2024.09 | 01 | F.01U.427.436 Bosch Security Systems B.V. Installation manual...
-
Page 7: Installation
It may also be installed to standard 3.5 in. octagonal electrical box. The detector may also be connected directly to short lengths (short enough to avoid movement of the detector) of 1.27 cm (½ in) EMT. Bosch Security Systems B.V. 2024.09 | 01 | F.01U.427.436 Installation manual... - Page 8 #8 screw (callout 7). Notice! Use the curved mounting slots allows the detector to be rotated up to 60° to establish the best coverage. 2024.09 | 01 | F.01U.427.436 Bosch Security Systems B.V. Installation manual...
-
Page 9: Wiring
The memory mode requires a supply voltage on Terminal 8 to be activated. Refer to Memory, Day Mode, Night Mode and Remote Walk Test for operation and wiring information. Bosch Security Systems B.V. 2024.09 | 01 | F.01U.427.436 Installation manual... -
Page 10: Feature Selection
For UL Listed Requirements, set the PIR sensitivity to HIGH when installing the detector at heights of 3.7 m (12 ft) or higher. For EN50131 applications, set the PIR sensitivity to HIGH. 2024.09 | 01 | F.01U.427.436 Bosch Security Systems B.V. Installation manual... -
Page 11: Led Operations
LED. Walk test the unit from all directions to determine all the detection pattern boundaries. Notice! Wait at least 2 min after power up before walk testing. Bosch Security Systems B.V. 2024.09 | 01 | F.01U.427.436 Installation manual... -
Page 12: Other Information
Remote Walk Test: Allows the LED operation to be remotely enabled through M for walk testing. This feature is used when the LED operation is disabled by having the LED jumper in the OFF position. 2024.09 | 01 | F.01U.427.436 Bosch Security Systems B.V. Installation manual... -
Page 13: Anti-Vandal Screw
At least once a year, the range and coverage should be verified. To ensure continual daily operation, the end user should be instructed to walk through the far end of the coverage pattern. This ensures an alarm output prior to arming the system. Bosch Security Systems B.V. 2024.09 | 01 | F.01U.427.436 Installation manual... -
Page 14: Technical Data
RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device 2024.09 | 01 | F.01U.427.436 Bosch Security Systems B.V. Installation manual... - Page 15 ANATEL Modelo: DS9370: 0871-03-1855 Modelo: DS9371: 0871-03-1855 Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados Bosch Security Systems B.V. 2024.09 | 01 | F.01U.427.436 Installation manual...
-
Page 16: Coverage Pattern
Do not attempt to open the detector to place the masks on the inside. With the supplied masks, you can mask 90°, 120°, 180°, 210° 240° or 330°. Some examples are shown below. 2024.09 | 01 | F.01U.427.436 Bosch Security Systems B.V. Installation manual... -
Page 17: Optical Module Adjustment
Refer to the table to adjust the optical modules based on the mounting height of the detector. The range shown is the distance from the detector to the outside edge of the coverage pattern. Bosch Security Systems B.V. 2024.09 | 01 | F.01U.427.436 Installation manual... -
Page 18: Walk Test
LED lights when you reach the outside edge of the coverage pattern. The blue LED indicates an alarm. Repeat Step 3 from different directions until you have adequately verified the coverage pattern. 2024.09 | 01 | F.01U.427.436 Bosch Security Systems B.V. Installation manual... - Page 19 If you cannot obtain the required coverage by performing Steps 1-3 of the walk test, set the PIR sensitivity to HIGH to obtain maximum range. Adjust the optical module accordingly. Repeat Steps 2-4 for proper coverage. Bosch Security Systems B.V. 2024.09 | 01 | F.01U.427.436 Installation manual...
- Page 20 Classic Line TriTech CM Ceiling Passive Infrared | Technical data Detector 2024.09 | 01 | F.01U.427.436 Bosch Security Systems B.V. Installation manual...
- Page 21 Classic Line TriTech CM Ceiling Passive Infrared Technical data | Detector Bosch Security Systems B.V. 2024.09 | 01 | F.01U.427.436 Installation manual...
- Page 22 Classic Line TriTech CM Ceiling Passive Infrared | Technical data Detector 2024.09 | 01 | F.01U.427.436 Bosch Security Systems B.V. Installation manual...
- Page 24 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2024 Building solutions for a better life 202409051402...
