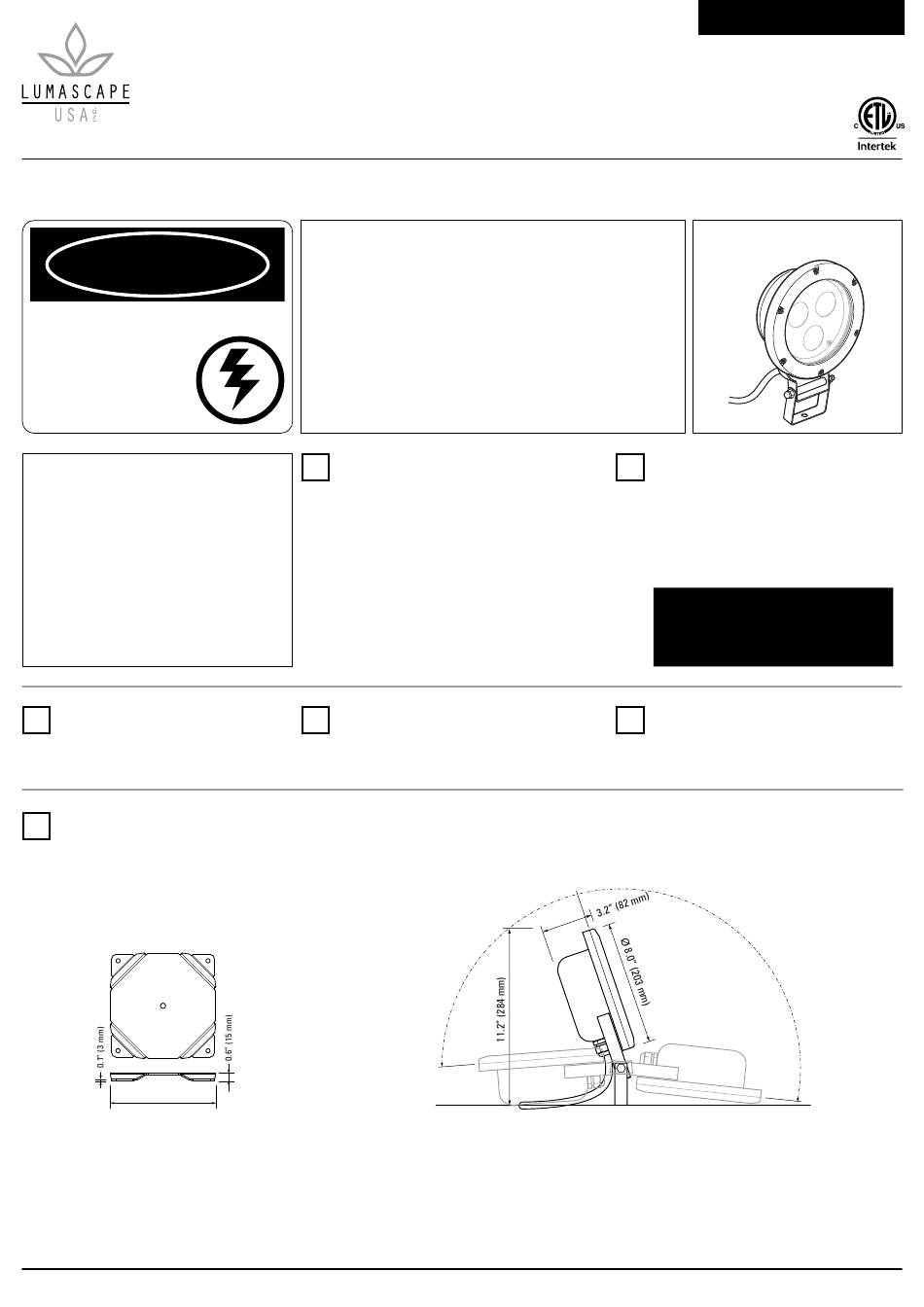

Lumascape Tristar LS265LED Installation Instructions

LUMASCAPE USA INC
1300 Industrial Rd, Unit #19
San Carlos, CA 94070, USA
T (650) 595-5862
W www.lumascape.com
Free Call : (866) 695-5862
LS265LED Tristar (IP68)
Warranty void if not installed per instructions and local electrical code
Note: Fixture uses intelligent driver. Always leave on for 20 seconds unless programing.
DANGER
ISOLATE LUMINAIRE FROM POWER
Failure to isolate power
supply before installation or
maintenance may result in
fire, serious injury, electric
shock, death and may
damage the luminaire.
WARNING
It is strongly recommended to a use
Lumascape transformer
Opening luminaire will void warranty
Install in accordance with National
Electric Code, ANSI/NFPA 70 or the Canadian
Electrical Code, Part I (CEC), CSA C22.1
Never use electronic transformers
with LED luminaires
Reattach body bracket to securing
3.
bracket if required, and then finger tighten
dome nuts.
Ensure that the supply voltage is 12 volts
6.
before switching on.
IMPORTANT: Ensure that the luminaire
is fully submerged in water.
Ø 7.9" (200 mm)
LS6074 Mounting Plate
(optional accessory)
Should you experience any difficulty, please contact Lumascape directly: phone (866) 695-5862 or email info@lumascape.com
IF IN DOUBT, PLEASE CALL
www.lumascape.com
CAUTION
• Luminaire is factory sealed. Do not remove cover.
• The luminaire should only be used complete with its
protective shield (cover).
• Do not shorten, interfere or disconnect cable from luminaire.
Warranty will be void if cable assembly is tempered with.
• If cable is damaged replace with cable supplied by
Lumascape only.
• Do not use power tools to tighten screws.
• Do not overtighten screws.
Luminaire is factory sealed.
1.
Do not remove cover.
Mount securing bracket using a suitable
non-corrosive fastener. The body bracket may
be removed by removing one dome nut and
the threaded bar to ease tightening of the
fastener. One 5/16 in (8 mm) stainless steel
masonry anchor is recommended for concrete
mounting.
Run the cable out and connect to a suitable
4.
source of power for single colour applications
or DMX controller and source of power when
used with RGB.
Ø 7.9 in (200 mm)
INSTALLATION INSTRUCTIONS
INPUT VOLTAGE: 12-15 V AC, 60 Hz
Important: Ensure that luminaire is fully
2.
submereged before operation.
Failure to do so can result in luminaire
overheating.
Do not loose joint the cable under water.
5.
Where it is necessary to joint cables
underwater the connections and cables
must be IP68 rated.
220º
LS265LED Tristar
FORM IN0077US
Underwater
MODEL: LS265LED Tristar
FINISHED APPEARANCE
Power supply must be isolated prior to
connection or disconnection of cables.
Failure to do so will result in damage
to the luminaire components.
Copyright ©2013 LUMASCAPE USA INC.
IN0077US - 30 September 2013
