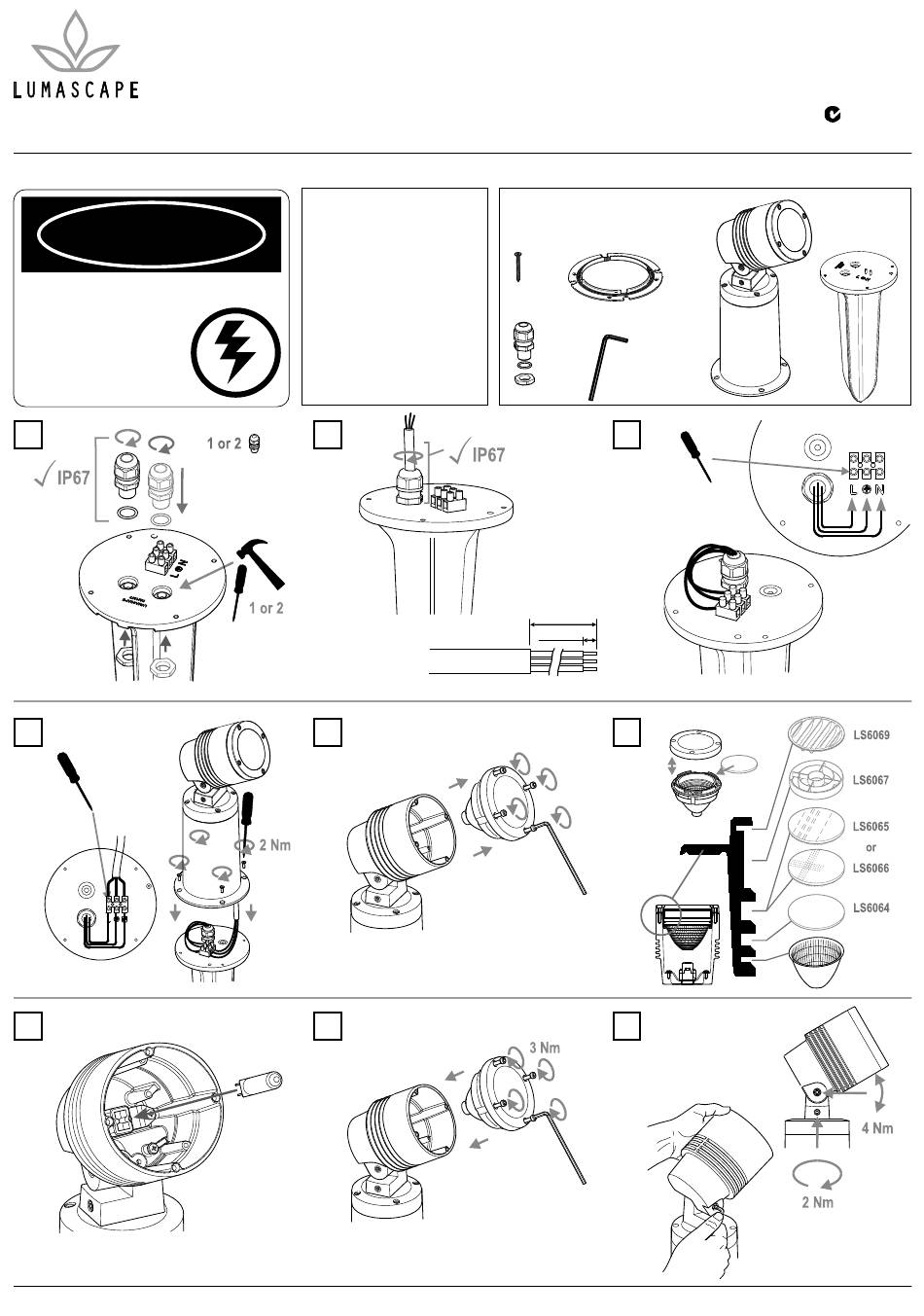

Lumascape Centria LS422 Installation Instructions

Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F 07 3286 6599
E sales@lumascape.com.au
W www.lumascape.com.au
LS422: Centria Concrete Anchor
Warranty void if not installed as per installation instructions
DANGER
ISOLATE LUMINAIRE FROM POWER
Failure to isolate power
supply before installation or
maintenance may result in
fire, serious injury, electric
shock, death and may
damage the luminaire.
1.
4.
7.
www.lumascape.com.au
Caution: fixtures can become very
hot. Use discretion in placement
Do not allow soil, mulch or foreign
material to build up around luminaire
Ensure installation complies with
local regulations
All connections must be kept dry;
failure to do so may result in product
reliability issues
Do not use power tools to assemble
luminaire
2.
5.
8.
Copyright ©2014 Lumascape Lighting Industries Pty. Ltd. ABN 21 010 572 773
INSTALLATION INSTRUCTIONS

CoMPonEntS

screw
x4
gland
Allen key
x2
120 mm
6 mm
2.5 mm² max per terminal
cable strip length
SPOTLIGHT & FLOODLIGHT
INPUT VOLTAGE: 220-240 V AC 50/60 Hz
gasket seal
x1
x1
3.
6.
9.
MODEL: LS422
A.C.N. 0105 72 773
concrete
anchor
x1
IN0117 - 28 May 2014
