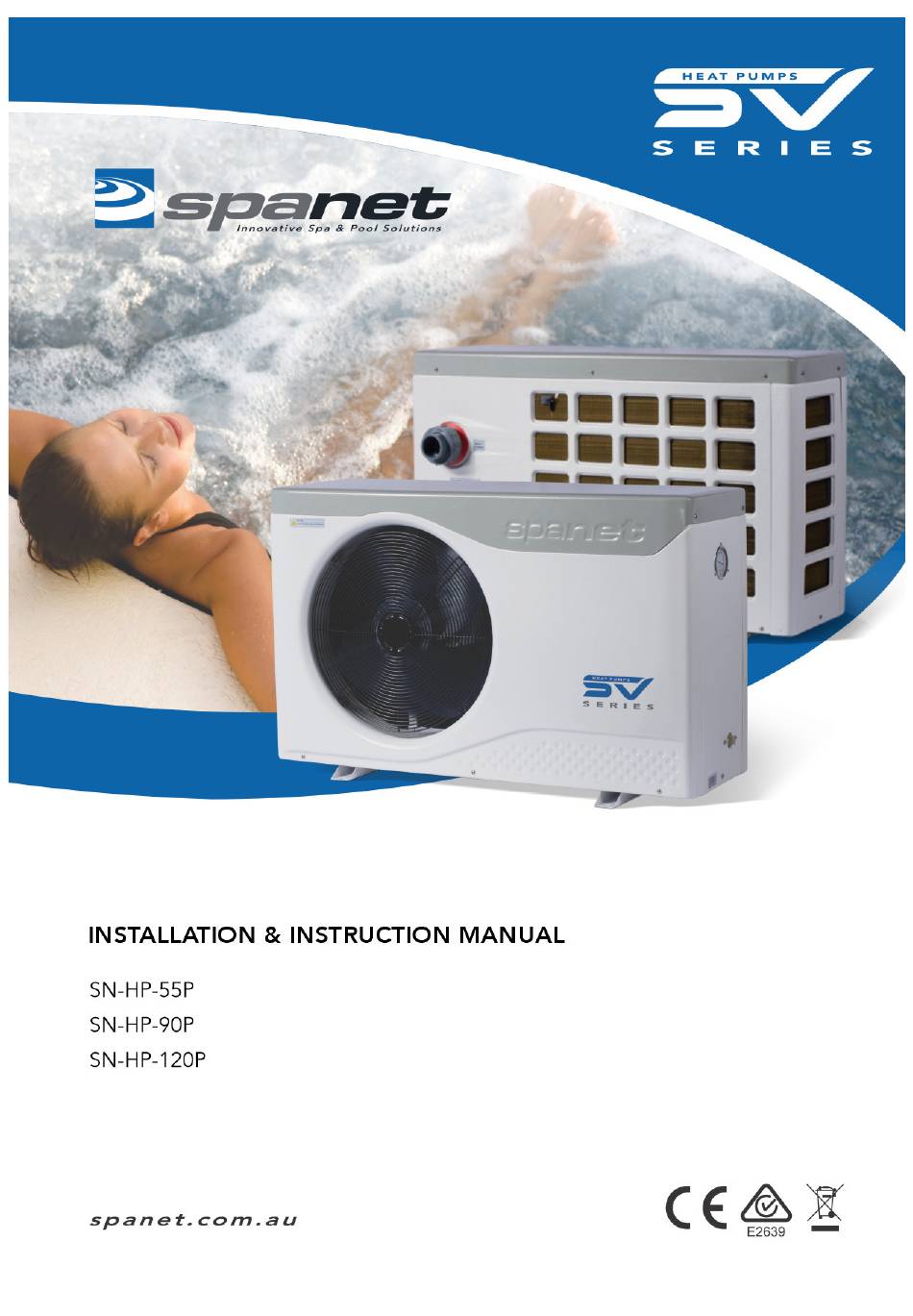

SpaNet SV Series Installation And Instruction Manual

Hide thumbs Also See for SV Series:

Advertisement

Quick Links

Download this manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SV Series and is the answer not in the manual?

Questions and answers

Related Manuals for SpaNet SV Series

Summary of Contents for SpaNet SV Series

  • Page 2 We have provided important safety messages in this manual about your heat pump. Always read and follow all safety messages. This is the safety alert symbol. This symbol alerts you to hazards that can cause injury or harm to you and others. This is a very important label.

  • Page 3: Safety Warnings

    Safety Warnings Electrical power must be switched off before starting any work on heat pump. DO NOT attempt to modify the internal configuration of the heat pump. Read entire installation manual before use. • The installation, commissioning and maintenance of these heat pumps should be performed by qualified personnel having a good knowledge of standards and local regulations, as well as experience with this type of equipment.
  • Page 4 • Spanet SV series heat pumps can only be used with Spanet SV series controllers. Correct Disposal of this Product This symbol indicates the product should not be mixed or disposed with general household wastes throughout the EU.

  • Page 5: Table Of Contents

    Table of Contents Safety Warnings ............................ 2 Introduction ............................5 Specifications ............................6 Outlines & Dimensions ..................... 7 External Appearance ......................8 Internal appearance ......................8 Installation Instructions ....................9 SV Controller Setup ......................19 Safety / Protection Systems .................... 27 Winterizing heat pump ....................

  • Page 6: Introduction

    Introduction Thank you for choosing the SpaNET SV Series heat pump. Air sourced heat pumps are currently the most efficient and cost effective method of heating and maintaining the heat of your spa pool water. The SpaNET SV Series heat pump technology heats your spa water using around 75% less energy than a conventional electric heater and 50% less energy than natural gas resulting in an eco friendly and highly cost efficient...

  • Page 7: Specifications

    Description SN-HP-55P SN-HP-90P SN-HP-120P Power supply 220-240V~/1PH/50Hz 220-240V~/1PH/50Hz 220-240V~/1PH/50Hz HEATING TEST CONDITION: Air Temp = 25’C Air Temp = 25’C Air Temp = 25’C Water Temp = 27’C Water Temp = 27’C Water Temp = 27’C Heating capacity 5.6 kW 8.6 kW 12.0 kW Heating input...

  • Page 8: Outlines & Dimensions

    1. Outlines & Dimensions Model SN -HP- 55P 870mm 610mm 610mm 310mm 260mm SN- HP- 90P 870mm 610mm 610mm 310mm 260mm SN- HP- 120P 980mm 615mm 615mm 312mm 300mm...

  • Page 9: External Appearance

    2. External Appearance Fan protection grill ( exhaust side ) ABS/ASA plastic cabinet Refrigerant pressure manometer Water outlet Data cable Power cable Water inlet 3. Internal Appearance (Front sheet cover and panel removed) Evaporator Compressor 4-way-valve Titanium in PVC heat exchanger flow Water switch...

  • Page 10: Installation Instructions

    Figure1 • The SV Series of heat pumps must be located outside in a clean area where air flow will not be restrictive. The heat pump must be located external to the spa pool cabinet to allow suffcient air flow for optimum efficiency.

  • Page 11: Location Of The Unit

    4.2 Location of the unit Select a suitable location in accordance with below notes and consult the local swimming pool safety regulations to check requirements for proximity to other equipment. Install on wall Install on ground INSTALLATION LOCATION NOTES: 1. The heat pump must be installed on a flat, solid and large enough base to properly secure the heat pump.

  • Page 12: Condensation Drain

    Pipework insulation In order to keep power consumption to a minimum, it is recommended that all external pipe work con- necting the heat pump to the spa pool should be insulated. 4.4 Condensation drain During humid conditions, as part of the heat exchange process the evaporator may produce a lot of condensation.
  • Page 13 4.6 Plumbing Instructions and Diagram The SV heat pump outlets require 40mm PVC pressure pipe to be used. Ideally the heat pump should be plumbed inline prior to the SV controller, so that water flows from the filter pump, through the heat pump and then back through the SV controller before returning to the spa. This provides a second level of safety thermal protection for the water returning to the spa.
  • Page 14 Basic heat pump plumbing with circulation pump SV controller or Isolation valve SV mini heater Isolation valve NOTES: Heat pump powered from SV controller 230V socket OR any 230V power source (requires constant power). Heat pump data cable connected to SV controller port (EXP2). All pipe work should be supported and restrained to prevent movement and stress.
  • Page 15 Basic heat pump plumbing with 2-Speed pump diagram HEAT PUMP INSTALLED: 2-Speed pump setup Bypass valve 3 is 60% / 40% (i.e. 60% closed x 40% open) NOTES: 1. Heat pump powered from SV controller 230V socket OR any 230V power source (requires constant power). 2.
  • Page 16 5m AMP power cable ready for direct connection to a 230V OUTLET socket provided on the SV Series spa controllers (shown below), without the need for an additional power circuit. On SV3 and SV4 models it is recommended to always use the first 230V outlet (located between the Pump2 and Pump3 sockets).
  • Page 17 AMP Sockets & Plugs 4.7.1.1 SV series spa controllers utilise AMP mate-N-lok power connectors. The AMP connectors feature a key pat- tern for fail-safe one-way connection. When connecting the power cable push the plug firmly into the socket and ensure both side locking taps have been secured and latched in place.

  • Page 18: Data Cable Connection

    It is supplied with a preinstalled 5m shielded data cable ready for direct connection to an SV Series spa controller. The data cable connects to a dedicated Heat Pump data socket labelled EXP2 in the low voltage connection area of the spa control.

  • Page 19: Initial Setup

    Initial Setup 1. Once the plumbing to the heat pump has been completed and been given sufficient time for the PVC cement/glue to cure, the pipe work should be bled of any air. With the spa power turned OFF, the valves should be adjusted to provide water flow to the heat pump. Then the top coupling on the heat pump outlet pipe should be slightly loosened to allow the air in the pipe work to escape.

  • Page 20: Controller Setup

    All models of the SV Series spa controllers have the capability to seamlessly integrate and control a SV Series heat pump for efficient heating and cooling of the spa water. When a SV Series heat pump is connected the SV controller will automatically detect the heat pump and take control of its operation.
  • Page 21 5.1.1 Standard Touch Pads Step 1: Simultaneously press and hold UP + DOWN buttons (to access the General Settings menu) until display shows MODE or FILT then release. Step 2: Press the UP button until display shows H.PMP (heat pump operation mode).
  • Page 22 Step 4: Use the UP or DOWN buttons to toggle between AUTO / HEAT / COOL / OFF. Step 5: Press the OK button to confirm and save the setting and return to the General Settings Menu. NOTE: If there is no further button press, after 10 seconds the menu will exit and...
  • Page 23 Heat Pump with Electric Element Boost (H.ELE) his setting enables the internal electric heating element of the SV Series spa control to operate in conjunction with the SV Heat Pump to boost heating output and reduce heating times. This feature gives control to spa owners to speed up reheating a large spa or swim spa which has been emptied/refilled,...
  • Page 24 5.2.1 Adjusting Heat Pump + Electric Element Boost (H.ELE) The H.ELE – Heat pump + electric element setting is also located within the General Settings menu of the SV series keypads. Steps to adjust the H.ELE setting for each keypad type are detailed below: 5.2.1.1 Standard Touch Pads...
  • Page 25 Step 2: Press the UP button until display shows H.ELE (heat pump + electric element). Step 3: Press the OK button to enter the H.ELE setting adjustment (display will show current setting). Step 4: Use the UP or DOWN buttons to toggle between ON and OFF.
  • Page 26 Step 5: Press the OK button to confirm and save the setting and return to the General Settings Menu. NOTE: If there is no further button press, after 10 seconds the menu will exit and return to default temperature display. 5.2.1.2 SmartTouch Colour Touch Screen Keypads Step 1: Press on Cog icon to enter General Settings menu.
  • Page 27 Set Temperature Adjustment and Range The regulation of water temperature is governed by the settings within the SV Series spa controller. The set temperature point can easily be adjusted by pressing and holding either the UP or DOWN buttons on the SV spa side touch pad fitted to your spa.

  • Page 28: Safety / Protection Systems

    6. Safety / Protection Systems SV Heat pumps are equipped with the following safety protection systems: Water flow switch The heat pump is fitted with a flow switch to prevent the heat pump from operating and overheating the water in the heat exchange tank if there is too little or no water flow through the heat pump. The flow switch must close within 30 seconds of the heat pump starting to prevent a “HEAT PUMP FLOW”...

  • Page 29: Winterizing Heat Pump

    7.Winterizing Heat Pump In areas where freezing conditions are brief and mostly an overnight occurrence, the freeze protection of the SV Heat Pump and SV spa control will prevent the exchange tank and pipework from freezing by engaging the filtration pump and circulating water every hour even if sleep timers are set. Freeze protection will override any sleep or power save timers that have been set in the SV spa control.
  • Page 30 7.1.2 Isolate water flow to heat pump and drain water 1. Switch power to spa OFF. Isolation valve Isolation valve 2. Close isolating valves (1 & 2) to inlet and outlet pipes of heat pump and fully open bypass valve (3) to close water supply to the heat pump and keep water circulating within the spa (refer above).
  • Page 31 If the whole spa is being shut down for Winter, the spa side cabinet panel should be removed and cou- plings loosened on both the filtration pump and spa controller to completely drain pipe work of water to prevent freezing and ice damage. 7.2 Prepare to Restart Heat Pump after Winter 1.

  • Page 32: Temperature Sensor Calibration

    8. Temperature Sensor Calibration Due to certain conditions, environmental factors and length of data cable, your SV Series Heat Pump may require calibration of the temperature sensors for optimum performance. In particular if you have had to replace or use a longer data cable than the original preinstalled cable it is important to ensure the temperature sensors are calibrated accurately.
  • Page 33 8.2.1 Calibrate heat pump ambient temperature sensor (H.AMb) 1. Press and hold BLOWER + W.CLN buttons simultaneously until display shows “C.LMT” 2. Press the DOWN button until display shows “CAL” (calibrate) 3. Press the OK button to enter CAL (calibrate) adjustments => display will show “C.ZER” 4.

  • Page 34: Maintenance

    Maintenance Little maintenance is required however the following should be performed on a regular basic to ensure long equipment service life. When performing maintenance isolate power to spa pool and heat pump for safety. 1. Clean evaporator regularly in order to keep it in good performance. Use a soft brush and water containing a mild detergent or ideally specially made air conditioner cleaner.

  • Page 35: Refrigerant Charging

    9.2 Refrigerant Charging Refrigerant is very stable and should not degrade or break down even under severe operating conditions. It is not necessary to service or charge the heat pump with refrigerant unless there has been a refrigerant leak. If the unit has a leak in the sealed refrigeration system, please locate the leakage and repair before charging with more refrigerant Refrigerant charging must be performed by a qualified person.

  • Page 36: Heat Pump Error Codes

    Existing installs: Check the spa water level is OK, refill if necessary Clean or replace filter cartridges If the spa has just been emptied/refilled, bleed air locks from pipe work Check filtration pump is working OK and has not seized NO HEAT PUMP OPERATION Check SV spa controller settings.
  • Page 37 A list of the fault conditions and warning messages are detailed below for reference. ERROR MESSGAGE DESCRIPTION HEAT PUMP AMB Ambient temperature sensor error HEAT PUMP COND Condenser/Evaporator temperature sensor error HEAT PUMP FLOW Water flow not detected HEAT PUMP LOW P Compressor low pressure switch open HEAT PUMP HIGH P Compressor high pressure switch open...
  • Page 38 HEAT PUMP COMP Compressor has overheated or thermal cut out signal is corrupted Confirm ambient air temperatures are within operational limits and fan is working Turn mains power OFF, leave heat pump for 45 minutes for compressor to cool and test again Inspect data cable for damage and check data cable connected correctly to SV spa control Replace data cable if problem unresolved (use double shielded CAT5/CAT6 Ethernet cable) HEAT PUMP EXCH...

  • Page 39: Wiring Diagram

    12. Wiring Diagram NOTE : This diagram is correct at the time of publication, manufacturing changes could lead to modifications. Always refer to the diagram supplied with the heat pump.

  • Page 40: Contact Us

    Contact Us Spa Net Pty Ltd Unit 1 103 Mulgrave Road Mulgrave NSW 2756 Australia Phone: +61 2 4587 7766 Fax: +61 2 4587 8766 www.spanet.com.au Technical Support & Service service@spanet.com.au Accounts Department accounts@spanet.com.au Sales Department sales@spanet.com.au V050824...

This manual is also suitable for:

Sn-hp-55pSn-hp-90pSn-hp-120p
