SG02 / SG03
Schweißgeräte · Welding tools · Equipos de soldadura
BEDIENUNGSANLEITUNG
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
SG03
SG02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BEHABELT SG02

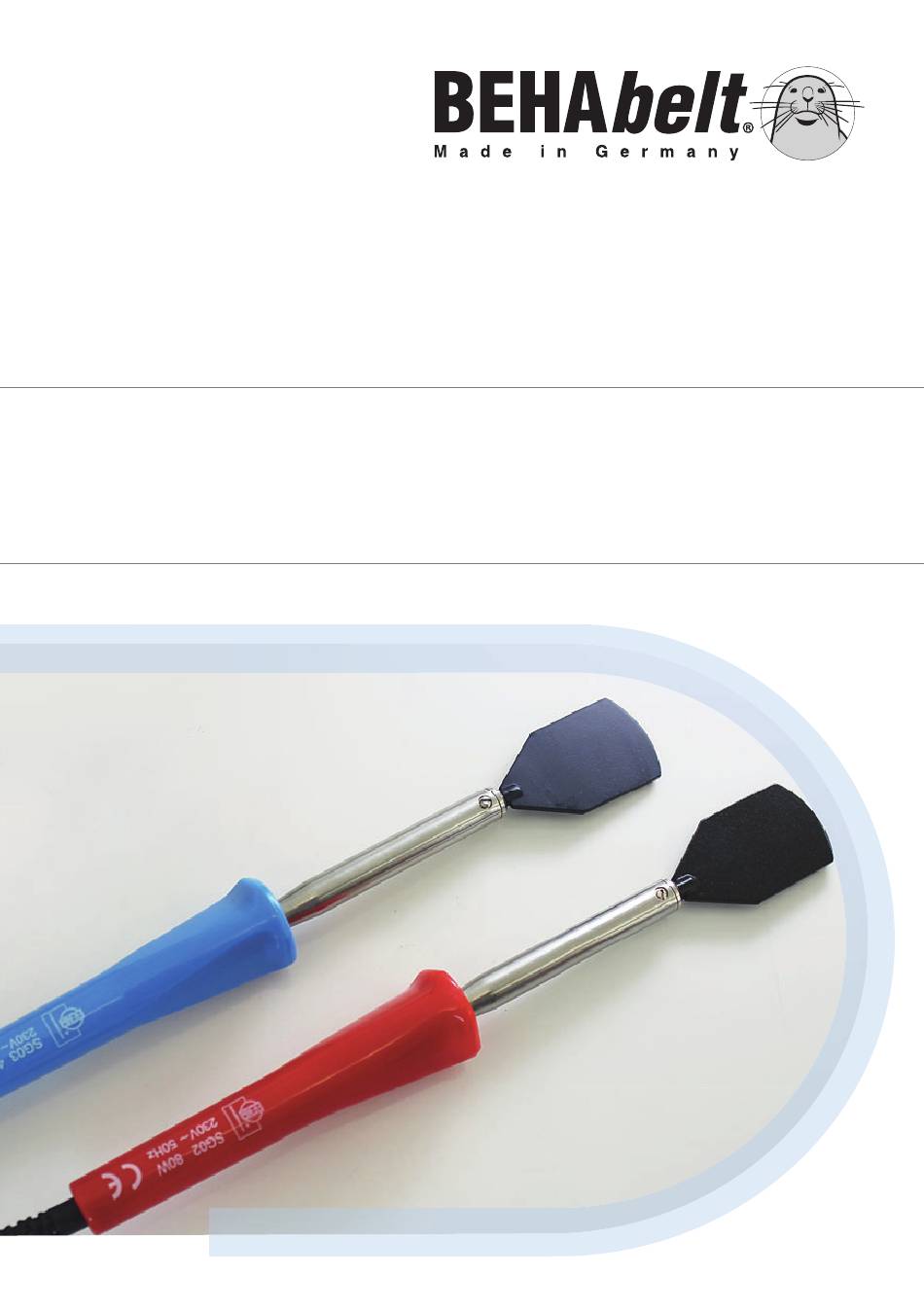

  • Page 1 SG02 / SG03 Schweißgeräte · Welding tools · Equipos de soldadura BEDIENUNGSANLEITUNG INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES SG03 SG02...
  • Page 2: Table Of Contents

    DEUTSCH // INHALT Hinweise/Einleitung/Lieferumfang ��������������������������������3 Sicherheitsmaßnahmen �����������������������������������������������5 Inbetriebnahme �����������������������������������������������������������8 Verschweißen von Riemen �������������������������������������������8 Technische Daten ������������������������������������������������������11 ENGLISH // CONTENT References/Introduction/Scope of Supply �������������������15 Safety measures ��������������������������������������������������������17 Operation �������������������������������������������������������������������20 Belt welding ���������������������������������������������������������������20 Technical data �����������������������������������������������������������22 ESPAÑOL // CONTENIDO Notas/Introducción/Ampliación ����������������������������������27 Medidas de seguridad������������������������������������������������29 Puesta en servicio �����������������������������������������������������32 Soldadura de las bandas ��������������������������������������������32 Datos técnicos �����������������������������������������������������������34...
  • Page 3: Hinweise/Einleitung/Lieferumfang

    AUF DEM GERÄT UND IN DER BEDIENUNGSANLEITUNG VERMERKTE HINWEISE: Achtung! Warnung vor einer Gefahrenstelle, Bedienungsanleitung beachten� Vorsicht! Gefährliche Spannung, Gefahr des elektri- schen Schlages� Hinweis� Bitte unbedingt beachten� Warnung vor heißer Oberfläche� Konformitäts-Zeichen, bestätigt die Einhaltung der gültigen EMV-Richtlinie (89/336/EWG) und Nieder- spannungsrichtlinien (73/23/EWG)�...
  • Page 4 Beschädigungen des Gerätes eintreten� Bei sämtlichen Arbeiten müssen die Unfallverhütungs- vorschriften der gewerblichen Berufsgenossenschaften für elektrische Anlagen und Betriebsmittel beachtet werden� Die Spiegelschweißgeräte SG02 und SG03 sind zum Verschweißen von Rund- und Keilriemen� SG02: Polyurethan (PU); SG03: Polyester (HYT)
  • Page 5: Sicherheitsmaßnahmen

    Bereiche (wie z�B� Medizin, Landwirt- schaft)� Das Gerät darf nur an der auf dem Typenschild angegebenen Eingangsspannung angeschlossen werden� Das Schweißgerät SG02 oder SG03 darf nur an den dafür vorgesehenen Grifflächen gehalten werden� Das Berühren der Metallteile ist unter allen Umstän- den zu vermeiden�...
  • Page 6 Nach Gebrauch Netzstecker ziehen� Wenn die Sicherheit des Bedieners nicht mehr gewährleistet ist, muss das Gerät außer Betrieb gesetzt und gegen ungewolltes Benutzen gesichert werden� Dies ist der Fall, wenn das Gerät: offensichtliche Beschädigungen aufweist zu lange unter ungünstigen Bedingungen gelagert wurde während des Transportes mechanischen Belastun- gen ausgesetzt war�...
  • Page 7 Wärmewerkzeuge werden heiß! Prüfen Sie vor dem Anheizen des Gerätes, ob der Werkzeugeinsatz ordnugsgemäß mit dem Wärmewerkzeug verbunden ist� Der heiße Werkzeugeinsatz darf nicht mit Haut, Haaren oder mit hitze empfindlichen und brennbaren Materialien in Verbindung gebracht werden� Achten Sie auf eine ausreichend hitzebeständige Arbeits- unterlage�...
  • Page 8: Inbetriebnahme

    Nicht für Dauerbetrieb/Werkstattbetrieb geeignet (Netzbetrieb bis zu 1 Stunde)� Überhitzungsgefahr� INBETRIEBNAHME Wir empfehlen Ihnen eine gewisse Einübung� Das Schweißgerät SG02/80 Watt erreicht die Temperatur von 285���300°C i�d�R� nach einer Einschaltzeit von 15 Min� (abhängig von der Umgebungstemperatur)� Das Schweißgerät SG03/40 Watt erreicht die Temperatur von 215���245°C i�d�R�...
  • Page 9 DAS VERSCHWEISSEN DER RIEMEN Wir empfehlen, die Riemen vor dem Verschweißen auf Raumtemperatur vorzuwärmen, um eine kons- tante Schweißtemperatur zu gewährleisten� Die Riemenenden in der entsprechenden Führungs- zange mit einem Abstand von ca� 5 mm festsetzen� Den auf die entsprechende Schweißtemperatur gebrachten Schweißspiegel in den Spalt einführen und die beiden Riemenenden mit leichtem Druck gegen den Spiegel pressen�...
  • Page 10 Der vom Schweißen entstandene Wulst mit einem scharfen Messer oder einer Zange ent fernen� Ein leichtes Nichtfluchten der beiden Riemenenden kann durch Schleifen korrigiert werden� Der Schweißspiegel muss grundsätzlich nach jeder Schweißung von den anhaftenden Kunststoffresten gereinigt werden� Dies geschieht am einfachsten mit einem Riemenreststück oder einem Baumwoll- lappen�...
  • Page 11: Technische Daten

    TECHNISCHE DATEN Spannungen: 220���240 V, 50/60 Hz bzw� 115 V, 50/60 Hz (siehe Typenschild / Heizelement) Leistung: 80 W (SG02) 40 W (SG03) Anheizzeit: ca� 15 Min� Gewicht incl� Zuleitung: ca� 227 g Zuleitung: 1,5 m hochflexibel Umgebungs- bedingung: 0���40 °C, trocken...
  • Page 12 Endverbinden von PU- und TPE-Profilen Handlich und leicht für Rundriemen bis ∅ 10 mm und Keilrie- men bis Profil 10 (Z) BEHAbelt Führungszange FZ01 Vario Führungszange aus Metall kann in zwei Funktionsweisen montiert werden; mit und ohne Griff� Auch Sonderprofile möglich dank aus-...
  • Page 13 SG02 / SG03 Welding tools INSTRUCTION MANUAL SG03 SG02...
  • Page 14 ENGLISH // CONTENT References/Introduction/Scope of Supply �������������������15 Safety measures ��������������������������������������������������������17 Operation �������������������������������������������������������������������20 Belt welding ���������������������������������������������������������������20 Technical data �����������������������������������������������������������22...
  • Page 15: References/Introduction/Scope Of Supply

    REFERENCES MARKED ON TESTER OR IN INSTRUCTION MANUAL: Warning of a potential danger, comply with instruction manual� Caution! Dangerous voltage� Danger of electrical shock� Reference� Please pay utmost attention� Caution, hot surface� Conformity symbol, the instrument complies with the valid directives� It complies with the EMV Direc- tive (89/336/EEC), Standards EN 50081-1 and EN 50082-1 are fulfilled�...
  • Page 16 The respective accident prevention regulations estab- lished by the professional associations are to be strictly enforced at all times� The welding tools SG02 and SG03 are made for joining round and V-belts� SG02: Polyurethane (PU); SG03: Polyester (HYT) SCOPE OF SUPPLY 1 pc�...
  • Page 17: Safety Measures

    The instrument may only be connected to input voltage as indicated on the type shield� Only touch SG02 or SG03 at handle surface provid- ed� Never directly touch metal� After use, first pull out power plug� If the operator’s safety is no longer ensured, the instrument is to be put out of service and protected against use�...
  • Page 18 has been subjected to mechanical stress during transport� The instrument may only be used under those conditions and for those purposes for which it was conceived� For this reason, in particular the safety references, the technical data including environ- mental conditions and the usage in dry environ- ments must be followed�...
  • Page 19 purpose� Disconnect your heating tool from the mains after use (this does not apply to nonelectri- cally operated device such as gas-operated heating tool) Ventilation and extaraction� The materials and ancil- lary substances you use whilst soldering can have a derminental effect on your health� Make sure that there is adequate ventilation or extraction�...
  • Page 20: Operation

    OPERATION We recommand your practise / exercise� The weld- ing tool SG02/80W generally reaches temperature of 285���300 °C after 15 min of heating up (depend- ing on surrounding temperature)� The welding tool SG03/40W generally reaches temperature of 215���245 °C after 15 min� of heating up (depending on surrounding temperature)�...
  • Page 21 If you have carried out an accurate welding, a belt boss of approx� 3 to 4 mm appears between the belt ends and the welding mirror� Please make sure that the total surface of the belt ends forms a boss during the heating-up time� Remove welding mirror wihtout application of pressure from the belt ends and quickly press them together�...
  • Page 22 After each welding procedure, the welding mirror should be cleaned from all synthetic desposits by using a belt rest piece (HYT) or a cotton cloth� Do not use knife or hard objects as this would damage the teflon coating� After use, first pull out power plug� To change the welding mirror loosen the screw and pull out the mirror thereafter�...
  • Page 23: Technical Data

    TECHNICAL DATA Voltage: 220���240 V, 50/60 Hz 115 V, 50/60 Hz (see type-shield / heating up tool) Power: 80 W (SG02), 40 W (SG03) Warm up time: approx� 15 min� Weight incl� lead: approx� 227 g Lead: 1,5 m high flexible...
  • Page 24 TPE profiles� Handy and lightweight for round belts up to ∅ 10 mm and V-belts up to profile 10 (Z) BEHAbelt Guiding clamp FZ01 Vario Guiding clamp made of metal can be assem- bled in two operation modes; with and...
  • Page 25 SG02 / SG03 Equipos de soldadura MANUAL DE INSTRUCCIONES SG03 SG02...
  • Page 26 ESPAÑOL // CONTENIDO Notas/Introducción/Ampliación ����������������������������������27 Medidas de seguridad������������������������������������������������29 Puesta en servicio �����������������������������������������������������32 Soldadura de las bandas ��������������������������������������������32 Datos técnicos �����������������������������������������������������������34...
  • Page 27: Notas/Introducción/Ampliación

    EN EL APARATO Y EN LAS INSTRUCCIONES DE USO: ¡Precaución! Advertencia de zona de peligro, Obser- ve las instrucciones de funcionamiento� ¡Atención! Tensión peligrosa, riesgo de descarga eléctrica� Atención� Tenga en cuenta� Advertencia de superficie caliente� Marca de conformidad, confirma el cumplimiento de la Directiva de compatibilidad electromagnética (89/336/CEE) y la Directiva de baja tensión (73/23/ CEE) aplicables�...
  • Page 28 Durante todos los trabajos deben observarse las normas de prevención de accidentes de las asociaciones profe- sionales de instalaciones y equipos eléctricos� Los aparatos de soldadura a espejo SG02 y SG03 están diseñados para soldar correas redondas y trapezoidales� SG02: Poliuretano (PU); SG03: Poliéster (HYT)
  • Page 29: Medidas De Seguridad

    El aparato sólo puede conectarse a la tensión de entrada especificada en la placa de características� El dispositivo de soldadura SG02 o SG03 sólo debe sujetarse con las empuñaduras previstas a tal efec- to� Evite tocar las partes metálicas en cualquier cir- cunstancia�...
  • Page 30 ha estado expuesto a tensiones mecánicas durante el transporte� El aparato sólo debe utilizarse en las condiciones y para los fines para los que ha sido diseñado� En particular, deben observarse las instrucciones de seguridad de los “Datos técnicos” con las condicio- nes ambientales y el uso en un entorno seco�...
  • Page 31 ¡Peligro de incendio! Antes de calentar la herra- mienta térmica, retire los objetos, líquidos y gases inflamables de la zona de trabajo de su herramienta térmica� Coloque la herramienta eléctrica en un so- porte adecuado cada vez que deje de trabajar� Des- conecte la herramienta eléctrica de la red eléctrica después de utilizarla�...
  • Page 32: Puesta En Servicio

    PUESTA EN SERVICIO Recomendamos un cierto grado de familiarización� El soldador SG02/80 vatios suele alcanzar una tem- peratura de 285���300°C tras un tiempo de conexión de 15 minutos (en función de la temperatura am- biente)� El soldador SG03/40 W alcanza una temperatura de 215���245°C normalmente después de un tiempo de...
  • Page 33 Con una buena soldadura, el metal de soldadura se hincha aprox� 3-4 mm entre los extremos de la co- rrea y el espejo de soldadura sin burbujas� Asegúrese de que toda la superficie de los extremos de la correa presenta un abombamiento durante la fase de calentamiento�...
  • Page 34: Datos Técnicos

    220���240 V, 50/60 Hz o 115 V, 50/60 Hz (ver placa de características / elemento calefactor) Potencia: 80 W (SG02), 40 W (SG03) Tiempo de calentamiento: aprox� 15 min� Peso incl� cable de alimentación: aprox� 227 g Cable de alimentación: 1,5 m muy flexible Condiciones ambientales: 0���40 °C, seco...
  • Page 35 Práctica y ligera para correas redondas de hasta ∅ 10 mm y cor- reas trapezoidales hasta el perfil 10 (Z)� Pinza guía para correas BEHAbelt FZ01 Vario La pinza guía metálica se puede montar de dos formas diferentes; con y sin mango�...
  • Page 36 BEHA Innovation GmbH In den Engematten 16 · 79286 Glottertal Tel.: +49 7684 9070 Fax: +49 7684 907101 E-Mail: info@behabelt.com Internet: www.behabelt.com Änderungen und Irrtümer vorbehalten. Subject to change without notice. PBMBMSG0201 · 07/2024...
