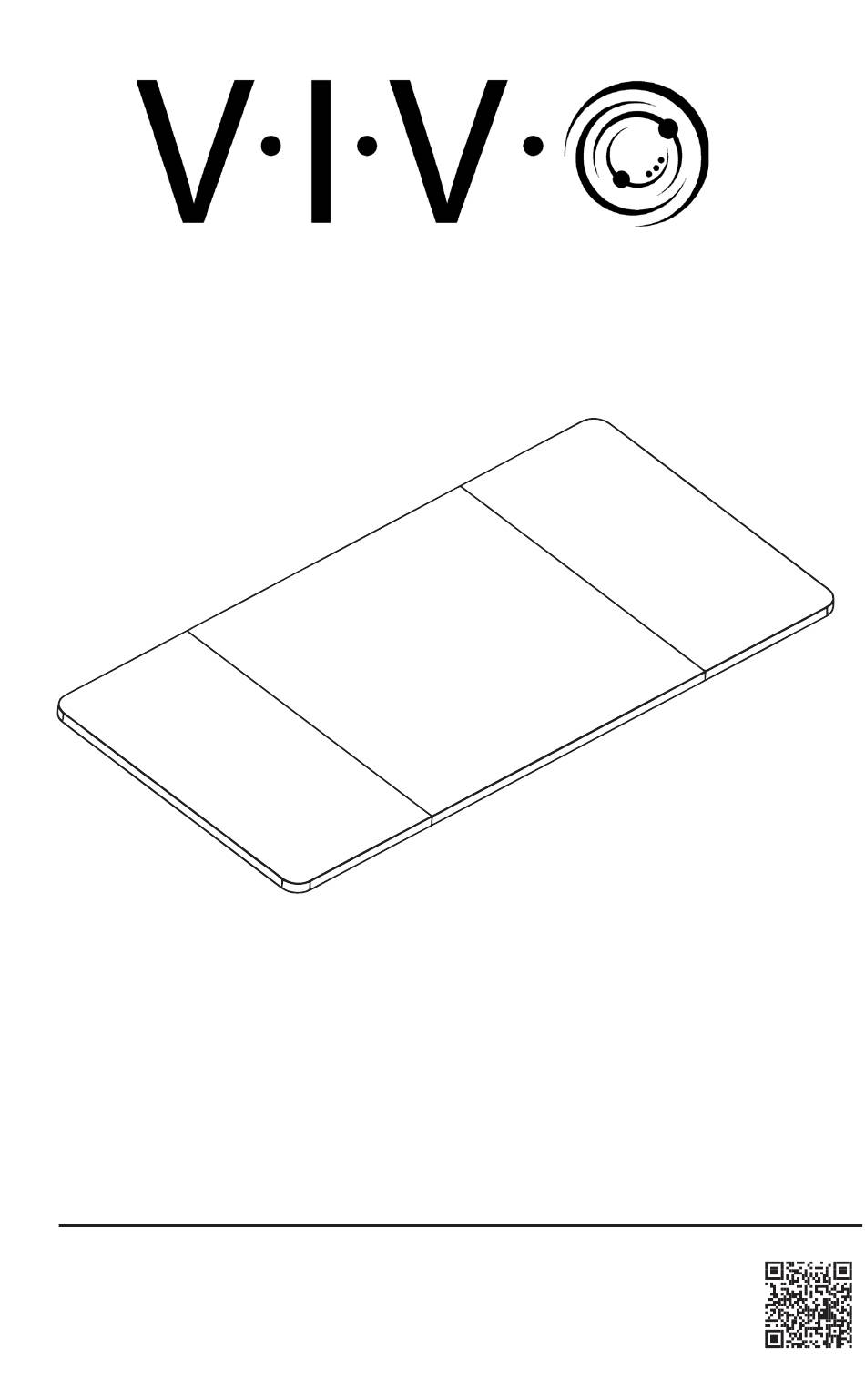

- Page 1 60” x 30” Table Top SKU: DESK-TOP60-30B/C/D/G/N/W Instruction Manual Assembly Video & Product Info https://vivo-us.com/products/desk-top60-30b...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x1) C (x1) D (x4) Right Panel Middle Panel Left Panel Support Bar Included Hardware & Tools S-A (x6) S-B (x16) Wooden ST4.2x16mm Dowel Pin Screw Tools Needed: Phillips Screwdriver... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Place Desktop Panels (A, B, C) upside down on a protective surface and insert Wooden Dowel Pins (S-A) into Middle Panel (B). Connect Right Panel (A) and Left Panel (C) to Middle Panel (B) using Wooden Dowel Pins (S-A). - Page 5 STEP 2 Attach Support Bars (D) to predrilled holes in desktop assembly using ST4.2x16mm Screws (S-B) and a Phillips screwdriver.
- Page 6 Place desk frame upside down on the desktop assembly. Adjust the frame width to match desktop mounting holes, and secure frame to desktop assembly using hardware provided in your desk frame kit. For VIVO frames, pre-drilled holes have been included for most control panels. Pre-Drilled Hole Diagram for VIVO Desk Frames Bottom Side...
- Page 7 [THIS PAGE INTENTIONALLY LEFT BLANK]...
- Page 8 LAST UPDATED: 03/12/24 REV1.1 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
