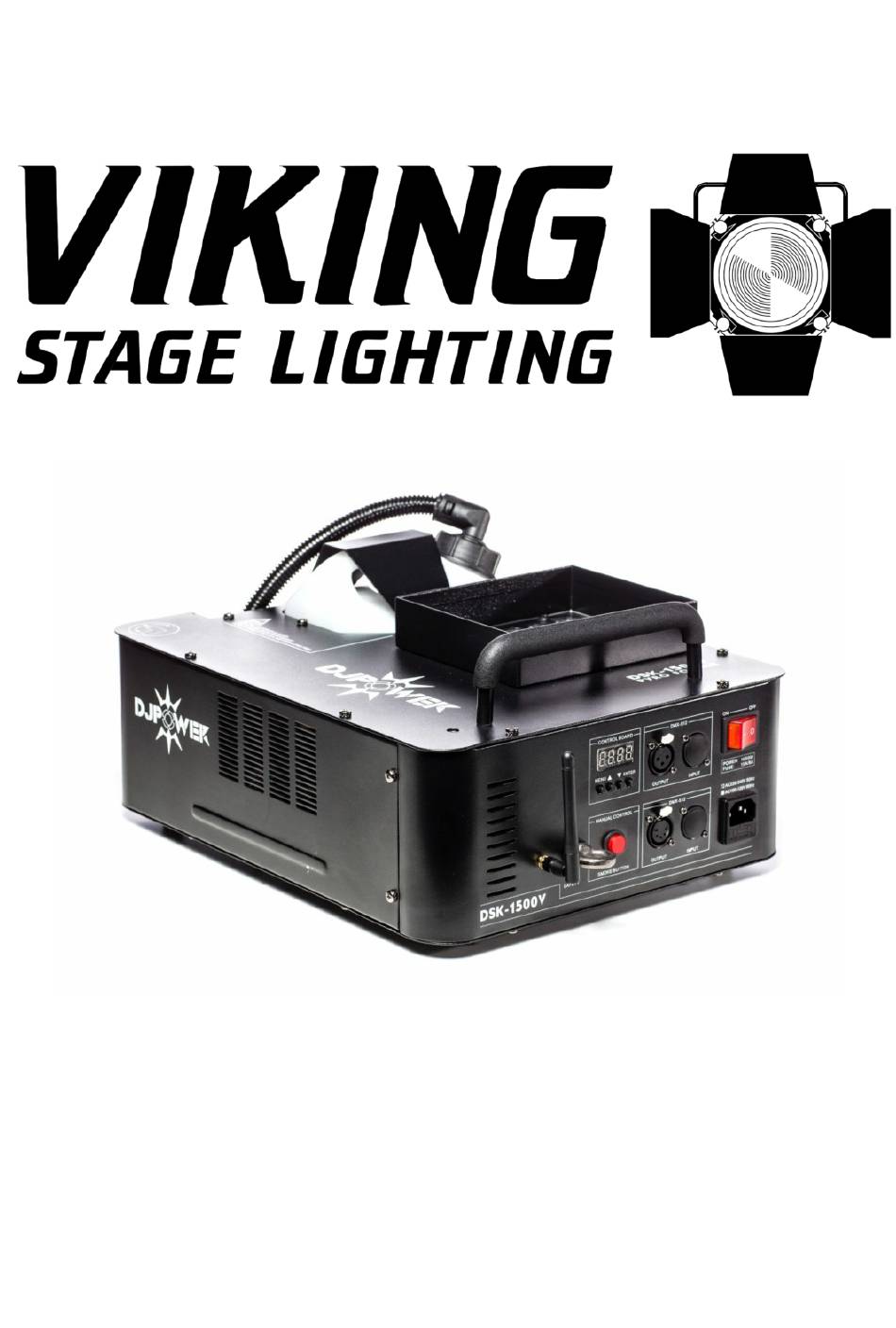

- Page 1 Fog machine DSK-1500V Users Manual...
-
Page 2: Item Delivered
Fog machine DSK-1500V 1. Introduction Before usage please read this manual carefully. Item delivered 1x Fog machine DSK-1500V 1x Powercon Power cord 1x Remote W5 Manual (English) Product description 1. 21x 3 W LEDs 2. Nozzle 3. Handle 4. XLR 3pin INPUT / OUTPUT 5. -
Page 3: Operation
Fog machine DSK-1500V 2. Start-up Attention! Remove before start-up every packing material. 1. Fill the tank with fluid (Please use fog fluid CO2). Make sure that there is always enough fluid in the tank. 2. Connect the device to the power supply. - Page 4 Fog machine DSK-1500V Menu Settings Function Addr 0 – 512 Setting the DMX address. Advising the colour settings for the single channels. Every button on the remote represents a channel: A = CH-1, B = CH-2, C = CH3 und D = CH4.
- Page 5 Fog machine DSK-1500V If the device is controlled by DMX the display shows the set DMX address. Channel Value from Value to Function No function Fog output No function Dimmer red 0 – 100%. No function Dimmer green 0 - 100% No function Dimmer blue 0 –...
- Page 6 Fog machine DSK-1500V Remote 1. Activate the remote. 2. Power off the device. 3. Power on the device again. The display shows a bar diagram. Press, while the bar diagram is shown in the display, any key on the remote.
-
Page 7: Technical Data
Fog machine DSK-1500V Technical data Voltage AC 220 V – 240 V; 50/60 Hz Power consumption max. 1500 W Fuse 8 A/250 V LM type LED single colour (7x red, 7x green and 7x blue) Power 441 W Number x Power...
