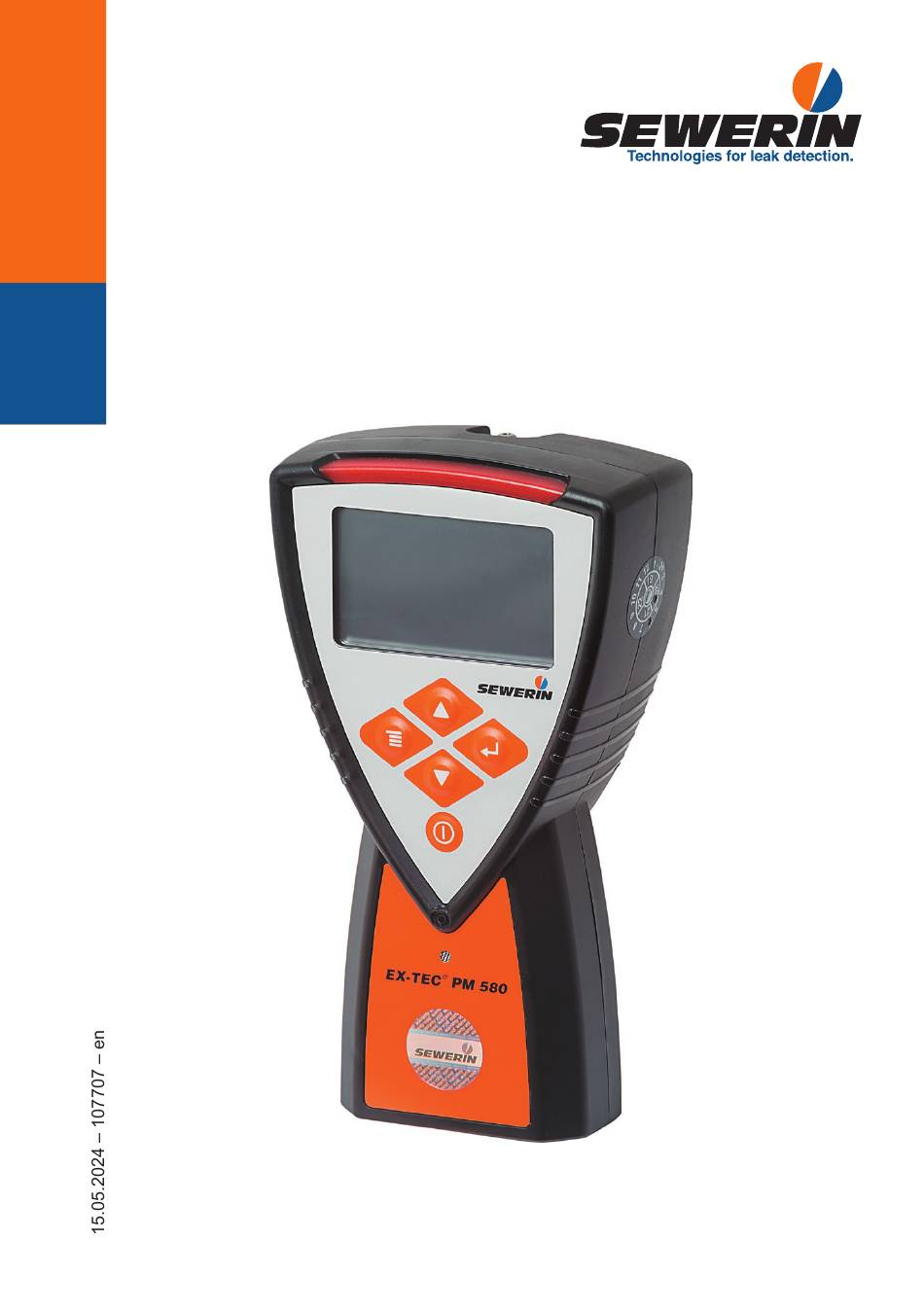

  • Page 1 EX-TEC PM 580/550/500/400 ® Operating Instructions...
  • Page 2 Device Signal light Display Menu key Up key Enter key Down key ON/OFF key Buzzer Fig. 1: Front view Gas input Filter fastener Belt clip with D-ring Electrical contact Battery compartment Fig. 2: Rear view (left image) and underside of the device with battery pack (right image)
  • Page 3 Display Application Measurement value 1: – Bar graph with quasi-logarithmic scale – Measurement value, gas, unit Measurement value 2: – Measurement value, gas, unit Remaining capacity (disposable/rechargeable battery) Fig. 3: Display in measuring mode - Structure application Fig. 4: Display in measuring mode Left image: Warning application Right image: Measuring application...
  • Page 4 Illustration of warnings in this document DANGER! Risk of personal injury. Will result in serious injury or death. WARNING! Risk of personal injury. Can result in serious injury or death. CAUTION! Risk of personal injury. Can result in injury or a risk to health. NOTICE! Risk of damage to property.

  • Page 5: Table Of Contents

    Introduction ..................1 Information about this document ............1 Purpose ....................2 Intended use ..................2 Improper use ..................2 Safety information .................3 1.6 Qualification of users ................5 Product description ................6 Product variants ..................6 Application options ................7 2.2.1 Detectable gases ................7 2.2.2 Applications ..................8 Features ....................9 2.3.1 Sensors .....................9 2.3.2 Gas types ..................11...
  • Page 6 3.3.7 Answer questions ................30 3.3.8 Lists - view detailed information ............30 3.3.9 Write comment ................31 Recording measurements ..............32 3.4.1 Start recording .................33 3.4.2 Stop recording and save without a comment ........33 3.4.3 Stop recording and save it with a comment ........34 3.4.4 Automatically recording a measurement .........34 Change application ................35...
  • Page 7 6.2.1 Utilisable test gases ................57 6.2.2 Available test gases ................58 6.2.3 Gas mixtures for adjusting devices with a COSH sensor ....58 Suitable environment ................59 Device inspection ................59 6.4.1 Ways of carrying out the procedure ..........59 6.4.2 Frequency and due date ..............60 6.4.3 Variants of the guided device inspection (standard and ECO) ..61 6.4.4 Features ..................62 6.4.5...
  • Page 8 Faults and problems ................82 Error messages ..................82 8.2 Warning messages ................83 Resolution of problems ...............83 8.3.1 Device has sucked water in ............83 8.3.2 Temporary zero point cannot be set ..........85 Appendix ...................86 Technical data ..................86 Sensors ....................89 9.2.1 Infrared sensors ................89 9.2.2 Semiconductor sensor ..............93 9.2.3...

  • Page 9: Introduction

    German version is authoritative. Right of reproduction No part of this document may be edited, duplicated or circulated in any form without the express consent of Hermann Sewerin GmbH. Registered trademarks Registered trademarks are generally not indicated in this document.

  • Page 10: Purpose

    Purpose The device is a portable, ex-proof gas concentration measuring device for detection, measuring and warning. The device can be used for: ● Pinpointing leaks in gas pipes that are not underground ● Assessment of the risk of explosion in work areas ●...

  • Page 11: Safety Information

    ● Use the product only as intended. ● Do not make any changes or modifications to the product unless these have been expressly approved by Hermann Sewerin GmbH. ● Only use accessories and consumables approved by Hermann Sewerin GmbH. ● Always observe the permitted operating and storage temperatures.
  • Page 12 ● Perform device inspection and adjustment only in well ventilated rooms or outdoors. ● Handle test gases in a professional manner. Sensors ● Have sensors replaced by SEWERIN Service when their service life has expired. ● SEWERIN recommends: Perform a device inspection when the device has been exposed to gas concentrations above the end of measuring range.

  • Page 13: Qualification Of Users

    − Specialists are permitted to perform device inspections and adjustments. They can evaluate the results. Competent person SEWERIN service personnel and people trained by SEWERIN are competent persons. − Competent persons have knowledge of the applicable regulations and guidelines as well as the tasks and functions of gas concentration measuring devices.

  • Page 14: Product Description

    Product description Product variants The following product variants of the device are available: ● Ex-TEC PM 580 (for short: PM 580) ● Ex-TEC PM 550 (for short: PM 550) ● Ex-TEC PM 500 (for short: PM 500) ● Ex-TEC PM 400 (for short: PM 400) Each product variant has certain basic device features as standard. In addition, there are different device features for each...

  • Page 15: Application Options

    Application options 2.2.1 Detectable gases The device may be used to measure the following gases: PM 580 PM 550 PM 500 PM 400 Methane CH × × × × Propane C Nonane C – – – Carbon dioxide CO Oxygen O Carbon monoxide CO Hydrogen sulphide H –...

  • Page 16: Applications

    2.2.2 Applications The following applications are differentiated for working with the device (/3/): Application Activities Warning – monitoring of work areas – warning of (/4/, /5/, /7/, /14/): – toxic gas concentrations – lack of oxygen/excessive oxygen – explosive gas concentrations Measuring – demonstrating gas purity / absence of gas in gas pipes Structure –...

  • Page 17: Features

    Features 2.3.1 Sensors The sensors included as device features depend on the product variant. The following sensors are included as standard or as options: Sensor Gas/gas type PM 580 PM 550 PM 500 PM 400 × × × – × –...
  • Page 18 Operating principles of the sensors Sensor Operating principle IR Infrared sensor absorption by infra-red-active gases SC Gas-sensitive reacts to changes in conductivity semiconductor brought about by reducible gases CC Catalytic combustion catalytic combustion sensor EC Electrochemical electrochemical cell sensor Technical information about the sensors, including their measurement ranges, can be found in section 9.2.

  • Page 19: Gas Types

    2.3.2 Gas types By default the device is set up for gas type methane CH However, the sensors fitted to a device as standard (section 2.3.1) can be set up for other gas types or for additional gas types. The following gas types can be set up: Gas type PM 580 PM 550 PM 500 PM 400 ×...

  • Page 20: Signal For Paused Measurement

    Visual and audible signal together: ● Alarm ● Operating signal ● Error (error message) ● Device inspection or inspection due ● Warning, information ● Switching the device on and off ● Concentration-dependent signal Visual signal only: ● Paused measurement Audible signal only: ● Keystroke Note: In the event of an alarm or fault, the visual signal is emitted with full brightness;...

  • Page 21: Operating Signal

    The signal for paused measurement is emitted: ● when the device is switched on ● during the warm-up time of the sensors ● when the device is not measuring (e.g. settings, adjustment) 2.3.3.3 Operating signal Note: An operating signal is available only in the Warning and Struc- ture applications.

  • Page 22: Signals In The Event Of Faults

    Acknowledgement: Under certain conditions, the audible signal can be muted during alarms. In some measurement situations, the visual signal and symbol can also be deactivated. The process is referred to as acknowledgement. Detailed information about the alarms, including the acknowledgement options, can be found in section 9.4. 2.3.3.5 Signals in the event of faults In the event of error messages, the audible signal can be acknowledged/disabled, but not the visual signal.

  • Page 23: Belt Clip And Short Probe

    Fig. 5: Hydrophobic filter (left) and dust filter (right) The filters must be changed regularly. Information on the frequency and procedure for changing can be found in section 3.12. 2.3.6 Belt clip and short probe The device comes with a belt clip and the PM 5 short probe. The short probe is placed in a recess in the belt clip. Belt clip The user can wear the device on the belt clip attached to the belt or to the trouser waistband.

  • Page 24: Additional Probes

    The PM 5 short probe is included in the scope of delivery (section 2.3.6). Other probes can be purchased as accessories. SEWERIN will be happy to advise you on selecting suitable probes. Note: Probes that are used must be visually inspected as part of the device inspection process.
  • Page 25 ………… Structure Start recording/ Stop recording ………… Warning Set zero point Information application Measuring ………… Lock keys PIN code ………… ………… Settings Adjustment Structure Warning Measuring Restore ………… Date/time Date Time PPM threshold ………… ………… Device inspection Structure Device condition Pump …………...

  • Page 26: Protocol Memory

    Protocol memory The device can store 500 device inspections as well as up to 500 recordings. The device will notify the user if only a limited memory capacity remains. If the memory is completely full, protocols will no longer be saved. Alternatively, you can set the GasCom software to delete the oldest device inspections or recordings if the memory is full to make space for new protocols.
  • Page 27 Fig. 8: Warning application – measurement value of flammable gas (here: CH ) with different units Left image: Unit % LEL Right image: Unit % vol. 2 Product description │ 19...

  • Page 28: Operation

    Operation Switching on the device WARNING! Risk to life due to contaminated ambient air If the device is switched on in a contaminated environ- ment , incorrect measurement values may be displayed in measuring mode. ● Switch on the device only in clean air. Each switch-on process is linked to activation of the buzzer, signal light and display.
  • Page 29 Note: If the message Start sensors … appears, it means the sensors are still warming up. During this warm-up time, the signal will be emitted for the paused measurement. In addition, no action can be performed. 1. Make sure the ambient air is clean. 2.
  • Page 30 Fig. 9: Sequence of start imag- es during switch-on process The logo can be customised us- ing the GasCom software. Fig. 10: Display of the device inspections that are due and the inspection that is due (Only displayed if the guided device inspection is activated and a device inspection or inspection is due.)

  • Page 31: Switching Off Device

    Fig. 12: Device ready for use with the preset application (here: Warning application) Special features at initial start-up The language must be set once at initial start-up. The setting is performed in association with the start images (fig. 9). Special feature when changing the disposable batteries/ rechargeable batteries Once the batteries have been changed the battery type and if necessary the date and time must be reset.

  • Page 32: Navigating

    Cancel switch-off Whilst the message Device switching off … is displayed, the switch-off process can be cancelled. ● Release the ON/OFF key before the message disappears. The device returns again to measuring mode. Navigating 3.3.1 Orientation aids on the display By means of orientation aids the user can identify the program situation in which the device finds itself or what action is required.
  • Page 33 The symbols in the status area give an indication of the current situation. The remaining battery capacity is always displayed. Fig. 15: Status area (black) Left image: Status area above the information area Alongside: Examples of information about the current situation (here: Remaining capacity, Device inspection due, Recording) Messages...

  • Page 34: Key Functions

    3.3.2 Key functions The following actions can be performed using the keys: Actions ● Switching – the device on and off ● Changing – from measuring mode to the top menu level – back a menu level ● Cancel – an action, a process ●...

  • Page 35: Switching Between Levels

    3.3.3 Switching between levels 3.3.3.1 Changing from measuring mode to menu or measuring menu WARNING! Risk to life due to absence of alarms The device emits alarms only when in measuring mode. As soon as you switch from measuring mode to the menu, no alarms are triggered.

  • Page 36: Switching From Menu Or The Measuring Menu Into Measuring Mode

    3.3.3.2 Switching from menu or the measuring menu into measuring mode The display shows the top level menu or the menu (fig. 7). ● Wait 5 seconds without pressing a key. The device will automatically switch to measuring mode. 1. Using the arrow keys, select an application. 2. Press the Enter key. The device switches to measuring mode.

  • Page 37: Select Values

    Fig. 17: Example of display view with scroll bar at the right margin (here: Protocol of a device in- spection) The display view has a scroll bar. ● Press the arrow keys to scroll. 3.3.6 Select values Values must be selected for certain settings. Entering the PIN code also works in this way.

  • Page 38: Answer Questions

    3.3.7 Answer questions Questions appear in the program procedure if actions have further consequences and during the device inspection. The following responses are possible: Note: Questions have different default settings for the answer. Fig. 19: Examples of questions Left image: Question with the default answer Yes Right image: Question with the default answer No The display shows a question.

  • Page 39: Write Comment

    3.3.9 Write comment Comments are information that can be saved together with the measurement values of a recording (e.g. information about the measurement location). Comments can always be rewritten or selected from a list of the last 10 comments (fig. 20). If a comment is selected from the list, it can either be accepted unchanged or modified.

  • Page 40: Recording Measurements

    Keys and symbols are used to navigate in the character selection. The symbols are integrated into the character selection. The following keys and symbols can be written: Actions ● Select – a character or symbol ● Use – a character ●...

  • Page 41: Start Recording

    Each recording is automatically saved when it stops and is then listed in the protocols. A comment can be saved for each recording together with the measurement values. As an alternative to manual saving and stopping, measurements can also be recorded automatically. 3.4.1 Start recording The device is in measuring mode.

  • Page 42: Stop Recording And Save It With A Comment

    3.4.3 Stop recording and save it with a comment The device is in measuring mode. A recording is running. 1. Press the Enter key. The device switches to the measurement menu. 2. Select Stop recording. 3. Press the Enter key. The following question appears: Stop and save recording? 4.

  • Page 43: Change Application

    Note: If the device is switched back to measuring mode, a new record- ing will start after 5 seconds. This device behaviour can only be stopped by deactivating auto- matic recording using the GasCom software. Change application In measuring mode, the symbol in the upper left corner of the display shows the current application.

  • Page 44: Set Zero Point

    Requirement for changing the application − The device is drawing in clean air. The device is in measuring mode. 1. Press the Menu key. 2. Use the arrow keys to select the desired application. 3. Press the Enter key. For the new application, the gas types including their measuring ranges and the alarm thresholds are displayed.
  • Page 45 Target values for the zero point Content in clean air Target value on the device 0% LEL 0% LEL 0.04% vol. 0.04% vol. 20.9% vol. 20.9% vol. 0 ppm 0 ppm 0.0 ppm 0.0 ppm Requirements for setting the zero point −...

  • Page 46: Changing Gas Type

    Changing gas type The device always switches on set to the preset gas type. During operation you can temporarily switch between all gas types for which a device is set up. Fig. 26: Changing gas type Gas type menu item Left image: The current gas type is displayed in the 2nd line (here: CH...

  • Page 47: Changing The Settings On The Device

    Changing the settings on the device Some settings can be changed directly on the device. Fig. 27: Settings Detailed information about the settings that can be changed on the device can be found in section 4.3. WARNING! Risk to life due to absence of alarms The device emits alarms only when in measuring mode.

  • Page 48: Concentration-Dependent Signal (Structure)

    Concentration-dependent signal (structure) In the Structure application, there is a concentration-dependent signal for the measurement of hydrocarbons. This signal can be used for audible evaluation of the measurement value. The signal is activated when a specified concentration value is exceeded. − As the concentration increases, the signal becomes louder. −...

  • Page 49: Key Lock

    3.10 Key lock In order to protect the device from accidental operation during measuring mode, the keys can be locked. The following options are available for locking: ● manual ● automatic Unlocking the keys is always manual. As long as the keys are locked, the status area displays the symbol Key lock (Fig.

  • Page 50: Locking Keys Automatically

    3.10.2 Locking keys automatically When automatic key lock has been activated, the keys will always lock after 15 seconds as soon as the device is in measuring mode and if no other key has been pressed in the meantime. To operate the device, unlock the keys (section 3.10.3). Automatic key lock must be activated using the GasCom software.

  • Page 51: Changing The Filter

    Check the leak-tightness A probe or a probe hose is connected to the device. The device is in measuring mode. 1. Seal the probe or the probe hose at the free opening, e.g. with a finger. The gas path is leak-tight if the following error message appears after a maximum of 10 seconds: Pump error.
  • Page 52 The filter fastener has lugs of two different widths. It is a close fit in the filter opening. Fig. 30: Filter fastener with lugs of two different widths (view from above) Frequency The frequency of the filter replacement is greatly dependent on the frequency of device usage and the ambient conditions during use. The filters must be replaced if they exhibit: ● visible contamination ● mechanical damage ● contact with water If none of the events occurs, the filters must be replaced after 12 months at the latest. Checking the filters The dust filter contamination can be tested from the outside by inspection through the transparent filter fastener.
  • Page 53 Changing the filter NOTICE! Risk of contamination New filters, i.e. filters not yet used, must be handled carefully to prevent mechanical damage. Filters and O-rings must not come into contact with grease. ● Ensure your hand are clean when changing the filters. ● Use tweezers to insert the hydrophobic filter. The device is switched off. 1. Turn the filter fastener anti-clockwise until it reaches the stop. 2. Pull off the filter fastener. 3. Within the filter fastener: Change the dust filter a) Remove the used dust filter. b) Insert a new dust filter. Press the filter gently into the filter fastener. 4. Within filter opening: Replace the hydrophobic filter a) Remove the O-ring above the filter, taking care not to dam- age it.

  • Page 54: Settings

    Settings General information about the settings A distinction is made between the following settings: ● Settings that can only be set using the GasCom software ● Settings that can be set either on the device or using the GasCom software When a device is connected to a computer on which the GasCom software is started: ●...

  • Page 55: Settings On The Device

    ● Check the settings in the GasCom software. To do so, read the device data again using the GasCom soft- ware. The GasCom software can be downloaded free of charge from www.sewerin.com. Settings on the device The following settings and actions can be performed on the device: ●...

  • Page 56: Restore

    4.3.3 Restore The device can be restored to the status as at the time of the last maintenance. The following settings are saved every time they are serviced and can therefore be restored: ● Adjustment values of the sensors ● Alarm thresholds ●...

  • Page 57: Ppm Threshold

    The date and time of the device are set in two separate menu items. ● Date (day, month, year) ● Time (time of day) 4.3.5 PPM threshold The threshold value can be set for the concentration-dependent signal in the Structure application. The options are: ●...

  • Page 58: Protocols And Information

    Protocols and information Protocols The device saves device inspections and recordings in the protocol memory as protocols. In addition, the most recent protocols are displayed in the protocol lists. Information about the protocol memory can be found in section 2.6. The device can display the protocols.

  • Page 59: Device Inspections

    Detailed information You can access the relevant detailed information for each protocol (Fig. 32 and Fig. 33). Note: The detailed information about a protocol is generally spread over several display views. ● Scroll using the arrow keys to view the complete information. 5.1.1 Device inspections Note:...

  • Page 60: Recordings

    1. Select Protocols > device inspections. The protocol list appears. 2. Select a protocol. 3. Press the Enter key. The detailed information about the selected protocol will be displayed. 5.1.2 Recordings The protocol of a recording includes: − application (symbol) −...

  • Page 61: Device

    ● Errors Error list ● Test gases Test gas list ● User list A list of users for the device ● Application Information about the measuring ranges and alarm thresholds of the applications Note: The information is generally spread over several display views. ●...

  • Page 62: Errors

    5.2.2 Errors The last ten errors are displayed in the error list in descending chronological order. The following are displayed for each error: − date and time − error code − description of the error and remedy Fig. 35: Information – error list The device is switched on.

  • Page 63: User List

    5.2.4 User list The user list displays the names of all users selected for the device and transferred to the device by the GasCom software. Note: Users can only be created and edited using the GasCom soft- ware. Users included in the user list can save the result of device inspections together with their name.
  • Page 64 2. Press the Enter key. 3. Select Information application. The information for the selected application will be displayed. Note: The information about the application is not only accessible man- ually, but it will also appear automatically every time the device is switched on for the configured application.

  • Page 65: Maintenance

    The frequency and performers of the individual activities vary. For detailed information, refer to the following sections. All maintenance activities must be documented. In accordance with /14/, SEWERIN recommends: Find out about the procedures for checking portable devices in /15/. Note: In addition, these operating instructions describe only the device...

  • Page 66: Available Test Gases

    Information about the preset test gases can be found in section 9.3.1. Self-set test gases Test gases other than preset test gases can be used provided they meet the listed specifications. The test gases that are not preset must be set up by the user by means of the GasCom software. The test gas specifications are available on request.

  • Page 67: Suitable Environment

    If a gas mixture containing 40 ppm H S (e.g. ExTox IR) is used as a test gas for adjusting devices with a COSH sensor, a deviation of up to -10% (i.e. -4 ppm) CO could occur. If a higher degree of accuracy is required, additional adjustment using a test gas which contains no H S (e.g.

  • Page 68: Frequency And Due Date

    Free device inspection The user performs the device inspection on his own initiative and responsibility. The user protocols the results (e.g. on paper). Guided device inspection The PM 580/550/500/400 device leads the user interactively through all the necessary tests. The tests must be selected manually.

  • Page 69: Variants Of The Guided Device Inspection (Standard And Eco)

    WARNING! Risk to life from using miscalibrated or faulty devices For the Structure application, the functional safety test applies only under the following conditions: ● Perform the device inspection Warning ECO or Warning daily before each work shift. ● Also carry out the Structure device inspection on a weekly basis.

  • Page 70: Features

    Device inspection Standard device inspection ECO device inspection Subtests: Subtests: − Device condition − Device condition − Pump − Pump − Zero point − Zero point − Indication accuracy − Bump test Selectable menu items: Selectable menu items: − Warning −...

  • Page 71: Presentation Of Results

    ● Device condition Evaluation of the device external condition (visual inspection). Test whether the signals work. ● Pump Test whether the device detects a pump error. To do this, the gas input is blocked. ● Zero point Check whether the zero point is within the permitted tolerances. Test gas is supplied for this purpose.

  • Page 72: Required Accessories

    6.4.6 Required accessories The following accessories are required for testing the indication accuracy or the bump test: ● Test gas Information about the utilisable test gases can be found in section 6.2. ● Test set SPE AutoFlow 6.4.7 Perform a device inspection 6.4.7.1 Requirements (summary) The following requirements must be met for a device inspection: −...

  • Page 73: Checking The Device Condition

    6.4.7.3 Checking the device condition An application is selected for the device inspection. 1. Select Device condition. 2. A series of questions appears. Answer them. a) Device condition: Display inverted? Does the display show all pixels in reverse colour assignment b) Device condition: Light and buzzer switched on? Is the audible signal audible and the visual signal visible? c) Device condition: Housing ok?

  • Page 74: Testing The Indication Accuracy (Standard Device Inspection)

    3. When the zero point test is complete, the result will appear. The device switches back one menu level. 6.4.7.6 Testing the indication accuracy (standard device inspection) The Warning, Measuring or Structure application is selected for the device inspection. 1. Select Indication accuracy. 2. Select a test gas from the list. 3.

  • Page 75: Saving The Device Inspection

    ● Add the test gas. To do so, connect the test gas hose of the SPE AutoFlow to the gas input of the device. 4. Wait while the following message is visible: Add more test gas! Process ongoing … 5. If the following message appears: Stop test gas! ●...

  • Page 76: Measuring Response Time

    ● enter your PIN code The device inspection will be saved with your name. Device without entries in the user list The device inspection will be saved without a name. The protocol is then missing the verification of which user performed the device inspection.

  • Page 77: Adjustment

    Adjustment The sensors and the corresponding gases are set by means of adjustment. To this end, the zero point is adjusted successively and then the sensitivity to the reference values. 6.5.1 Frequency It is mandatory to perform an adjustment in the following cases: ●...

  • Page 78: Presentation Of Results

    6.5.3 Presentation of results The result of an adjustment is displayed with symbols. Please see section 9.9 for an explanation of the symbols. Fig. 43: Adjustment – overview of results Left image: Zero point Right image: Gases (here: ExTox IR, CO adjustment failed) 6.5.4 Required accessories The following accessories are required for an adjustment:...

  • Page 79: Requirements (Summary)

    Note: When performing adjustment, the user is supported by the dis- play of situation-dependent information and manual requests. 6.5.5.1 Requirements (summary) The following requirements must be met for an adjustment: − The user is an authorised person. − The device is switched on in clean air. − The device continues to draw in clean air after it is switched on. −...

  • Page 80: Measuring Application

    11. If the following message appears: Remove CO2 filter! Add test gas! a) Remove the carbon dioxide filter from the gas inlet. b) Add the test gas provided. To do so, connect the test gas hose of the SPE AutoFlow to the gas input of the device. 12. Wait while the following message is visible: Add more test gas! Process ongoing …...

  • Page 81: Structure Application

    To do so, connect the test gas hose of the SPE AutoFlow to the gas input of the device. 11. Wait while the following message is visible: Add more test gas! Process ongoing … 12. If the following message appears: Stop test gas! ● Disconnect the test gas hose from the gas inlet. 13.

  • Page 82: Servicing

    Servicing Note: Servicing may be performed only by competent persons. The device must be serviced once a year. ● Send the device to SEWERIN Service for servicing. ● If there is a service contract, the device can be serviced by the mobile service. An inspection sticker on the device confirms the last servicing and shows the next due date.

  • Page 83: Power Supply

    Power supply Overview The device can be operated using: ● Disposable batteries (not rechargeable) ● Rechargeable batteries (rechargeable) The device requires three disposable or rechargeable batteries inserted into a battery holder. Only approved disposable or rechargeable batteries may be used. The device is supplied with nickel metal hydride rechargeable batteries.

  • Page 84: Approved Disposable Batteries And Rechargeable Batteries

    (new or used) and manufacturer. ● Use disposable/rechargeable batteries other than those supplied by SEWERIN only if they comply with the specifications below. Disposable batteries and rechargeable batteries When using the following rechargeable batteries, explosion...
  • Page 85 ≥ 0.5 mm ≥ 0.5 mm and air gap between the poles (/8/): Other – quick charging (l > 0.5 A) requirements: – suitable up to the upper limit of the operating temperature (40 °C) Battery pack Only the original SEWERIN battery pack is approved for use with the device. 7 Power supply │ 77...

  • Page 86: Rechargeable Batteries

    Rechargeable batteries 7.3.1 Charging mode Devices powered by rechargeable batteries can be charged using accessories. When being charged, the device is in charging mode. Fig. 45: Charging mode Along the bottom edge: Display of the optional sensors of the device Left image: Battery is being charged The black segments flash. Right image: Battery is fully charged (charge maintenance) The black segments do not flash.

  • Page 87: Required Accessories

    7.3.1.1 Required accessories The following accessories are required to charge the rechargeable batteries: ● Docking station PM 5 or PM 5-T ● Test set ATS To connect the accessory to a power source you need: ● AC/DC adapter M4 ● Vehicle cable M4 (charging in a vehicle) DANGER! Risk of explosion from sparks High charging currents occur when batteries are being charged.

  • Page 88: Rechargeable Battery Servicing

    Rechargeable battery servicing The actual daily operating time of the device depends on the battery capacity. Rechargeable batteries lose charge even when the device is not in use. SEWERIN recommends: Charge the device regularly when not in use. Alarm at undervoltage If the remaining capacity of the disposable/rechargeable batteries falls below a certain level, then the device will issue two levels of warnings.

  • Page 89: Changing The Disposable/Rechargeable Batteries

    Changing the disposable/rechargeable batteries DANGER! Risk of explosion from sparks The device is not explosion proof when the housing is open. ● Only ever open the battery compartment outside of ex- plosive areas. Note: If a battery pack is used, the entire battery holder is replaced. The battery compartment is on the underside of the device.

  • Page 90: Faults And Problems

    Otherwise sensor faulty.* Zero point not OK. Adjust device! Memory error: XFlash Contact SEWERIN Service!** Voltage error. Contact SEWERIN Service! * Check that the test gas selected in the device corresponds to the test gas actually used. If the test gas is correct, a faulty sensor may have caused the error message. In that case contact SEWERIN Service.

  • Page 91: Warning Messages

    Battery voltage too low. Check/replace battery! Battery voltage too high. Check/replace battery! F100 Pump error. Check suction path!* F200 System error: I2C slave Contact SEWERIN Service! * Check all filters, probes and hose connections for porosity and dirt. Warning messages Warnings include information for the user that refers to the operation of the device or device itself.
  • Page 92 NOTICE! Please observe the following instructions to prevent damage to the device: ● Remove the water as soon as possible. ● Please note all the information about changing the filter in sec- tion 3.12. ● Follow the sequence of operations described below. ● Replace both the old damp filters with new, dry filters. ● Dry the probe before re-use. The device is switched off.

  • Page 93: Temporary Zero Point Cannot Be Set

    The ambient air is not clean. Corrective action ● Move the device into an environment with clean air. Cause A sensor is out of adjustment. Corrective action ● Adjust the device. Cause A sensor is defective. Corrective action ● Contact SEWERIN Service. 8 Faults and problems │ 85...

  • Page 94: Appendix

    Appendix Technical data Device data Dimensions • 93 × 47 × 165 mm (3.7 × 1.9 × 6.5 inches) (W × D × H) • 93 × 65 × 165 mm (3.7 × 2.6 × 6.5 inches) inc. belt clip Weight depends on the built-in sensors •...
  • Page 95 Features Gas connections Rectus NW 2.7 quick-release coupling Display TFT display, 380 × 224 pixels, size 56 x 33 mm Buzzer • frequency: 2.4 kHz • volume: 80 dB (A) / 30 cm Signal light Pump diaphragm pump • vacuum: > 150 mbar • volume flow: > 10 l/h •...
  • Page 96 Storage conditions Storage temperature • devices without an EC sensor: -25 – 60 °C (-13 to 140 °F) • devices with an EC sensor: -25 – 40 °C (-4 to 104 °F) Humidity 5 – 95% r.h., non-condensing Atmospheric pressure 700 –...

  • Page 97: Sensors

    Sensors Note: When using probes, the specified response times are extended. 9.2.1 Infrared sensors Methane CH , propane C (Warning application) Type infrared sensor (IR) PM 580/550/500 Measuring range 0 – 100% LEL • CH 0 – 4.40% vol. (adjustable 4.00 – 5.00% vol.) • C 0 – 1.70% vol. (adjustable 1.50 –...
  • Page 98 Methane CH , propane C (Measuring application) Type infrared sensor (IR) PM 580/550 Measuring range 0 – 100% vol. Resolution • 0.0 – 9.9% vol.: 0.1% vol. • 10 – 100% vol.: 1% vol. Response times • CH < 13 s t <...
  • Page 99 Methane CH (Structure application) Type infrared sensor (IR) PM 580 Measuring range 0 – 100% vol. Resolution • 0.00 – 4.40% vol.: 0.05% vol. • 4.5 – 9.9% vol.: 0.1% vol. • 10 – 100% vol.: 1% vol. Response times <...
  • Page 100 Carbon dioxide CO (Warning application) Type infrared sensor (IR) PM 580/550/500/400 Measuring range 0 – 5.00% vol. Indication range -0.50 – 5.00% vol. Resolution 0.02% vol. Response times ≤ 15 s ≤ 30 s Decay times ≤ 23 s ≤ 13 s Warm-up time < 120 s Stabilisation time ≤ 80 s Temperature range -20 –...

  • Page 101: Semiconductor Sensor

    9.2.2 Semiconductor sensor Methane CH , propane C (Structure application) Type gas-sensitive semiconductor (SC) PM 580 Measuring range • CH : 0 – 4000 ppm for LEL 4.40% vol. • C : 0 – 1500 ppm for LEL 1.70% vol. Resolution 1/2/20/200 ppm Response times...

  • Page 102: Catalytic Combustion Sensor

    9.2.3 Catalytic combustion sensor Methane CH , propane C , nonane C , acetylene C hydrogen H , JFuel (kerosine) Type catalytic combustion sensor (CC) PM 400 Measuring range 0 – 100% LEL • CH 0 – 4.40% vol. (adjustable 4.00 – 5.00% vol.) •...
  • Page 103 Interference all flammable gases Humidity 5 – 95% r.h., non-condensing • short term: 0% r.h. Lifetime 24 months (60 months expected) Test gases • zero point: clean air • CH 2.20% vol. in synth. air • C 1.00% vol. in synth. air •...

  • Page 104: Electrochemical Sensors

    9.2.4 Electrochemical sensors Note: At temperatures below 0 °C (3 °F) the specified response times and decay times may be longer. Oxygen O Type electrochemical sensor (EC) PM 580/550/500/400 Measuring range 0 – 25.0% vol. Indication range -3 – 25.0% vol. Resolution 0.1% vol. Response times < 10 s < 32 s Warm-up time <...
  • Page 105 Carbon monoxide CO Type electrochemical sensor (EC) PM 580/550/500/400 Measuring range 0 – 300 ppm Indication range -30 – 300 ppm Resolution 1 ppm Response times ≤ 12 s ≤ 26 s Decay times ≤ 27 s ≤ 14 s Warm-up time 2 min Stabilisation time ≤ 2 min Temperature range -20 –...
  • Page 106 Hydrogen sulphide H Type electrochemical sensor (EC) PM 580/550/500 Measuring range 0 – 50.0 ppm Indication range -10 – 100 ppm Resolution 0.5 ppm Response times ≤ 12 s ≤ 29 s Decay times ≤ 28 s ≤ 14 s Warm-up time < 120 s Stabilisation time ≤ 2 min Temperature range -20 –...
  • Page 107 COSH: carbon monoxide CO and hydrogen sulphide H Type electrochemical sensor (EC) PM 580/550/500 Measuring range • CO: 0 – 300 ppm • H S: 0 – 50.0 ppm Indication range • CO: -30 – 300 ppm • H S: -10 – 100 ppm Resolution •...

  • Page 108: Measuring Ranges In The Applications (Overview)

    Pressure 700 – 1,200 hPa error: ◦ CO: ≤ 5% of measured value, at least ±3 ppm (±3 digits) ◦ H S: ≤ 5% of measured value, at least ±2 ppm (±4 digits) 9.2.5 Measuring ranges in the applications (overview) PM 580 Structure Sensor Gas/ Warning Measuring gas type 0 – 100% LEL 0 –...
  • Page 109 PM 500 Sensor Gas/ Warning Measuring Structure gas type 0 – 100% LEL – – 0 – 5.00% vol. – – 0 – 300 ppm – – 0 – 25.0% vol. – – 0 – 50.0 ppm – – PM 400 Sensor Gas/ Warning Measuring...

  • Page 110: Test Gases

    Test gases 9.3.1 Preset test gases PM 580 Test gas × × 100% vol. × 1,000 ppm × 100% vol. × 0.30% vol. × × × × × ExTox IR* × × × × ExCOx IR * Devices that are set up for gas type CH alone show the test gas 2.20% vol.

  • Page 111: Setting Ranges

    PM 500 Test gas × 0.30% vol. × × × × × ExTox IR* × × × × ExCOx IR * Devices that are set up for gas type CH alone show the test gas 2.20% vol. instead of the test gas ExTox IR. Devices with a COSH sensor: refer to section 6.2.3! PM 400 Test gas...
  • Page 112 Warning application Unit LEL* Condition Resolution at delivery % vol. 4.40 1.00 3.50 2.20 0.01 % vol. 1.70 1.30 0.30 0.01 % vol. 0.70 0.20 0.50 0.21 0.01 % vol. 2.30 0.50 1.80 1.00 0.01 % vol. 4.00 1.00 3.20 2.00 0.01 JFuel***...

  • Page 113: Alarms

    Alarms Note: Always observe the warning in section 2.3.3.4. 9.4.1 Features The alarms are prioritised as follows: ● AL1 < AL2 < AL3 < STEL < LTEL ● with AL1 lowest priority, LTEL highest priority A higher priority alarm takes precedence over a lower priority alarm. If different alarms occur simultaneously, only the alarm with the highest priority is signalled.
  • Page 114 AL2: Main alarm Adjustable: Latching: when the alarm threshold AL2 is reached Trigger: Indicator: • audible signal • visual signal • AL2 symbol Acknowledgement: audible signal • after the alarm has been triggered overall alarm • after the level has fallen below the alarm threshold Reset: •...
  • Page 115 STEL: Main alarm (Short Time Exposure Limit) Adjustable: Latching: Trigger: The sum of the concentrations of a gas is greater than the product of the Occupational Exposure Limit and the excess factor over the averaging time Indicator: • audible signal •...

  • Page 116: Setting Ranges

    9.4.2 Setting ranges: Note: Alarms can be changed using the GasCom software. ● In the GasCom software, the flammable gases are set in % LEL and displayed in % vol. Specifications When setting alarms you must comply with the following specifications: AL1 <...

  • Page 117: Alarm Thresholds (Condition At Delivery)

    9.4.3 Alarm thresholds (condition at delivery) Unit STEL** LTEL** % LEL – – * % LEL – – % vol. 0.07 0.35 0.70 – – % vol. 0.50 2.00 5.00 1.00 0.50 % vol. 18.0 23.0 – – % vol. 0.23 1.15 2.30...

  • Page 118: Limit Values For Device Inspection

    Limit values for device inspection Zero point Sensitivity Specification Deviation Specification Deviation 0.00% vol. ±0.15% vol. 2.20% vol. ±0.20% vol. 0.00% vol. ±0.10% vol. 1.00% vol. ±0.10% vol. 0.00% vol. ±0.05% vol. 0.21% vol. ±0.04% vol. 0.04% vol. ±0.06% vol. 2.00% vol.

  • Page 119: Functional Safety Test

    9.7.2 Functional safety test Scope of the examination Applications: – Warning – Structure Gas types (to /14/): Measuring range: – Methane CH 0 - 100% LEL (PM 580/550/500/400) – Propane C 0 - 100% LEL (PM 580/550/500/400) – Nonane C 0 - 100% LEL (PM 400) Gases (to /7/): Measuring range:...

  • Page 120: Device Identification

    Certificates – EU type-examination certificate: BVS 19 ATEX G 002 X – Type-examination certificate: PFG 19 G 004 X The certificates can be found online. Tested in accordance with: – EN 45544-1, EN 45544-3, EN 50104, EN 50271, EN 60079-29-1 Not tested – Functions: Storage of recordings and device inspections as well as the corresponding protocols – Battery type: alkaline –...

  • Page 121: Symbols On The Display

    − Protection rating − Manufacturer − Notified body (CE mark) Symbols CE mark Only ever open the battery compartment outside of explosive areas. Explosion protection logos Follow the operating instructions. Do not dispose of device in domestic waste. Symbols on the display Applications Structure Warning Warning ECO...
  • Page 122 Alarms AL1: Pre-alarm AL2: Main alarm AL3: End of measuring range STEL (Short Time Exposure Limit) LTEL (Long Time Exposure Limit) Audible signal off Actions/responses to questions Confirm or Yes Cancel or No Actions when writing comments Confirm (apply) Cancel Insert Delete 114 │ 9 Appendix...
  • Page 123 Messages Warning Errors Question Information Wait Device switches off Measuring mode Key lock Recording Start recording Stop recording Zero point Information about the application Comment Write Remaining capacity (disposable/rechargeable battery) 9 Appendix │ 1 15...
  • Page 124 Settings Language PIN code Settings Adjustment Restore Date/time Date Time PPM threshold 116 │ 9 Appendix...
  • Page 125 Device inspection Warning ECO Device condition Pump Zero point Indication accuracy/Bump test Save Not due before a device inspection (all gases) Passed after a device inspection (in the protocol list: applies to the current gas type at the time of the inspection) Not due current gas type Failed...
  • Page 126 Protocols Protocols Recordings Device inspections Inspector Information Information Device Errors Test gases Microcontroller: Firmware version Battery type Next servicing Sensor: Installation date Sensor: Lifetime 118 │ 9 Appendix...

  • Page 127: Accessories And Consumables

    Charging mode and data exchange Data exchange Battery is being charged Battery fully charged Battery too hot Battery too cold Battery deeply discharged Battery is prepared for charging Disposable battery 9.10 Accessories and consumables Accessories Part Order number Docking station PM 5 LP12-10000 Docking station PM 5-T LP12-20000...
  • Page 128 * Test gas can 1 ltr, pressure approx. 12 bar ** Test gas can 1 ltr, pressure approx. 7 bar Other accessories and consumables are available for the product. Please contact the SEWERIN sales department for further information. Apart from the following exceptions, the same storage conditions apply to accessories and consumables as to the device.

  • Page 129: Care

    EU Directive 2014/955/EU. Waste EWC code Device 16 02 13 Test gas can 16 05 05 Disposable battery, rechargeable battery 16 06 05 Alternatively, devices can be returned to Hermann Sewerin GmbH. 9 Appendix │ 1 21...

  • Page 130: Legal Basis

    9.13 Legal basis The following standards and regulations as well as European Directives form the basis for working with the device. BG RCI (German Social Accident Insurance Institution for the raw materials and chemical industry) Code of Practice T 021 (DGUV Information 213-056) Gas Warning Devices for Toxic Gases/Vapours and Oxygen - Use and Operation BG RCI (German Social Accident Insurance Institution for the raw...

  • Page 131: Declaration Of Conformity

    9.14 Declaration of Conformity Hermann Sewerin GmbH hereby declares that the EX-TEC ® PM 580/550/500/400 system fulfils the requirements of the following directives: ● 2011/65/EU ● 2014/30/EU ● 2014/34/EU Gütersloh, 2020-12-15 Dr. S. Sewerin (General Manager) The complete declaration of conformity can be found online.

  • Page 132: Technical Terms

    9.16 Technical terms Acknowledgement Error message or an alarm to be noted and requiring a response. Depending on the measurement situation, either only the audible alarm signal can be muted or in addition the visual signal and symbol can also be disabled. Clean air Air that is free from hydrocarbons and toxic gases.

  • Page 133: Conversion Of The Concentration Data

    Response time The time a sensor needs from the start of a measurement until the measurement value has reached a certain percentage of the final value. Usually, the response time is measured until 90% of the measurement value (t ) or 50% has been reached In some sources, the response time is also referred to as increase time.

  • Page 134: Index

    Index Charging mode 78 Competent person 5 acknowledge 14 Concentration Action conversion 125 cancel 28 selectable units 18 perform 30 Concentration-dependent signal 40, 49 Adjustment 47, 69 COSH sensor 58 devices with a COSH sensor 58 detection 59 features 69 frequency 69 measuring application 72 Date 48...
  • Page 135 Error list 54 Leak-tightness test 42 Error messages 82 LEL 109 Lists 30 Faults 82 Filter 14 Maintenance changing 43 scope 57 checking 44 suitable environment 59 dust filter 14 test gases 57 hydrophobic 14 Measurement menu 16 position 43 Measurement ranges 100 Measuring mode 16 Memory 18 Menu 16...
  • Page 136 Status area 24 Symbols Rear of the device 112 display 113 Rechargeable battery rear of the device 113 approved 76 changing 23, 81 charging 79 Temporarily set the charging mode 78 zero point 85 servicing 80 Test gases 57 Recording available , 54 automatic 34 preset 57, 102...
  • Page 137 +34 91 74807-57 Fax.: +351 234 024 446 Fax: +34 91 74807-58 www.sewerin.com www.sewerin.com info@sewerin.pt info@sewerin.es Sewerin Sp. z o.o. Sewerin Ltd. ul. Twórcza 79L / 1 Hertfordshire 03-289 Warszawa, Polska Tel.: +48 22 675 09 69 Phone: +44 1462-634363 Tel.

This manual is also suitable for:

Ex-tec pm 550Ex-tec pm 500Ex-tec pm 400

Table of Contents
