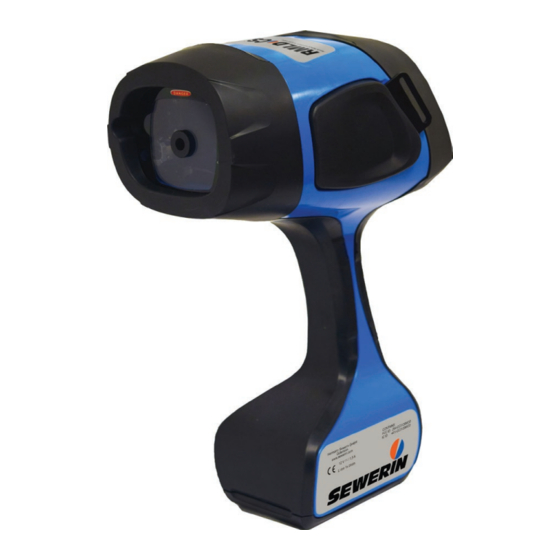

RMLD-CS
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMLD-CS and is the answer not in the manual?

Questions and answers

Related Manuals for sewerin RMLD-CS

Summary of Contents for sewerin RMLD-CS

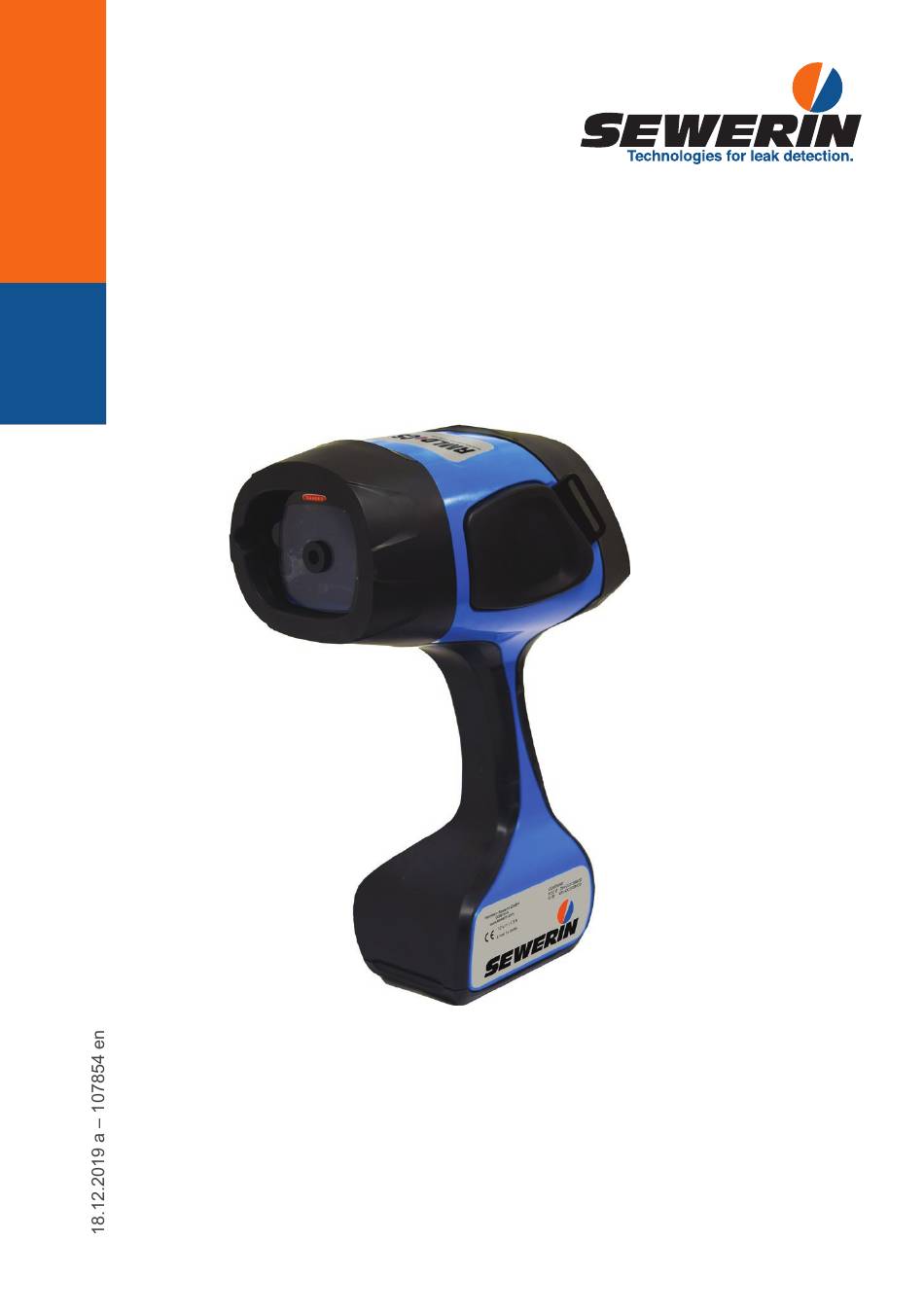

  • Page 1 RMLD-CS Operating instructions...
  • Page 2 Detector Display Keys Handle USB port Fig. 1: Rear view with USB cable connected Strap ring Green spotter laser Infrared laser Fig. 2: Front view...
  • Page 3 Display Status bar Menu bar Fig. 3: Display (here: Survey display mode)
  • Page 4 Illustration of warnings in this document WARNING! Risk of personal injury. Could result in serious injury or death. CAUTION! Risk of personal injury. Could result in injury or pose a risk to health. NOTICE! Risk of damage to property.

  • Page 5: Table Of Contents

    Introduction ................1 Information about this document ..........1 Purpose ..................1 Intended use ................2 Safety information ..............2 Product description ..............3 RMLD-CS ..................3 2.1.1 Controls ..................3 2.1.2 Ports ..................3 2.1.3 Power supply ................3 Battery charger ................5 Carrying case ................5 AC/DC adapter ................6 Carrying strap ................6 USB cable .................6...
  • Page 6 3.12.4 Setting the user PIN .............20 3.12.5 Deleting a user ..............21 3.13 Call up the detector status ............21 3.14 Display modes .................21 3.14.1 Survey ..................21 3.14.2 Graph ...................22 3.14.3 Image ...................22 Detecting methane gas ............24 Functional principle ..............24 Requirements ................25 Measurement calculation ............25 Start measurement ..............27 Practical tips for detection ............28...

  • Page 7: Introduction

    Translations are produced to the best of our knowledge. The original German version is authoritative. Right of reproduction No part of this document may be edited, duplicated or circulated in any form without the express consent of Hermann Sewerin GmbH. Registered trademarks Registered trademarks are generally not indicated in this docu- ment.

  • Page 8: Intended Use

    Intended use The RMLD-CS is suitable for the following uses: ● professional ● industrial ● commercial The RMLD-CS must only be used for the applications specified in section 1.2. Note: The appropriate specialist knowledge is required for using this product. Safety information This product was manufactured in keeping with all binding legal and safety regulations.

  • Page 9: Product Description

    Fig. 5: Rear of the detector, with keys 2.1.2 Ports The RMLD-CS has one USB port in the handle. The USB port is protected by a sealing cover against moisture and dirt. On the sides of the RMLD-CS there are rings for attaching the carrying strap.
  • Page 10 Fig. 6: Detector with the battery compartment open The rechargeable battery pack is designed for an operating time of approx. 8 hours when fully charged. Fig. 7: Battery pack from above and below The remaining battery capacity is shown at the top right of the display.

  • Page 11: Battery Charger

    Battery charger A battery charger is included in the scope of supply of the RMLD-CS . Two slots allow two battery packs to be charged at the same time. The battery charger has a socket to receive the power supply from the AC/DC adapter.

  • Page 12: Ac/Dc Adapter

    The RMLD-CS is supplied with a universal AC/DC adapter suit- able for 110 – 240 V~, 1.6 A and 50 – 60 Hz. Carrying strap The carrying strap makes it easier to use the RMLD-CS. It is attached to the two rings on the RMLD-CS . USB cable The USB cable (USB2 A-micro) can be used for connection to a computer.

  • Page 13: Functions And Settings

    Functions and settings Switching on and off WARNING! The RMLD-CS uses class 2 laser beams in the visible range. Lasers can permanently damage the eyes. ● Never look directly into the laser beam. ● Do not use optical instruments such as binoculars or a magnifying glass to view the laser beam.

  • Page 14: Keys And Symbols

    Keys and symbols Use the three keys under the display to operate the RMLD-CS. The three fields in the variable menu bar at the bottom of the display indicate the function of the keys below them. Display Function Navigation Move the cursor or change the value Back Switch to a higher level...

  • Page 15: Menu Structure

    Edit WiFi(AP) SSID Edit WiFi(AP) PASS Edit Time Zone Offset Delete User New User > Add New User About > Model Time Stamp Firmware Ver Battery Storage Error Codes BT Status WiFi-Status Fig. 12: RMLD-CS menu structure 3 Functions and settings │ 9...

  • Page 16: Self Test

    Self test The RMLD-CS features an integrated function for carrying out a self test. This ensures that the RMLD-CS can provide accurate measurement data. A self test log file is automatically recorded and saved. NOTICE! A self test must always be performed before commencing work. The self test takes about 1 – 3 minutes. To perform the self test, proceed as follows: The RMLD-CS must be switched on and ready for use.

  • Page 17: Audio Modes

    If the self test was unsuccessful, what should be done? The most common causes of a failed self test are: ● The RMLD-CS was not placed correctly in the carrying case. − make sure the RMLD-CS is lying flat as intended in the com- partment in the carrying case.

  • Page 18: Real Time Mode

    3.6.2 Real Time mode Real Time mode is most effective when used over short distances and can be helpful in detecting low concentrations or in identify- ing the location of the highest gas concentration. In Real Time mode a continuous sequence of beats sounds as a function of the measured methane gas concentration. The quick- er the acoustic signal beat frequency, the higher the methane gas concentration.

  • Page 19: Using The Spotter Laser

    (here: AL 20). Using the Spotter Laser The green spotter laser is used for orientation, to indicate which area is being surveyed by the RMLD-CS. CAUTION! The spotter laser for the visible green wavelength is a class II laser product.

  • Page 20: Connectivity

    The OFF option is shown on the left-hand menu bar. After 1 minute, the spotter laser switches itself off automati- cally. If you wish to switch the spotter laser off manually: ● Select OFF. Fig. 14: The activated spotter laser is switched on and off using the left- hand key. Connectivity The RMLD-CS can be connected to Apple/Android mobile de- vices and computers. This allows access to information stored on the RMLD-CS, such as self test logs, data logs, error codes and screen captures. 14 │ 3 Functions and settings...

  • Page 21: Usb Connection

    USB cable (USB2 A-micro). This allows you to access the stored data on the RMLD-CS from the computer: 1. Select MENU > USB-Mode > Mass Storage Device. 2. Use the USB cable to connect the RMLD-CS to the computer that is going to be used. The file manager on the computer automatically opens when the detector is ready for data access.

  • Page 22: Bluetooth

    ● Self-test logs: hhmmss-SELF_TEST.txt ● Data logs: JJMMDD-hhmmss_‘USER’_Datalog.txt 3.9.2 Bluetooth The Bluetooth function of the RMLD-CS allows you to connect to Apple/Android mobile devices and computers. For further in- formation please contact SEWERIN. To activate the Bluetooth function, the RMLD-CS must be con- nected to a suitable device (BLE).

  • Page 23: Wlan

    ● If the Bluetooth connection could not be established or was interrupted, the Bluetooth symbol appears in a red field. WLAN 3.9.3 Warnings, errors and detector readings sent by the RMLD-CS can be issued directly via WLAN. For further information please contact SEWERIN. For establishment of a WLAN connection: 1. Select MENU > WiFi > AP mode or Station mode.

  • Page 24: Data Logging

    Access Point WLAN mode A WLAN network is provided by the RMLD-CS in Access Point Mode (AP mode). For example to connect a mobile terminal de- vice, the user can log in directly with the WiFi SSID network name and password. Telemetry streaming Live data can be streamed to a computer or mobile terminal device. These data include, for example, ppm...

  • Page 25: Setting The Time Zone

    2. Use Navigation to set the desired time zone. 3. To finish, select Back. Fig. 19: Display Timezone 3.12 User profiles User profiles allow multiple people to use the RMLD-CS with their own user-defined settings. 3.12.1 Adding a user To add a user, proceed as follows: 1. Select MENU > Users > New User > Add New User > Edit Name.

  • Page 26: Renaming A User

    2. Select the first character using Navigation . 3. Select SELECT to select the first character. The cursor moves to the next placeholder. 4. Select all the other letters you require. 5. To stop entering the letters, select an empty field 6. Select Back to add the user. 3.12.2 Renaming a user To rename a user, proceed as follows: 1. Select MENU > Users. A list of the saved users is displayed. 2.

  • Page 27: Deleting A User

    3.12.5 Deleting a user To delete a user, proceed as follows: ● Select MENU > Users > User name > Delete User. 3.13 Call up the detector status Information about the current detector status is displayed under ABOUT: 1. Select MENU > About > SELECT. 2. Select Navigation to access the desired information: ●...

  • Page 28: Graph

    Fig. 20: Display in Survey display mode 3.14.2 Graph In Graph display mode there is a bar display in addition to the numeric display of the ppm-m measurement values . This allows the user to easily see any changes in values that occur during the measurement.
  • Page 29 ● Perform an S-shaped sweep through the image area in order to ensure coverage by the beam. Taking and saving a photo: ● Select Camera. In addition to the photo, the RMLD-CS also saves a text file containing the current measurement values, the time stamp, the location and any other information. 3 Functions and settings │ 23...

  • Page 30: Detecting Methane Gas

    Detecting methane gas Functional principle The RMLD-CS makes it possible to detect methane gas from a safe distance. When IR light passes through a methane cloud, the methane absorbs a specific wavelength of the light. The de- tector detects the absorption due to methane in the reflected IR light of the laser. The signal is processed and displayed as the relative gas concentration expressed as ppm Direct sunlight and ambient light...

  • Page 31: Requirements

    Requirements For detecting methane gas using the RMLD-CS, three require- ments must be satisfied: ● The methane cloud and methane concentration must be great- er than the minimum sensitivity of the detector. ● The IR laser beam must penetrate the methane cloud. ● The target background (i. e. ground, buildings, etc.) must re- flect the IR laser beam.
  • Page 32 Note: Atmospheric air always contains a low level of methane. This natural background methane level is also measured by the RMLD-CS. The ppm-m measurement value therefore increases as the scanning distance is increased. Note: The shape of a methane cloud can be highly variable. Some leaks cause a high concentration directly at ground level without any measurable methane cloud above it.

  • Page 33: Start Measurement

    NOTICE! A self test must always be performed before commencing work. To perform a measurement, proceed as follows: 1. Switch on the RMLD-CS. 2. Select the desired display mode. 3. Use the spotter laser to select the area where you suspect a methane cloud may be present.

  • Page 34: Practical Tips For Detection

    Practical tips for detection Please note the following general points for all measurements: ● Use a smooth sweeping motion. ● If the target distance of the IR laser beam is approx. 5 to 7 m, ensure that the measuring point size in the target is large enough for good coverage. ● Scan pipework joints and valves as you approach them. ●...

  • Page 35: Measuring At Low Methane Gas Concentrations

    2. As far as possible, position yourself with the wind at your back at a distance of approx. 1.5 to 3 m from the meter. 3. Aim the beam initially downwards on to the ground. 4. Then sweep the beam upwards with an S-shaped motion along the pipeline. 5. If you suspect a leak underground, clear the area. 4.5.3 Measuring at low methane gas concentrations To measure low methane gas concentrations, proceed as follows: 1.

  • Page 36: Measuring From A Long Range

    4.5.5 Measuring from a long range The RMLD-CS can be used to determine methane clouds at dis- tances of up to 30 m. The actual maximum distance will depend on the characteristics of the target surface and the environmental conditions. As the distance is increased, the intensity of the laser light will become lower.

  • Page 37: Avoid Incorrect Measurements

    Obstruction The dark zone is not scanned. Fig. 26: Select the best angle to survey all areas during the measure- ment. Avoid incorrect measurements There are several conditions that may occur when using DMD audio mode that can lead to the algorithm giving a false detec- tion indication.

  • Page 38: Maintenance

    Maintenance A battery charger is included in the scope of supply of the RMLD-CS . Two slots allow two battery packs to be charged at the same time. WARNING! If lithium ion rechargeable batteries are defective there is a risk they can explode.

  • Page 39: Charging The Battery Pack

    AC/DC adapter. The RMLD-CS must be switched off to remove the battery pack. Charge the battery pack as follows: 1. Undo the two screws on the bottom of the RMLD-CS 2. Remove the battery pack. 3. Place the battery pack in the charger. Make sure it is fully inserted.

  • Page 40: Handling Faulty Lithium Ion Rechargeable Batteries

    Where transportation is permitted (e.g. by road or rail), it is subject to strict regulations. Faulty lithium ion rechargeable batteries must therefore always be removed be- fore shipping the RMLD-CS . Transportation by road or rail must occur in compliance with the current applicable version of the regulations.
  • Page 41 ● Contact SEWERIN Service if you cannot fix a fault yourself. ● Do not use the RMLD-CS whilst there is a fault. ● The RMLD-CS may be repaired only by persons qualified to do so. Fault Possible cause Corrective action Higher measure- laser calibration perform a self test ment values than drift usual for short range measure- ments.
  • Page 42 SEWERIN Service 36 │ 5 Maintenance...
  • Page 43 No WLAN connec- wrong login data check the login data tion. outside the WLAN bring the RMLD-CS range closer to the WLAN router WLAN deactivated activate the WLAN No Bluetooth con- Bluetooth deacti- activate Bluetooth...

  • Page 44: Maintenance

    IT support Maintenance In order to maintain the RMLD-CS in proper working order, the following maintenance tasks must be carried out at the specified intervals. Maintenance task Frequency Clean outer surfaces with a as required damp cloth.

  • Page 45: Appendix

    Appendix Technical data Weight approx. 1.4 kg Display 3.5″ LCD Operating temperature -17 – 50 °C Humidity 5 – 90 % r.h., non-condensing Protection rating IP54 Non-permitted operating in potentially explosive areas environments Power supply rechargeable lithium-ion battery, 12 – 15 V [9006-0001] Operating time, typical 8 h at 0 °C Energy 28.1 Wh Charging time 2 –...

  • Page 46: Accessories

    Detection Mode in which the user is alerted when methane concentration changes suddenly. Laser calibration drift The characteristic of laser diodes that wavelength calibration can change slowly over time. The RMLD-CS features a self test/calibration function to maintain the correct calibration. 40 │ 6 Appendix...
  • Page 47 Infrared (IR) Light wavelength outside the spectrum of visible light. Measuring point size Area on the surface covered by the RMLD-CS IR laser beam. The area increases as the distance increases. At a range of 30 m, this area has a diameter of approximately 55 cm when the beam is aimed horizontally at vertical target.

  • Page 48: Advice On Disposal

    Advice on disposal The European Waste Catalogue (EWC) governs the disposal of devices and accessories in accordance with EU Directive 2014/955/EU. Waste EWC-Code Device 16 02 13 Disposable battery, rechargeable battery 16 06 05 Alternatively, devices can be returned to Hermann Sewerin GmbH. 42 │ 6 Appendix...

  • Page 49: Index

    Index AC/DC adapter 6 Gas calibration cell 5 Alarm threshold value 12 Glasses 6 Audio mode DMD 11 Real Time 12 Infrared 41 Interference 24 Background methane gas level 26 Bar display 22 Laser calibration drift 40 Battery charger 5 Lithium ion rechargeable battery charge display 33 battery pack 3...
  • Page 50 Target background 25 TDLAS 41 Telemetry data 18 Telemetry streaming 18 Troubleshooting 34 USB cable 6 USB port 3 User management 19 Weather conditions 25 WLAN 17 AP mode 17 connecting 18 44 │ 7 Index...
