Summary of Contents for Henkel TEROSON ET Multipress

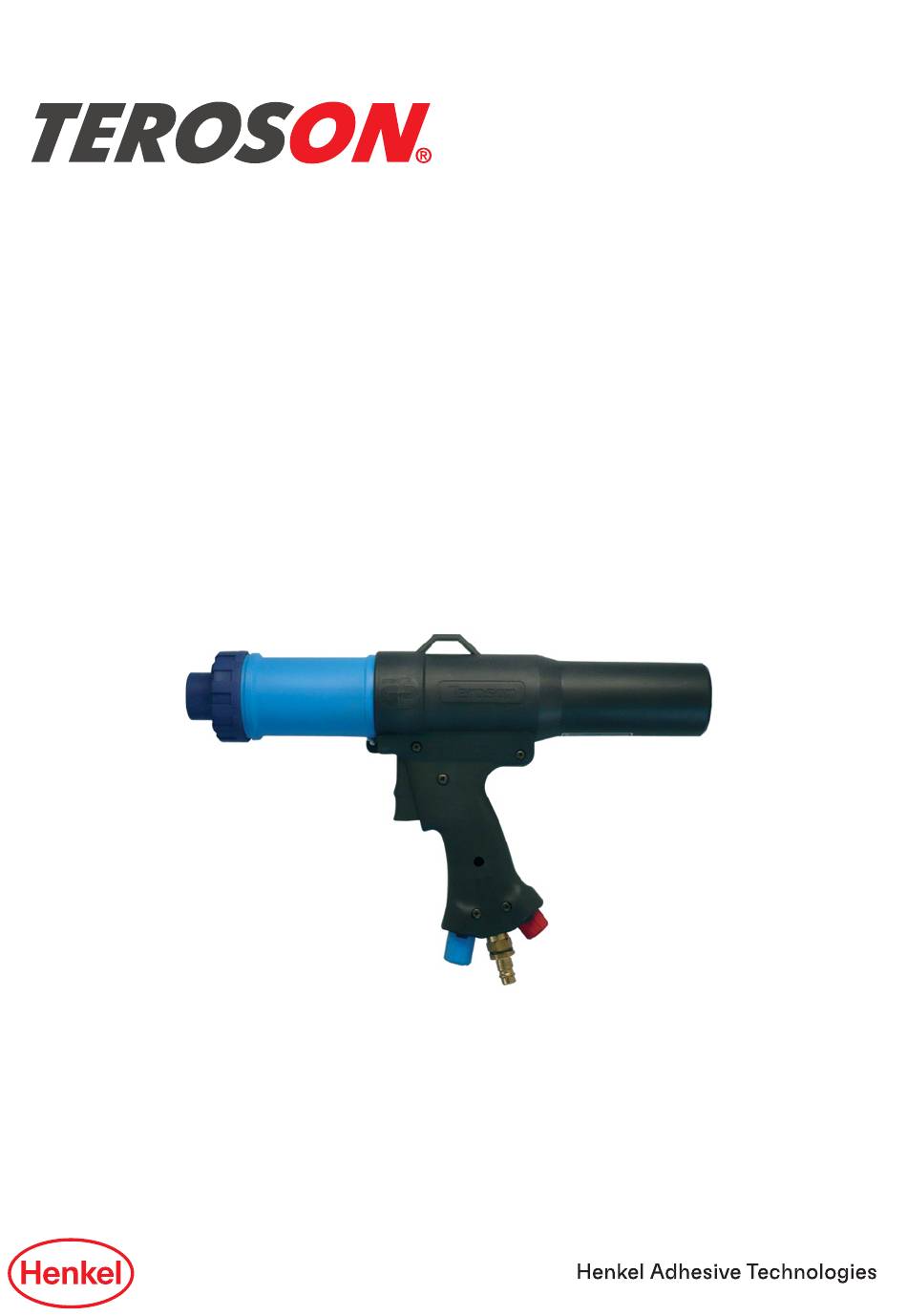

- Page 1 TEROSON ET Multipress Order Code: IDH 142241 Operating Manual...
-
Page 2: Table Of Contents
Table of Contents TEROSON ET Multipress 1 Please observe the following 1.1 Emphasized Sections ................. -
Page 3: Please Observe The Following
We cannot be held responsible for damage or injury of any kind because of failure to observe the instructions in this Operating Manual. Before using TEROSON ET Multipress, always check that the nozzle ring is tightly in place. lf necessary, tighten it further. -
Page 4: Description
2 DESCRIPTION 2.1 Theory of Operation With separate control valves, the spray air and the material feed rate can be adjusted. They enable an infinitely variable fine adjustment according to the respective application. The telescopic cylinders guarantees the hermetic separation of sealant and compressed air, whereby the medium evenly on the surface to be coated without air bubbles, or is sprayed. By pulling the trigger a compressed air cushion is built up behind the telescopic piston and the cartridge is squeezed out. -
Page 5: Installation
4 INSTALLATION 4.1 Environmental and Operating Conditions – Avoid exposure to direct sunlight and UV radiation! – The equipment should be installed in a dry, dust-free place. 4.2 Connection • Connect the air pressure supply here. Use a quick coupling DN 7.2 (Standard). 5 OPERATION 5.1 Prepare the surface for dispensing/spraying •... -
Page 6: Start-Up For Spray Dispensing
• Screw dispensing nozzle 7b hand-tight onto cartridge. • Insert cartridge into the air dispenser. • Screw black collar 6b onto dispenser and thighten it when dispensing a bead is recommended. 5.3 Start-up for spray dispensing The TEROSON ET Multipress has a dual-circuit air system. Supply pressure should be at least 7 bar (100 p.s.i.). Higher air pressure is reduced automatically. • Screw air nozzle 7a onto blue screw collar 6a. Flow of material and flow of air can be adjusted independently of one another by means of the adjusting knobs. -
Page 7: Start-Up For Bead Dispensing
Wide spray pattern for Surface Coating: 5.4 Start-up for bead dispensing The TEROSON ET Multipress has a dual-circuit air system. Supply pressure should be at least 7 bar (100 p.s.i.). Higher air pressure is reduced automatically. Flow of material can be adjusted by means of the red adjusting knob 2. -
Page 8: Maintenance And Service
5 OPERATION 5.4 Start-up for bead dispensing When you release the trigger 5 the pistol is vented–the media flow stops, it is vented with a hissing sound. • Adjust red knob 2 to produce required bead pattern. Turn left = Increase pressure Turn right = Decrease pressure Dispensing beads: 6 MAINTENANCE AND SERVICE – Lightly grease the seal ring on the cartridge tube that seal against the cartridge nut. – O ccasionally clean the filter sieve in the air inlet. For this purpose unscrew the compressed air supply (plug-in pin) and remove the sieve. -
Page 9: Spare Parts
8 SPARE PARTS Pos.-No. Item No. Amount Description 040123856 Housing screw 4x12 040364161 Sealing ring for hose 6/4 040721161 Cylindrical pin mount for control valve 040721261 Cylindrical pin axis for trigger guard 040805546 Set screw M5x12 032075301 Pressure regulator 032075501 Control valve 041717131 Spigot incl. - Page 10 Authorized person in the EU for technical Henkel AG & Co. KGaA files: Henkelstraße 67 40589 Düsseldorf Germany Place and date of issue: Signed for and on behalf of Henkel AG & Co. KGaA: Düsseldorf, 2024-07-18 Michael Brunner Business Development Manager Equipment...
- Page 11 Signed for and on behalf of Henkel AG & Co. KGaA: Düsseldorf, 2024-07-18 Michael Brunner Business Development Manager Equipment ® and ™ designate trademarks of Henkel AG & Co or its affiliates, registered in Germany and elsewhere. Henkel AG & Co. KGaA 2022...
- Page 12 Shanghai, China 201203 Mapo-dong, Mapo-gu, Seoul, 734-121, KOREA ® and ™ designate trademarks of Henkel Corporation or its affiliates. ® = registered in the U.S. and elsewhere. © Henkel Corporation, 2009. All rights reserved. Data in this operation manual is subject to change without notice.
