200 ml Manual Applicator, 983436
400 ml Manual Applicator, 983438
INSTALLATION INSTRUCTIONS:
Both applicators are fully assembled and ready to
dispense 1:1 and 2:1 dual cartridges.
For the 400 ml Manual Applicator only, select ratio.
For extended use, counterbalancing of applicator
is recommended.
1. Retract Plunger
Press release catch (red button on 200 ml Manual
Applicator and metal lever on the 400 ml Manual
Applicator) and fully retract plunger.
2. Insert dual cartridge
Insert dual cartridge into cartridge tray, ensuring that
the locating tab slides into groove. Push down until
locked into position.
3. Install static mix nozzle
To remove plug from cartridge, leave metal clip in
place and unscrew retaining nut. Install mix nozzle
(sold seperately) on cartridge and secure in place
with retaining nut. Dispense product by squeezing
trigger. When dispensing is complete, press release
catch to relieve pressure.
Note: If dispensing is restricted, product may be cured
in static mix nozzle. Replace nozzle.
4. Removal of cartridge
Press release catch and fully retract plunger. Press
ejection button on cartridge tray.
Replacement Parts & Accessories
For 200 ml Applicator 983436:
• 1:1 / 2:1 Cartridge Tray
• 1:1 / 2:1 Plunger Kit
For 400 ml Applicator 983438:
• 1:1 / 2:1 Cartridge Tray Kit
• 4:1 Conversion Kit (optional)
For both Applicators:
• 6 mm Static Mix Nozzles
• 8 mm Static Mix Nozzles
200 ml
400 ml
LOCATING
TAB
CARTRIDGE
TRAY
Part No.
STATIC MIX NOZZLE
983724
985543
RETAINING NUT
983725
984211
983442
983443
EQUIPMENT
Instruction Sheet
PLUNGER
RELEASE CATCH
RELEASE
CATCH
RATIO SELECTOR
DUAL
CARTRIDGE
EJECTION BUTTON
Advertisement
Table of Contents
Related Manuals for Henkel LOCTITE 983436
Summary of Contents for Henkel LOCTITE 983436

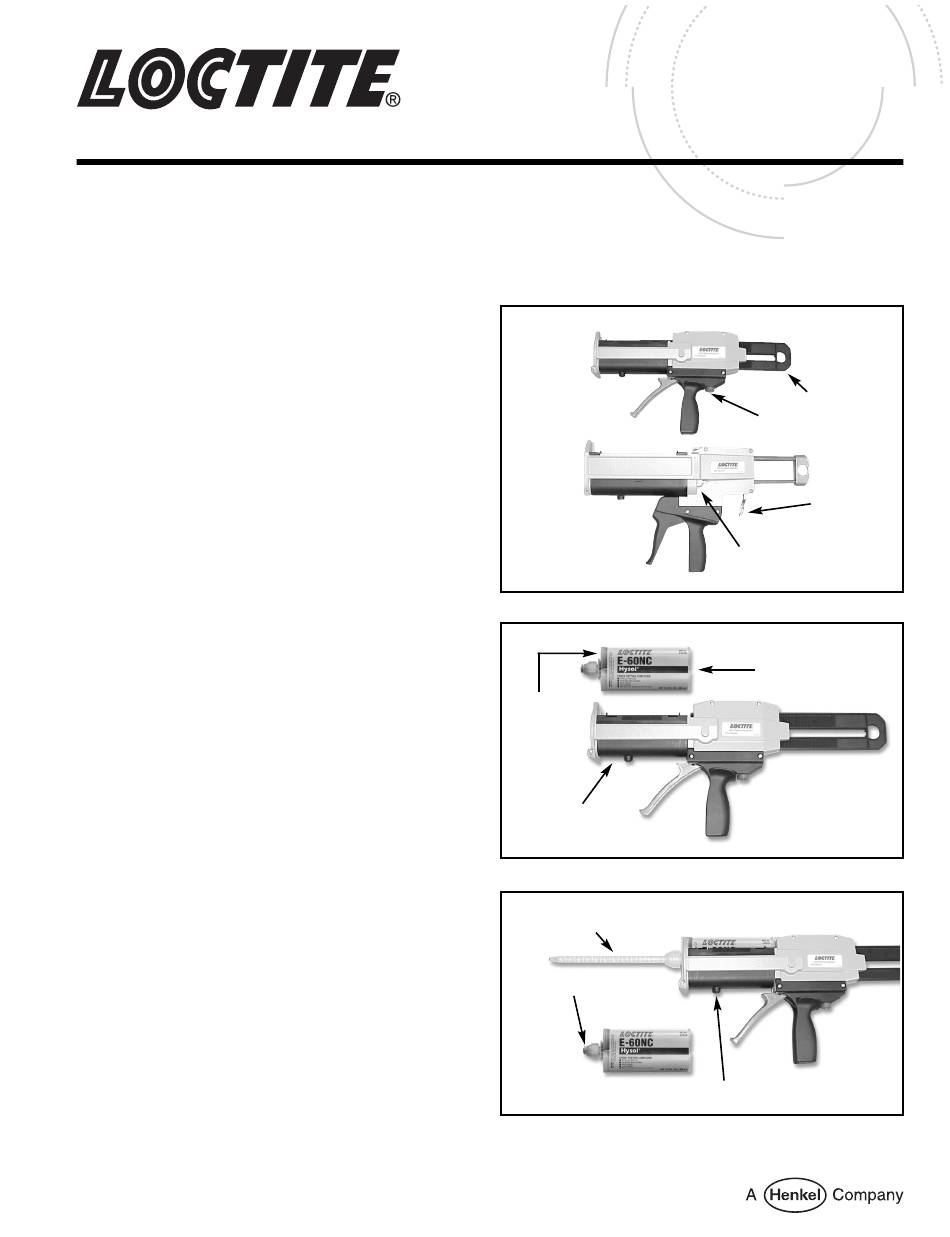

- Page 1 EQUIPMENT Instruction Sheet 200 ml Manual Applicator, 983436 400 ml Manual Applicator, 983438 INSTALLATION INSTRUCTIONS: Both applicators are fully assembled and ready to dispense 1:1 and 2:1 dual cartridges. For the 400 ml Manual Applicator only, select ratio. PLUNGER 200 ml For extended use, counterbalancing of applicator RELEASE CATCH is recommended.
