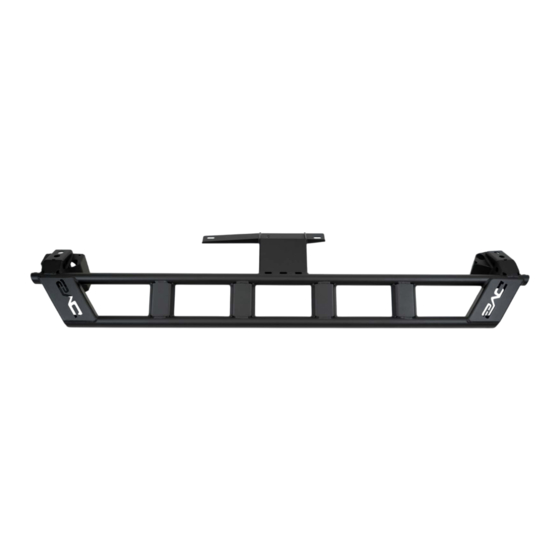

ROCK SLIDERS
2021+ 4 DOOR FORD BRONCO
SRBR-07
TOOLS
REQUIRED
- Pry Bar
- 13mm, 15mm, 18mm Sockets
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
555 E Queen Creek Rd
Bldg A
Chandler, AZ 85286
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
INSTALLATION
PRODUCT
TIME
- 3 Hours
Time to install this should only
take about three hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DV8 OFFROAD SRBR-07
Summary of Contents for DV8 OFFROAD SRBR-07
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (2) M12x30 Hex Bolts (2) M12 Flat Washers (2) M12 Lock Washer STEP 1 |...
- Page 3 INSTALLATION MANUAL STEP 3 | Remove the two outside bolts on the rear body mount using a 15mm socket. STEP 4 | Remove the two center bolts circled on the image. Loosen the three bolts to the fuel tank skid plate and allow for it to come down about two inches.
- Page 4 INSTALLATION MANUAL STEP 5 | With assistance, hold the slider up to the body mounts so the slider is positioned over the studs. Note: Each slider is labeled at the center mount showing a (D) for driver side and a (P) for passenger.
- Page 5 INSTALLATION MANUAL STEP 8 | Use a 18mm socket and factory hardware to secure the slider. STEP 9 | Secure the skid plate bolts. 855-680-9595 NEED HELP?
- Page 6 INSTALLATION MANUAL STEP 10 | Complete steps 2 & 3 for the driver side. STEP 11 | Use the provided M12 hardware for the center mount bracket. STEP 12 | Double check all hardware is secure. Congratulations, installation of the Bronco Rock Sliders is now complete.
