PROJECT NAME
REFRACTOR
BASED ON
®
Klon
Centaur / KTR
EFFECT TYPE
Overdrive
PROJECT SUMMARY
A part-for-part replica of a mythical overdrive effect noted for its high-end tone and price. The Klon
Centaur and its successor, the KTR, remain highly original designs in an industry full of clones and
tweaks to existing circuits.

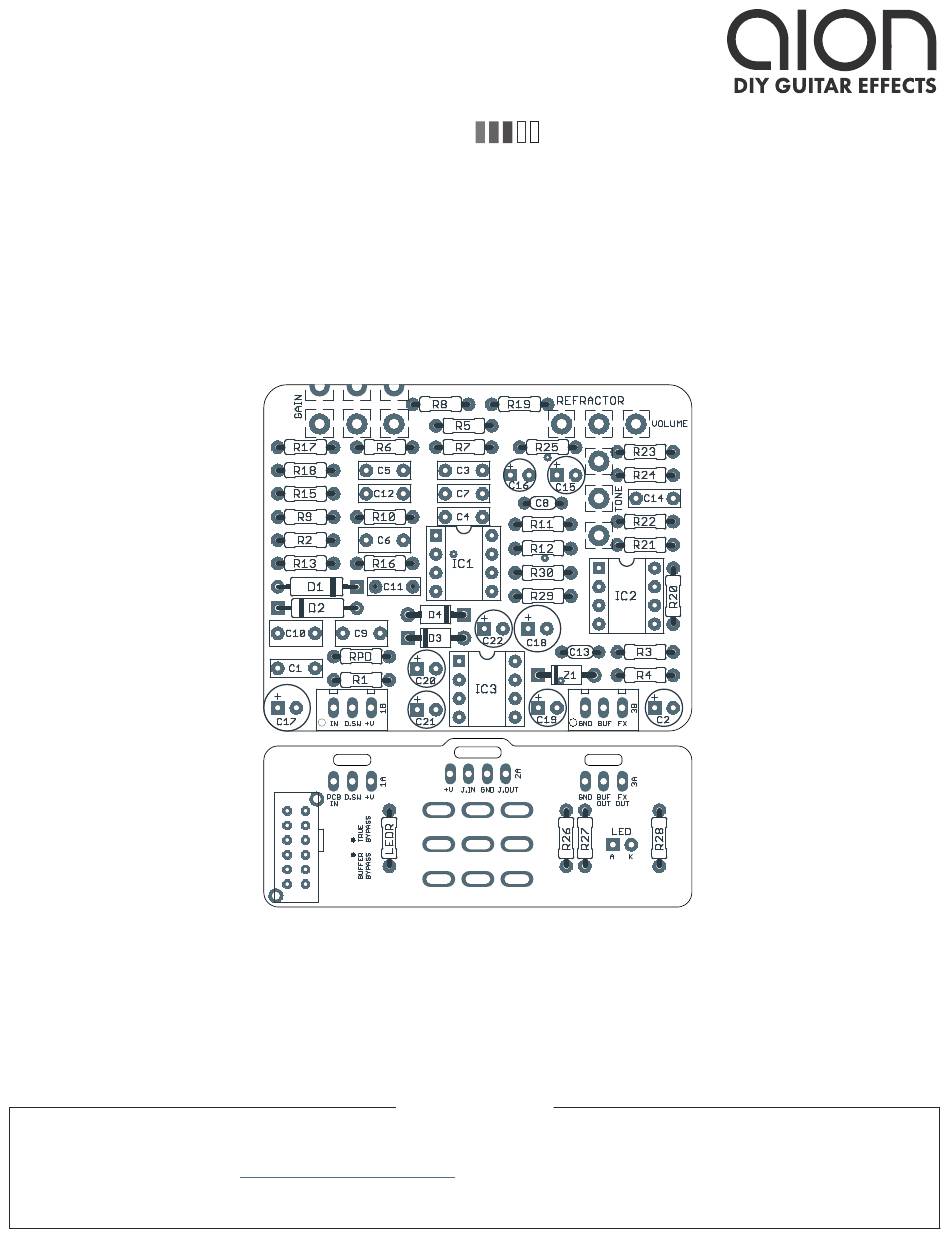

Actual size is 2.3" x 1.86" (main board) and 2.3" x 0.86" (bypass board).
This documentation is for the PCB-only version of the project. If you are building the full kit from
Aion FX, please use the
may differ in some areas due to the specialized parts and assembly methods used in our kits.
REFRACTOR PROFESSIONAL OVERDRIVE
IMPORTANT NOTE
kit build documentation
BUILD DIFFICULTY
Intermediate
DOCUMENT VERSION
1.0.3 (2024-08-08)
