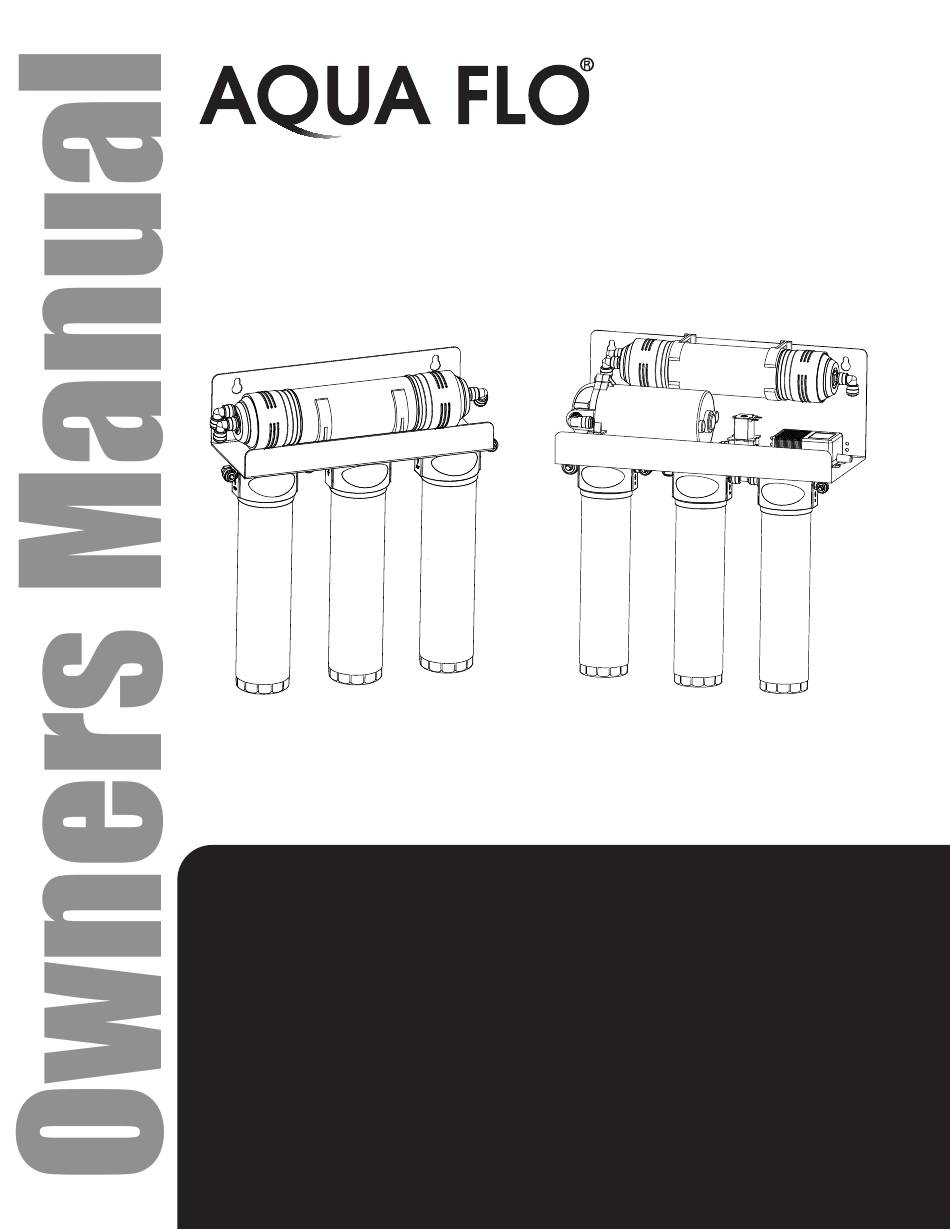

475/475BP PRO SERIES
RO Drinking Water System
475 PRO SERIES
 Please read carefully before proceeding with installation. Your failure to follow any attached instructions or
operating parameters may lead to the product's failure. Keep this Manual for future reference.
 Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection
before or after the system.
 If you are unsure about installing 475 PRO and 475, contact Dealer
 Test the water periodically to verify that the system is performing satisfactorily.
 Discard small parts remaining after the installation.
 Failure to install the system correctly voids the warranty.
 Handle all components of the system with care. Do not drop, drag or turn components upside down.
 Be sure the floor under the water filter system is clean, level and strong enough to support the unit.
BRAND: Aqua Flo 475 PRO and Aqua Flo 475 PRO BP
Canature WaterGroup Canada Inc.
855 Park St., Unit 1
Regina, SK, S4N 6M1
Toll Free: (877) 288-9888
Canature WaterGroup U.S.A. Inc.
6353 Commerce Drive
Whitestown, IN, 4607
Toll Free: (877) 288-9888
475BP PRO SERIES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUA FLO 475 PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Canature WaterGroup AQUA FLO 475 PRO Series

  • Page 1  Be sure the floor under the water filter system is clean, level and strong enough to support the unit. BRAND: Aqua Flo 475 PRO and Aqua Flo 475 PRO BP Canature WaterGroup Canada Inc. Canature WaterGroup U.S.A. Inc. 855 Park St., Unit 1...
  • Page 2: Table Of Contents

    HOW YOUR SYSTEM WORKS BEFORE YOU START TOOLS NEEDED SYSTEM LOCATION PARTS OF THE SYSTEM INSTALLATION STEPS INSTALLING THE FILTERS INSTALLING TANK BALL VALVE INSTALLING THE FAUCET INSTALL T ADAPTOR VALVE ON WATER SUPPLY INSTALLING THE DRAIN SADDLE INSTALLING THE UNIT INSTALLING TUBING INTO FITTINGS SANITIZE SYSTEM INSTALLING TUBING CONNECTIONS...
  • Page 3: How Your System Works

    HOW YOUR SYSTEM WORKS For best results it is recommended to install the R/O on a COLD softened water supply. The 475 Pro Series systems use four stages of treatment to filter your water: Stage 1. Remove sand, dirt, sediment Stage 2.
  • Page 4: Tools Needed

    TOOLS NEEDED 1. 3/8” variable speed electric drill; 1/8”, ¼”, ½” bits 2. Center punch and hammer 3. Phillips head and flat blade screwdrivers 4. Adjustable wrench 5. Teflon tape 6. Utility Knife SYSTEM LOCATION Your RO system may be installed under the sink, in a basement, or other location depending on available space. It is recommended the system be installed in as close a proximity to the faucet to ensure optimal system flow rate.
  • Page 5: Parts Of The System

    PARTS OF THE SYSTEM OPTIONAL DRAIN LINES (AIR GAP FAUCET) Automatic Shut-off Valve (Located behind RO Membrane) DRAIN Figure 1. Typical Installation The following components make up your Reverse Osmosis Drinking Water System: 1. Pre-filter (SED-10) Pre-filter (SED-10) removes larger particles such as sand, silt, and rust. 2.
  • Page 6: Installation Steps

    INSTALLATION STEPS 1. Cartridge Filters 2. Faucet 3. T Adaptor Valve 4. Waste Water Saddle 5. Tubing Connections 6. Flush System and Check Operation INSTALLING THE FILTERS Remove the protective wrap from the filter cartridge. Apply NSF certified silicon grease (provided) liberally on the filter o-ring. (Failure to do this can result in a slow leak or drip if the o-ring is too dry).
  • Page 7: Installing The Faucet

    INSTALLING THE FAUCET If the sink has a sprayer it may be disconnected for faucet installation. A pipe cap or plug will be necessary to seal the sprayer connection. The faucet should be positioned so it empties into the sink and the spout swivels freely for convenience. If sink has a hole that can accommodate the RO faucet, no drilling is required.
  • Page 8: Installing The Drain Saddle

    INSTALLING THE DRAIN SADDLE Prior to proceeding it is important to inspect the condition of drain pipes to make sure they are not thin and frail. Waste water saddles are designed to be installed on standard 1-1/2” OD drain pipe. Install waste water saddle above (and before) the trap and on the vertical or horizontal tailpiece.
  • Page 9: Installing Tubing Into Fittings

    INSTALLING TUBING INTO FITTINGS Step 1 Cut the tube square and remove burrs and sharp edges. Ensure that the outside diameter is free from score marks. For soft or thin walled plastic tubing we recommend the use of a tube insert. Step 2 Push the tube into the fitting and up to the tube stop.
  • Page 10: Flush System And Check Operation

    FLUSH SYSTEM AND CHECK OPERATION Start-up 1. Check all connections to be sure they are secure. 2. Turn on feed water valve and check for leaks. (turn off and correct leaks if leaks occur). 3. Close faucet and wait 5 minutes to see if leaks result. (turn off and correct leaks if leaks occur). Flush System and Check Operation 1.
  • Page 11 FILTER CHANGE SCHEDULE (CONTINUED) To Disconnect To Drain To Shut off Valve Figure 4. RO Membrane To disconnect, ensure that the system is depressurized, push the collect square against the fitting. With the collet held in this position the tube can be removed. TROUBLE SHOOTING PROBLEM CAUSE...
  • Page 12: Spare Parts List

    SPARE PARTS LIST Part # Part Description 65010086 SEDIMENT FILTER SED-10 2 / 3 65010088 CARBON FILTER COC-10 2 / 3 65010089 CARBON FILTER GAC-10 70010014 75 GPO MEMBRANE 92263 FLOW CONTROL 300ML/MIN 92223 RO SHUTOFF VALVE 1/ 4” QC 65030028 PRODUCT WATER CHECK VALVE Ci0308W...
  • Page 13: Flow Diagrams

    FLOW DIAGRAMS 475 PRO-SERIES (NO PUMP) 30 GAL FAUCET TANK SHUT-OFF VALVE CHECK VALVE MEMBRANE INLET TO DRAIN...
  • Page 14: Demand Pump Diagram

    FLOW DIAGRAMS (CONTINUED) 475BP PRO-SERIES (WITH PUMP) 30 GAL FAUCET TANK HIGH PRESSURE SWITCH BOOSTER PUMP CHECK VALVE MEMBRANE INLET SOLENOID PRESSURE VALVE SWITCH TO DRAIN DEMAND PUMP DIAGRAM 475BP PRO-SERIES (WITH DEMAND PUMP) Faucet PRESSURE TANK (From Tee) To Fridge (Option) Membrane Auto...
  • Page 15: Electrical Diagrams

    ELECTRICAL DIAGRAMS WIRING DIAGRAM 475BP PRO-SERIES (WITH PUMP) TRANSFORMER LOW PRESSURE SWITCH SOLENOID PUMP HIGH PRESSURE SWITCH OPERATION SPECIFICATIONS WATER SUPPLY CHLORINATED / NON-CHLORINATED INLET WATER PRESSURE 40 - 100 PSI INLET WATER PRESSURE 15—60 PSI (BOOSTER PUMP MODELS) TEMPERATURE 40 - 100F 3.0 -11.0 MAX.
  • Page 16: Warranty

    WaterGroup™. If any part is found defective, Canature WaterGroup™ also reserves the right to replace the drinking water appliance with a compar- able Canature WaterGroup™ drinking water system of equal or greater quality. You pay only freight for repaired or replaced parts from our factory.
