Carrier TRANSICOLD Supra Series Operator's Manual

Truckrefrigeration units
Hide thumbs Also See for Supra Series:

Advertisement

Table of Contents

Operator's Manual
Supra Series
TM
TruckRefrigeration Units
62-12342

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Supra Series and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier TRANSICOLD Supra Series

Summary of Contents for Carrier TRANSICOLD Supra Series

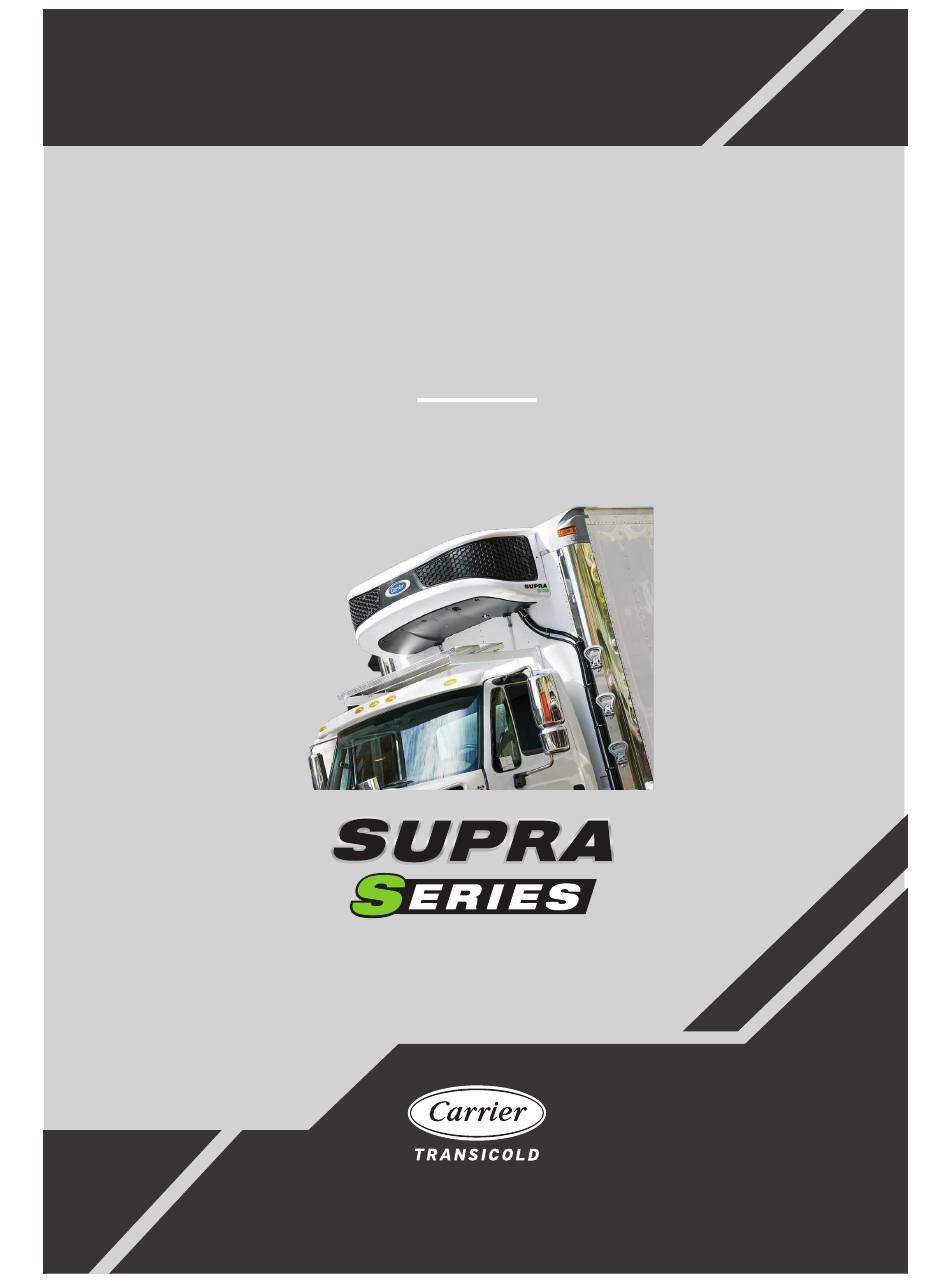

  • Page 1 Operator’s Manual Supra Series TruckRefrigeration Units 62-12342...
  • Page 3 Operator Manual Supra Series Truck Refrigeration Units © 2024 Carrier Corporation Printed in USA September 2024 ●...
  • Page 4 Manual Revision History: 62-12342 Rev. Date Reason for Release 9/17/2024 New product added, manual supersedes 62-12002...

  • Page 5: Table Of Contents

    Table of Contents 1. Introduction ..................1 2. Unit Identification ................2 3. Safety ....................3 4. Pre-Trip Inspection ................4 5. Unit Operation .................. 7 6. Troubleshooting Considerations and Alarms ....... 18 7. Product Loading ................20 8. Fuse and Relay Locations ............23 9.

  • Page 7: Introduction

    1. Introduction This guide has been prepared for the operator of Carrier Transicold diesel truck refrigeration units. It contains basic instructions for the daily operation of the refrigeration unit, as well as safety information, troubleshooting tips and other information that will help you to deliver the load in the best possible condition.

  • Page 8: Unit Identification

    2. Unit Identification 2.1 Nameplate Each Supra Series unit is identified by a nameplate attached to the frame. This nameplate identifies the complete model number of the unit, the serial number, the refrigerant charge and quantity, and the date the unit was placed in service.

  • Page 9: Safety

    3. Safety Your Carrier Transicold refrigeration unit has been designed with the safety of the operator in mind. During normal operation, all moving parts are fully guarded to help prevent injury. During all pre-trip inspections, daily inspections, and problem troubleshooting you may be exposed to moving parts.
  • Page 10 3.3 Refrigerants The refrigerant contained in the refrigeration system can cause frostbite, severe burns, or blindness when in direct contact with the skin or eyes. For this reason and because of legislation regarding the handling of refrigerants during system service, we recommend that whenever this unit requires service of the refrigeration system, you contact your nearest Carrier Transicold authorized repair facility for service.

  • Page 11: Pre-Trip Inspection

    4. Pre-Trip Inspection Perform a pre-trip inspection before picking up any load. This inspection is essential to anticipate and help minimize the possibility of over-the-road problems. These checks take only a few minutes. WARNING Inspect battery cables for signs of wear, abrasion or damage at every pre trip inspection and replace if nec- essary.
  • Page 12 4. Pre-Trip Inspection (continued) 6. General Unit: Visually inspect the entire unit for leaks, loose bolts, frayed, loose, or broken wires, etc. The radiator and condenser coils of the unit must be free of dirt, bugs, cardboard, or any other debris that may obstruct airflow across the coils.

  • Page 13: Unit Operation

    5. Unit Operation Figure 2 - Cab Command 1. RUN/STOP 2. UP ARROW (▲)/ENTER (=)/ DOWN ARROW (▼) 3. ROAD/STANDBY MODE 4. CITY SPEED MODE 5. AUTO START/STOP & CONTINUOUS 6. FUNCTION 7. UNIT DATA (SINGLE T°) • UNIT DATA + COMPARTMENT (MULTI T°) 8.
  • Page 14 5.1 Starting the Unit - Road Operation 1. Place the RUN/STOP switch (1) in the RUN position (I). 2. If the unit was running in Standby mode, press the ROAD/ STANDBY key (3) to switch to Diesel mode. 5.2 Starting the Unit - Standby Operation 1.
  • Page 15 5.5 Compartment Display Status Display & Enable / Disable Compartment (Multi-Temp ONLY) 5.5.1 Compartment Display Status Display 1. Press once the UNIT DATA + COMPARTMENT key (7) to display compartments status. • Only active compartments are displayed. 5.5.2 Enable/Disable Compartment 1.
  • Page 16 5.8 Adjust the Temperature Setpoint 1. Press or hold the ▲ key to increase / ▼ key to decrease the tem- perature set point. 2. Once the desired set point is displayed, press the ENTER key (=) to set the change. •...
  • Page 17 Table 1 - Unit Data List Sensors Ambient Air Temperature (entering condenser) Return Air Sensor (entering evaporator) Supply Air Temperature (leaving evaporator) Delta-T: Supply Air Temperature minus Return Air Temperature (negative value indicates cooling and a positive value indicates heating) Defrost Termination Temperature Remote Sensor 1 Remote Sensor 2...
  • Page 18 Table 1 - Unit Data List (continued) Engine ENCT Engine Coolant Temperature Diesel Engine Speed BATT Battery Volts DC Current Sensor (displayed in amps) Fuel Level% Displayed only if the fuel level sensor is installed 5.11 Function 1. Press the FUNCTION key (6) to access the function menu. 2.
  • Page 19 5.11.1 Function/Parameter List Table 2 - Functional Parameters Parameter Description Range Timer SLEEP Enable or disable Sleep mode 0 - Off 1 - On Default: Off SLEEPWAKE Set a wake-up time - when 0 - Off Sleep mode will wake up, 1 - On ranging from one hour to eight Default: Off...
  • Page 20 Table 2 - Functional Parameters (continued) DATE Determines date format on 0 - MM/DD/YYYY display 1 - DD/MM/YYYY Default: MM/DD/YYYY BRIGHT Determines brightness on Setting is 0 to 100. display SS Parameter MIN RT Minimum run time for 4 to 60 minutes, with 1 perishable setpoints in Start/ minute intervals Stop mode...
  • Page 21 Table 2 - Functional Parameters (continued) Other DEFR The time interval between 0 - 1.5 hours defrost cycles 1 - 3 hours 2 - 6 hours 3 - 12 hours Default: 6 Hours SWT DSL Switch to Diesel: When this 0 - No functional parameter indicates 1 - Yes...
  • Page 22 Table 2 - Functional Parameters (continued) OVR SWITCH Indicates if the remote switch 0 - No 1 alarm should override the 1 - Yes shutdown of the unit. If the Default: No Override Remote Switch 1 Shutdown functional parameter = Yes, the remote switch 1 alarm controller response is alarm only regardless of the configuration...
  • Page 23 MODf PRETI/IP TIMER PAIIAMETEIIS SETTINC OTHfllS LSCCN Pf/ETIIIP 11S71l TEMP MINRT ,., ==.,. SLEEP loN�dcl'i/ mtort · IN1Jt 4""a!1"'1 l'Prfsll ,.., PRE1TUPston Pensh r,n,. swr. HIHOf LSSS · - � ••� <'":Ji! "' -m,llc(ftil'M ,spooddltloe l.oN :. , eno buid .,_., ..

  • Page 24: Troubleshooting Considerations And Alarms

    If, however, problems occur, the following section may be of assistance. If the problem you are experiencing is not listed, please contact your Carrier Transicold dealer for assistance. Table 3 - General Problems Battery insufficiently charged...
  • Page 25 Table 3 - General Problems (continued) Fuel supply restricted No fuel in tank Leak in fuel system Faulty fuel control operation Fuel filter restricted Engine stops after several Injector nozzle(s) defective rotations Injection pump defective Air cleaner or hose restricted Safety device open Fuel pump (FP) malfunction Starter motor turns but pin-...

  • Page 26: Product Loading

    7. Product Loading Defrost: Properly defrost your transport refrigeration unit. Clean the Equipment: Especially the interior - walls, roof and floor. NOTE When washing the vehicle, DO NOT point the high-pressure water under the skin. DO NOT spray water on electric components Partial Loading: Use movable bulkheads to limit compartment size in case of partial loading.
  • Page 27 Separate Goods: Do not mix refrigerated and dry goods in the same compartment. The second compartment cannot be cooled by a fan from the first compartment for hygiene reasons. Temperature Control: Measure the temperature of goods with the right equipment to ensure correct product loading temperature. Do not obstruct the evaporator with the loaded goods.
  • Page 28 Parking: Part the vehicle in the shade. Do not park your vehicle in a slope greater then 10%. Unit Storage: In the event of a prolonged shutdown, open the doors and compartments of the refrigerated box. Never leave your unit more that a month without running.

  • Page 29: Fuse And Relay Locations

    8. Fuse and Relay Locations The fuses and relays that protect the unit are located on the TPC board in the control box on the roadside of the unit. They are accessible by loosening the screws that hold the control panel closed. Table 4 - Fuse Identification Fuse Designation...
  • Page 30 Table 4 - Fuse Identification (continued) Fuse Designation 5 Amps Automatic Phase Reversal 7.5 Amps Evap Fan Relays 20 Amps Fuel Pump Fuse Fuses Outside TPC Board 50 Amps Condenser Fans 40 Amps Condenser Fans 30 Amps Evaporator Fans 30 Amps Evaporator Fans 30 Amps Evaporator Fans...

  • Page 31: Unit Maintenance

    9. Unit Maintenance For the most reliable operation and for maximum life, your unit requires regular maintenance. This includes oil and filter changes, fuel and air filter replacement, and coolant system maintenance. Perform maintenance according to the following schedule (in hours): Table 6 - Maintenance Intervals Service Hours...
  • Page 32 .2 Unit Maintenance Schedule Table 7 - Maintenance Schedule Initial Check Service Service Before running Report any sign of damage on vehicle/ body/ refrigeration unit. Check coolant level; report strength. Write down hour meter diesel and standby. Visually check the tightness of fixing bolts/screws, frame, metalworks including remote evaporators and heater bracket...
  • Page 33 Table 7 - Maintenance Schedule (continued) Initial Check Service Service Connect gauges and start the engine Check operator panel, display, light, switches (including evaporator door switch, undermount safety switch) Check all sensors, transducers consistency between each others Check glow plug operation, connections, secure the wire Perform pull down test Check on sight glass refrigerant...
  • Page 34 Table 7 - Maintenance Schedule (continued) Initial Check Service Service Stop the engine. Lock out tag out. Check fuel pump filter, clean if necessary, replace bowl gasket Check oil level and refill if required. Check for oil leak Drain and refill oil Replace oil filter and bypass filters, fuel filter, air filter Check air filter element.
  • Page 35 Table 7 - Maintenance Schedule (continued) Initial Check Service Service Remove lock-out/tag-out. Start the unit on standby. Check date and time in micro. Check and confirm all current product upgrades have been completed Replace maintenance sticker & clean unit of marks made during service Every two years Replace coolant and coolant bottle...

  • Page 36: Standby Operation Guidelines

    10. Standby Operation Guidelines For safe, reliable operation in Standby mode, it is important to follow a few guidelines: • Never plug the unit into the power source with the main switch in the RUN (I) position. The main switch must always be in the STOP (O) position when connecting the unit to the power source.

  • Page 37: Emergency Road Service

    11. Emergency Road Service Carrier Transicold works hard to provide complete service when and where it is needed. That means a network of dealers that offer 24-hour emergency service. These service centers are manned by factory trained service personnel and backed by extensive parts inventories that will assure a prompt repair.
  • Page 40 Central America and Mexico Carrier Transicold Carrier Transicold 700 Olympic Drive Ejercito Nacional 253-A Piso 5 Athens, GA 30601 USA Colonia Anahuac 11320 Mexico D.F. ©2024 Carrier Corporation. Printed in USA 09/24. Carrier, Carrier Transicold is a registered trademark of Carrier Corporation.
