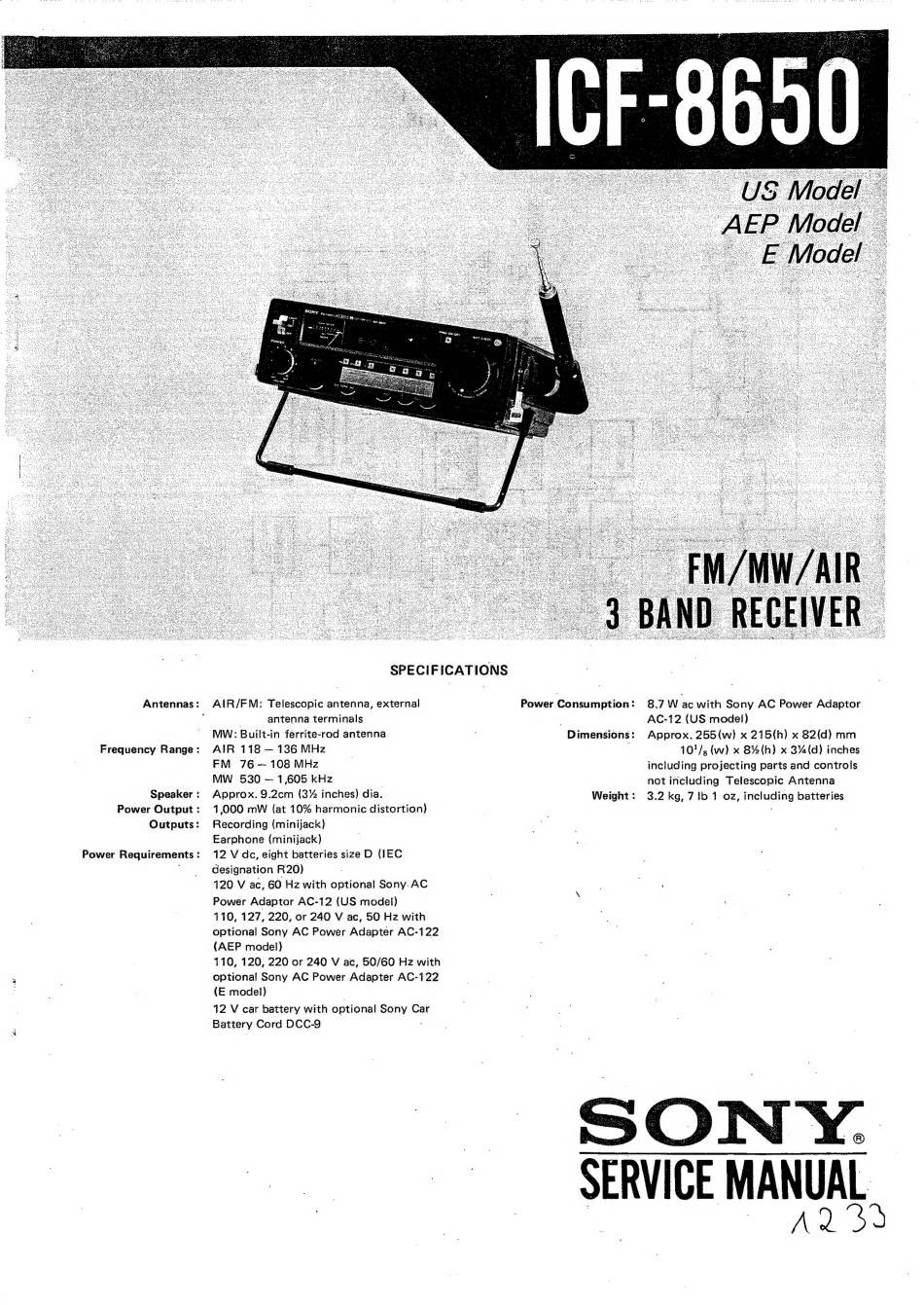

Sony ICF-8650 Service Manual

~
Antennas:
Frequency Range:
Speaker :
Power Output:
Outputs:
Power Requirements :
SPECIFICATIONS . 7
AIR/FM: Telescopic antenna, external Power Consumption: 8.7 W ac with Sony AC Power Adaptor
| antenna terminals . AC-12 (US model)
MW: Built-in ferrite-rod antenna Dimensions: Approx. 255(w) x 215(h) x 82(d) mm
AIR 118—136MHz | 10/3 (w) x 8%(h) x 3%(d) inches
FM 76 — 108 MHz including projecting parts and controls
MW 530 — 1,605 kHz | not including Telescopic Antenna
Approx. 9.2cm (3% inches) dia. Weight: 3.2 kg, 7 1b 1 oz, including batteries
1,000 mW (at 10% harmonic distortion) |
Recording (minijack)
Earphone (minijack)
12 V dc, eight batteries size D (IEC :
designation R20)
120 V ac, 60 Hz with optional Sony.AC |
Power Adaptor AC-12 (US model) Fs ;
110, 127, 220, or 240 V ac, 50 Hz with
optional Sony AC Power Adapter AC-122 .
(AEP model) | |
110, 120, 220 or 240 V ac, 50/60 Hz with | '
optional Sony AC Power Adapter AC-122
(E model) | |
12 V car battery with optional Sony Car
Battery Cord DCC-9 : ;
