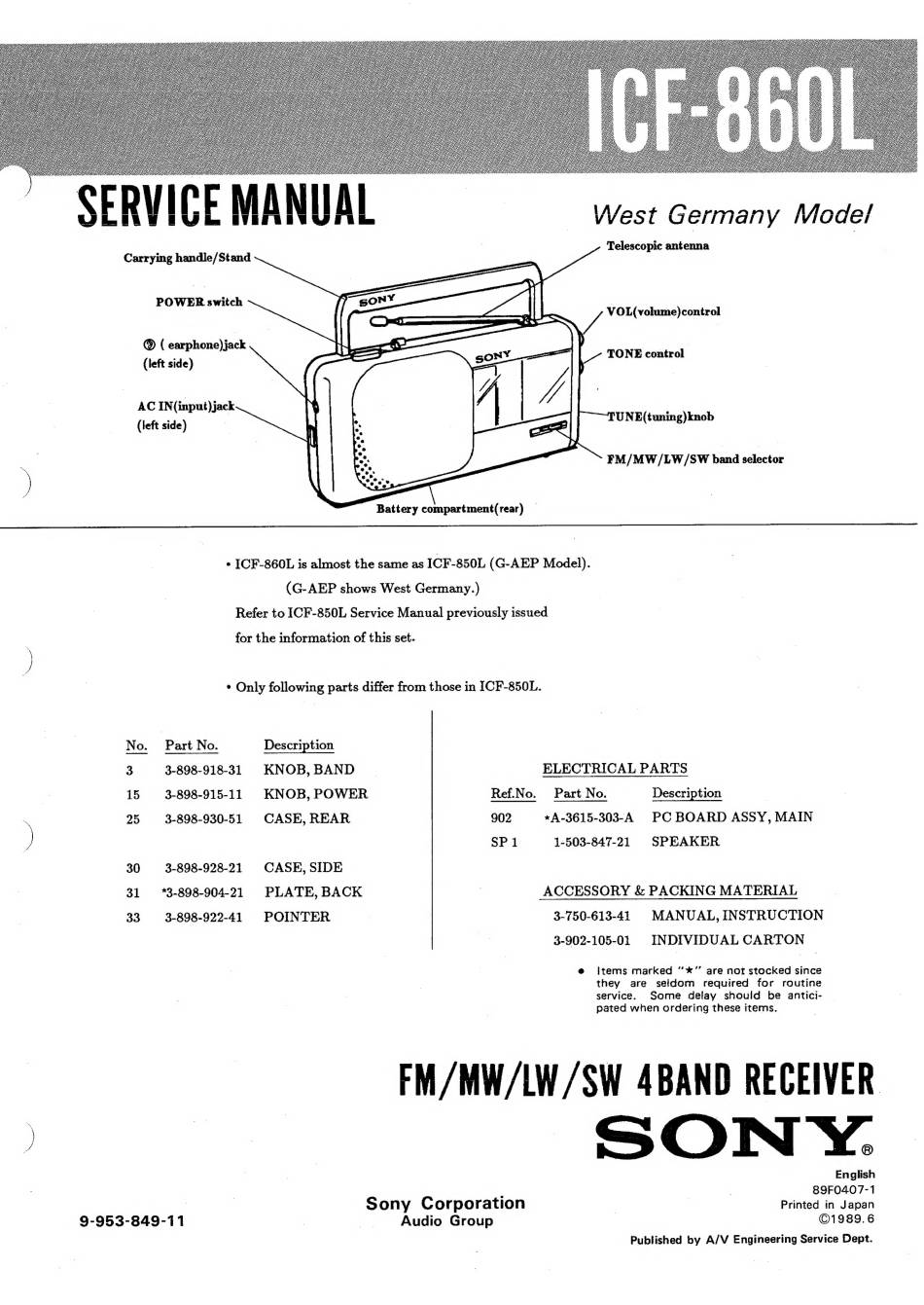

Telescopic antenna
Carrying handle/Stand
POWER switch
|
VOL(volume)control
® ( earphone) jack
AC IN(input) jack
FM/MW/LW/SW band selector
Battery compartment(rear)
—
- ICF-860L is almost the same as ICF-850L (G-AEP Model).
(G-AEP shows West Germany.)
Refer to ICF-850L Service Manual previously issued
for the information of this set.
* Only following parts differ from those in ICF-850L.
No.
Part No.
Description
3
3-898-918-31
KNOB,BAND
|
ELECTRICAL PARTS
15
3-898-915-11
KNOB, POWER
Ref.No.
Part No.
Description
|
25
3-898-930-51
CASE, REAR
902
*A-3615-303-A
PC BOARD ASSY, MAIN
)
SP 1
1-503-847-21
SPEAKER
30
3-898-928-21
CASE, SIDE
31
*3-898-904-21
PLATE, BACK
|
ACCESSORY & PACKING MATERIAL
33
3-898-922-41
POINTER
|
3-750-613-41
MANUAL, INSTRUCTION
3-902-105-01
INDIVIDUAL CARTON
@
items marked
"*" are not stocked since
they
are
seldom
required
for
routine
service.
Some
delay
should
be antici-
pated when ordering these items.
FM/MW/LW/SW 4BAND RECEIVER
English
|
Sony
Corporation
|
|
Printed in Japan
9-953-849-1711
|
Audio
Group
©1989.6
Published by A/V Engineering Service Dept.
