Kamar LB0073 User Manual

User manual
LB0073

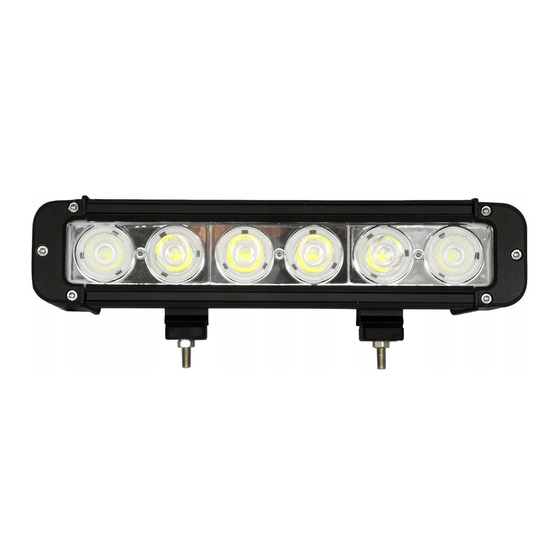

Panel LED 6 x LED KMR8
Technical data
• Product dimensions: 1076x63mm
• Cable: 500mm
• Working voltage: 12/24V
• Approvals, certificates: R10
• Power consumption: 48W
• LED quantity: 6pcs
• Lumens: 1950LM
• Light color: cold
• Light stream: flood
• Material of execution:
Housing: AL.
Lens: PC
• Working temperature: from -40°C to +65°C
• Package Contains:
1pc panel LED
Set of screws and mounting brackets
Functions
• Panel LED for use in vehicles off public roads
• For automo ve use only
• The lamps have electromagnetic compatibility approval confirmed by E-mark R10
• The lamp is intended for vehicles with 12/24V installation
The lamp is intended for vehicles with a 12/24V installation
• Reverse polarity protection
Reverse polarity protection
Mounting method
• Installation only in specialized workshops or professional service
• Lamps must be installed only in accordance with the UNECE regulations
• For proper installation and use of the lamps, it is recommended to read the instructions to ensure safe use and durability of the product
In case of changing the existing incandescent/halogen lighting to LED lighting in the installation, no changes are required, apart from replacing the lamps themselves.
•
When installing new/additional LED lighting, the current carrying capacity of the switch to which the lamp is to be connected should be verified. If the current carrying capacity of the switch to
•
which we want to connect LED lighting is exceeded, an additional relay must be used.
• User manual available for download at www.mykamar.com
Wire connection
FUNCTION
Ground
Plus
The connection between the lamp and vehicle's installation should be isolated with heat-shrink
tube, to avoid getting water and moisture to the copper wire of the lamp, which can damage
electronic components and flood the lamp with water.
Warnings
• Use as intended
• Use in airy places
• Do not touch the lamp during operation and immediately after it is turned off, the lamp may get warm
Any unauthorized interference with the lamp (associated with its depressurization, interference with the electronic system, etc.) is associated with the loss of warranty
•
• The device must be installed and kept out of reach of children
• Do not cut off tinned ends.
Marking on the product or in the related texts indicates that it should not be disposed of with other household waste at the end of its useful life. To avoid damaging the environment and human health by uncontrolled disposal, please separate the product from another
type of waste and recycle it responsibly to promote the reuse of material resources as a permanent practice. For information on where and how to safely recycle this product, household users should contact the retailer where they purchased the product. Users in
companies should contact their supplier and check the terms of the purchase agreement.The product should NOT be disposed of with other commercial waste.
We reserve the right to change technical data and possible errors. Photos/drawing and technical data are only
illustrative, and given product may slightly differ from them. Coping the part or the entire package without the
written authorization is forbidden. All rights reserved.
WIRES COLOR
Black
Red
Important! Do not look directly at the light. It can cause the eye damage
Correct disposal of the product (used electrical and electronic equipment)
An example of a work lamp connection diagram
Terms of warranty:
- we provide a guarantee for a period of 24 months from the date of sale,
- any unauthorized interference with the item entails the loss of the guarantee.
