QUICKSTART GUIDE
HARRIER 3G-SDI
CAMERA INTERFACE BOARD
Introduction
This guide is designed to get you quickly up and running with the Harrier 3G-SDI Evaluation Kit
(AS-CIB-3GSDI-002-EVAL-B) and the Harrier 3G-SDI Camera Interface Board
(AS-CIB-3GSDI-002-A). The interface board can be purchased as a pre-assembled camera module with
a range of different cameras, e.g. Tamron MP3010M, Sony EV-series or Harrier 10x/36x/40x/55x AF-
Zoom Cameras.
This document should be read in conjunction with the Harrier 3G-SDI Camera Interface Board datasheet
and other documents available on
Downloads section):
https://www.activesilicon.com/products/harrier-3g-sdi-camera-interface-board-75-ohm/
a)
b)

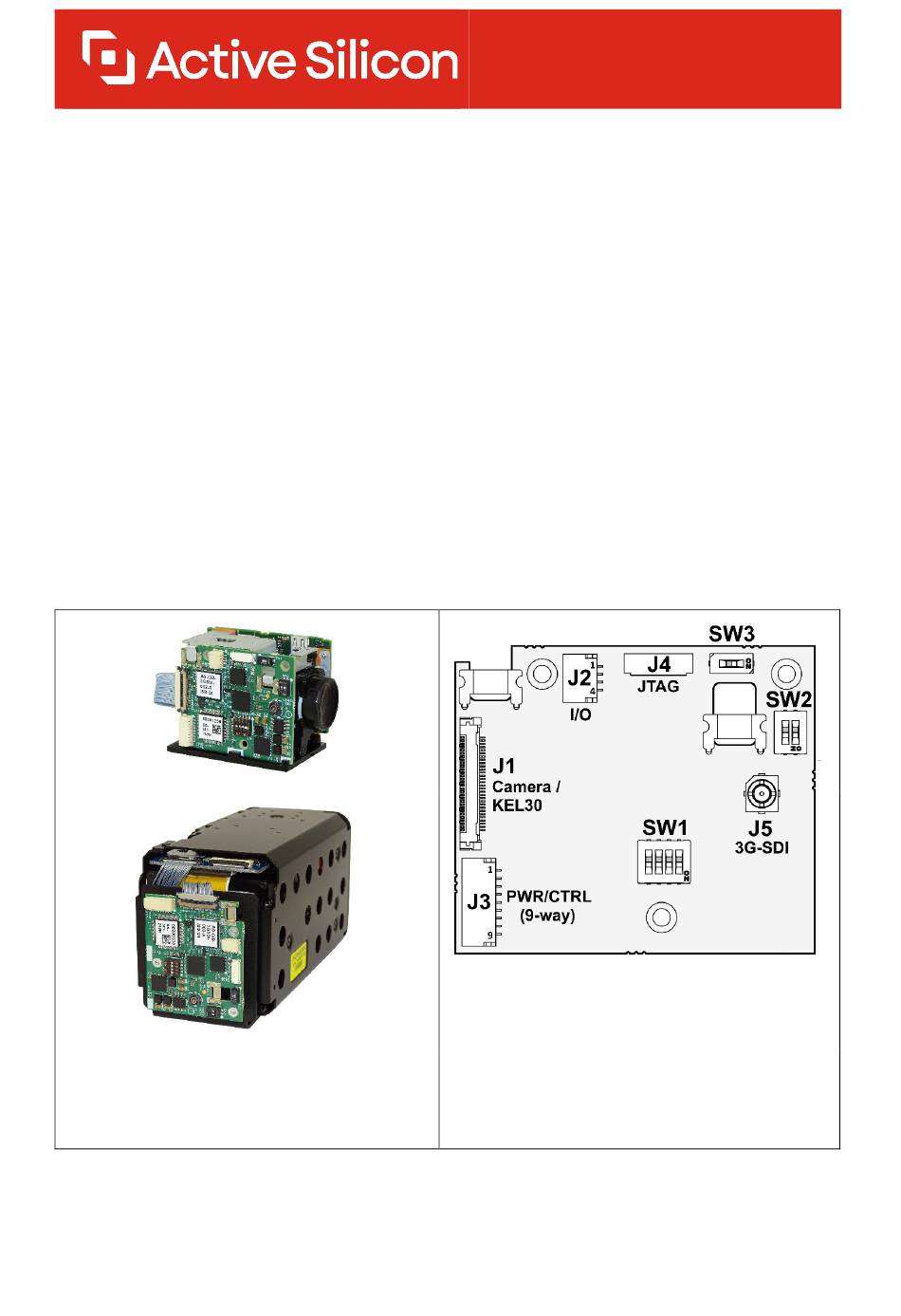

Figure 1. Harrier 3G-SDI Camera Interface
Board mounted on a) Tamron MP3010M-EV
and b) Harrier 36x AF-Zoom Camera with
global shutter
The Harrier 3G-SDI Camera Interface Board can be customized to deliver application specific functions;
USB/HDMI, HDMI-only or USB-only interface boards are also available.
For more details contact Active Silicon.
Version 1.6.3 July 2024
Active Silicon's website,
Figure 2. Block diagram of Harrier 3G-SDI
Camera Interface Board showing position of
connectors and SW1, SW2 and SW3 DIP
switches
HARRIER 3G-SDI QSG
(see Harrier 3G-SDI Camera Interface Board -
Page 1 of 10
